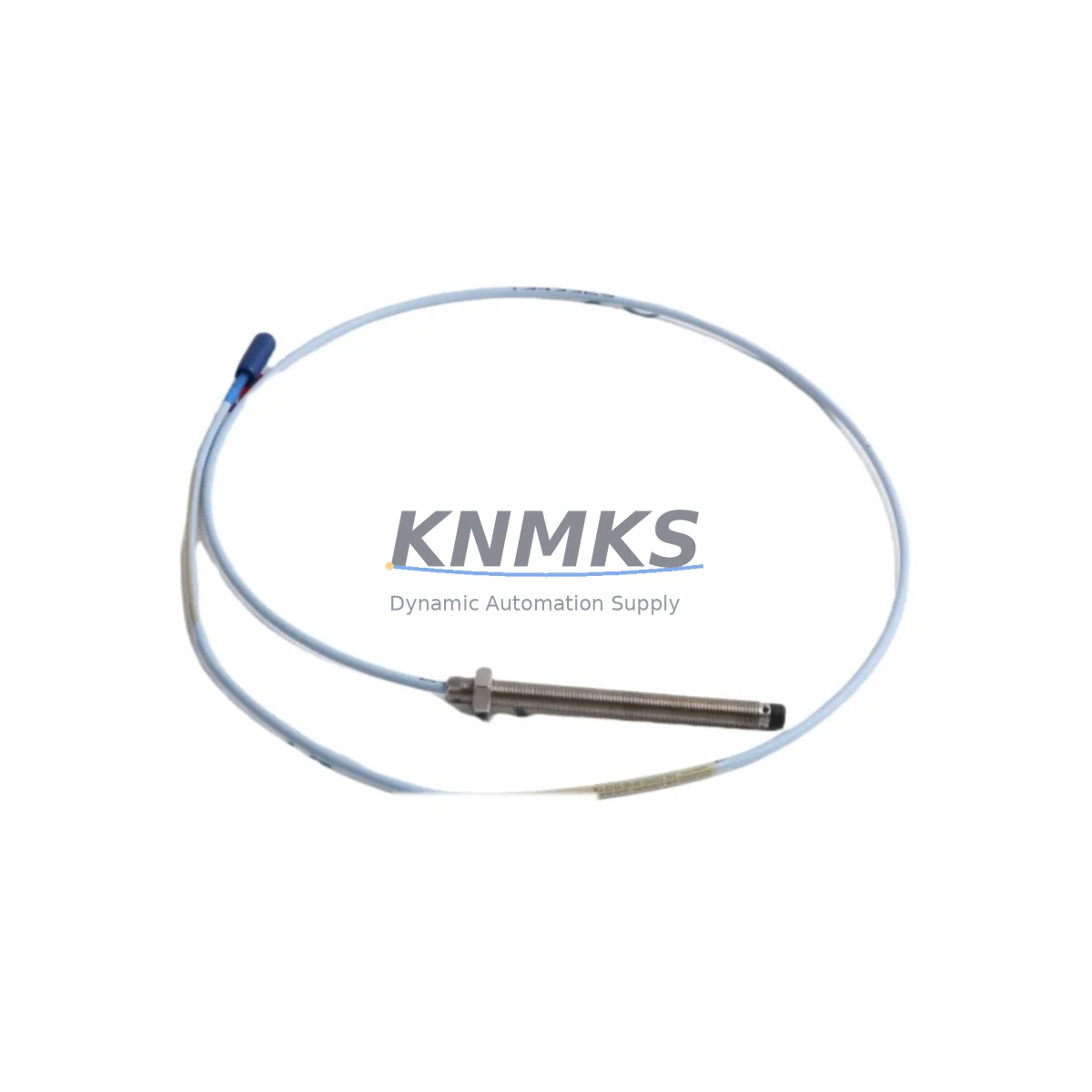

Bently Nevada 330101-00-40-10-01-05 Fail-Safe Proximity Transducer

Overview

Bently Nevada 330101-00-40-10-01-05 Fail-Safe Proximity Transducer: Fault-Protection and Critical Industrial Field Reliability

The Bently Nevada 330101-00-40-10-01-05 is an 8mm eddy-current proximity transducer from the industry-proven 3300 XL Series, engineered for continuous, fail-safe shaft vibration and position monitoring in the most demanding industrial environments. Designed to meet the rigorous requirements of rotating machinery protection systems, this transducer delivers stable, drift-free output signals even under severe electromagnetic interference, high-temperature cycling, mechanical vibration, and moisture ingress — conditions that routinely compromise lesser sensing components and trigger unplanned shutdowns.

In critical control loops where a single measurement failure can cascade into a full process trip, the 330101-00-40-10-01-05 provides the signal integrity and mechanical robustness that plant engineers and reliability teams depend on. Its non-contact sensing principle eliminates mechanical wear, ensuring consistent performance across extended service intervals without recalibration drift. The transducer is fully compatible with the Bently Nevada 3300 XL proximitor/driver system, enabling seamless integration into existing machinery protection architectures without rewiring or signal conditioning changes.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a well-engineered machinery protection cabinet, the 330101-00-40-10-01-05 transducer operates as the primary sensing element within a layered fault-detection architecture. The transducer connects to a Bently Nevada 3300 XL 8mm Proximitor Sensor (driver module), which conditions the raw eddy-current signal into a calibrated DC voltage output suitable for the protection system’s analog input cards. This driver-transducer pairing is the foundation of API 670-compliant vibration monitoring and must be maintained as a matched set to preserve measurement accuracy.

Within the same control cabinet, the Bently Nevada 3500/42M Proximitor/Seismic Monitor processes the conditioned signal and executes trip logic for radial vibration, axial position, and differential expansion — providing the relay outputs that drive safety interlock circuits. To protect the entire monitoring chain from power-line transients and voltage surges common in heavy industrial facilities, a Phoenix Contact TRABTECH surge protection device is typically installed on the 24 VDC supply rail feeding the 3500 rack. This prevents surge-induced false trips and protects sensitive signal conditioning electronics from damage during switching events or nearby lightning strikes.

For facilities operating in high-EMI environments — such as those with large variable-frequency drives, arc furnaces, or high-current bus bars — the signal cable routing between the 330101-00-40-10-01-05 and its proximitor driver must be segregated from power cabling. Supplementing the installation with a Belden 9182 shielded instrumentation cable or equivalent low-capacitance coaxial extension cable maintains signal integrity over longer cable runs. In cabinets where thermal management is a concern, a Rittal SK 3105 cabinet cooling unit or equivalent forced-air cooling system prevents ambient temperature rise from affecting the proximitor’s internal electronics, which can introduce zero-drift errors in the transducer output signal. Finally, a Bently Nevada 3500/15 Power Supply with redundant input capability ensures the monitoring rack remains energized during utility power interruptions, eliminating the risk of a protection system blackout during the most critical moments of a process upset.

Critical Industrial Safety Applications

The 330101-00-40-10-01-05 proximity transducer is deployed across a broad spectrum of critical industrial applications where rotating machinery reliability is directly linked to process safety and production continuity.

In petrochemical and refinery facilities, this transducer monitors shaft radial vibration and axial position on centrifugal compressors, boiler feed pumps, and turbine expanders. An undetected bearing failure or rotor rub in these machines can result in catastrophic mechanical damage, process gas release, or fire — making continuous, fail-safe vibration monitoring a non-negotiable safety requirement under IEC 61511 functional safety standards.

In power generation plants — including coal-fired, gas turbine, and hydroelectric facilities — the 3300 XL transducer system provides the shaft monitoring data that feeds turbine protection systems. Trip-level vibration signals from this transducer can initiate an emergency shutdown before a developing rotor imbalance or bearing failure escalates to a forced outage or equipment loss.

In mining and mineral processing operations, large ball mills, SAG mills, and slurry pumps operate under extreme mechanical loading and vibration. The IP67-rated, high-temperature-tolerant construction of the 330101-00-40-10-01-05 makes it well-suited for these environments, where dust ingress, moisture, and mechanical shock are constant challenges for instrumentation reliability.

In water and wastewater treatment plants, high-speed centrifugal pumps and blowers require continuous vibration monitoring to prevent bearing failures that would interrupt treatment processes and create regulatory compliance risks. The non-contact, wear-free sensing principle of this transducer ensures long-term measurement stability without the maintenance burden of contact-type sensors.

In metallurgical and steel production facilities, where continuous casting machines, rolling mill drives, and large induction motors operate around the clock, the 330101-00-40-10-01-05 provides the real-time shaft displacement data needed to detect developing mechanical faults before they cause unplanned production stoppages — protecting both equipment assets and worker safety in high-hazard environments.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the 330101-00-40-10-01-05?
All units supplied by KNMKS carry a support terms confirmed by quotation covering manufacturing defects and signal performance. Support requests are supported with direct technical assistance and replacement unit dispatch to minimize your downtime exposure.

Q2: How is each unit tested before shipment?
Every 330101-00-40-10-01-05 transducer undergoes pre-shipment functional verification including sensitivity check, cable continuity test, and connector integrity inspection. Units are packaged in anti-static, shock-protected packaging to prevent transit damage to the precision sensing tip and coaxial cable assembly.

Q3: Is this transducer compatible with existing Bently Nevada 3300 XL and 3500 series systems?
Yes. The 330101-00-40-10-01-05 is a direct OEM-equivalent replacement for Bently Nevada 3300 XL 8mm proximity transducer assemblies. It is fully compatible with 3300 XL proximitor drivers and 3500 series monitoring racks without requiring recalibration or system configuration changes, provided the cable length and target material specifications are matched.

Q4: Can KNMKS support long-term or blanket order supply for maintenance programs?
Yes. KNMKS maintains dedicated stock of the 330101-00-40-10-01-05 and related 3300 XL series components to support planned maintenance schedules, turnaround spare kits, and blanket purchase agreements. Contact our sales team to discuss volume pricing, lead time commitments, and consignment stock arrangements for your facility’s reliability program.
