Bently Nevada 330101-00-40-10-01-00 Spare Part for Factory Uptime

Overview

Bently Nevada 330101-00-40-10-01-00 Spare Part for Factory Uptime

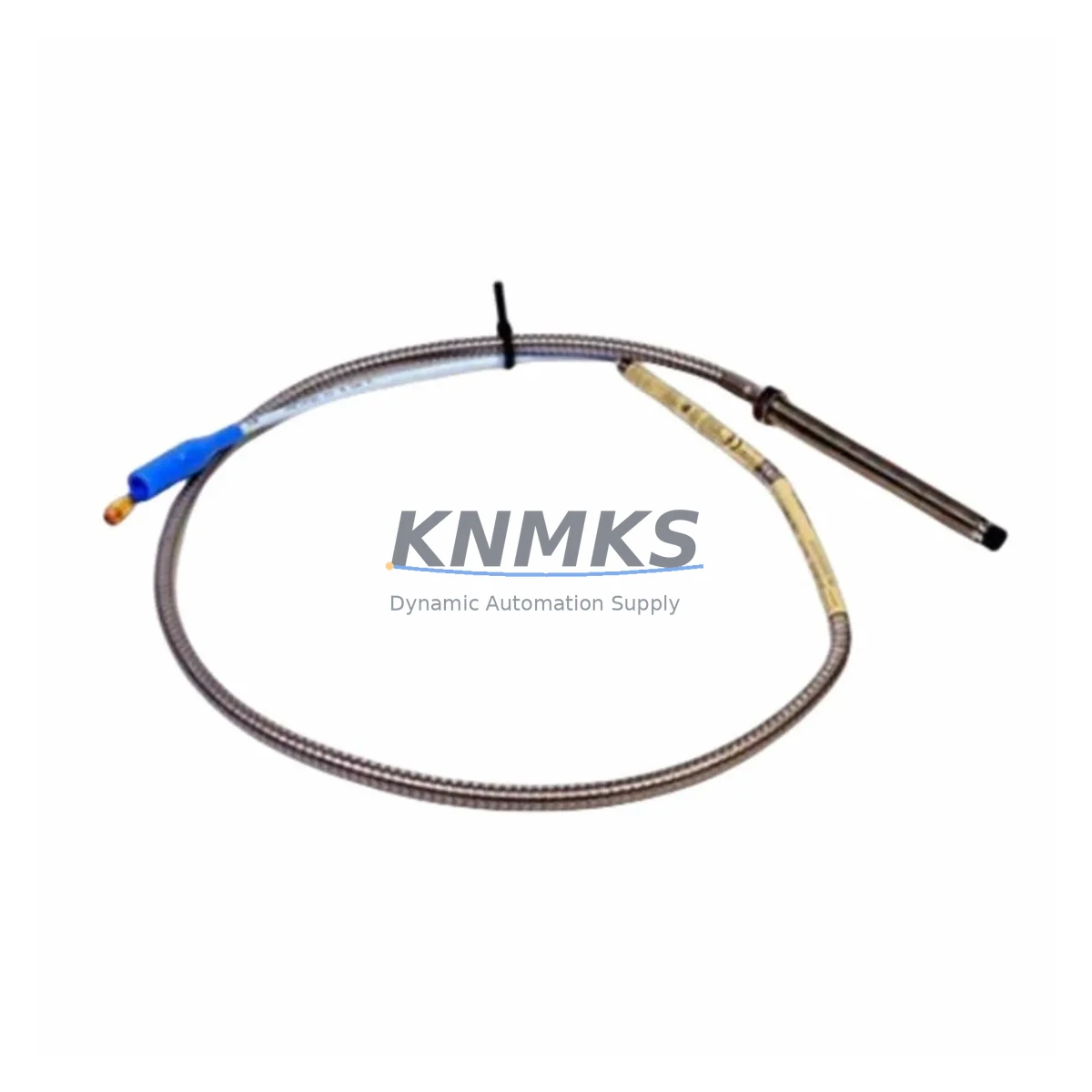

The Bently Nevada 330101-00-40-10-01-00 is an 8mm proximity probe designed for the 3300 XL Series continuous vibration monitoring system. This original-specification spare part is engineered for long-term deployment in rotating machinery protection applications — including steam turbines, gas compressors, centrifugal pumps, and large induction motors. Sourced to original Bently Nevada specifications, each unit undergoes pre-shipment functional testing to confirm signal output, gap voltage linearity, and cable integrity before dispatch.

For maintenance engineers managing aging turbomachinery protection systems, the 330101-00-40-10-01-00 represents a critical line-replaceable unit (LRU). Its 8mm sensing tip, 1m armored extension cable, and standard TNC connector interface make it a direct drop-in replacement for worn or damaged probes in existing 3300 XL monitor racks — without requiring recalibration of the monitor card when gap voltage is correctly set during reinstallation.

Procurement engineers sourcing for annual maintenance shutdowns or emergency stock replenishment can rely on confirmed long-term supply availability. Units are dispatched with full documentation, including test records and a support terms confirmed by quotation covering manufacturing defects and signal performance.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330101-00-40-10-01-00 in a 3300 XL monitoring loop, a thorough site inspection of the surrounding measurement chain is essential to prevent repeat failures and ensure signal integrity after restart. The proximity probe does not operate in isolation — its performance depends on the condition of the paired extension cable (typically a 330130-045-00-00 or equivalent 3300 XL series armored extension cable) and the 3300 XL proximitor/oscillator driver (such as the 330180-51-00), which conditions the eddy current signal before it reaches the monitor card.

During the same maintenance window, inspect the 3300/16 or 3300/25 monitor card in the rack for alarm setpoint drift, relay output integrity, and OK status LED behavior. If the monitor card has been in service for more than five years without recalibration, consider scheduling a bench calibration or stocking a spare card. The 3300 XL I/O module and its terminal block connections should also be checked for corrosion, loose wiring, and correct shielding continuity — particularly in high-vibration or high-humidity environments.

For plants running redundant protection architectures, verify that the voting logic relay module (where installed) is responding correctly to the newly installed probe’s OK signal before returning the machine to service. In DCS-integrated installations, confirm that the 4–20mA output signal from the monitor card is reaching the DCS I/O card within expected range, and that no signal isolator in the loop has degraded. Stocking a signal isolator (such as a DIN-rail mounted galvanic isolator rated for vibration signals) alongside proximity probe spares is a low-cost insurance measure that prevents nuisance trips caused by ground loops after probe replacement.

For annual shutdown planning, a recommended spare kit for a single 3300 XL radial vibration channel includes: one 330101-00-40-10-01-00 probe, one matched extension cable, one proximitor driver, and one set of terminal block connectors. This kit approach eliminates the most common causes of extended downtime during turbomachinery overhauls.

Site Replacement Workflow

1. Isolate and de-energize: Remove power from the 3300 XL monitor rack before disconnecting the probe cable. Confirm OK relay status is de-asserted and alarm inhibit is active in the DCS or safety system.

2. Remove the failed probe: Unthread the probe from its bracket. Note the installed gap measurement (use a feeler gauge or gap voltage reading from the monitor card prior to removal as a reference). Inspect the bracket threads and probe tip for mechanical damage.

3. Install the 330101-00-40-10-01-00 replacement: Thread the new probe into the bracket. Set the gap to the OEM-specified value (typically 1.0mm ± 0.1mm for 8mm probes on standard steel shafts). Reconnect the extension cable TNC connector — ensure the connector is fully seated and the locking ring is finger-tight.

4. Verify gap voltage: With the proximitor powered, measure the DC gap voltage at the monitor card input. Confirm it falls within the linear range specified on the monitor card datasheet (typically -9 to -11 VDC for a 1.0mm gap on AISI 4140 shaft material).

5. Restore and confirm: Re-enable the monitor channel, confirm OK status, and verify that vibration readings are within baseline for the machine at rest. Remove alarm inhibit and return the machine to service. Document the replacement in the maintenance log with the new probe serial number and gap voltage reading.

This workflow is compatible with all 3300 XL series monitor cards and supports direct replacement of earlier 330101 series probes without firmware or configuration changes to the monitor rack.

Spare Parts Support FAQ

Q: Is the 330101-00-40-10-01-00 compatible with all 3300 XL monitor cards?
A: Yes. The 330101-00-40-10-01-00 is designed for the full 3300 XL monitor family, including the 3300/16, 3300/20, 3300/25, 3300/46, and 3300/55 cards. It is also backward-compatible with earlier 3300 series installations where the extension cable and proximitor driver are matched to the 8mm probe specification. Always verify gap voltage after installation to confirm compatibility with the specific monitor card in use.

Q: What pre-shipment testing is performed on each unit?
A: Each 330101-00-40-10-01-00 unit is tested for signal output linearity, gap voltage at nominal gap, cable continuity, and connector integrity before dispatch. Test records are available upon request. This process ensures that the probe performs to specification immediately upon installation, reducing the risk of extended downtime caused by a defective spare.

Q: What does the support terms confirmed by quotation cover?
A: The support terms confirmed by quotation cover manufacturing defects, signal performance deviations from specification, and cable or connector failures under normal operating conditions. It does not cover damage caused by incorrect installation, mechanical impact, or operation outside the specified temperature and target material range. Support requests are supported with replacement units dispatched after fault confirmation.

Q: Can long-term supply be confirmed for multi-year maintenance contracts?
A: Yes. Long-term supply agreements for the 330101-00-40-10-01-00 and related 3300 XL series components are available. Contact our team to discuss annual volume commitments, consignment stock arrangements, or multi-year supply contracts that align with your plant’s scheduled maintenance intervals.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330101-00-40-10-01-00
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330101-00-40-10-01-00
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
