Bently Nevada 330101-00-40-05-02-05 3300 XL Spare Part: Maintenance-Proven Proximity Transducer for Factory Uptime

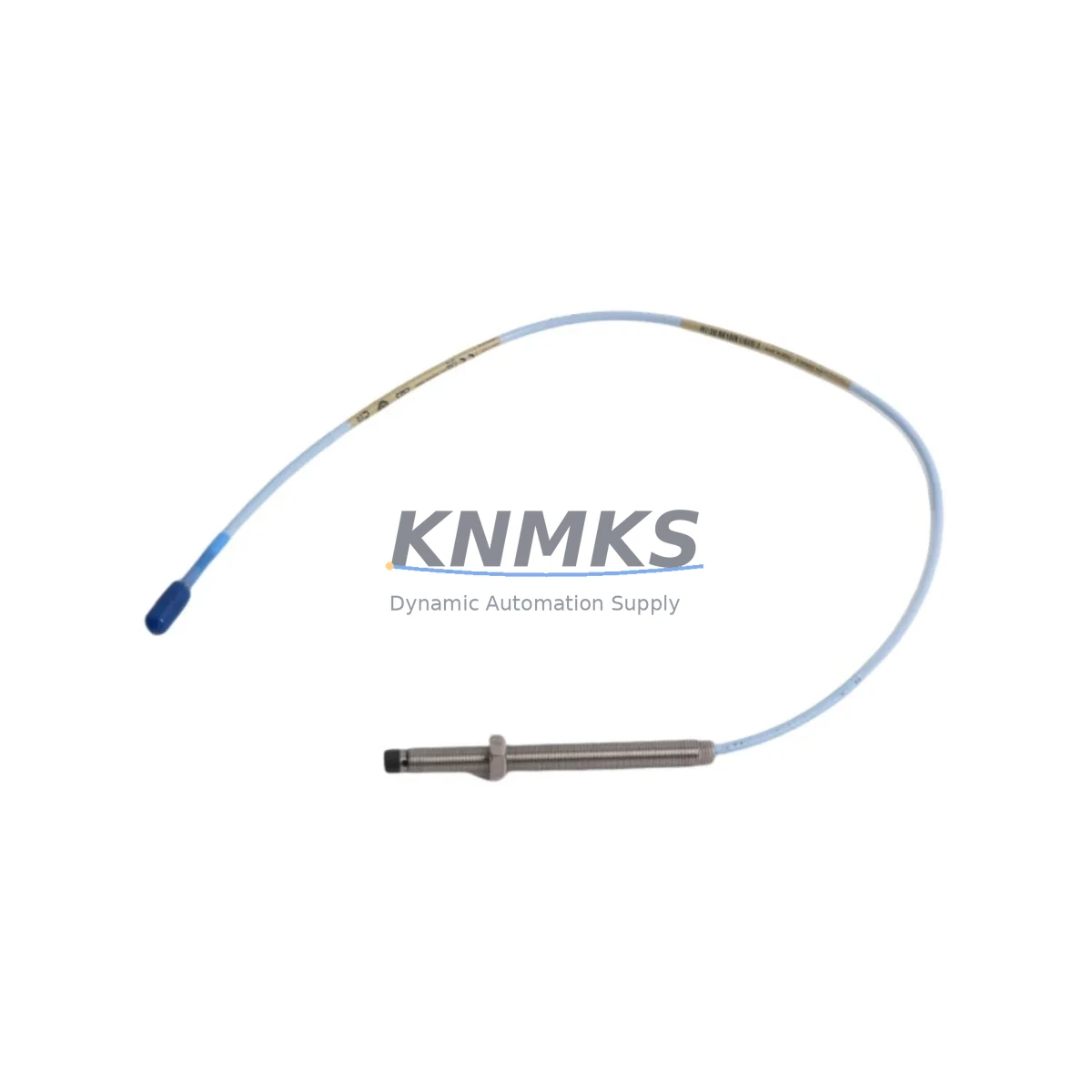

The Bently Nevada 330101-00-40-05-02-05 is an original eddy-current proximity transducer from the industry-standard 3300 XL Series, engineered for continuous vibration and position monitoring in rotating machinery applications. Maintenance engineers and procurement teams across power generation, oil & gas, petrochemical, and heavy manufacturing rely on this transducer to sustain critical turbine, compressor, and pump protection systems. Holding verified stock of the 330101-00-40-05-02-05 as a ready spare eliminates the risk of extended downtime when a field sensor fails during operation or scheduled overhaul.

This transducer operates as part of the Bently Nevada 3300 XL proximity system, which requires precise signal chain integrity from the probe tip through the extension cable to the proximitor/driver. When replacing the 330101-00-40-05-02-05 in the field, maintenance teams should treat the replacement as a system-level event — not a single-component swap. Verifying the condition and calibration of the entire measurement loop is essential to restoring reliable machinery protection.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 330101-00-40-05-02-05 in a live machinery protection system demands a disciplined approach to signal chain verification. The 3300 XL proximity measurement loop consists of three matched components: the probe (330101-00-40-05-02-05), the extension cable (typically a Bently Nevada 330130 series matched-length cable), and the proximitor/driver module (such as the Bently Nevada 330180 or 330104 series). All three must be treated as a calibrated system — substituting only the probe without verifying the extension cable and driver can introduce gap voltage errors that trigger false alarms or, worse, mask genuine machinery faults.

During a planned outage or emergency replacement, maintenance engineers should also inspect the 3500/25 or 3500/40M I/O module in the associated Bently Nevada 3500 rack if the transducer feeds into a full machinery protection system. Rack backplane connections, I/O terminal blocks, and signal conditioner cards are common sources of intermittent faults that mimic probe failures. Verifying the 3500 rack power supply module (e.g., 3500/15 or 3500/05) output voltage stability is equally important — a sagging –24 VDC rail will degrade transducer linearity and produce erratic gap readings even with a new probe installed.

For facilities running older Bently Nevada 7200 Series or 3300 (non-XL) systems, the 330101-00-40-05-02-05 is not a direct drop-in replacement without system reconfiguration. Procurement engineers should confirm the installed proximitor model before ordering. Where a full system upgrade from legacy 3300 to 3300 XL is planned, stocking matched sets of probe, extension cable, and proximitor as a kit reduces field assembly time and eliminates calibration mismatches during the upgrade window.

Facilities with high-temperature or high-vibration environments should also review the condition of probe mounting brackets, lock nuts, and armored cable conduit during each replacement cycle. Mechanical loosening of the probe body is a leading cause of signal noise in eddy-current systems and is frequently misdiagnosed as an electronic fault. Including these mechanical components in the annual spare parts checklist alongside the 330101-00-40-05-02-05 and its matched extension cable ensures a complete corrective maintenance kit is available on-site.

Site Replacement Workflow

When the 330101-00-40-05-02-05 is identified as the failed component — either through gap voltage out-of-range alarms, signal noise, or physical damage — the following workflow minimizes downtime and ensures system integrity is restored correctly:

1. Isolate and document: Record the existing gap voltage reading (if measurable) and note the proximitor channel assignment. Photograph the probe installation orientation and cable routing before removal.

2. Verify replacement compatibility: Confirm the replacement 330101-00-40-05-02-05 is from a matched 3300 XL system set. Check that the extension cable length and the proximitor model are unchanged. If the extension cable shows jacket cracking, connector corrosion, or impedance drift, replace it simultaneously using the appropriate Bently Nevada 330130 matched cable.

3. Install and set gap: Install the new probe to the OEM-specified gap (typically 1.0 mm to 1.5 mm for standard steel targets). Use a calibrated gap-setting tool or feeler gauge. Torque the lock nut to specification and verify the probe body does not rotate after locking.

4. Restore and verify signal: Power up the proximitor and verify the gap voltage falls within the linear range (typically –10 VDC to –18 VDC for a 1.0 mm gap on AISI 4140 steel). Compare against the original calibration record. If gap voltage deviates by more than ±0.5 VDC from the historical baseline, re-inspect the target surface condition and cable integrity before returning the machine to service.

5. Update maintenance records: Log the replacement date, new probe serial number, measured gap voltage, and any associated components replaced. This record supports support requests and future predictive maintenance scheduling.

This workflow applies equally to emergency replacements during unplanned outages and to planned replacements during annual turnarounds. Maintaining a pre-tested, ready-to-install 330101-00-40-05-02-05 in the site spare parts store — verified against a known-good proximitor before storage — eliminates the bench-testing delay that often extends emergency outage duration.

Spare Parts Support FAQ

Q1: What is the shelf life and storage recommendation for the 330101-00-40-05-02-05?
The 330101-00-40-05-02-05 has an indefinite shelf life when stored in its original packaging in a dry, temperature-controlled environment (10°C–35°C, <70% RH, non-condensing). The coaxial connector should be capped to prevent contamination. We recommend a functional verification test against a known-good proximitor every 24 months for long-term stored spares.

Q2: How do I confirm compatibility with my installed 3300 XL system before ordering?
Compatibility is determined by three factors: probe tip diameter (8 mm for this model), system cable length (must match the installed extension cable to maintain calibrated sensitivity), and target material. Provide your existing proximitor model number and extension cable part number when placing your order — our technical team will confirm the matched system configuration before shipment.

Q3: What pre-shipment testing is performed on each unit?
Every 330101-00-40-05-02-05 shipped from our inventory undergoes functional verification: gap voltage linearity check across the specified measurement range, connector integrity inspection, and cable jacket visual inspection. Units that do not meet OEM specification are quarantined. A test report is available upon request for critical applications.

Q4: Do you support long-term supply agreements for the 330101-00-40-05-02-05?
Yes. For facilities with multiple 3300 XL measurement points or multi-year maintenance contracts, we offer blanket order arrangements with reserved stock allocation, fixed pricing, and priority shipment. This is particularly valuable for aging systems where OEM availability is uncertain. Contact our sales team to discuss annual volume requirements and lead time guarantees.
