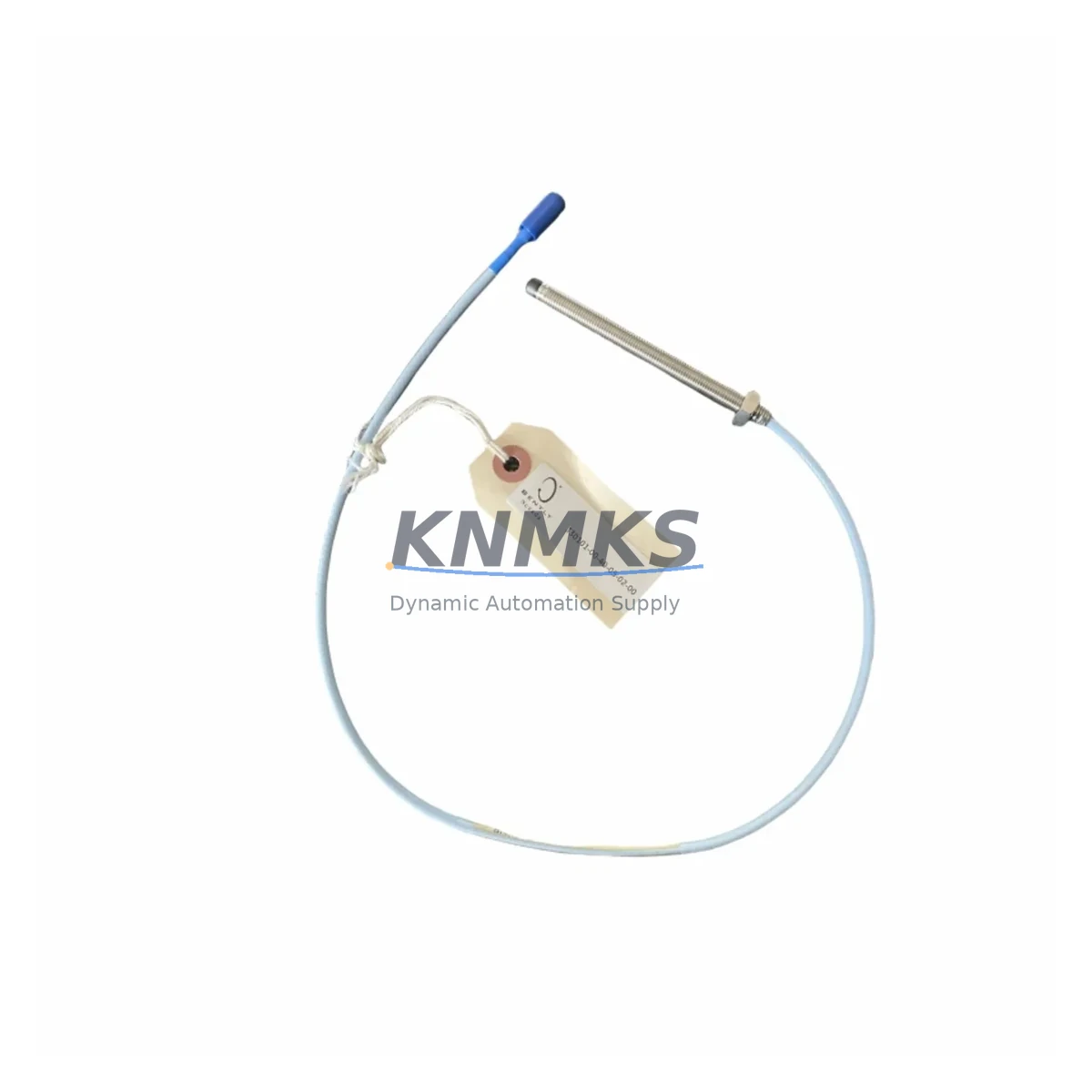

Bently Nevada 330101-00-40-05-02-00 Migration-Ready Proximity Probe

Overview

Bently Nevada 330101-00-40-05-02-00 Migration-Ready Proximity Probe for Legacy Control Systems

The Bently Nevada 330101-00-40-05-02-00 is an 8mm eddy-current proximity probe engineered for continuous vibration and position monitoring in rotating machinery. As legacy 3300 XL monitoring systems approach end-of-life and plant operators face increasing pressure to modernize their condition monitoring infrastructure, this probe serves as a verified drop-in replacement that preserves existing wiring, signal conditioning, and machinery protection logic without requiring a full system overhaul.

Designed to interface directly with Bently Nevada 3300 XL proximitor/seismic monitors and compatible signal conditioners, the 330101-00-40-05-02-00 maintains the standard 5-metre integral cable configuration and outputs a linear -24 VDC bias voltage signal. This makes it directly interchangeable with earlier 330101-series probes installed in turbines, compressors, pumps, and gearboxes across oil and gas, power generation, and petrochemical facilities. Engineers migrating from discontinued 7200-series or 3300/16 monitor cards will find that this probe’s output characteristics remain fully compatible with the 3500/42M Proximitor Monitor and the 3500/40M Proximitor/Seismic Monitor, enabling a phased migration strategy that avoids simultaneous replacement of both sensing and monitoring hardware.

When planning a retrofit around the 330101-00-40-05-02-00, field engineers must verify several critical parameters before installation. Power supply capacity at the junction box or marshalling cabinet should be confirmed to support the probe’s -24 VDC excitation requirement. Terminal wiring at the proximitor input card — typically a 3300 XL proximitor or a 3500 rack-mounted monitor — must be inspected for correct polarity and shield grounding to prevent common-mode noise from corrupting vibration gap voltage readings. Backplane slot assignments and channel addressing within the 3500 rack must be documented prior to removal of the legacy probe to ensure the replacement probe is mapped to the correct machinery protection channel in the System 1 or System 1 Evolution software database.

Program logic compatibility is a key concern during migration. Alarm setpoints, danger thresholds, and gap voltage calibration values stored in the existing monitor configuration must be exported and validated against the new probe’s sensitivity specification (typically 7.87 V/mm or 200 mV/mil) before the replacement unit is commissioned. HMI display screens referencing the original probe tag should be updated to reflect the new asset identifier, and communication links between the 3500 rack and the plant DCS — whether via Modbus RTU, FOUNDATION Fieldbus, or Ethernet/IP — should be tested under simulated load conditions before the machine is returned to service.

Installation space confirmation is equally important. The 330101-00-40-05-02-00 uses a standard M8 threaded body with a 5-metre armoured cable, and the probe tip-to-target gap must be set within the linear range (typically 0.25 mm to 2.54 mm) using a calibrated gap tool. Where existing probe holders or proximity probe brackets are worn or corroded, replacement of the bracket assembly should be scheduled as part of the same maintenance window to avoid a second outage. Firmware version compatibility between the proximitor and the 3500 monitor card should also be confirmed, as older firmware revisions may not support the full dynamic range of the 330101-series probe at high shaft speeds.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit centred on the 330101-00-40-05-02-00 typically involves coordinating several interdependent components within the same maintenance window. The probe itself connects to a Bently Nevada 3300 XL proximitor or a 3500 rack-mounted proximitor monitor, which in turn feeds vibration and position data to the plant’s machinery protection and condition monitoring system. Where the existing 3300 XL rack is being decommissioned as part of a broader platform migration, engineers often install a 3500/20 Rack Interface Module alongside the new probe to maintain backward compatibility with existing System 1 historian configurations during the transition period.

Power distribution within the control cabinet must be reviewed when adding or replacing proximity probes. The 3500 rack’s internal power supply module — such as the 3500/15 Power Supply — must have sufficient headroom to support the additional -24 VDC load introduced by the replacement probe, particularly in multi-channel installations where several 330101-series probes are being replaced simultaneously. In older cabinets where the original power supply is at capacity, a supplementary 3500/15 Power Supply module may need to be added to the rack before the probe replacement proceeds.

Signal routing from the probe junction box to the monitor rack should be inspected for cable integrity, particularly in high-vibration or high-temperature environments. Where existing signal cables show signs of insulation degradation, replacement with new Bently Nevada extension cables — matched to the 330101-00-40-05-02-00’s integral cable specification — ensures signal integrity and prevents spurious alarms during commissioning. The Keyphasor module (3500/25) installed in the same rack should also be verified to confirm that the reference pulse signal used for phase angle and speed measurements remains synchronised with the new probe’s gap voltage output.

For facilities running a hybrid monitoring architecture — where legacy 3300 XL monitors coexist with newer 3500-series racks — the 330101-00-40-05-02-00 can be deployed in either environment without modification, simplifying spare parts inventory management and reducing the number of unique probe SKUs that maintenance teams must stock. This interoperability is particularly valuable during multi-phase plant upgrades where not all machinery trains are migrated simultaneously.

Downtime Control During System Migration

Minimising unplanned downtime during proximity probe replacement requires a structured pre-outage preparation process. Before the maintenance window opens, the replacement 330101-00-40-05-02-00 should be bench-tested against a calibration standard to confirm output linearity and sensitivity match the specification. Gap voltage readings at the nominal installation distance should be recorded and compared against the existing probe’s last calibration record to identify any deviation that might require setpoint adjustment in the monitor configuration.

The existing monitor configuration — including alarm setpoints, danger thresholds, time delays, and transducer OK limits — should be exported from the 3500 rack or System 1 database before the outage begins. This export serves as both a backup and a commissioning reference, allowing the field engineer to restore the original protection logic immediately after the replacement probe is installed and gapped, without waiting for engineering review during the outage window.

Where the machine cannot be taken fully offline, a temporary bypass of the affected monitoring channel — using the 3500 rack’s inhibit function — allows the probe to be replaced while the remaining channels continue to provide machinery protection. This approach is particularly effective in multi-probe installations on large turbines or compressors where a single channel can be isolated without compromising overall protection coverage. Once the replacement probe is installed, gapped, and verified, the inhibit is removed and the channel is returned to normal protection status, keeping total exposure time to a minimum.

Post-installation verification should include a full dynamic test at operating speed to confirm that the new probe’s gap voltage, vibration amplitude, and phase angle readings are consistent with the machine’s historical baseline. Any deviation from baseline should be investigated before the machine is returned to full load, as unexpected changes in gap voltage can indicate probe misalignment, target surface condition changes, or wiring errors introduced during the replacement process.

Retrofit Support FAQ

Q: Is the 330101-00-40-05-02-00 a direct replacement for earlier 330101-series probes installed in 3300 XL systems?
A: Yes. The 330101-00-40-05-02-00 is dimensionally and electrically compatible with earlier revisions of the 330101 series. The M8 probe body, 5-metre cable, and -24 VDC output signal are unchanged, allowing direct substitution without modification to the probe holder, wiring, or monitor configuration. Gap recalibration is recommended after installation to confirm the new probe’s output matches the monitor’s configured gap voltage range.

Q: What commissioning steps are required after installing the replacement probe?
A: After mechanical installation and gap setting, the field engineer should verify the gap voltage reading at the proximitor output, confirm that the transducer OK status is active in the 3500 monitor, and perform a slow-roll vibration check to establish a baseline reading. Alarm and danger setpoints should be reviewed against the exported configuration backup, and the DCS communication link should be tested to confirm that the vibration and position values are being transmitted correctly to the control room historian.

Q: Can this probe be used with both 3300 XL and 3500-series monitor racks?
A: Yes. The 330101-00-40-05-02-00 is compatible with both the 3300 XL Proximitor Monitor and the 3500/40M and 3500/42M Proximitor Monitors. This dual compatibility makes it suitable for facilities running mixed-generation monitoring architectures and simplifies spare parts standardisation across multiple machinery trains.

Q: What support terms and pre-shipment testing does KNMKS provide for this probe?
A: Every 330101-00-40-05-02-00 unit shipped by KNMKS carries a support terms confirmed by quotation from the date of shipment and undergoes a full functional and output linearity test before dispatch. In-stock units are available for same-day or next-business-day dispatch to minimise lead time for emergency replacement requirements. Contact [email protected] or +86 18359268345 for stock confirmation and expedited shipping options.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330101-00-40-05-02-00
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330101-00-40-05-02-00
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
