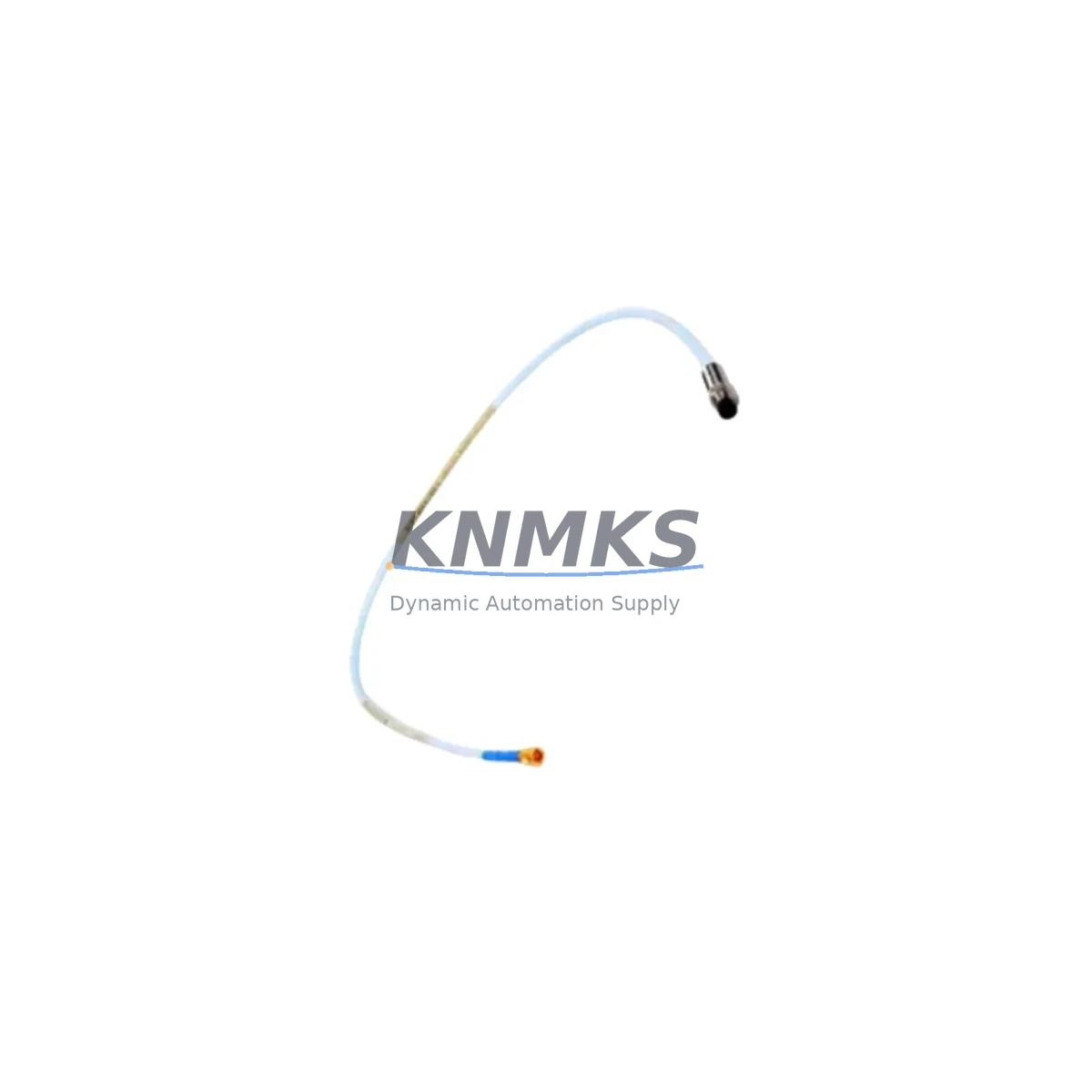

The Bently Nevada 330101-00-38-90-02-00 is an 8mm eddy current proximity probe engineered for continuous vibration and position monitoring within the 3300 XL Series machinery protection system. As a maintenance-proven spare part, it is designed to deliver reliable shaft displacement measurement in rotating machinery environments — including steam turbines, gas compressors, centrifugal pumps, and large induction motors — where unplanned downtime carries significant operational and financial consequences.

Sourced as an original spare, the 330101-00-38-90-02-00 is pre-shipment tested to confirm signal linearity, gap voltage output, and sensitivity coefficient compliance before dispatch. Each unit is backed by a support terms confirmed by quotation and is held in multi-region stock to support emergency replacement, scheduled overhaul, and long-term spare parts inventory programs. Whether you are responding to a vibration alarm, executing a planned turnaround, or building a resilient spare parts buffer, this probe is a direct fit for 3300 XL monitoring loops without system reconfiguration.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330101-00-38-90-02-00 proximity probe in a 3300 XL monitoring loop, a thorough site inspection of the surrounding measurement chain is essential to prevent repeat failures and ensure signal integrity from the first restart. Maintenance engineers should begin by inspecting the 330130 extension cable — the interconnect between the probe and the driver — for jacket abrasion, connector corrosion, and continuity. A damaged extension cable is a frequent root cause of erratic gap voltage readings that are often misattributed to probe failure.

The 3300 XL driver module (typically 330180-51-05 or equivalent) should be verified for correct bias voltage output (-10.0 VDC ±0.5 VDC at nominal gap) and confirmed free of internal oscillator faults. If the driver is original to the installation and has not been replaced within the last overhaul cycle, it is prudent to include it in the spare parts review. Procurement engineers managing multi-unit turbine trains should consider holding at least one driver module per monitored machine as a fast-swap spare.

The 3300 XL monitor rack and its associated I/O terminal blocks should be inspected for loose wiring, oxidized terminals, and correct channel assignment. Vibration monitor cards within the rack — such as the 3300/16 or 3300/20 series — should be checked for alarm setpoint integrity and OK relay status. If the machine has been in service for more than five years, the 3300 XL power supply module supplying -24 VDC to the measurement loop should be load-tested and replaced if output ripple exceeds specification.

For installations where the 330101-00-38-90-02-00 monitors axial position or differential expansion, the thrust position monitor card and its associated 4–20 mA output isolator should be verified for calibration drift. Signal isolators in the loop — particularly those feeding DCS analog input cards — are often overlooked during probe replacement but can introduce offset errors that mask true shaft position. Additionally, inspect the probe holder and mounting bracket for mechanical wear, thread damage, and correct torque, as probe tip-to-target gap accuracy directly determines measurement reliability.

Site Replacement Workflow

The 330101-00-38-90-02-00 is a direct replacement for earlier 3300 XL 8mm probe assemblies. The replacement procedure follows a structured sequence to minimize downtime and eliminate commissioning errors:

Step 1 — Isolation: Coordinate with the control room to acknowledge and bypass the vibration channel. Confirm the machine is at safe speed or shutdown per site safety procedures. Do not remove the probe under live vibration alarm conditions without authorization.

Step 2 — Removal: Disconnect the extension cable at the probe connector. Using the correct probe wrench, unthread the probe from the holder. Record the existing gap setting (typically 50 mil / 1.27 mm) before removal to use as the baseline for the new installation.

Step 3 — Inspection: Inspect the probe holder threads, target surface, and extension cable connector for damage. Clean the target area and verify the shaft surface is free of scoring or runout anomalies that could affect the new probe’s linear range.

Step 4 — Installation: Thread the 330101-00-38-90-02-00 into the probe holder. Set the gap to the nominal value using a feeler gauge or gap voltage measurement (-10.0 VDC ±0.5 VDC at 1.27 mm gap with the 3300 XL driver). Torque to the manufacturer’s specification and lock with the jam nut.

Step 5 — Verification: Reconnect the extension cable. Confirm OK LED status on the driver and monitor card. Verify gap voltage, vibration baseline, and alarm relay status before returning the channel to service. Document the replacement in the maintenance management system with the new probe serial number and gap voltage reading.

This workflow supports system compatibility, reduces the risk of re-work, and ensures the 3300 XL monitoring loop is restored to full protective function with minimal production impact.

Spare Parts Support FAQ

Q1: Is the 330101-00-38-90-02-00 compatible with both radial vibration and axial position monitoring applications in the 3300 XL system?
Yes. The 330101-00-38-90-02-00 is an 8mm eddy current probe compatible with all standard 3300 XL 8mm measurement loops, including radial vibration, axial position, and differential expansion channels. Compatibility depends on the paired driver and monitor card configuration, not the probe model alone. Confirm the driver part number (e.g., 330180 series) and monitor card channel assignment before installation.

Q2: What is the recommended spare parts inventory strategy for facilities operating multiple 3300 XL-monitored machines?
For facilities with three or more monitored machines, a minimum buffer of two 330101-00-38-90-02-00 probes per probe diameter in use is recommended, alongside at least one spare driver module and one extension cable set per machine train. This buffer supports emergency replacement within a single shift without waiting for procurement lead times, which can extend to several weeks for legacy Bently Nevada components sourced through standard channels.

Q3: How is the 330101-00-38-90-02-00 tested before shipment, and what does the support terms confirmed by quotation cover?
Each unit undergoes pre-shipment functional testing that verifies sensitivity coefficient (7.87 V/mm), linear range output, and connector integrity. The support terms confirmed by quotation cover manufacturing defects and performance deviations from published specifications under normal operating conditions. It does not cover damage resulting from incorrect gap setting, mechanical impact, or installation in incompatible systems.

Q4: Can the 330101-00-38-90-02-00 replace older 3300 series probes that predate the 3300 XL platform?
Direct interchangeability between the original 3300 series and the 3300 XL platform depends on the driver and extension cable in use. The 3300 XL system uses a different driver architecture than the earlier 3300 series. If your installation uses legacy 3300 (non-XL) drivers and cables, a full loop assessment — including driver, extension cable, and monitor card compatibility — is required before substituting the 330101-00-38-90-02-00. Contact our technical team with your existing driver and monitor card part numbers for a compatibility confirmation prior to ordering.
