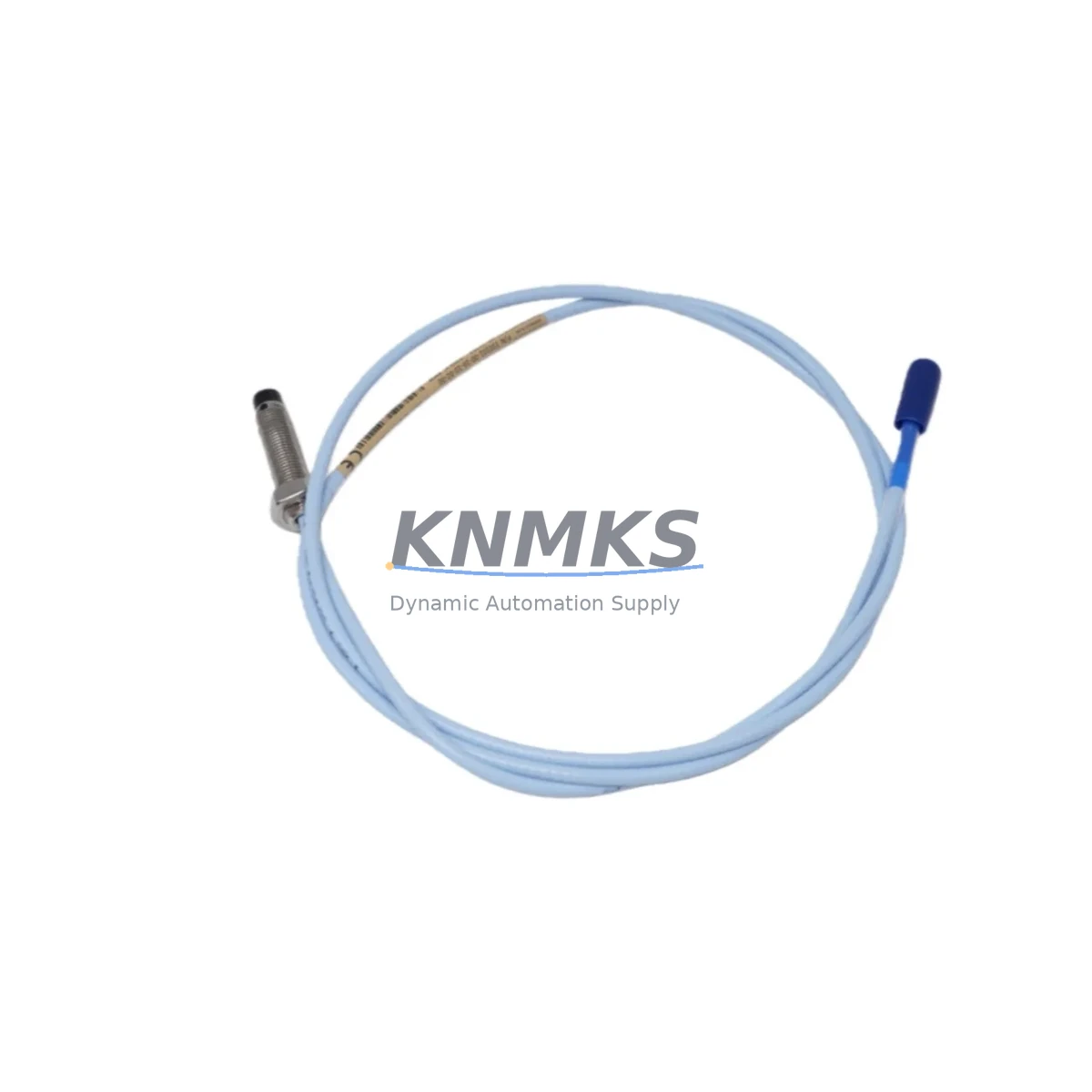

Bently Nevada 330101-00-37-05-02-00 Fail-Safe Proximity Probe

Overview

Bently Nevada 330101-00-37-05-02-00 Fail-Safe Proximity Probe: Fault Protection and Critical Industrial Field Reliability

The Bently Nevada 330101-00-37-05-02-00 is an 8mm eddy-current proximity probe engineered for the 3300 XL Series continuous vibration monitoring system. Designed to operate without interruption in the most demanding industrial environments, this probe delivers fail-safe position and vibration sensing for rotating machinery protection, critical interlock loops, and safety-rated control architectures. Whether deployed in petrochemical compressor trains, power generation turbines, or heavy-duty mining conveyors, the 330101-00-37-05-02-00 is built to eliminate unplanned downtime and protect both personnel and capital assets.

In continuous production facilities where even a momentary control interruption can cascade into a full-plant shutdown, the reliability of every sensing element in the loop is non-negotiable. The 330101-00-37-05-02-00 addresses this requirement through its robust eddy-current sensing principle, which is inherently immune to contamination by oil mist, condensation, conductive dust, and non-metallic debris — conditions that routinely defeat optical or capacitive alternatives. Its stainless-steel housing and armored cable construction resist mechanical shock, high-frequency vibration, and the corrosive atmospheres common in offshore platforms and chemical processing units.

Signal integrity is maintained across the full operating temperature range, ensuring that the 3300 XL monitor receives a clean, drift-free voltage output even when cabinet temperatures rise due to inadequate ventilation or high ambient heat loads. This directly reduces the risk of false trips, missed alarms, and nuisance shutdowns — all of which carry significant safety and financial consequences in critical process industries.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A proximity probe alone does not constitute a complete protection strategy. In a well-engineered control cabinet, the 330101-00-37-05-02-00 operates as the primary sensing element within a layered architecture that includes the Bently Nevada 3300 XL Driver (typically the 330130 series), which conditions the raw probe signal into a calibrated voltage output suitable for the monitor. The monitor — commonly a Bently Nevada 3500/42M Proximitor/Seismic Monitor — processes this signal against configurable alert and danger setpoints, triggering relay outputs to safety PLCs or DCS systems when thresholds are exceeded.

To protect the signal path from surge events caused by nearby motor starts, lightning coupling, or bus switching transients, surge protection devices such as the Phoenix Contact TRABTECH series or equivalent DIN-rail surge arresters are installed at the cabinet entry point. In high-EMI environments — such as those adjacent to variable frequency drives or large transformer banks — additional shielded conduit routing and ferrite suppression cores are applied to the coaxial cable run between the probe and the driver.

Power supply stability is equally critical. The 3300 XL system requires a clean -24 VDC supply; any ripple or dropout can cause false readings or monitor resets. Redundant 24 VDC DIN-rail power supplies with active current sharing — such as the PULS or WAGO series — are recommended to eliminate single-point power failure. For applications requiring SIL-rated interlock outputs, the monitor relay contacts are wired through safety relay modules (e.g., Pilz PNOZ or Schmersal SRB series) to ensure de-energize-to-trip logic is maintained even under wiring fault conditions.

In cabinets subject to high ambient temperatures, thermal management through forced-air cooling units or heat exchangers prevents the monitor electronics from drifting outside their rated operating range, preserving the accuracy of the 330101-00-37-05-02-00 signal chain from probe tip to control output.

Critical Industrial Safety Applications

The 330101-00-37-05-02-00 proximity probe is deployed across a broad spectrum of safety-critical industries where rotating machinery failure carries catastrophic consequences.

In petrochemical and refinery environments, it monitors radial shaft vibration and axial position on centrifugal compressors and process pumps. A bearing failure or rotor rub detected early by this probe can prevent a seal breach, fire, or toxic release. In power generation — both thermal and combined-cycle — it provides continuous shaft monitoring on steam turbines and gas turbines, feeding the protection system that initiates an emergency trip before a blade-loss event can escalate.

In mining and mineral processing, the probe monitors crusher drives, ball mill pinion bearings, and conveyor head pulleys operating under extreme dust loading and vibration. Its non-contact sensing principle means there is no wear mechanism to degrade measurement accuracy over time, making it ideal for assets that run continuously for months between planned maintenance windows.

In water and wastewater treatment facilities, it protects large vertical turbine pumps and blower trains in humid, chemically aggressive atmospheres. In metallurgical plants — steel rolling mills, aluminum smelters — it operates in the presence of intense electromagnetic fields from induction furnaces and high-current bus bars, where its shielded coaxial design maintains signal fidelity that lesser sensors cannot guarantee.

Port and marine applications include crane hoist motor monitoring and shipboard propulsion shaft protection, where saltwater ingress and vibration from wave action demand the highest levels of environmental sealing and mechanical robustness. In all of these settings, the 330101-00-37-05-02-00 serves as the first line of defense against unplanned shutdown, protecting both the process and the people who operate it.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 330101-00-37-05-02-00?
The support terms confirmed by quotation cover all manufacturing defects, functional failures, and out-of-specification performance under normal operating conditions. If the probe fails to meet its published scale factor, linearity, or temperature specifications within the confirmed support period, KNMKS will provide a replacement unit or documented resolution support. The confirmed support period begins from the date of shipment and is supported by our pre-shipment functional test documentation.

Q2: What pre-shipment testing is performed on each unit?
Every 330101-00-37-05-02-00 unit undergoes a multi-point functional verification before dispatch, including scale factor confirmation, cable continuity and insulation resistance check, and visual inspection of the probe tip, housing, and connector. Test records are available upon request and can be included with the shipment for your incoming inspection records.

Q3: Is this probe compatible with existing 3300 XL extension cables and drivers already installed in the field?
Yes. The 330101-00-37-05-02-00 is fully compatible with the standard Bently Nevada 3300 XL extension cable and driver ecosystem, including the 330130 driver and 330180 extension cables. It is a direct drop-in replacement for worn or failed probes in existing installations, requiring no recalibration of the monitor if the same cable length and driver combination is maintained.

Q4: Can KNMKS support long-term or repeat supply of this part number?
Yes. KNMKS maintains stock of the 330101-00-37-05-02-00 and related 3300 XL system components to support both emergency replacement and planned maintenance programs. We can accommodate blanket purchase orders, scheduled releases, and urgent same-day dispatch for critical plant situations. Contact our team to discuss your annual consumption requirements and establish a supply agreement that eliminates sourcing risk for this safety-critical component.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330101-00-37-05-02-00
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330101-00-37-05-02-00
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
