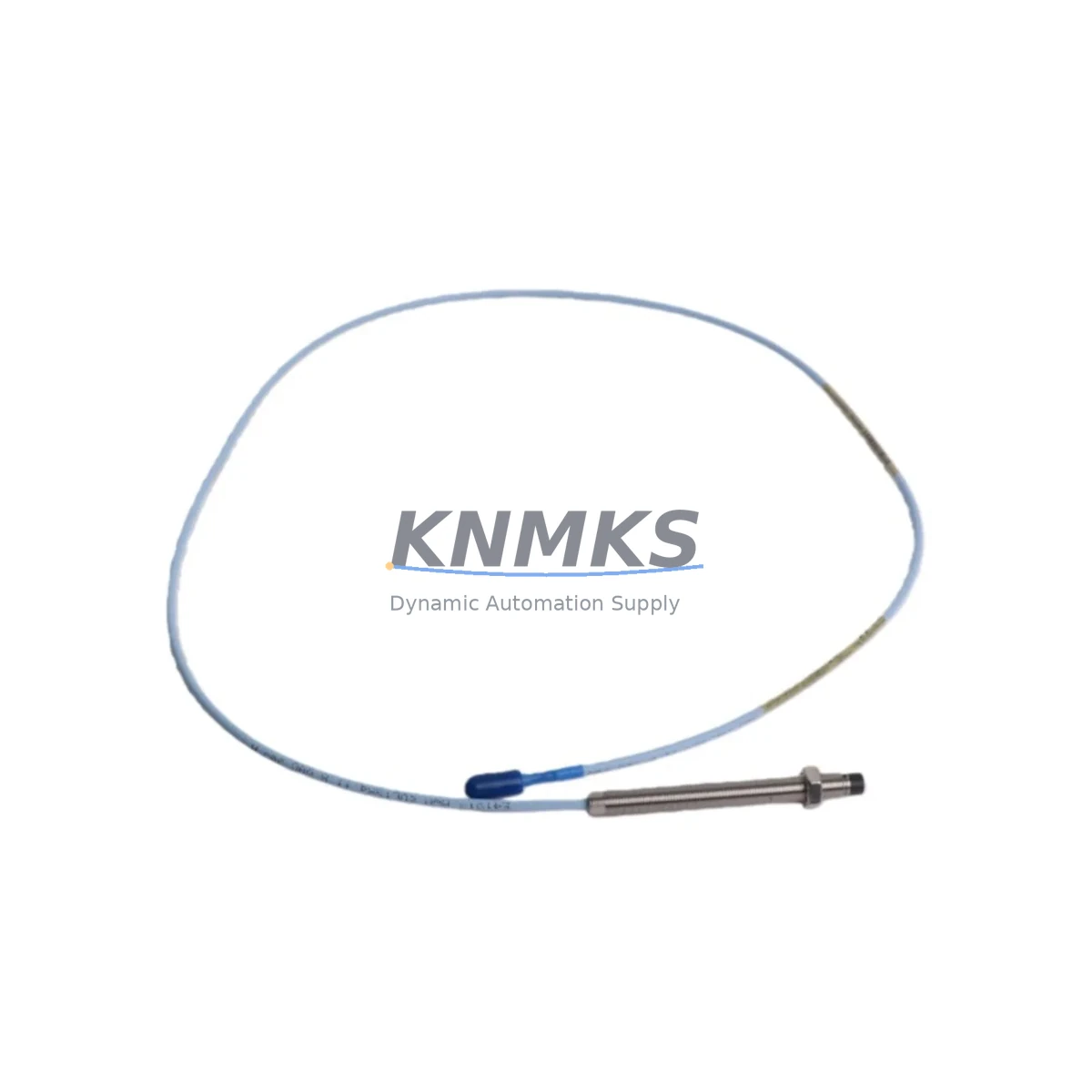

Bently Nevada 330101-00-36-10-02-00 Migration-Ready Proximity Probe

Overview

Bently Nevada 330101-00-36-10-02-00 Migration-Ready Proximity Probe for Legacy Control Systems

The Bently Nevada 330101-00-36-10-02-00 is an 8mm eddy-current proximity probe engineered for the 3300 XL vibration monitoring platform. As legacy rotating machinery protection systems approach end-of-life, this probe serves as a validated drop-in replacement for decommissioned or obsolete field sensors across turbines, compressors, pumps, and gearboxes in energy, petrochemical, and heavy manufacturing environments. Whether you are executing a planned outage retrofit, responding to an unplanned sensor failure, or upgrading an aging 3300 Series installation to the 3300 XL architecture, the 330101-00-36-10-02-00 provides the dimensional, electrical, and signal-chain compatibility required to restore continuous machinery protection without rewriting existing vibration monitoring logic.

Before committing to a field swap, engineers should verify the following parameters against the existing installation: probe tip-to-target gap (typically 1.0 mm for 200 mV/mil systems), cable length and connector type, driver module compatibility (the 3300 XL Driver 330180 or 330181 series), and the Proximitor® sensor pairing. The 330101-00-36-10-02-00 ships pre-calibrated for use with the standard Bently Nevada 3300 XL Proximitor® and is compatible with the 3500/42M Proximitor®/Seismic Monitor when used in legacy migration scenarios. Confirm that the existing field wiring harness and junction box terminations match the probe’s integral cable specification before installation.

In multi-channel rack configurations, the probe integrates directly with the 3500 Series Rack — including the 3500/01 Rack Interface Module and 3500/20 Rack Configuration Module — without requiring changes to channel configuration or alarm setpoint logic stored in the rack’s non-volatile memory. This is a critical advantage during brownfield upgrades where preserving existing trip logic and historical baseline data is a plant reliability requirement.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit begins well before the maintenance window opens. Start by auditing the existing probe mounting bracket, target material (typically 4140 steel or equivalent), and surface finish — eddy-current probes are sensitive to target conductivity and surface irregularities that can introduce measurement error after replacement. Cross-reference the existing Bently Nevada 3300 XL Proximitor® extension cable (part of the 330130 series) to confirm that cable length and connector pinout are unchanged; mismatched extension cables are one of the most common sources of post-replacement calibration drift.

For installations where the 3300 XL I/O module or terminal board has been in service for more than ten years, consider inspecting the 3500/32 4-Channel Relay Module and associated terminal strips for corrosion or contact resistance before closing the loop. In multi-shaft train configurations — such as a gas turbine driving a centrifugal compressor — each shaft position requires independent gap verification. The 3500/42M Proximitor®/Seismic Monitor supports up to two probe inputs per channel card; confirm that both channels are re-gapped and re-calibrated if both probes are replaced simultaneously.

Where the plant DCS or safety instrumented system (SIS) receives vibration signals from the 3500 rack via a 3500/92 Communication Gateway Module, verify that the Modbus register map and scaling factors remain consistent after probe replacement. Any change in Proximitor® sensitivity setting will shift the engineering unit conversion in the DCS historian and may trigger nuisance alarms during the first hours of operation. Coordinate with the control room team to temporarily raise alarm thresholds during the commissioning window and restore them only after baseline vibration data has been re-established.

Signal isolation between the proximity probe circuit and the plant earthing system should also be confirmed. In older installations, ground loops introduced through the probe cable shield can corrupt vibration readings and mask real machinery faults. Use a Bently Nevada-compatible signal isolator or the built-in isolation features of the 3500/20 Rack Configuration Module to eliminate this risk before returning the machine to service.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement requires a structured pre-outage checklist and a clear rollback procedure. Before isolating the probe circuit, export the current rack configuration from the 3500 Rack Configuration Software (RCS) and save it to a secure backup location. This configuration file preserves all channel assignments, alarm setpoints, OK limit settings, and transducer power supply states — allowing full restoration in under fifteen minutes if the replacement probe fails acceptance testing.

During the physical swap, keep the Proximitor® sensor powered and monitor the OK relay status from the control room. A loss of OK status during probe removal is expected and should be communicated to the board operator in advance to prevent a spurious trip. Once the 330101-00-36-10-02-00 is installed and the gap is set, restore power to the Proximitor® and verify that the DC gap voltage falls within the acceptable window (typically –10 VDC ± 1 V for a 1.0 mm gap on a 200 mV/mil system) before releasing the OK relay inhibit.

For critical machinery where continuous protection is mandatory, consider using a spare channel on an adjacent 3500/42M card to monitor the new probe in parallel with the existing sensor during a hot-standby period. This approach allows the plant to validate the replacement probe’s signal quality against a known-good reference without exposing the machine to an unprotected condition. Once the new probe’s readings are confirmed stable over a full operating cycle, the old channel can be decommissioned and the spare channel reassigned.

All replacement probes supplied by KNMKS undergo pre-shipment functional testing including gap voltage verification, cable continuity, and connector integrity checks. Each unit ships with a test report confirming compliance with Bently Nevada 3300 XL signal-chain specifications, reducing the risk of DOA failures during critical maintenance windows.

Retrofit Support FAQ

Q1: Is the 330101-00-36-10-02-00 a direct replacement for older 3300 Series probes?
Yes. The 330101-00-36-10-02-00 is dimensionally and electrically compatible with the 3300 Series probe family. However, always verify the Proximitor® driver model and extension cable length before installation, as mismatched cable lengths will affect the system’s calibrated sensitivity and may require a re-calibration of the Proximitor® output scaling.

Q2: What commissioning steps are required after installation?
After mechanical installation, perform a static gap voltage check using a calibrated DC voltmeter at the Proximitor® output terminals. Confirm the gap voltage is within the specified window for your target material and gap distance. Then perform a dynamic check by slowly rotating the shaft (if possible) and observing the AC vibration signal for noise or dropout. Finally, verify that the rack OK relay closes and that the DCS receives a valid engineering unit signal before releasing the machine to operations.

Q3: Can this probe be used with third-party vibration monitoring racks?
The 330101-00-36-10-02-00 is optimized for use with Bently Nevada Proximitor® drivers. Use with third-party drivers is possible but requires careful matching of driver input impedance, supply voltage, and sensitivity scaling. KNMKS recommends consulting the third-party rack manufacturer’s compatibility matrix before substituting this probe into a non-Bently Nevada system.

Q4: What does the support terms confirmed by quotation cover?
The support terms confirmed by quotation cover manufacturing defects, signal-chain performance deviations from published specifications, and connector or cable integrity failures under normal operating conditions. It does not cover damage resulting from incorrect installation gap, mechanical impact, chemical exposure, or use outside the probe’s rated temperature and pressure envelope. KNMKS provides pre-shipment test documentation with every unit to support support requests and incoming inspection procedures.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330101-00-36-10-02-00
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330101-00-36-10-02-00
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
