Bently Nevada 330101-00-36-05-02-05 Migration-Ready Proximity Probe

Overview

Bently Nevada 330101-00-36-05-02-05 Migration-Ready Proximity Probe for Legacy Control Systems

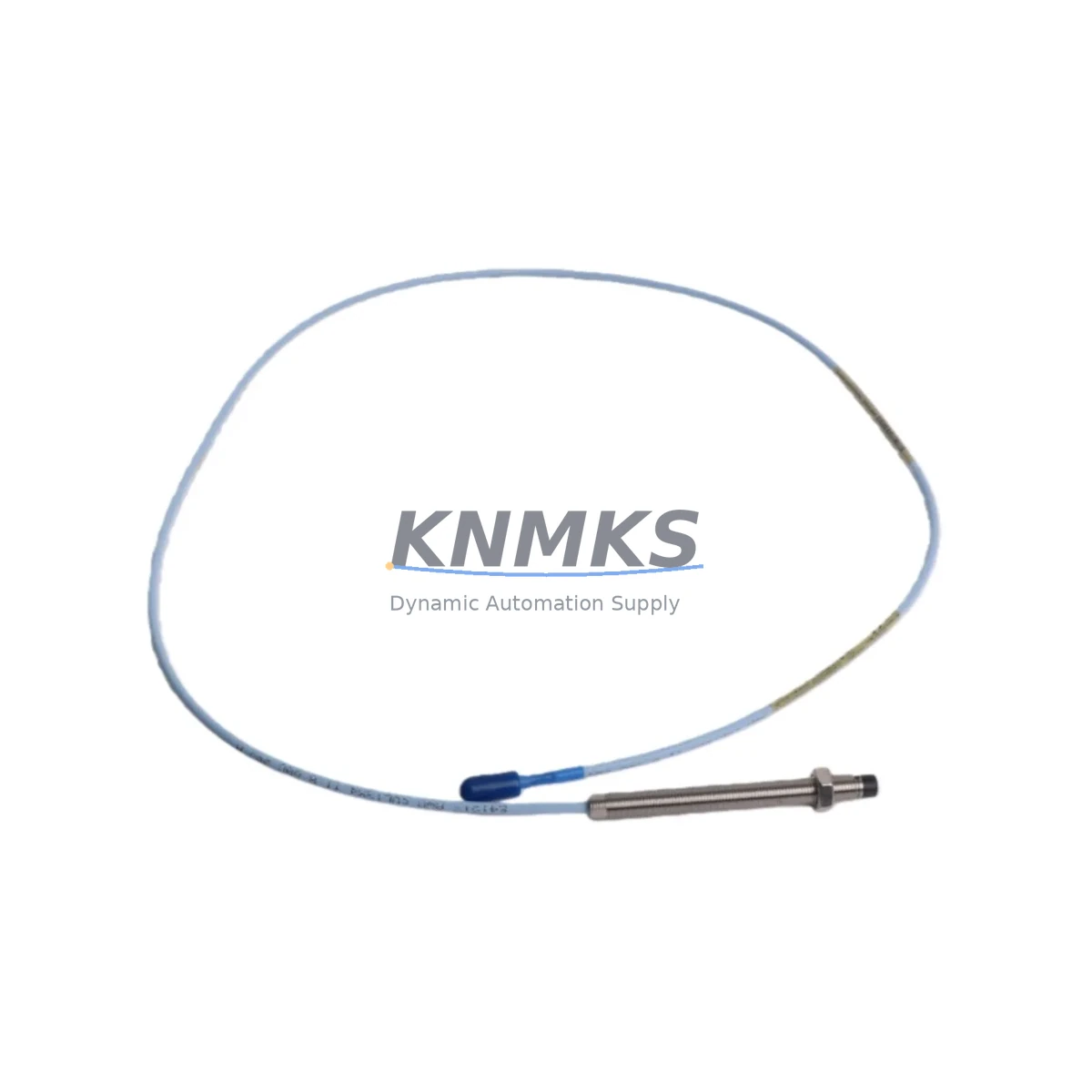

The Bently Nevada 330101-00-36-05-02-05 is a 3300 XL Series 5mm eddy-current proximity probe with a 36-inch (914 mm) armored extension cable, designed for continuous shaft vibration and position monitoring in rotating machinery. As legacy 3300 Series installations approach end-of-support milestones, this migration-ready replacement enables direct substitution without rack redesign, rewiring, or software reconfiguration — making it the preferred choice for maintenance engineers managing planned and emergency retrofits across turbines, compressors, pumps, and gearboxes.

KNMKS maintains verified stock of the 330101-00-36-05-02-05 with pre-shipment functional testing, full support terms confirmed by quotation coverage, and documented compatibility records for the 3300 XL monitoring platform. Each unit ships with calibration data and is traceable to original Bently Nevada specifications.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the 330101-00-36-05-02-05 within an active 3300 XL monitoring system requires a structured approach that accounts for the full signal chain — from probe tip to control room display. The probe interfaces with a 3300 XL proximitor/driver module (such as the 330180-51-05 or 330130-040-01-00 extension cable assembly), which conditions the raw eddy-current signal before passing it to the 3300 XL monitor module installed in the rack. Engineers should verify that the proximitor’s gap voltage is within the linear range (typically –10 VDC ± 2 V at nominal gap) after probe installation and before returning the machine to service.

For installations where the 3300 XL rack also houses a 3300/20 Radial Vibration Monitor or a 3300/25 Thrust Position Monitor, confirm that channel assignments and alert/danger setpoints remain unchanged after the probe swap. If the control system feeds a DCS or safety instrumented system via a 3300 XL I/O module, verify that the analog output scaling has not shifted — a gap in calibration here can trigger spurious alarms or, worse, mask a genuine machinery fault.

In modernization projects where the 3300 XL platform is being migrated to a System 1 Evolution or a third-party condition monitoring platform, the 330101-00-36-05-02-05 remains compatible as an interim probe during phased cutover. This allows the new monitoring hardware to be commissioned and validated while the existing 3300 XL rack continues to protect the machine. During this window, engineers typically run parallel signal paths — one feeding the legacy 3300 XL monitor and one feeding the new platform via a signal splitter or isolation amplifier — before decommissioning the old rack.

Where cabinet space is constrained, note that the 3300 XL rack footprint is fixed; however, replacing an older 3300/05 module with a current 3300 XL equivalent may free a slot for an additional I/O expansion card or a 3300 XL communications gateway module, supporting Modbus RTU or PROFIBUS DP integration with the plant DCS. Confirm backplane slot addressing and module jumper settings before powering the rack back up.

For sites running Bently Nevada System 1 software, HMI screen templates linked to the 3300 XL channel tags do not require modification when performing a like-for-like probe replacement. However, if the replacement is part of a broader upgrade that changes the monitor module type, update the System 1 device template and re-validate all trend displays, alarm pages, and report templates before handover.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement begins with pre-staging. Before the maintenance window opens, verify that the replacement 330101-00-36-05-02-05 has been bench-tested against a reference target at the correct gap, and that the output voltage matches the expected sensitivity curve. Document the as-found gap voltage on the outgoing probe so the incoming unit can be set to the same nominal gap — this eliminates the need for a full re-calibration under time pressure.

Back up the 3300 XL monitor configuration (alert setpoints, time delays, relay assignments, and OK relay logic) before breaking any connections. Most 3300 XL monitors store configuration in non-volatile memory, but a printed or digital record protects against accidental parameter loss during power cycling. If the rack must be de-energized for the swap, coordinate with the control room to place the affected channels in bypass mode within the DCS or SIS to prevent spurious shutdowns.

During reinstallation, route the new probe cable away from high-voltage conductors and variable-frequency drive output cables to prevent electromagnetic interference from corrupting the low-level eddy-current signal. After reconnection, perform a static gap check, confirm OK LED status on the monitor module, and verify that the vibration reading is within the expected baseline range before releasing the machine to operations. A structured pre-return-to-service checklist — covering gap voltage, vibration baseline, alarm acknowledgment, and DCS tag verification — typically reduces commissioning time to under 30 minutes for a single-channel swap.

For multi-probe replacements across a full machine train, stagger the work by machine criticality and plan each probe swap as an independent task with its own sign-off. This approach preserves partial monitoring coverage throughout the maintenance window and allows operations to make informed decisions about continued machine loading if the schedule slips.

Retrofit Support FAQ

Q1: Is the 330101-00-36-05-02-05 a direct drop-in replacement for older 3300 Series 5mm probes?
In most cases, yes. The 330101-00-36-05-02-05 is mechanically and electrically compatible with the 3300 XL proximitor/driver ecosystem. Confirm the mounting thread (M8 × 1.0), cable connector type, and probe holder clearance before installation. If the legacy probe used a different cable termination, a 330130-series extension cable may be required to bridge the connection.

Q2: What pre-shipment testing does KNMKS perform on this probe?
Each 330101-00-36-05-02-05 unit in KNMKS inventory undergoes functional verification against a calibrated reference target, with output voltage and sensitivity confirmed against Bently Nevada specifications. A test record is available upon request. All units ship with a support terms confirmed by quotation covering manufacturing defects and functional performance.

Q3: Can this probe be used during a phased migration from 3300 XL to a newer monitoring platform?
Yes. The 330101-00-36-05-02-05 is fully compatible with the 3300 XL platform and can serve as the sensing element during a phased cutover to System 1 Evolution or a third-party condition monitoring system. The probe itself is platform-agnostic at the signal level; compatibility depends on the proximitor/driver module and the monitor’s input specifications.

Q4: What is the typical lead time and stock availability?
KNMKS maintains ready stock of the 330101-00-36-05-02-05 to support both planned maintenance and emergency replacement scenarios. Standard orders ship within 1–3 business days. For large-quantity or long-term supply commitments, contact our sales team to discuss inventory reservation and scheduled delivery arrangements.
