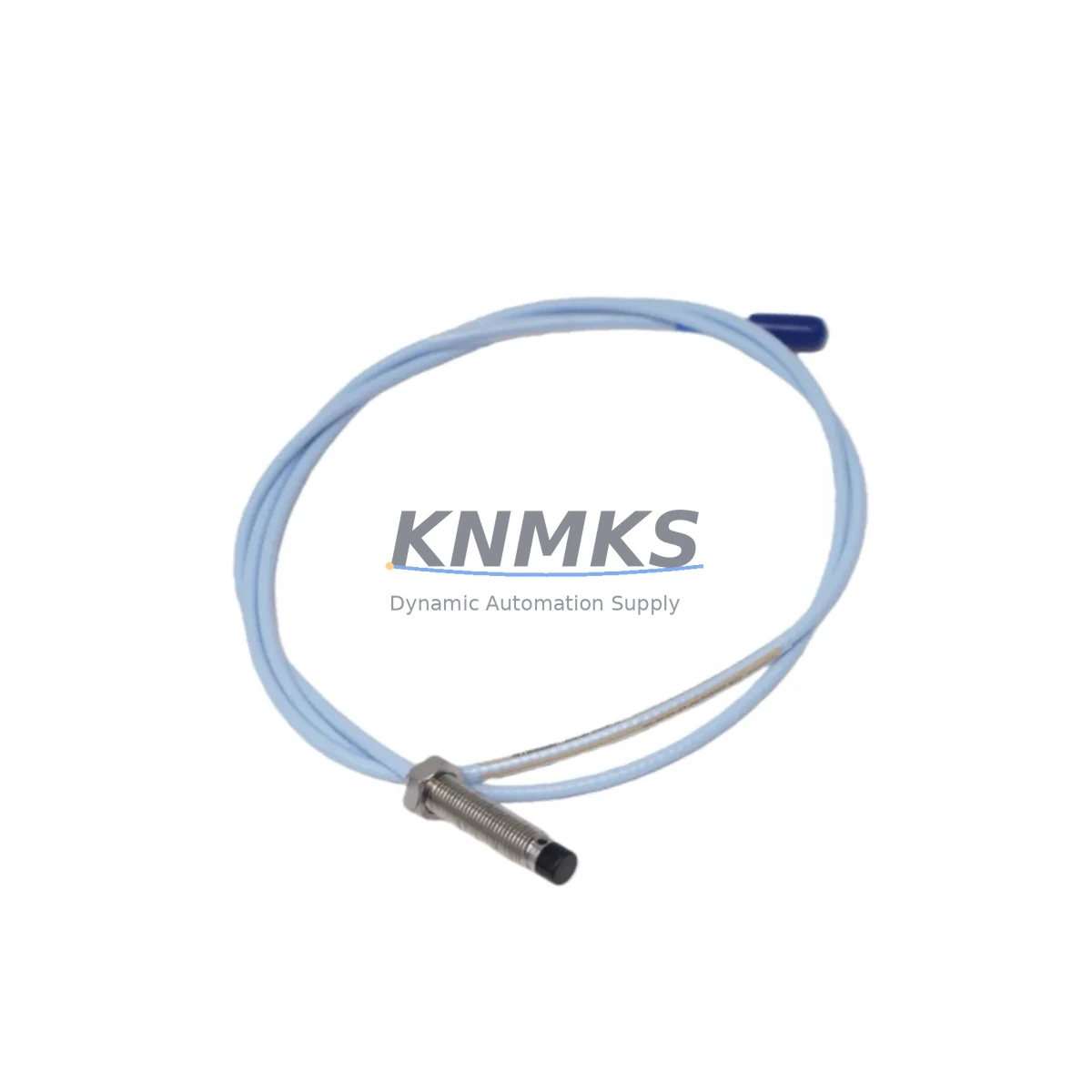

Bently Nevada 330101-00-36-05-02-00 Migration-Ready Proximity Probe

Overview

Bently Nevada 330101-00-36-05-02-00 Migration-Ready Proximity Probe for Legacy Control Systems

The Bently Nevada 330101-00-36-05-02-00 is an 8mm eddy-current proximity probe engineered for direct drop-in replacement and retrofit integration within Bently Nevada 3300 XL Series vibration monitoring systems. As legacy machinery protection platforms approach end-of-life and OEM spare parts become increasingly scarce, this probe provides a verified, migration-ready solution for plants undertaking rotor dynamics monitoring upgrades, control cabinet modernization, and predictive maintenance system overhauls. With a support terms confirmed by quotation and confirmed stock availability, it is a reliable choice for both emergency replacement and planned retrofit programs.

When replacing a discontinued proximity probe in an operating turbine, compressor, or pump train, engineers must systematically verify several critical parameters before commissioning the new unit. Power supply compatibility is the first checkpoint: the 3300 XL proximitor/driver module — typically the Bently Nevada 3300/16-14-01 or 3300/55 — must deliver the correct -24 VDC bias voltage within the specified range. Any deviation in supply voltage will shift the gap voltage output and introduce measurement error that propagates through the vibration alarm logic. Confirm that the existing power module in the control cabinet can sustain the combined current draw when the 330101-00-36-05-02-00 is installed alongside other active channels.

Terminal wiring is the next critical step. The 330101-00-36-05-02-00 uses a standard coaxial cable assembly terminated with a MIL-C-17 connector. Before disconnecting the legacy probe, photograph and document the existing terminal block assignments on the junction box and the proximitor input card. Verify that the replacement cable length — in this case the 36-inch (approximately 0.9 m) integral cable — matches the physical routing distance from the probe tip to the proximitor housing. If the original installation used an extension cable such as the Bently Nevada 330130 series, confirm that the total system cable length remains within the calibrated range for the 3300 XL driver to maintain linear output.

Backplane interface and module addressing must also be confirmed. In rack-based 3300 XL systems, each monitor card occupies a defined slot and communicates over the internal backplane. When the probe channel is reassigned during a retrofit, the corresponding monitor module — such as the 3300/20 dual-channel vibration monitor or the 3300/46M temperature and speed monitor — must be reconfigured to reflect the new channel mapping. Failure to update the module address table will cause the System 1 or System 1 Evolution software to misidentify the measurement point, leading to incorrect alarm routing and historian data gaps.

Program and HMI compatibility verification is equally important. Plants running Bently Nevada System 1 software must update the device database to register the replacement probe’s sensitivity factor (typically 7.87 V/mm or 200 mV/mil for standard 8mm probes) and recalibrate the gap voltage setpoint. HMI screens displaying shaft centerline plots, orbit diagrams, and Bode plots must be reviewed to ensure that the engineering unit scaling remains consistent after the swap. If the control system interfaces with a DCS via a 4–20 mA output card or a Modbus/TCP gateway, the signal chain from the new probe through the proximitor to the analog output module must be end-to-end tested before returning the machine to service.

Installation space confirmation is a practical concern that is often overlooked during the planning phase. The 330101-00-36-05-02-00 has a standard 8mm probe body diameter with a defined thread engagement length. Verify that the existing probe holder or bracket accommodates this geometry and that the gap-setting tool can access the probe tip without interference from adjacent piping or insulation. In tight bearing housings on older turbomachinery, the physical clearance between the probe tip and the shaft surface must be set to the manufacturer-specified gap — typically 1.0 to 1.5 mm — using a calibrated gap voltage measurement rather than a mechanical feeler gauge.

Firmware version compatibility should be checked if the 3300 XL rack includes any recently updated monitor cards. Some firmware revisions alter the probe type detection logic or change the default sensitivity configuration. Confirm the installed firmware version on each affected monitor card against the Bently Nevada compatibility matrix before energizing the new probe channel.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 330101-00-36-05-02-00 into an existing machinery protection system requires coordinated planning across multiple hardware layers. The probe itself is only one element of a measurement chain that includes the proximitor driver, the monitor card, the rack backplane, and the software layer. In a typical 3300 XL rack, the probe connects to a Bently Nevada 3300/16-14-01 proximitor, which conditions the raw eddy-current signal into a calibrated DC voltage that the monitor card reads. If the proximitor is also aging or showing drift, it is advisable to replace it simultaneously with the probe to avoid masking a hardware fault behind a newly calibrated sensor.

For plants migrating from older Bently Nevada 7200 Series or 3300 Series (non-XL) systems to the 3300 XL platform, the I/O wiring topology changes significantly. The 7200 Series used a different connector standard and a separate oscillator/demodulator unit, whereas the 3300 XL integrates the proximitor function into a compact module. During this migration, the terminal block layout in the junction box must be completely rewired, and the cable routing from the machine bearing housing to the control cabinet must be re-documented. A Bently Nevada 3300/55 proximitor installed in the new rack will accept the 330101-00-36-05-02-00 probe directly, simplifying the field installation.

Power distribution within the control cabinet is another planning consideration. The 3300 XL rack requires a dedicated -24 VDC power supply module — such as the Bently Nevada 3300/15 power supply — to energize all proximitor channels simultaneously. When adding new probe channels during an I/O expansion, verify that the existing power supply module has sufficient current headroom. If the rack is near capacity, a second 3300/15 power supply may need to be installed in an adjacent slot or a supplementary cabinet.

Communication protocol migration is increasingly relevant as plants move toward IIoT-enabled condition monitoring. The 3300 XL system can interface with a plant DCS or historian via a Bently Nevada 3500/92 communication gateway module, which supports Modbus RTU, Modbus/TCP, and OPC DA protocols. During the retrofit, confirm that the gateway module’s channel mapping table is updated to include the new probe measurement point. If the plant is transitioning from a proprietary Bently Nevada network to an open Ethernet-based architecture, the 3500/92 or an equivalent protocol converter must be configured and tested before the legacy communication link is decommissioned.

Signal isolation is a common requirement in retrofit projects where the new probe channel shares a cabinet with variable-frequency drives, high-voltage switchgear, or other noise-generating equipment. A DIN-rail-mounted signal isolator or galvanic separator inserted between the proximitor analog output and the DCS analog input card can eliminate ground loop interference that would otherwise corrupt the vibration measurement. This is particularly important in older facilities where the original cable shielding may be degraded or improperly grounded.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement requires a structured pre-shutdown preparation protocol. Before the machine is taken offline, the maintenance team should complete a full backup of the System 1 database, including all alarm setpoints, transient data buffers, and device configuration files. This backup ensures that if the new probe channel requires reconfiguration, the original settings can be restored without manual re-entry, which reduces the risk of transcription errors in critical alarm thresholds.

The physical replacement of the 330101-00-36-05-02-00 should be performed with the machine at rest and the proximitor channel de-energized. After installing the new probe and routing the cable, the gap voltage must be set before the proximitor is powered. This sequence protects the probe tip from contact with the rotating shaft during energization and prevents a false over-limit alarm from triggering the machinery protection system during startup.

Once the probe is installed and the gap is set, a bench-level functional test using a calibrated target simulator — such as the Bently Nevada 330180 calibration tool — can verify the probe’s output linearity before the machine is restarted. This pre-commissioning test catches any wiring faults, connector damage, or sensitivity deviations that would otherwise only become apparent during a live run, potentially forcing a second unplanned shutdown.

Program logic protection is the final layer of downtime control. If the machinery protection system is integrated with a safety instrumented system (SIS) or a PLC-based emergency shutdown (ESD) logic, the probe channel should be placed in bypass mode during the replacement and commissioning window. Bypassing the channel prevents a spurious trip signal from the open probe circuit from activating the ESD and causing an uncontrolled machine shutdown. The bypass must be formally authorized, time-limited, and removed immediately after commissioning is confirmed. All bypass events should be logged in the plant’s management of change (MOC) system to maintain audit trail integrity.

Retrofit Support FAQ

Q1: Is the 330101-00-36-05-02-00 a direct replacement for other 330101-series probes with different cable lengths?
The 330101 series uses a standardized part number structure where the cable length is encoded in the SKU. The 330101-00-36-05-02-00 has a 36-inch integral cable. If your existing installation uses a different cable length (e.g., 330101-00-08-05-02-00 for 8-inch cable), you can use a Bently Nevada 330130-series extension cable to match the total system cable length required by the proximitor calibration. Always verify that the combined cable length falls within the specified range for your proximitor model before finalizing the replacement.

Q2: What commissioning steps are required after installing this probe in a 3300 XL system?
After physical installation, set the probe gap to achieve the target gap voltage (typically -10 VDC at the nominal 1.0 mm gap for a -24 VDC system). Verify the proximitor output voltage at the monitor card input terminals. Update the System 1 device database with the probe’s sensitivity factor and recalibrate the alarm setpoints. Perform a channel function test by simulating shaft movement with a calibration target and confirming that the monitor card displays the correct displacement value. Remove any bypass that was applied during installation and confirm that all alarms are active before returning the machine to service.

Q3: Can this probe be used in systems that have been upgraded from the 3300 Series to the 3300 XL platform?
Yes. The 330101-00-36-05-02-00 is compatible with both the original 3300 Series and the 3300 XL platform, provided the correct proximitor module is used. When migrating from the older 3300 Series to the 3300 XL, replace the legacy oscillator/demodulator with a 3300 XL proximitor module and rewire the terminal connections according to the 3300 XL installation drawing. The probe body and connector are mechanically identical across both platforms, so no modification to the probe holder or bearing housing is required.

Q4: What support terms and pre-shipment testing does KNMKS provide for this unit?
All 330101-00-36-05-02-00 units supplied by KNMKS carry a support terms confirmed by quotation covering manufacturing defects and functional performance. Each unit undergoes pre-shipment functional testing to verify output linearity, connector integrity, and cable continuity before dispatch. Stock is maintained to support both emergency replacement orders and planned retrofit programs. For lead time confirmation and volume pricing, contact the KNMKS sales team directly.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330101-00-36-05-02-00
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330101-00-36-05-02-00
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
