Bently Nevada 330101-00-35-10-11-05 Spare Part for Factory Uptime

Overview

Bently Nevada 330101-00-35-10-11-05 Spare Part for Factory Uptime

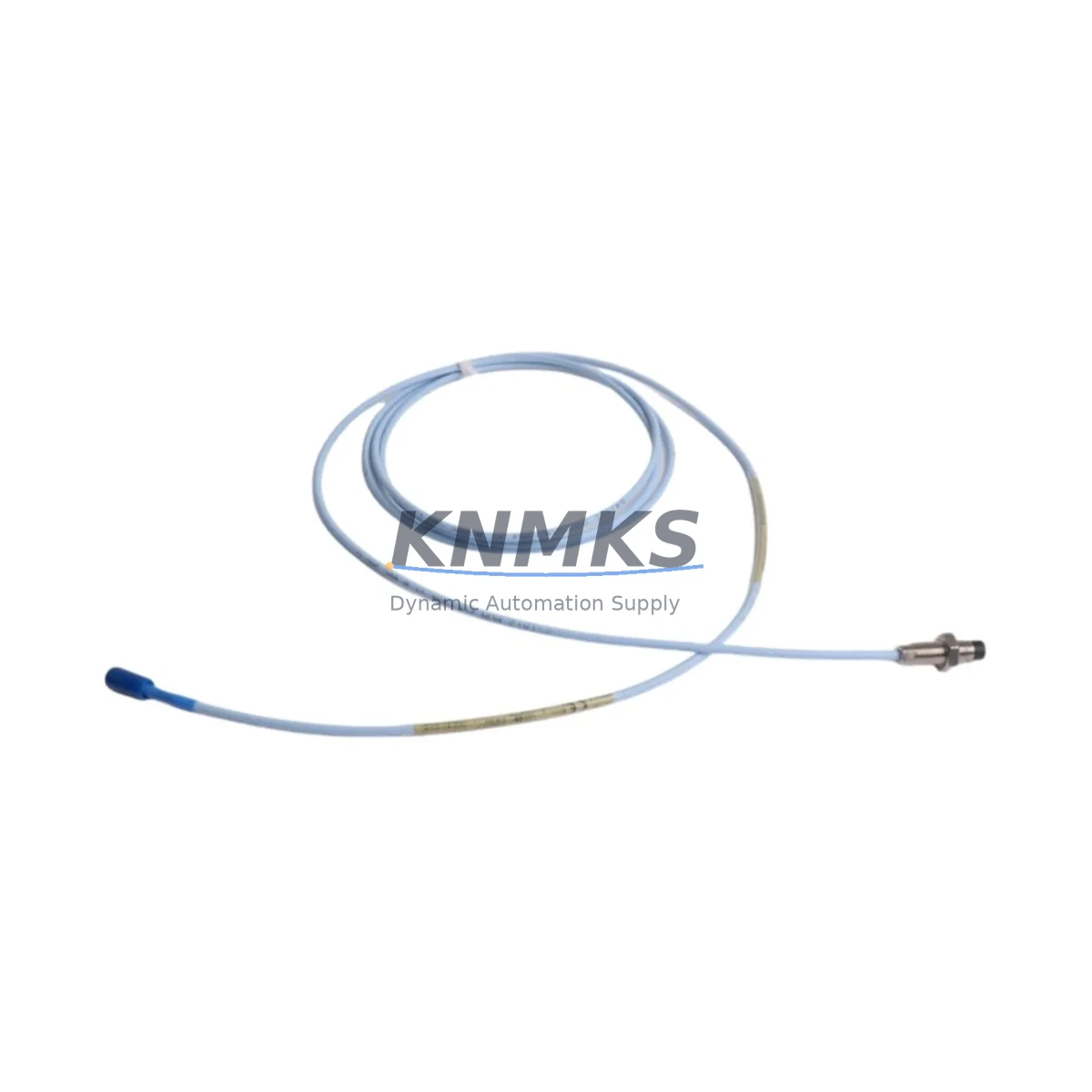

The Bently Nevada 330101-00-35-10-11-05 is an original proximity transducer engineered for continuous vibration monitoring in rotating machinery applications. Designed for the 3300 XL Series monitoring system, this 8mm proximity probe with a 35cm (approximately 14-inch) armored extension cable delivers reliable eddy-current displacement sensing in high-temperature, high-vibration industrial environments. Maintenance engineers and procurement teams managing turbines, compressors, pumps, and gearboxes rely on this probe as a first-line spare to minimize unplanned downtime and sustain factory uptime across critical production assets.

Whether you are executing a scheduled annual overhaul, responding to a vibration alarm, or building a strategic spare parts inventory for a legacy Bently Nevada 3300 XL installation, the 330101-00-35-10-11-05 is a direct OEM-grade replacement that eliminates compatibility risk. Each unit shipped by KNMKS undergoes pre-shipment functional verification, and all orders are backed by a support terms confirmed by quotation covering manufacturing defects and performance conformance.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330101-00-35-10-11-05 proximity probe in a 3300 XL monitoring loop, a thorough site inspection of the entire measurement chain is essential to prevent repeat failures and ensure signal integrity. Maintenance engineers should treat this replacement as an opportunity to audit the full vibration monitoring circuit.

Begin with the 3300 XL Proximitor® Sensor driver (330180 series) — the probe and driver form a matched eddy-current system, and a degraded driver will produce erroneous gap voltage readings even with a new probe installed. Inspect the driver housing for moisture ingress, verify the output voltage at the recommended air gap, and confirm the driver is within its calibrated range.

Next, inspect the 330130 extension cable connecting the probe to the driver. Armored extension cables in high-vibration environments are prone to micro-fractures at the connector terminations. A cable with intermittent continuity will generate false vibration spikes that can trigger unnecessary shutdowns. Replace the extension cable as a matched set with the probe whenever cable age exceeds three years or physical damage is visible.

At the monitor rack level, verify the 3300/16 or 3300/20 series monitor module input channel for correct gap voltage, sensitivity scaling, and alarm setpoints. Confirm that the channel’s OK relay output is functioning and that the 3300 XL rack power supply is delivering stable ±24 VDC to all installed monitor cards. A marginal power supply under full rack load is a common root cause of intermittent vibration channel faults.

For installations where the 3300 XL rack interfaces with a DCS or safety system, inspect the 4–20 mA output wiring and signal isolators between the monitor and the control system. Signal isolators prevent ground loops that can corrupt vibration readings and should be tested for linearity during any planned outage. Additionally, review the terminal strip and field wiring inside the junction box for corrosion, loose terminations, or incorrect shielding — unshielded or improperly grounded cables in proximity probe circuits are a leading cause of elevated noise floors.

Finally, if the asset is managed through a System 1 Evolution® or Orbit 60 Series condition monitoring platform, update the probe configuration parameters after replacement to ensure the new probe’s sensitivity factor and gap voltage are correctly entered. Incorrect configuration will result in inaccurate vibration amplitude readings and may mask developing faults.

Site Replacement Workflow

The 330101-00-35-10-11-05 is a direct replacement for earlier 330101 series proximity probes used in legacy Bently Nevada 3300 and 3300 XL installations. The standardized 8mm probe body and connector interface ensure mechanical and electrical compatibility without requiring monitor reconfiguration in most applications, significantly reducing replacement time during unplanned outages.

Step 1 — Isolation: De-energize the monitor channel and confirm the OK relay has dropped out before disconnecting the probe. Do not disconnect a live proximity probe circuit — the driver output voltage can damage sensitive instrumentation inputs.

Step 2 — Removal: Loosen the probe locknut and carefully back the probe out of the bracket, counting the number of turns to record the original air gap setting. Label and photograph the cable routing before disconnection.

Step 3 — Inspection: Inspect the target surface (shaft or thrust collar) for scoring, pitting, or runout that may have contributed to the original probe failure. A damaged target surface will cause premature wear on the replacement probe.

Step 4 — Installation: Thread the new 330101-00-35-10-11-05 probe into the bracket and set the air gap to the manufacturer-specified value (typically 1.0–1.5 mm for 8mm probes, confirm with the system documentation). Tighten the locknut to the specified torque.

Step 5 — Verification: Re-energize the channel and confirm the gap voltage is within the linear range (typically –10 to –18 VDC). Verify the OK relay has picked up and that the vibration reading is stable and within expected baseline values before returning the machine to service.

This workflow minimizes downtime to under two hours for a single-channel replacement and ensures the monitoring system is fully validated before restart — a critical requirement for machinery covered under API 670 or equivalent vibration monitoring standards.

Spare Parts Support FAQ

Q1: Is the 330101-00-35-10-11-05 compatible with both 3300 and 3300 XL series monitors?
The 330101-00-35-10-11-05 is designed and calibrated for the Bently Nevada 3300 XL Series Proximitor® system. It is electrically compatible with most 3300 series drivers and monitors; however, KNMKS recommends confirming the driver part number and system documentation before installation to ensure the probe sensitivity factor matches the monitor channel configuration. Contact our technical team at [email protected] for compatibility verification.

Q2: What is included in the support terms confirmed by quotation and how does the pre-shipment test work?
Every 330101-00-35-10-11-05 unit shipped by KNMKS undergoes a pre-shipment functional test that verifies probe impedance, cable continuity, and connector integrity. The support terms confirmed by quotation cover manufacturing defects and performance non-conformance under normal operating conditions. Support requests are processed with a replacement-first policy to minimize your downtime. Test records are available upon request for quality-critical installations.

Q3: Can KNMKS support long-term or blanket order supply for this part?
Yes. KNMKS maintains dedicated stock of the 330101-00-35-10-11-05 and related 3300 XL series components to support planned maintenance schedules, annual overhaul programs, and strategic spare parts inventory programs. Blanket purchase orders with scheduled releases are accepted. Contact [email protected] or call +86 18359268345 to discuss volume pricing and lead time commitments.

Q4: How should this probe be stored as a long-term spare?
Store the 330101-00-35-10-11-05 in its original packaging in a dry, temperature-controlled environment (10°C to 40°C, <70% RH non-condensing). Avoid storing proximity probes near strong magnetic fields or in areas with high vibration. Inspect the probe tip and connector for oxidation annually. Properly stored units maintain full performance characteristics for a minimum of five years from the date of manufacture.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330101-00-35-10-11-05
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330101-00-35-10-11-05
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
