Bently Nevada 330101-00-35-05-02-05 3300 XL Spare Part: Maintenance-Proven Proximity Transducer for Factory Uptime

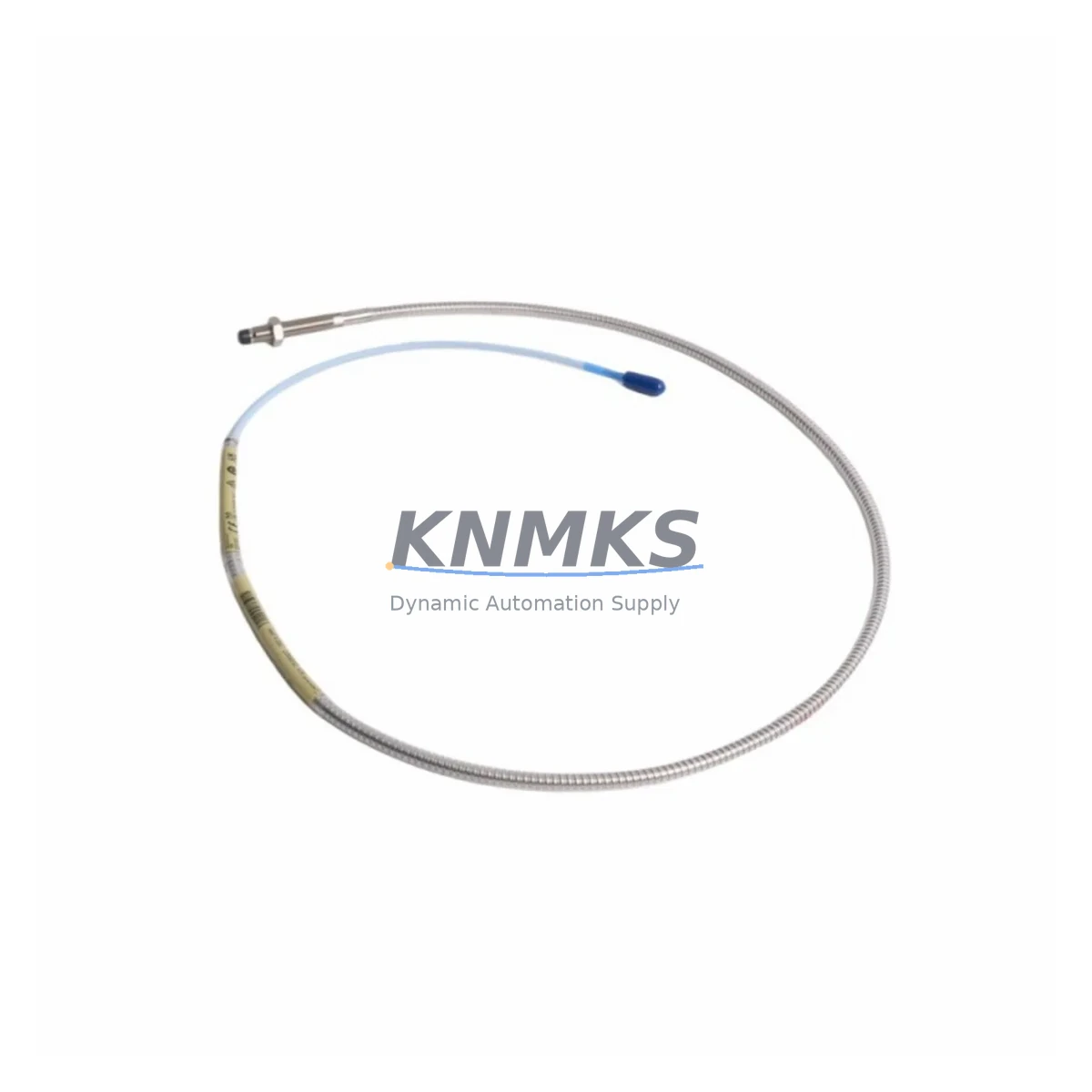

The Bently Nevada 330101-00-35-05-02-05 is an 8mm proximity transducer designed for the 3300 XL Series vibration monitoring system — one of the most widely deployed machinery protection platforms in rotating equipment applications worldwide. Whether you are managing a planned annual overhaul, responding to an unplanned trip event, or building a strategic spare parts inventory for your turbine, compressor, or pump train, this original-specification transducer delivers the measurement accuracy and long-term reliability that maintenance and reliability engineers depend on.

At KNMKS, every 330101-00-35-05-02-05 unit is sourced, inspected, and dispatched with a support terms confirmed by quotation. We support fast replacement cycles for facilities that cannot afford extended downtime, and we maintain long-term supply continuity for aging 3300 XL installations where OEM availability has become uncertain.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Proximity transducers in the 3300 XL system do not operate in isolation. When a 330101-00-35-05-02-05 is flagged for replacement — whether due to gap voltage drift, physical damage, or a monitor channel alarm — experienced maintenance engineers treat the event as a trigger for a broader inspection of the entire vibration monitoring loop.

Begin with the extension cable paired to this transducer. The Bently Nevada 330500 series extension cables are the standard interconnect between the transducer and the proximitor/driver. Inspect the coaxial connector at both ends for corrosion, mechanical damage, or contamination. A degraded extension cable will produce erratic gap voltage readings that can be misdiagnosed as a transducer fault. Replace the cable if continuity or insulation resistance is outside specification.

Next, verify the proximitor/driver module — typically a 3300 XL 8mm proximitor such as the 330180 series — mounted in the field junction box or directly in the monitor rack. The proximitor converts the transducer’s impedance change into a DC voltage signal. A failing proximitor can cause false alarms, channel dropouts, or incorrect vibration amplitude readings. If the transducer is being replaced following a trip event, the proximitor should be bench-tested or swapped as a precaution.

At the monitor rack level, inspect the 3300/16 or 3300/20 monitor card assigned to this channel. Check the input terminal block for loose wiring, verify the OK relay output is functioning, and confirm that the channel setpoints — Alert and Danger — are correctly programmed per the machinery protection philosophy document. If the monitor card has accumulated significant operating hours alongside the failed transducer, consider including a spare monitor card in your next procurement cycle.

For facilities running integrated machinery protection with a DCS or safety system, also verify the 4–20 mA output wiring from the monitor to the DCS I/O card. Signal isolation barriers or galvanic isolators in this loop should be inspected for drift, particularly in high-humidity or high-vibration environments. A faulty isolator can introduce a DC offset that shifts the vibration reading at the DCS historian without triggering a monitor alarm.

Finally, review the power supply feeding the 3300 XL rack. The system typically operates on a 24 VDC instrument bus. Confirm that the power supply output voltage is within tolerance and that the redundant power feed (if installed) is healthy. An undervoltage condition on the rack power bus can cause multiple channel faults simultaneously, which is sometimes misdiagnosed as a wiring or transducer problem.

Building a minimum spare parts kit around the 330101-00-35-05-02-05 — including at least one spare extension cable, one spare proximitor, and one spare monitor card — is a widely adopted strategy for facilities with critical rotating equipment where a single channel failure can trigger a protective shutdown.

Site Replacement Workflow

Replacing the 330101-00-35-05-02-05 in the field follows a structured sequence to minimize downtime and ensure measurement integrity is restored before the machine is returned to service.

Step 1 — Permit and Isolation: Obtain the required work permit. If the machine cannot be taken offline, confirm with operations whether the monitor channel can be bypassed per the site’s bypass management procedure. Document the bypass start time.

Step 2 — Record Baseline Data: Before disconnecting the existing transducer, record the current gap voltage from the monitor front panel or DCS display. This value will be used to verify correct installation of the replacement unit.

Step 3 — Remove the Existing Transducer: Disconnect the extension cable at the transducer connector. Unthread the transducer from the mounting bracket. Inspect the bracket, lock nut, and target surface for wear or damage. Clean the target area if contamination is present.

Step 4 — Install the Replacement Unit: Thread the new 330101-00-35-05-02-05 into the bracket. Set the gap to the OEM-specified value (typically 1.0 mm ± 0.1 mm for 8mm transducers) using a non-ferrous feeler gauge. Tighten the lock nut to the specified torque. Reconnect the extension cable.

Step 5 — Verify Gap Voltage: Power the proximitor and confirm the gap voltage at the monitor matches the baseline value recorded in Step 2, within the acceptable tolerance band. If the reading is outside tolerance, re-adjust the gap before proceeding.

Step 6 — Functional Check and Bypass Removal: Confirm the monitor channel is in OK status. Remove the bypass, document the bypass end time, and return the channel to normal protective service. Update the maintenance management system with the replacement record, including the new transducer serial number and installation gap voltage.

This workflow is compatible with both planned overhaul scenarios and emergency corrective maintenance, and it supports the goal of restoring full machinery protection coverage in the shortest possible time.

Spare Parts Support FAQ

Q1: Is the 330101-00-35-05-02-05 compatible with both 3300/16 and 3300/20 monitor systems?
Yes. The 330101-00-35-05-02-05 is an 8mm proximity transducer designed for use within the Bently Nevada 3300 XL system architecture, which includes both the 3300/16 and 3300/20 monitor series. Compatibility is determined by the transducer diameter (8mm), the extension cable type, and the proximitor model. Always verify the proximitor part number against the transducer specification sheet before installation to confirm the complete measurement chain is matched.

Q2: What is included in the support terms confirmed by quotation, and what does the pre-shipment testing cover?
Every unit shipped by KNMKS is subject to a pre-shipment inspection that includes visual examination, connector integrity check, and where applicable, electrical verification of the transducer’s static characteristics. The support terms confirmed by quotation cover defects in materials and workmanship under normal operating conditions. Units that fail within the confirmed support period are replaced or credited. Support requests require the return of the defective unit for evaluation.

Q3: How should the 330101-00-35-05-02-05 be stored as a long-term spare?
Store the transducer in its original packaging or an equivalent anti-static, moisture-resistant enclosure. The recommended storage environment is 10°C to 40°C with relative humidity below 75%, non-condensing. Protect the coaxial connector from contamination by keeping the dust cap in place. Inspect stored units annually for connector corrosion and cable jacket condition. Transducers stored correctly for up to five years typically remain within specification, but a gap voltage verification test is recommended before installation after extended storage.

Q4: Can KNMKS support long-term or blanket purchase orders for the 330101-00-35-05-02-05?
Yes. KNMKS supports long-term supply agreements for facilities that require guaranteed stock availability for critical spare parts. Blanket orders can be structured on a quarterly or annual release basis, with pricing fixed at the time of agreement. This arrangement is particularly valuable for plants operating aging 3300 XL systems where OEM lead times have extended or where the part has been discontinued from standard distribution channels. Contact our sales team to discuss your facility’s requirements.
