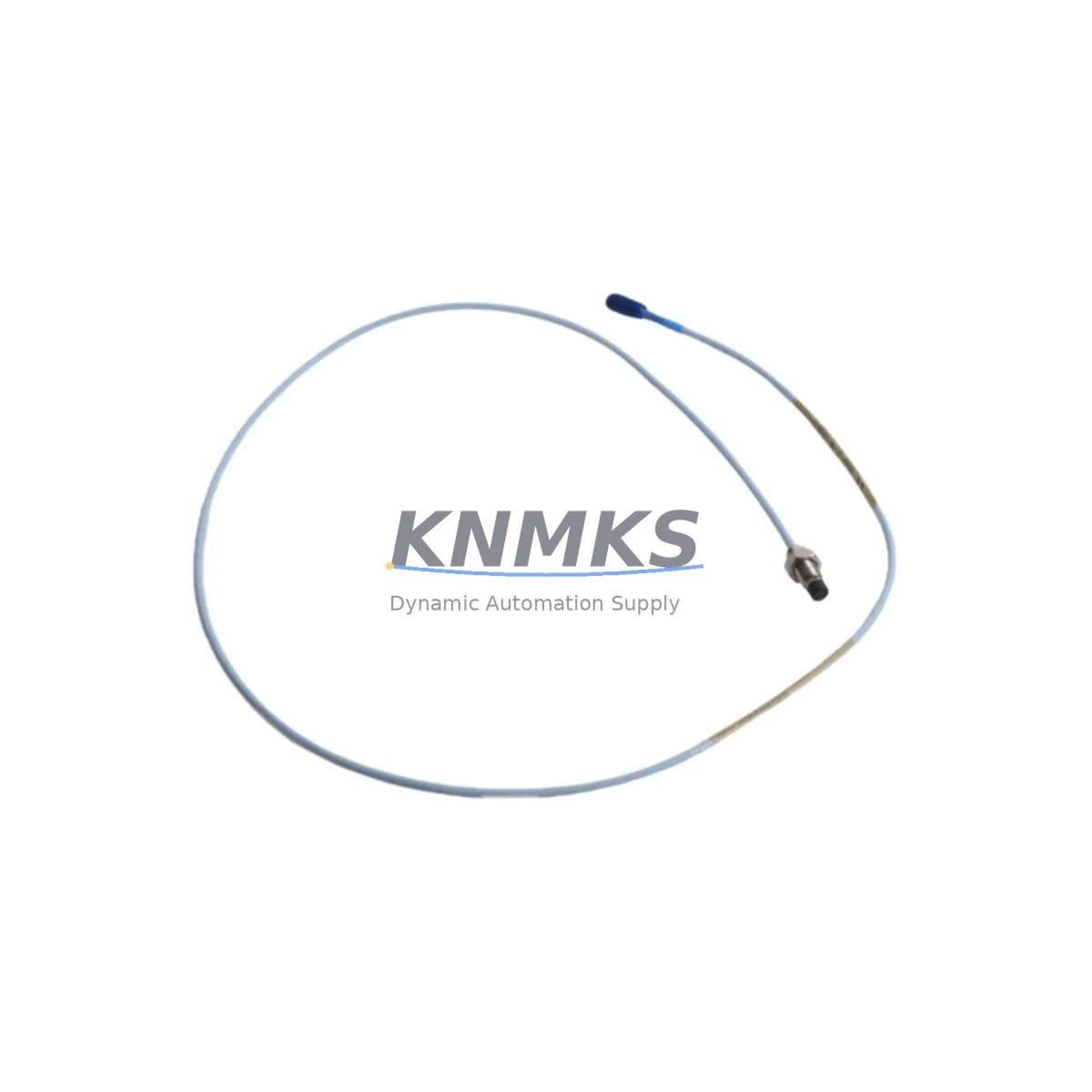

Bently Nevada 330101-00-34-15-02-05 Fail-Safe Proximity Probe

Overview

Bently Nevada 330101-00-34-15-02-05 Fail-Safe Proximity Probe for Industrial Control Reliability

The Bently Nevada 330101-00-34-15-02-05 is an 8mm eddy current proximity probe engineered for the 3300 XL Series continuous vibration monitoring system. Designed to operate in the most demanding industrial environments — including petrochemical plants, power generation facilities, mining operations, and continuous process manufacturing — this probe delivers fail-safe, real-time shaft vibration and position data that is critical to preventing unplanned shutdowns and protecting rotating machinery assets.

In high-stakes control cabinets where signal integrity is non-negotiable, the 330101-00-34-15-02-05 provides stable eddy current sensing across a wide temperature range, maintaining measurement accuracy even under severe electromagnetic interference, mechanical vibration, and ambient humidity fluctuations. Its robust stainless steel housing and hermetically sealed tip resist dust ingress, moisture condensation, and chemical exposure — conditions routinely encountered in metallurgical, water treatment, and offshore marine environments.

When integrated into a complete 3300 XL monitoring loop alongside the Bently Nevada 330130-080-00-00 extension cable and the 330180-X1-05 proximitor/oscillator, the probe forms a fully calibrated eddy current measurement chain. This chain feeds real-time gap voltage signals to the 3500/42M Proximitor Monitor, which executes trip and alarm logic to protect turbines, compressors, pumps, and gearboxes from catastrophic bearing failure. Any signal drift, cable break, or probe fault is immediately detected by the monitor’s built-in self-diagnostics, triggering a fail-safe response before mechanical damage can propagate.

In critical interlock and safety instrumented system (SIS) architectures, the 330101-00-34-15-02-05 is frequently deployed alongside Bently Nevada 3500/22M Transient Data Interface modules and 3500/15 Power Supply units to ensure that the entire monitoring chain remains energized and communicating even during grid disturbances or control cabinet power fluctuations. The probe’s low-impedance output minimizes susceptibility to induced noise from adjacent variable frequency drives (VFDs), high-current motor starters, and bus bar switching transients — all common sources of signal contamination in heavy industrial switchgear rooms.

For facilities operating under IEC 61511 functional safety requirements or API 670 machinery protection standards, the 330101-00-34-15-02-05 provides the measurement foundation for SIL-rated vibration shutdown loops. Its consistent sensitivity of 7.87 mV/µm (200 mV/mil) and linear measurement range of 0.25 mm to 2.26 mm (10 to 89 mil) ensure that trip setpoints remain accurate over the full service life of the probe, reducing the risk of nuisance trips or — more critically — missed trips that could allow a bearing to run to destruction.

Replacement and spare-part logistics are a key concern for maintenance teams managing aging DCS and turbine control infrastructure. KNMKS maintains ready stock of the 330101-00-34-15-02-05 with full pre-shipment functional testing, ensuring that emergency replacements can be dispatched without the lead-time delays associated with OEM procurement channels. Each unit ships with a support terms confirmed by quotation covering manufacturing defects and measurement performance, backed by documented outgoing inspection records.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A robust machinery protection cabinet built around the 330101-00-34-15-02-05 proximity probe typically integrates several complementary Bently Nevada and third-party components to achieve full-spectrum fault coverage. The 330180-X1-05 proximitor/oscillator conditions the raw probe signal into a calibrated DC gap voltage, which is then processed by the Bently Nevada 3500/42M Proximitor Monitor for real-time OK/Not-OK status and trip relay output. Redundant power to the monitoring rack is supplied via the 3500/15 Power Supply, which accepts wide-range AC/DC input and provides isolated, regulated 24 VDC to all monitor cards — ensuring that a single power event cannot silence the entire protection system.

In cabinets where shaft absolute vibration measurement is required (as opposed to shaft relative), the proximity probe data is combined with output from a Bently Nevada 330400-series seismic velocity transducer mounted on the bearing housing. This dual-channel approach satisfies API 670 requirements for both relative and absolute shaft motion monitoring on critical turbomachinery. Communication to the plant DCS or safety PLC is handled via the 3500/92 Communication Gateway, which supports Modbus TCP, PROFIBUS DP, and OPC-DA protocols — enabling seamless integration into existing Siemens, Rockwell, or Yokogawa control architectures without gateway conflicts or protocol translation latency.

For installations in high-dust or high-humidity environments such as cement mills, coal handling facilities, or coastal marine platforms, the probe cable routing is protected by stainless steel conduit fittings and armored extension cables (such as the 330130-080-00-00), which prevent cable abrasion, rodent damage, and moisture ingress that could introduce measurement offset or intermittent signal loss — both of which represent latent safety hazards in a vibration trip loop.

Critical Industrial Safety Applications

The 330101-00-34-15-02-05 is deployed across a broad range of critical industrial sectors where unplanned rotating equipment failure carries severe safety, environmental, and financial consequences:

Petrochemical & Refining: Installed on centrifugal compressors, boiler feed pumps, and reactor agitators in continuous process units. The probe’s high-temperature rating and chemical-resistant housing allow it to operate reliably in hydrocarbon-rich atmospheres where conventional sensors would degrade rapidly. Trip signals from the 3500/42M monitor are wired directly into the plant’s Safety Instrumented System (SIS) to initiate emergency shutdown (ESD) sequences before bearing temperatures or vibration amplitudes reach destructive levels.

Power Generation: Used on steam turbine shaft monitoring systems at coal-fired, gas-fired, and combined-cycle power plants. The probe monitors shaft eccentricity, differential expansion, and radial vibration simultaneously — providing the turbine protection system with the multi-parameter data needed to distinguish normal transient behavior from developing mechanical faults. This prevents both false trips (which cost generation revenue) and missed trips (which risk catastrophic turbine failure).

Mining & Mineral Processing: Applied to large ball mill pinion bearings, SAG mill trunnion bearings, and slurry pump shafts in open-pit and underground mining operations. The IP67-rated probe housing withstands the abrasive dust, water spray, and mechanical shock characteristic of mineral processing environments, where sensor replacement under production pressure is both costly and hazardous.

Water & Wastewater Treatment: Monitors high-speed centrifugal pumps and blower shafts in municipal water treatment plants, where continuous operation is mandated by public health regulations. Early detection of bearing wear or rotor imbalance via the 330101-00-34-15-02-05 allows maintenance teams to schedule corrective action during planned outages rather than responding to emergency failures that could interrupt water supply.

Metallurgy & Steel Production: Deployed on rolling mill drive shafts, continuous caster pinch rolls, and blast furnace blower trains. The probe’s resistance to high ambient temperatures and strong electromagnetic fields generated by large induction furnaces and arc furnaces makes it the preferred sensing element for vibration monitoring in steel plant environments.

Port & Marine: Used on ship propulsion shaft monitoring systems and port crane hoist motor bearings, where saltwater corrosion resistance and vibration immunity are essential for long-term measurement reliability without frequent recalibration or replacement.

Safety and Quality FAQ

Q1: What support terms coverage is provided with the 330101-00-34-15-02-05?
Every unit supplied by KNMKS carries a support terms confirmed by quotation from the date of shipment, covering manufacturing defects and measurement performance deviations. Support requests are supported by our documented pre-shipment inspection records, which confirm that each probe met Bently Nevada sensitivity and linearity specifications before dispatch. Replacement or repair is arranged promptly to minimize your equipment downtime.

Q2: What pre-shipment testing is performed on each probe?
Each 330101-00-34-15-02-05 undergoes a full functional inspection prior to shipment, including sensitivity verification (7.87 mV/µm ±5%), cable continuity and insulation resistance testing, and visual inspection of the probe tip, housing, and connector. Test results are documented and available upon request, providing traceability for maintenance records and safety audits.

Q3: Is this probe compatible with existing 3300 XL and 3500 Series installations?
Yes. The 330101-00-34-15-02-05 is a direct replacement for the standard 8mm probe in the Bently Nevada 3300 XL eddy current measurement system and is fully compatible with 3500 Series monitor racks when used with the appropriate 330180-series proximitor/oscillator. No recalibration of the monitor card is required when replacing a like-for-like probe, provided the extension cable length and target material remain unchanged.

Q4: Can KNMKS support long-term or blanket order supply for this part?
Yes. KNMKS maintains ongoing inventory of the 330101-00-34-15-02-05 and can support blanket purchase orders, scheduled release agreements, and emergency spot supply for facilities that require guaranteed availability of critical spare parts. Contact our sales team at [email protected] or +86 18359268345 to discuss supply agreements tailored to your maintenance planning cycle.
