Bently Nevada 330101-00-33-05-02-00 Maintenance-Proven Spare Part for Factory Uptime

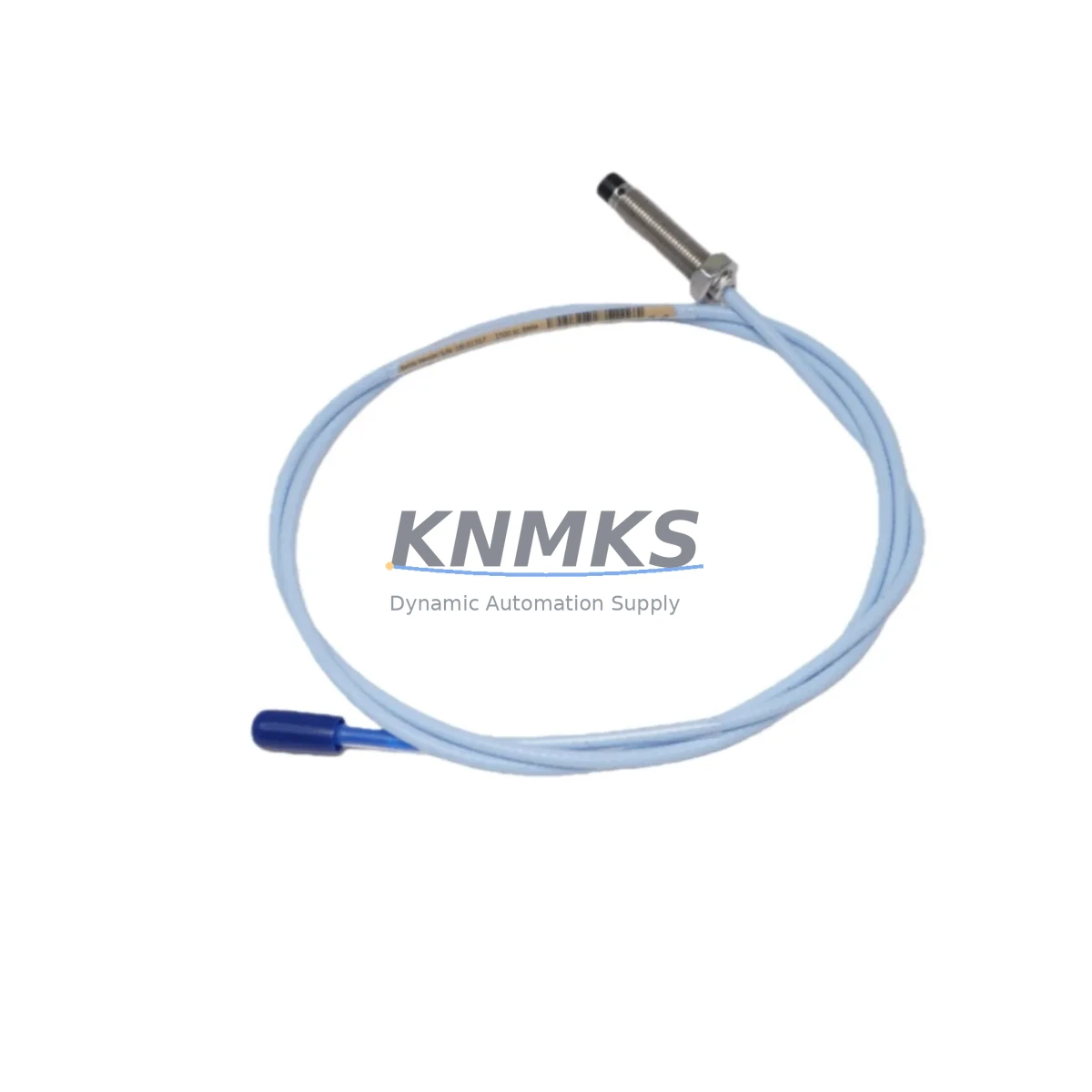

The Bently Nevada 330101-00-33-05-02-00 is an 8mm eddy-current proximity probe engineered for the 3300 XL continuous vibration monitoring system. Designed to deliver precise radial and axial shaft displacement measurements in rotating machinery environments, this probe is a critical component in turbines, compressors, pumps, and gearboxes across oil & gas, power generation, petrochemical, and heavy manufacturing facilities. Maintaining a verified stock of the 330101-00-33-05-02-00 is a fundamental requirement for any maintenance team committed to minimizing unplanned downtime and sustaining plant availability.

At KNMKS, every 330101-00-33-05-02-00 unit is sourced as an original Bently Nevada spare part, individually tested prior to shipment, and backed by a support terms confirmed by quotation. Our supply chain is structured to support both emergency replacement orders and long-term blanket purchasing agreements, ensuring your maintenance and procurement teams are never caught without a critical vibration monitoring component.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330101-00-33-05-02-00 proximity probe is flagged during routine vibration analysis or fails during a scheduled outage, the replacement process extends well beyond swapping the probe itself. Experienced maintenance engineers understand that the probe is one node in an interconnected measurement chain, and each adjacent component must be verified to restore full system integrity.

Begin with the Bently Nevada 330130-080-00-00 extension cable, which connects the probe to the proximitor. Inspect the cable jacket for abrasion, heat damage, or crush points — particularly where it passes through bulkheads or conduit fittings. A degraded extension cable introduces signal noise that can mimic shaft instability and trigger false alarms or missed trips.

Next, verify the Bently Nevada 3300 XL Proximitor/Seismic Monitor (such as the 3300/16 or 3300/20 series) installed in the monitor rack. The proximitor supplies the oscillator drive signal to the probe and converts the raw eddy-current response into a calibrated voltage output. If the probe replacement does not resolve the alarm condition, the proximitor is the next component to bench-test or swap. Keep at least one spare proximitor module per critical machine train in your on-site inventory.

The 3300 XL monitor rack backplane and its associated I/O terminal blocks should also be inspected during any probe replacement outage. Loose terminal connections, oxidized contacts, or damaged ribbon cables between the I/O module and the backplane can introduce ground loops or intermittent signal loss that are difficult to diagnose without systematic elimination.

For facilities running integrated protection and control architectures, confirm that the 4–20 mA output signal from the monitor is correctly received by the DCS or PLC input card. Signal isolation barriers or Bently Nevada 3500 series signal conditioners used in hybrid installations should be tested for output accuracy after any probe or proximitor change, as impedance mismatches can shift the calibrated output range.

Finally, review the power supply module feeding the 3300 XL rack — typically a 24 VDC or 28 VDC regulated supply. Voltage ripple or supply sag under load is a common root cause of erratic vibration readings that are incorrectly attributed to probe failure. A spare power supply module for the monitor rack is a low-cost insurance policy against extended downtime during a critical machine trip investigation.

Procurement engineers should also consider stocking the 330101-00-33-10-02-00 (10m cable variant) and the 330180-91-00 proximitor as companion spares to the 330101-00-33-05-02-00, ensuring that both short and extended cable configurations are covered for different machine train geometries across the plant.

Site Replacement Workflow

Step 1 — Isolation and Lockout: Follow site LOTO procedures. Confirm the machine is at rest and the monitor channel is bypassed or inhibited to prevent a spurious trip during probe removal.

Step 2 — Gap Measurement and Documentation: Before removing the old probe, record the existing air gap using a feeler gauge or the proximitor DC voltage output (typically –10 VDC at mid-range for 3300 XL systems). This baseline simplifies reinstallation of the new 330101-00-33-05-02-00.

Step 3 — Probe Removal: Unthread the probe from its holder carefully. Inspect the probe tip for impact damage or shaft contact marks, which may indicate a bearing clearance issue requiring separate investigation.

Step 4 — New Probe Installation: Thread the replacement 330101-00-33-05-02-00 into the holder. Set the air gap to the manufacturer-specified value (typically 1.0–1.5 mm for 8mm probes on steel targets). Verify the DC gap voltage at the proximitor output before reconnecting the monitor channel.

Step 5 — System Verification: Re-enable the monitor channel and confirm that the vibration reading is within the expected baseline range for the machine at rest and at operating speed. Compare against historical trend data in the condition monitoring system to validate the replacement.

Step 6 — Documentation: Record the replacement in the CMMS, including the new probe serial number, gap setting, and post-installation readings. Update the spare parts inventory to trigger a replenishment order for the consumed 330101-00-33-05-02-00 unit.

Spare Parts Support FAQ

Q1: Is the 330101-00-33-05-02-00 compatible with both the 3300 XL and older 3300 series monitors?
The 330101-00-33-05-02-00 is specifically calibrated and rated for the Bently Nevada 3300 XL system. While the physical connector and probe geometry may appear similar to earlier 3300 series probes, sensitivity calibration and system matching are optimized for the XL platform. Always verify system compatibility with your monitor documentation or contact our technical team before cross-applying to legacy 3300 installations.

Q2: What pre-shipment testing does KNMKS perform on the 330101-00-33-05-02-00?
Each unit undergoes functional verification including oscillator response, sensitivity output (target: 7.87 V/mm ±5%), and cable continuity testing before dispatch. A test report is available upon request. This process ensures that the probe performs to specification immediately upon installation, reducing the risk of a repeat outage caused by a defective spare.

Q3: How should we structure our spare parts inventory for 3300 XL proximity probe systems?
Industry best practice for critical rotating machinery is to maintain a minimum of two 330101-00-33-05-02-00 probes per monitored machine train, plus one spare proximitor module and one spare extension cable set. For plants with multiple identical machine trains, a pooled inventory of 4–6 probes is typically sufficient to cover emergency replacements while replenishment orders are in transit. KNMKS supports blanket purchase agreements with scheduled quarterly deliveries to simplify inventory management.

Q4: What is the support terms coverage and what does it include?
All 330101-00-33-05-02-00 units supplied by KNMKS carry a support terms confirmed by quotation from the date of shipment. Coverage includes defects in materials and workmanship under normal operating conditions. Support requests are supported by our technical team with rapid replacement dispatch to minimize any impact on plant availability. Contact [email protected] or +86 18359268345 to initiate a support terms claim or request a replacement unit.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330101-00-33-05-02-00
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330101-00-33-05-02-00
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
