Bently Nevada 330101-00-32-05-01-05 Migration-Ready Proximity Probe

Overview

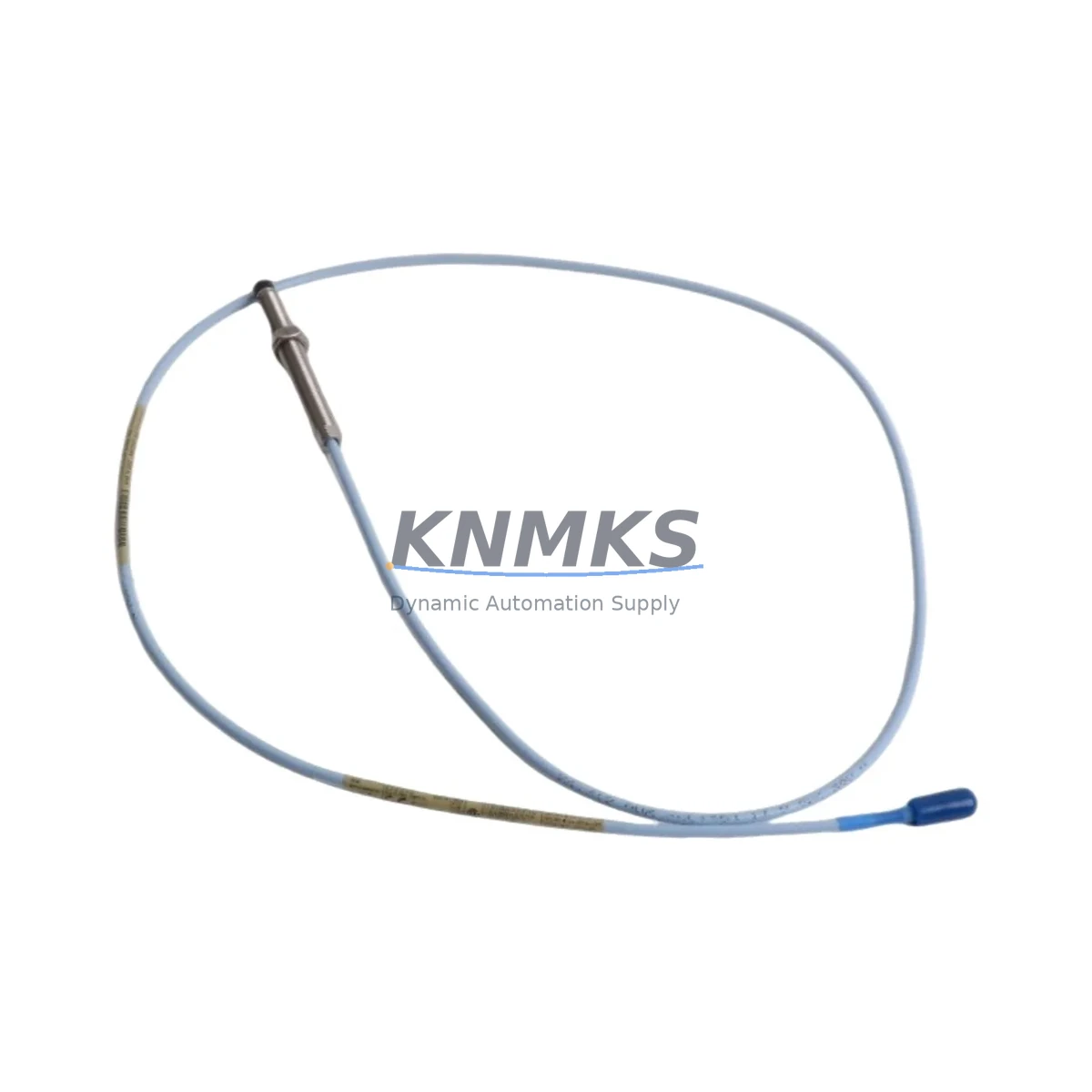

Bently Nevada 330101-00-32-05-01-05 Migration-Ready Proximity Probe for Legacy Control Systems

The Bently Nevada 330101-00-32-05-01-05 is an 8mm eddy current proximity probe from the 3300 XL Series, engineered for continuous shaft vibration and position monitoring in rotating machinery applications. This unit is a direct migration-ready replacement for legacy Bently Nevada 3300 Series probes deployed across turbines, compressors, pumps, and gearboxes in energy, petrochemical, and heavy manufacturing facilities. With verified dimensional compatibility, matched sensitivity output, and full signal chain interoperability with existing Bently Nevada 3300 XL extension cables and proximitor/oscillator drivers, this probe supports controlled system upgrades with minimal disruption to existing wiring infrastructure and control logic.

For facilities operating aging 3300 Series or early 3300 XL installations, the 330101-00-32-05-01-05 provides a validated drop-in upgrade path. The probe’s 5-metre integral cable and standard TNC connector interface directly with the Bently Nevada 330130 extension cable and 3300 XL 8mm Proximitor Sensor (330180 series), preserving the existing signal conditioning chain without requiring recalibration of the vibration monitoring rack. Engineers planning a phased retrofit can maintain the original Bently Nevada 3500 Monitoring System rack configuration while replacing field-side probe assemblies one channel at a time, significantly reducing planned outage windows.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 330101-00-32-05-01-05 begins with a thorough review of the existing measurement chain. Before removing the legacy probe, engineers should document the current gap voltage reading at the Bently Nevada 3500 Monitor rack — typically displayed on the front panel or accessible via the System 1 condition monitoring software. This baseline reading confirms the target shaft gap and allows the replacement probe to be set to the same operating point, avoiding false alarm trips during commissioning.

The 330130 Series extension cable connecting the probe to the Proximitor Sensor should be inspected for jacket integrity and connector condition. In many legacy installations, the extension cable has been in service for 10 to 20 years and may exhibit increased resistance or intermittent signal noise. Replacing the extension cable alongside the probe — rather than reusing the original — eliminates a common source of post-retrofit signal instability. The Bently Nevada 330130-080-00-00 (8-metre extension) is the standard pairing for this probe in most turbine pedestal installations.

At the rack level, the 3300 XL 8mm Proximitor Sensor (typically a 330180-X1-05 or equivalent) should be verified for correct configuration. The Proximitor’s internal oscillator drives the probe’s eddy current field, and any mismatch between the Proximitor model and the probe series will result in incorrect sensitivity and non-linear output. For facilities that have already migrated their monitoring rack to the Bently Nevada 3500/22M Transient Data Interface or the 3500/42M Proximitor Monitor, the 330101-00-32-05-01-05 is fully compatible without requiring rack card replacement.

Where the retrofit involves upgrading from an older 3300 Series rack to a 3500 Series monitoring system, engineers should also review the I/O terminal assignments in the existing DCS or safety instrumented system. The 4–20 mA output cards from the 3500 rack may require re-mapping in the DCS tag database, and any associated HMI faceplate displays showing shaft vibration trends should be updated to reflect the new channel addresses. Coordinating this change with the control system integrator before the outage window prevents last-minute configuration delays during commissioning.

For installations where the probe is mounted in a confined bearing housing or close-coupled compressor pedestal, confirm that the 8mm probe body and integral cable routing path remain unobstructed after installation. The 330101-00-32-05-01-05’s 5-metre cable length is sufficient for most standard pedestal-to-junction-box runs, but longer runs may require a 330130 extension cable splice at the junction box. Signal isolation barriers or Bently Nevada-compatible signal conditioners should be considered where the probe signal must cross a hazardous area boundary or interface with a third-party safety relay.

Downtime Control During System Migration

Minimising planned outage duration during a proximity probe replacement requires pre-staging all replacement components and verifying their condition before the machine is taken offline. For the 330101-00-32-05-01-05, this means bench-testing the probe and Proximitor combination using a Bently Nevada proximity probe tester or equivalent calibration fixture to confirm sensitivity and gap voltage output before the outage begins. A probe that fails bench testing can be exchanged before the machine is shut down, avoiding a second outage cycle.

During the outage, the original probe should be removed carefully to preserve the probe holder threads and avoid disturbing the shaft surface finish. The replacement probe should be installed to the same gap setting as the original — typically 1.0 mm to 1.5 mm for most 8mm probe applications — and the gap voltage confirmed at the Proximitor output before the rack is returned to service. If the 3500 Monitor rack is configured with latching alarm logic, the alarm reset sequence should be completed before the machine is restarted to prevent spurious trip signals during run-up.

For critical machinery where continuous operation is required, a hot-standby probe arrangement using a dual-probe holder can allow the replacement probe to be installed and gap-set while the machine remains online, with the monitor channel switched to the new probe only after gap verification is complete. This approach eliminates unplanned downtime entirely and is recommended for high-availability compressor trains and main turbine-generator sets where even a brief shutdown carries significant production cost.

All original program logic, alarm setpoints, and danger limits stored in the 3500 rack should be documented and backed up using the Rack Configuration Software (RCS) before any hardware change. This backup ensures that if a configuration error occurs during commissioning, the original settings can be restored within minutes rather than requiring a full re-engineering exercise. The backup file should be stored both locally and on the plant’s document management system as part of the as-built record for the retrofit.

Retrofit Support FAQ

Q: Is the 330101-00-32-05-01-05 a direct replacement for older Bently Nevada 3300 Series 8mm probes?
A: Yes. The 330101-00-32-05-01-05 is dimensionally and electrically compatible with legacy Bently Nevada 3300 Series 8mm proximity probes. It uses the same TNC connector interface, the same -24 VDC supply via the Proximitor, and produces the same 200 mV/mil sensitivity output. No modification to the probe holder, extension cable, or Proximitor is required for a like-for-like replacement, provided the existing Proximitor is a 3300 XL 8mm model.

Q: What commissioning checks are required after installation?
A: After installing the replacement probe and setting the mechanical gap, verify the gap voltage at the Proximitor output (target: approximately -10.0 VDC at mid-gap for most 3300 XL 8mm systems). Confirm that the 3500 Monitor rack displays the correct gap voltage on the channel, check that vibration alarm and danger setpoints are active, and perform a functional test by briefly introducing a known vibration signal or using the rack’s built-in test function. Document the as-found and as-left gap voltages in the maintenance record.

Q: Can this probe be used with a Bently Nevada 3500 Series monitoring rack?
A: Yes. The 330101-00-32-05-01-05 is fully compatible with the Bently Nevada 3500/42M Proximitor Monitor and 3500/22M Transient Data Interface when paired with the correct 3300 XL 8mm Proximitor Sensor. The 3500 rack’s channel configuration should be set to 3300 XL 8mm probe type in the Rack Configuration Software to ensure correct sensitivity scaling and alarm processing.

Q: What support terms and supply terms apply to this unit?
A: All units supplied by KNMKS carry a support terms confirmed by quotation covering manufacturing defects and signal performance from the date of shipment. Each probe is functionally tested before dispatch. Stock is maintained for immediate shipment, and expedited delivery is available for critical maintenance requirements. Contact [email protected] or +86 18359268345 for lead time confirmation and volume pricing.
