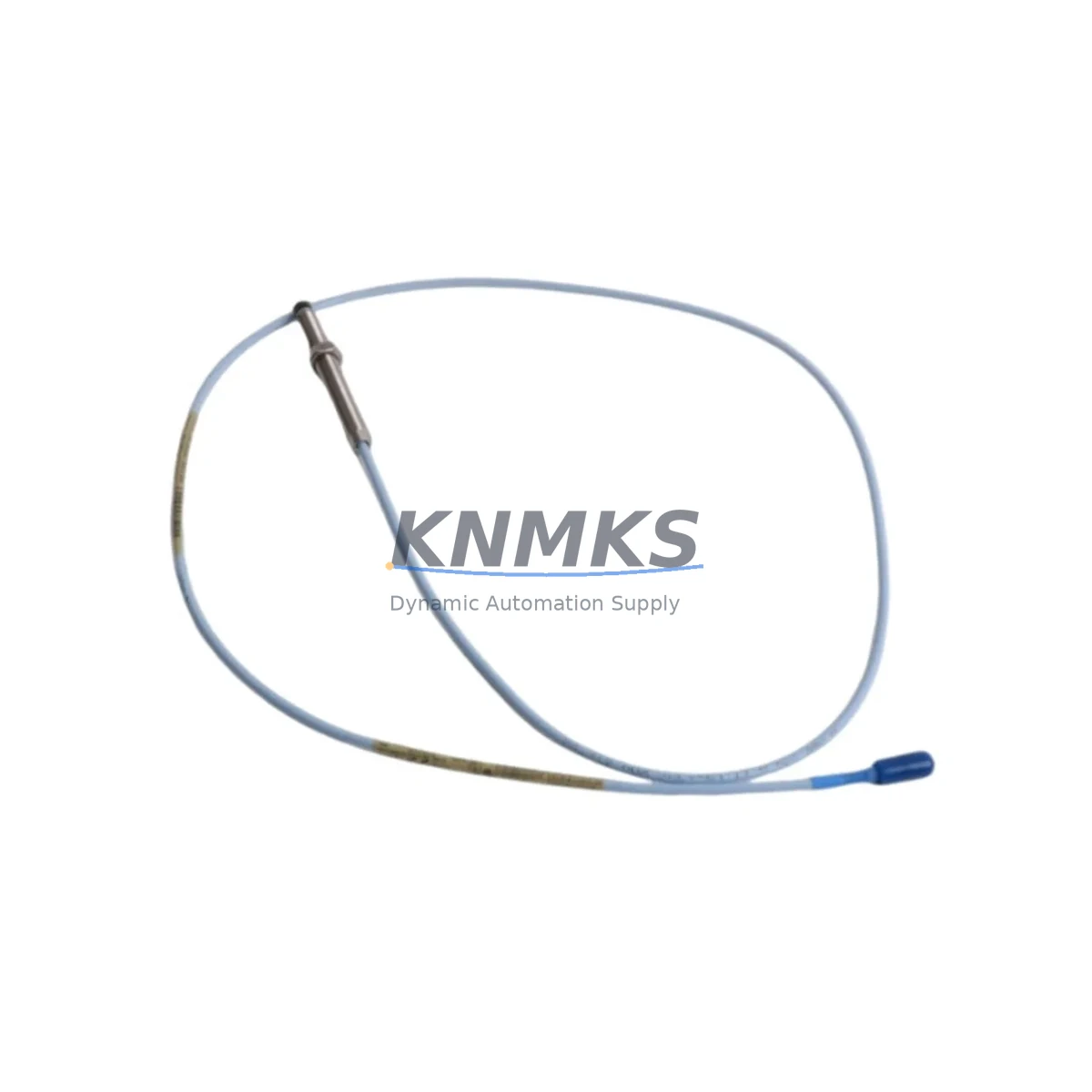

Bently Nevada 330101-00-31-20-02-00 Fail-Safe Proximity Probe

Overview

Bently Nevada 330101-00-31-20-02-00 Fail-Safe Proximity Probe: Industrial Control Reliability & Fault Protection

The Bently Nevada 330101-00-31-20-02-00 is a high-precision eddy-current proximity probe from the industry-proven 3300 XL Series, engineered for continuous, fail-safe vibration and displacement monitoring in the most demanding industrial environments. Designed to operate reliably in petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical mills, port machinery, and marine propulsion systems, this probe delivers the measurement accuracy and signal integrity that critical rotating machinery protection demands.

In continuous production environments where unplanned downtime carries severe operational and financial consequences, the 330101-00-31-20-02-00 provides the front-line sensing capability that underpins the entire machinery protection chain. Its non-contact eddy-current sensing principle eliminates mechanical wear, ensuring long-term measurement stability without drift — a critical advantage in high-temperature, high-vibration, or chemically aggressive atmospheres where contact-based sensors rapidly degrade.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The 330101-00-31-20-02-00 proximity probe does not operate in isolation — it is the sensing front-end of a layered machinery protection architecture. In a properly configured control cabinet, the probe connects via a Bently Nevada 330130 extension cable to a 3300 XL Proximitor Sensor (such as the 330180-91-00), which conditions the raw eddy-current signal into a calibrated voltage output. This signal is then fed into a Bently Nevada 3500/42M Proximitor / Seismic Monitor module, where alarm and danger setpoints are configured for the specific machinery protection interlock.

Within the control cabinet, signal integrity is protected by proper grounding and shielding practices. In high electromagnetic interference environments — common in variable frequency drive (VFD) cabinets, large motor control centers, or switchgear rooms — the coaxial cable shielding of the 330101-00-31-20-02-00 system significantly reduces susceptibility to noise-induced signal drift. For power supply stability, the 3300 XL system is typically powered through a Bently Nevada 3500/15 Power Supply module, which provides regulated, isolated DC power to the monitoring rack, preventing voltage transients and surge events from corrupting vibration data or triggering spurious trips.

In safety-critical applications requiring SIL-rated protection loops, the proximity probe output integrates with safety PLCs or dedicated safety relay modules. Pairing the 330101-00-31-20-02-00 with a Bently Nevada 3500/22M Transient Data Interface further enables waveform capture for predictive maintenance analysis, reducing the risk of undetected mechanical degradation between scheduled inspections. For installations in hazardous classified areas (Zone 1 / Zone 2 or Class I Division 1), appropriate Zener barrier or galvanic isolator modules are installed in series to maintain intrinsic safety compliance while preserving signal fidelity.

Critical Industrial Safety Applications

Petrochemical & Refinery: Compressor trains, centrifugal pumps, and turbine expanders in continuous process units require uninterrupted shaft monitoring. The 330101-00-31-20-02-00 provides the real-time radial vibration data that feeds emergency shutdown (ESD) systems, preventing catastrophic bearing failures that could result in process leaks, fires, or explosions. Its high-temperature rating supports operation in hot gas compressor environments where ambient temperatures routinely exceed 100°C.

Power Generation: Steam turbines and gas turbines in power plants operate at high rotational speeds where even minor shaft displacement anomalies can escalate rapidly. The 3300 XL proximity probe system enables continuous eccentricity and vibration monitoring, supporting both normal operation protection and startup/shutdown sequencing interlocks that prevent turbine damage during transient speed ranges.

Mining & Mineral Processing: Ball mills, SAG mills, and large slurry pumps operate in extreme dust, moisture, and vibration conditions. The IP67-rated construction of the 330101-00-31-20-02-00 ensures reliable operation in these environments, while its non-contact sensing eliminates the probe wear that would otherwise occur in high-particulate atmospheres.

Water & Wastewater Treatment: Large vertical turbine pumps and blower units in water treatment facilities benefit from continuous vibration monitoring to detect impeller imbalance, cavitation onset, and bearing degradation before they cause unplanned outages that disrupt municipal water supply.

Metallurgy & Steel: Rolling mill drives, continuous caster pinch rolls, and ID fan systems in steel plants operate under heavy cyclic loads and high thermal gradients. The 330101-00-31-20-02-00’s wide operating temperature range and robust construction make it suitable for these demanding applications where conventional sensors fail prematurely.

Port & Marine: Propulsion shaft monitoring on vessels and large crane drive systems in port facilities require sensors that withstand salt spray, humidity, and mechanical shock. The sealed construction and shielded signal path of the 3300 XL probe system maintain measurement integrity in these corrosive, high-vibration environments.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the 330101-00-31-20-02-00?
All units are covered by a support terms confirmed by quotation from the date of shipment. The support terms covers manufacturing defects, signal output performance, and connector integrity. In the event of a support terms claim, replacement or repair is arranged promptly to minimize any impact on your maintenance schedule.

Q2: What pre-shipment testing is performed on each unit?
Every 330101-00-31-20-02-00 probe undergoes functional verification prior to shipment, including output sensitivity check, cable continuity and insulation resistance test, and connector inspection. Units sourced as surplus new are additionally inspected for physical condition and storage integrity before being offered for sale.

Q3: Is this probe compatible with existing Bently Nevada 3300 XL and 3500 Series monitor systems?
Yes. The 330101-00-31-20-02-00 is fully compatible with the Bently Nevada 3300 XL Proximitor Sensor system and integrates directly with 3500 Series monitor racks. It uses the standard coaxial connector interface and –200 mV/mil sensitivity that the 3300 XL system is calibrated for, requiring no additional signal conditioning adjustments when used as a direct replacement.

Q4: Can long-term supply and replacement support be arranged for critical plant spares programs?
Yes. We maintain stock of the 330101-00-31-20-02-00 and related 3300 XL series components to support planned maintenance, emergency replacement, and long-term spares agreements. For facilities requiring guaranteed availability under a critical spares program, please contact our sales team to discuss inventory reservation and supply commitment arrangements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330101-00-31-20-02-00
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330101-00-31-20-02-00
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
