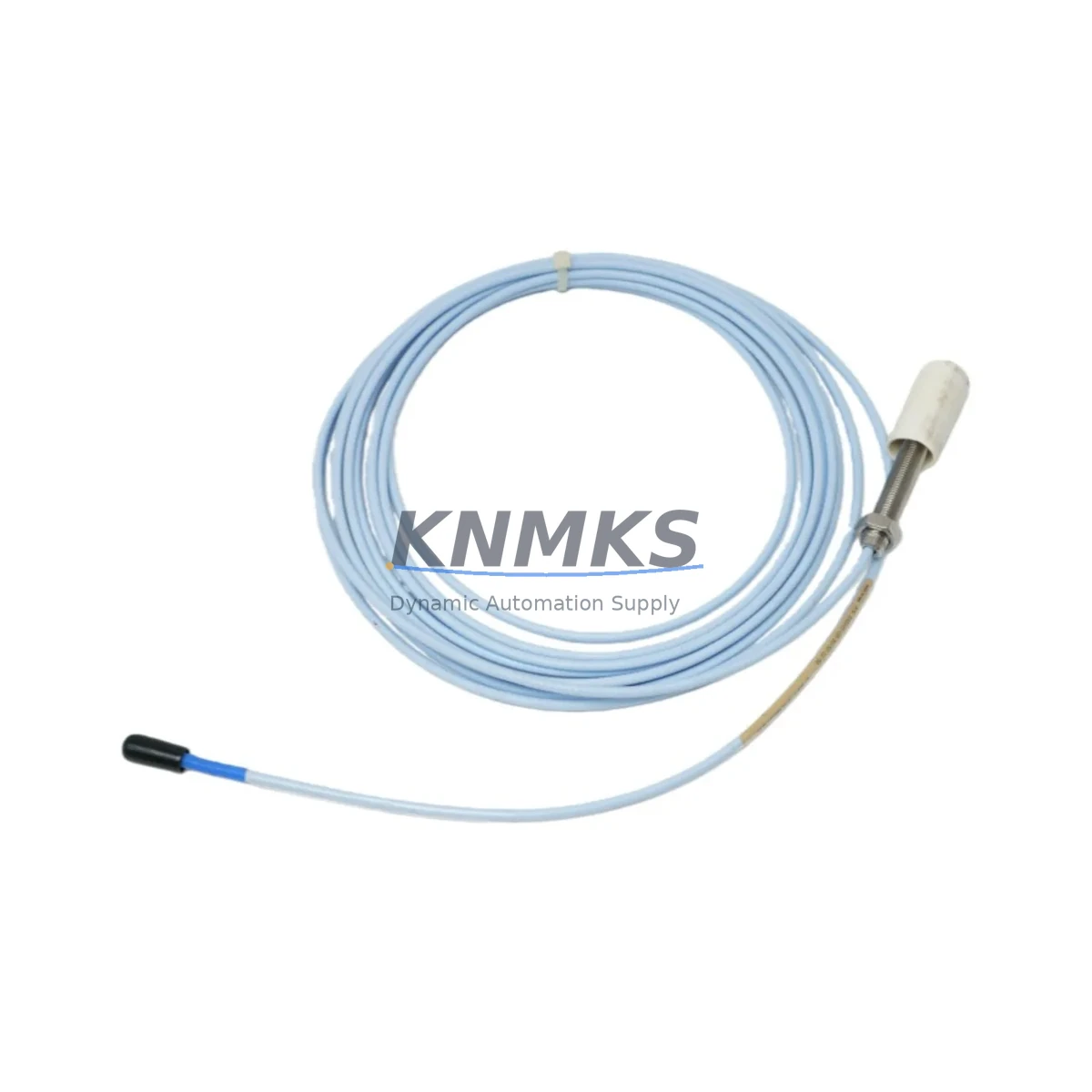

Bently Nevada 330101-00-31-15-02-05 Fail-Safe Proximity Probe: Critical Fault Protection for Industrial Control Reliability

The Bently Nevada 330101-00-31-15-02-05 is an 8mm eddy-current proximity probe engineered for the 3300 XL Series continuous vibration monitoring system. Designed to operate in the most demanding industrial environments — including petrochemical plants, power generation facilities, mining operations, and continuous manufacturing lines — this probe delivers fail-safe shaft displacement and vibration measurement with the precision and durability required for critical rotating machinery protection.

In high-stakes control environments where unplanned downtime carries severe operational and safety consequences, the 330101-00-31-15-02-05 provides the measurement integrity needed to sustain reliable machinery protection interlocks. Its non-contact eddy-current sensing principle eliminates mechanical wear, ensuring long-term signal stability even under continuous high-speed shaft rotation, heavy radial loads, and thermally cyclic conditions.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a fully integrated machinery protection architecture, the 330101-00-31-15-02-05 proximity probe does not operate in isolation. It forms the sensing front-end of a layered protection chain that depends on the precision and reliability of every connected component within the control cabinet and field junction system.

The probe interfaces directly with the Bently Nevada 3300 XL Proximitor Sensor (typically the 330180 series), which conditions the raw eddy-current signal into a calibrated voltage output suitable for the monitoring system. Signal integrity between the probe and Proximitor is critical — any impedance mismatch, cable damage, or connector corrosion can introduce signal drift that triggers false alarms or, more dangerously, masks genuine shaft displacement events.

Upstream, the conditioned signal feeds into the Bently Nevada 3500 Series Rack — a modular, rack-mounted machinery protection system that processes vibration, position, and dynamic data across multiple channels. Within the 3500 rack, modules such as the 3500/42M Proximitor/Seismic Monitor evaluate the probe signal against configured alarm and danger setpoints, triggering relay outputs to safety PLCs or DCS systems when thresholds are exceeded.

For power supply integrity within the control cabinet, dedicated 24 VDC redundant power supply modules — such as those used in the 3500 rack’s power supply bay — ensure that voltage fluctuations, surges, or single-supply failures do not compromise the monitoring system’s availability. In high-electromagnetic-interference environments such as variable frequency drive (VFD) cabinets or high-voltage switchgear rooms, proper grounding of the probe cable shield and use of shielded signal conduit are essential to prevent noise injection into the measurement chain.

Where the 3500 system communicates with a plant DCS or safety instrumented system (SIS), Bently Nevada System 1 software or compatible OPC-DA/OPC-UA communication modules provide the data bridge, enabling real-time condition monitoring, trend analysis, and alarm management at the supervisory level. This communication layer is critical for facilities operating under IEC 61511 functional safety requirements, where proof-test intervals and diagnostic coverage must be documented and auditable.

Together, the 330101-00-31-15-02-05 probe, its Proximitor, the 3500 rack monitoring modules, redundant power supplies, and the supervisory communication layer form a complete, fail-safe rotating machinery protection system — minimizing the risk of undetected bearing failure, rotor rub, shaft bow, and catastrophic mechanical breakdown.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In compressor trains, centrifugal pumps, and turbine-driven process units, continuous shaft vibration and axial position monitoring is a regulatory and operational necessity. The 330101-00-31-15-02-05 provides the real-time displacement data required to detect early-stage bearing degradation, rotor imbalance, and misalignment before they escalate into process-critical failures. In hydrocarbon processing environments, an undetected mechanical fault can result not only in equipment loss but in fire, explosion, or toxic release — making fail-safe proximity monitoring a fundamental safety layer.

Power Generation — Steam and Gas Turbines: Turbine shaft monitoring demands sub-micron measurement resolution across wide temperature ranges and in the presence of strong electromagnetic fields from generator windings and excitation systems. The 330101-00-31-15-02-05’s shielded coaxial construction and wide operating temperature range make it suitable for both hot-section and cold-section turbine monitoring, supporting both normal operational surveillance and emergency trip interlock functions.

Mining and Mineral Processing: In ball mills, SAG mills, conveyor drive gearboxes, and slurry pump stations, the combination of heavy shock loads, abrasive dust ingress, and high ambient vibration creates an extremely hostile measurement environment. The non-contact sensing principle of the eddy-current probe eliminates the mechanical wear that would degrade contact-type sensors, while the probe’s robust construction resists the ingress of conductive mineral dust that could compromise signal quality.

Water and Wastewater Treatment: Large centrifugal pumps and blower units in water treatment facilities operate continuously, often in humid, chemically aggressive environments. Proximity probe monitoring enables condition-based maintenance strategies that replace fixed-interval overhauls with data-driven intervention, reducing both maintenance cost and the risk of unplanned pump failure that could disrupt water supply or effluent treatment compliance.

Metallurgy and Steel Production: Rolling mill drives, continuous casting machine drives, and large induction furnace cooling pumps represent high-value, high-consequence rotating assets where bearing failure carries significant production loss risk. The 330101-00-31-15-02-05 supports the real-time vibration surveillance needed to protect these assets in environments characterized by intense electromagnetic interference from furnace power supplies and high ambient temperatures.

Port and Marine Applications: Shipboard propulsion systems, cargo pump turbines, and port crane drive systems increasingly incorporate API 670-compliant machinery protection. The 330101-00-31-15-02-05’s compatibility with the 3300 XL system makes it a direct-fit replacement for aging probe assemblies in marine and port machinery protection panels, supporting both new installations and retrofit projects.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the 330101-00-31-15-02-05?
All units supplied by KNMKS carry a support terms confirmed by quotation covering manufacturing defects and functional failure under normal operating conditions. Support requests are supported by our technical team, and replacement units are dispatched from stock to minimize your site downtime.

Q2: What pre-shipment testing is performed on each unit?
Each 330101-00-31-15-02-05 probe undergoes functional verification prior to dispatch, including sensitivity check, cable continuity and insulation resistance testing, and connector integrity inspection. Units are packaged in anti-static, shock-protected packaging to ensure they arrive in field-ready condition.

Q3: Is this probe compatible with existing 3300 XL Proximitor and 3500 Series rack installations?
Yes. The 330101-00-31-15-02-05 is a direct-fit replacement for the Bently Nevada 3300 XL system, fully compatible with 330180-series Proximitor sensors and 3500-series monitoring racks. No recalibration of the Proximitor is required when replacing a like-for-like probe assembly, provided the target material and gap setting are maintained per the original installation specification.

Q4: Can KNMKS support long-term supply commitments for critical spare parts programs?
Yes. KNMKS maintains standing inventory of high-demand Bently Nevada proximity probe assemblies and can support scheduled blanket orders, consignment stock arrangements, and emergency same-day dispatch for critical plant shutdowns. Contact our sales team to discuss a supply agreement tailored to your plant’s maintenance and turnaround schedule.
