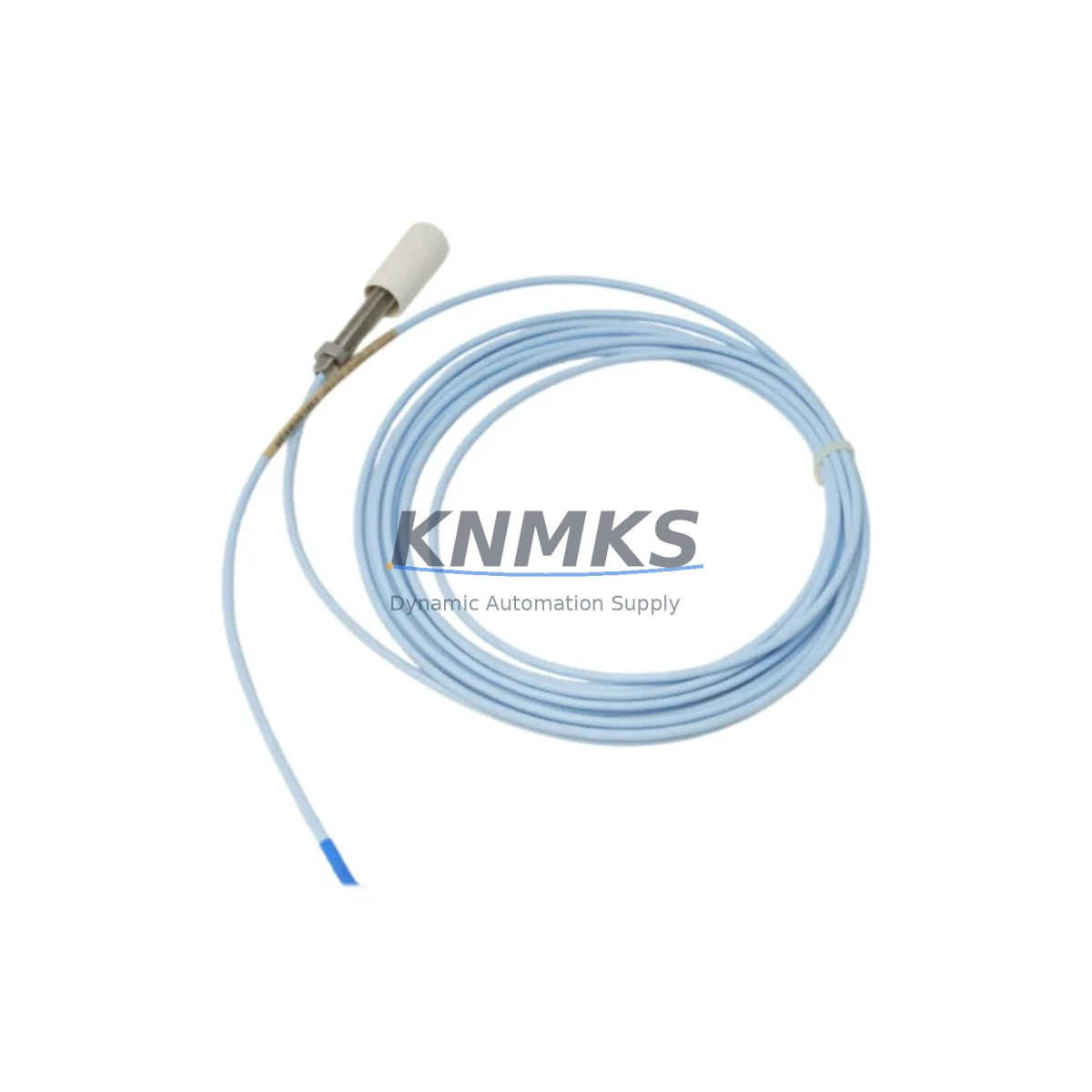

Bently Nevada 330101-00-30-90-02-05 Migration-Ready Proximity Probe

Overview

Bently Nevada 330101-00-30-90-02-05 Migration-Ready Proximity Probe for Legacy Control Systems

The Bently Nevada 330101-00-30-90-02-05 is an 8mm eddy-current proximity probe engineered for the 3300 XL Series vibration monitoring platform. As legacy rotating machinery protection systems reach end-of-life and OEM support is discontinued, this probe serves as a verified drop-in replacement that allows maintenance teams to restore full monitoring capability without redesigning the measurement chain or rewriting monitor configuration. Whether you are replacing a failed probe on a critical compressor train, upgrading an aging turbine protection panel, or consolidating spare parts inventory ahead of a planned outage, the 330101-00-30-90-02-05 delivers the dimensional accuracy, cable length, and sensitivity factor required by the 3300 XL monitor family.

Before installing this probe into an existing system, engineers should confirm several key parameters. The power supply feeding the 3300 XL monitor rack — typically a Bently Nevada 3300/20 or 3300/16 power supply module — must provide stable ±24 VDC within the specified tolerance, as probe gap voltage and output sensitivity are directly dependent on supply quality. Terminal wiring at the junction box should be inspected for corrosion and re-torqued to specification; the standard three-conductor shielded cable connecting the probe, extension cable, and proximitor must maintain continuity and shield integrity to avoid noise-induced false trips. The proximitor module — commonly the Bently Nevada 3300 XL 8mm proximitor — must be confirmed as compatible with the 330101 probe body before commissioning, since mixing probe and proximitor combinations outside the matched set will shift the output scale factor and invalidate calibration.

Backplane slot addressing in the 3300 XL rack should be verified against the existing rack configuration drawing. If the monitor card occupying the measurement channel is a 3300/55 dual-channel monitor or a 3300/25 radial vibration monitor, the channel assignment, full-scale range, and alert/danger setpoints stored in the monitor must be reviewed before the replacement probe is energized. Programs running on the associated safety or control system — whether a Bently Nevada System 1 condition monitoring platform or a third-party DCS — should be backed up prior to any physical work, and the engineer should confirm that the probe replacement does not trigger a channel-mismatch alarm that could initiate an unplanned shutdown sequence.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 330101-00-30-90-02-05 into a running plant begins well before the maintenance window opens. The first step is a rack audit: identify every occupied slot in the 3300 XL rack, document the monitor type in each channel, and cross-reference the existing probe-proximitor-monitor matched sets against the replacement probe’s specification sheet. If the rack also houses a Bently Nevada 3300/50 temperature monitor or a 3300/46 thrust position monitor sharing the same backplane, confirm that the rack’s total power budget — drawn from the installed 3300/20 power supply — is not exceeded after the replacement probe and its proximitor are energized.

Extension cable routing deserves careful attention during retrofit planning. The 330101-00-30-90-02-05 probe body is paired with a matched extension cable — typically a Bently Nevada 330130 series armored extension cable — to reach the proximitor mounted at the junction box. Any substitution of extension cable length changes the total system capacitance and shifts the gap voltage curve, requiring recalibration of the proximitor output. Maintenance teams should measure the existing cable run, order the correct extension cable length, and verify the complete probe-cable-proximitor assembly on a calibration bench before installation.

For plants migrating from older Bently Nevada 7200 Series or 3000 Series monitors to the 3300 XL platform, the 330101-00-30-90-02-05 probe is a natural starting point because the 8mm probe body and M10 thread are mechanically identical to many legacy probe housings. However, the output scale factor and gap voltage range differ between generations, so the associated monitor card — whether a new 3300/25 radial vibration monitor or a refurbished 3300/55 dual-channel monitor — must be configured to match the 3300 XL sensitivity standard. HMI screens on the plant’s condition monitoring workstation should be updated to reflect the new channel engineering units and alarm thresholds before the system is returned to service.

Signal isolation is another consideration when integrating the 330101-00-30-90-02-05 into a mixed-vendor control environment. If the 3300 XL monitor’s 4–20 mA output feeds a third-party DCS input card that shares a common ground with other field instruments, a signal isolator or barrier should be inserted in the loop to prevent ground loops from corrupting the vibration measurement. This is particularly important in older control cabinets where grounding practices were not standardized.

Downtime Control During System Migration

Minimizing unplanned downtime during a probe replacement requires a structured pre-outage checklist. Before the maintenance window, the control room operator should place the affected monitor channel in bypass mode — using the 3300 XL monitor’s front-panel bypass function or the System 1 software bypass command — to prevent a spurious trip during probe removal. The existing program logic in the safety system or DCS should be documented and backed up; if the vibration channel feeds a voted shutdown logic block, the vote count should be temporarily adjusted to prevent a single-channel loss from triggering a unit trip.

During the physical swap, the replacement 330101-00-30-90-02-05 probe should be pre-gapped on the bench to the nominal gap distance specified in the monitor configuration — typically 1.0 to 1.5 mm for most rotating shaft applications — before it is threaded into the probe holder. This reduces the time spent adjusting gap voltage at the proximitor with the machine at rest. Once the probe is installed and the gap voltage is confirmed within the ±24 VDC supply window, the proximitor output should be measured at the monitor terminal strip and compared against the expected value before the bypass is removed.

After the bypass is cleared and the channel is returned to normal monitoring, the engineer should observe the vibration trend for at least one full machine start-up cycle to confirm that the replacement probe tracks shaft motion correctly and that no spurious alerts are generated. The System 1 platform — or the equivalent condition monitoring software — should log the replacement event with the new probe serial number, installation date, and gap voltage reading to support future maintenance planning and support terms tracking. All replacement activities, gap settings, and commissioning readings should be recorded in the plant’s maintenance management system to support the support terms confirmed by quotation claim process if a defect is identified during the confirmed support period.

Retrofit Support FAQ

Q: Is the 330101-00-30-90-02-05 a direct replacement for other 330101 series probes?
A: Yes. The 330101-00-30-90-02-05 is dimensionally and electrically compatible with other probes in the Bently Nevada 330101 series used in 3300 XL systems. The suffix digits encode cable length, connector type, and temperature rating; confirm that the replacement suffix matches the original probe’s application requirements before installation. If the original probe suffix differs, a gap voltage recalibration and setpoint review are recommended.

Q: What commissioning steps are required after installation?
A: After physical installation, verify the gap voltage at the proximitor output with the shaft at rest, confirm the output is within the linear range specified for the 3300 XL 8mm system, check the monitor channel for correct engineering unit display, and review alert and danger setpoints against the machine’s baseline vibration data. Remove the channel bypass only after all readings are confirmed within specification.

Q: Can this probe be used with non-Bently Nevada monitors or DCS systems?
A: The 330101-00-30-90-02-05 outputs a standard analog voltage signal through the matched proximitor, which can be interfaced to third-party DCS or SCADA input cards. However, the probe must always be used with the correct Bently Nevada 3300 XL 8mm proximitor to maintain the specified scale factor. Using a non-matched proximitor will produce incorrect output and may void the support terms.

Q: What does the support terms confirmed by quotation cover, and how is a claim initiated?
A: The support terms confirmed by quotation cover manufacturing defects and functional failure under normal operating conditions from the date of shipment. To initiate a claim, contact [email protected] with the probe serial number, purchase order reference, installation date, and a description of the failure. Units must not be disassembled or modified. Support terms replacements are shipped after inspection and confirmation of the defect.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330101-00-30-90-02-05
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330101-00-30-90-02-05
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
