Bently Nevada 330101-00-30-50-02-00 Migration-Ready Proximity Transducer

Overview

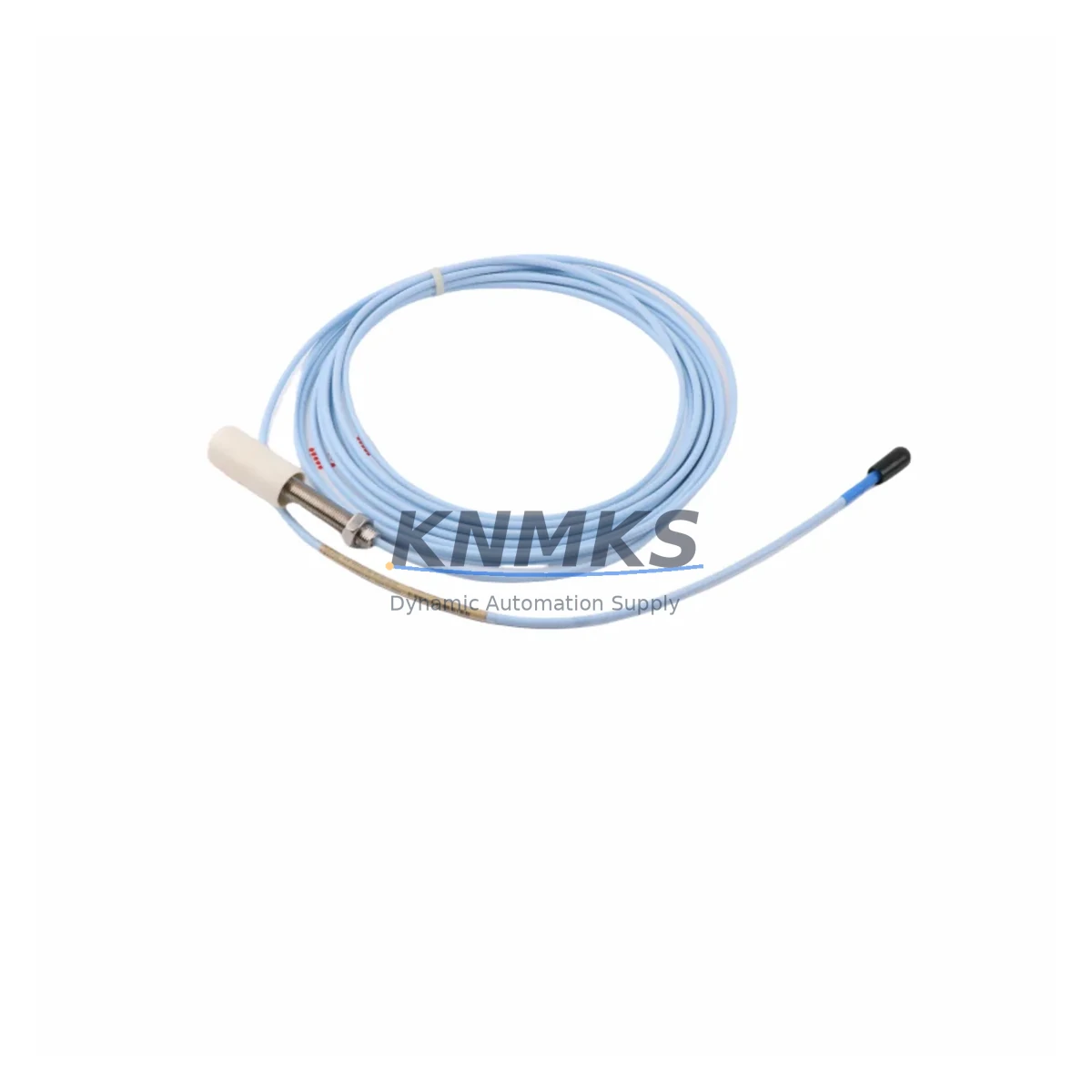

Bently Nevada 330101-00-30-50-02-00 Migration-Ready Proximity Transducer for Legacy Control Systems

The Bently Nevada 330101-00-30-50-02-00 is an 8mm eddy-current proximity transducer engineered for continuous shaft vibration and position monitoring in rotating machinery. Designed as a migration-ready replacement for aging 3300 XL monitoring systems, this transducer delivers verified electrical and mechanical compatibility with legacy Bently Nevada field wiring, junction boxes, and monitor racks — enabling engineering teams to execute controlled retrofits without redesigning the entire measurement chain.

In legacy plant environments where the 3300 XL system has reached end-of-support, the 330101-00-30-50-02-00 serves as the preferred drop-in transducer during phased migration to the System 1 platform or 3500 Series machinery protection system. Its 8mm tip diameter, standard 5-metre integral cable, and -24 VDC bias voltage output are fully compatible with existing Proximitor sensor housings and conduit runs, reducing installation time and minimizing the risk of wiring errors during outage windows.

Before installation, engineers should confirm power supply capacity at the I/O cabinet — the transducer requires a stable -24 VDC supply with sufficient current headroom when multiple channels are being replaced simultaneously. Terminal block wiring should be verified against the original loop drawing, paying particular attention to shield grounding continuity and drain wire routing to avoid introducing common-mode noise into the vibration signal chain. Where the existing Proximitor extension cable (such as the 330130-045-00-00 or 330130-080-00-00 series) is being reused, cable insulation resistance should be tested prior to reconnection to rule out moisture ingress at conduit entry points.

For installations migrating from the 3300 XL monitor to the 3500/42M six-channel vibration monitor, the 330101-00-30-50-02-00 transducer integrates directly with the 3500 rack backplane without requiring signal conditioning adapters. The 3500 rack’s I/O module accepts the standard Bently Nevada transducer output range, and channel configuration is performed through System 1 software using the existing machine train database — preserving alarm setpoints, gap voltage references, and OK limit thresholds established during original commissioning. HMI screens built on the legacy DCS or SCADA platform should be updated to reflect the new channel addressing once the 3500 rack is online, and operators should be briefed on any changes to the vibration trend display format.

Where the migration scope includes replacement of the 3300/16 dual-channel monitor or the 3300/55 keyphasor monitor, the 330101-00-30-50-02-00 transducer remains the correct field sensor across both legacy and replacement monitor types, simplifying spare parts management and reducing the number of unique SKUs held in the maintenance store. Engineering teams should document the as-found gap voltage for each transducer position before removal and verify that the as-left gap voltage on the replacement unit falls within the linear range specified in the 3300 XL installation manual — typically between -10 VDC and -18 VDC for an 8mm probe on a steel target.

Firmware compatibility is not a concern at the transducer level, as the 330101-00-30-50-02-00 is a passive eddy-current device with no embedded firmware. However, if the migration includes upgrading the Proximitor sensor from the 3300 XL 8mm series to a newer 3300 XL NSv Proximitor, the system integrator should confirm that the new Proximitor’s output scale factor matches the value configured in the replacement monitor — a mismatch between the 7.87 V/mm and 200 mV/mil scale factors is a common source of commissioning errors that can trigger spurious high-vibration alarms during initial startup.

All units supplied by KNMKS are pre-tested against Bently Nevada factory electrical specifications prior to dispatch. Each 330101-00-30-50-02-00 transducer is shipped with a support terms confirmed by quotation covering manufacturing defects and is available from multi-region stock to support both emergency replacement and scheduled outage planning.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 330101-00-30-50-02-00 into an existing machinery protection architecture requires a structured review of the surrounding measurement chain before the outage window begins. The Proximitor sensor — typically a 3300 XL 8mm Proximitor mounted at the bearing housing — must be inspected for housing cracks, connector corrosion, and cable jacket integrity. If the Proximitor is being replaced alongside the transducer, the 3300 XL NSv Proximitor is the recommended upgrade path, offering improved temperature stability and a longer service life in high-ambient-temperature environments such as gas turbine enclosures and steam turbine pedestals.

The 3500 rack power supply module should be audited for available current capacity before adding replacement transducer channels. In multi-machine train installations where several 330101-00-30-50-02-00 units are being replaced simultaneously, the aggregate current draw across all Proximitor channels must remain within the power supply’s rated output. Where capacity is marginal, a second 3500 power supply module can be added to the rack without interrupting channels that remain in service.

I/O wiring between the junction box and the 3500/42M monitor should be re-terminated using the original cable where insulation resistance tests pass, or replaced with new shielded twisted-pair cable where moisture ingress or mechanical damage is found. The 3500 rack’s terminal board accepts standard Bently Nevada field wiring conventions, and the channel address assigned in System 1 must match the physical slot position of the I/O module in the rack. A mismatch between the software channel map and the physical wiring is one of the most common causes of extended commissioning time during 3300-to-3500 migrations.

Where the plant DCS communicates with the machinery protection system via Modbus or OPC, the communication link should be tested after the 3500 rack is powered and configured. The 3500 rack supports both Modbus RTU and OPC DA interfaces, and the data point addresses for vibration, gap, and OK status signals will differ from those used by the legacy 3300 XL system — DCS engineers should update the tag database and HMI faceplates before the machine is returned to service. Signal isolators may be required at the DCS I/O card if the 3500 rack’s analogue output voltage range differs from the input range expected by the existing DCS analogue input module.

Downtime Control During System Migration

Minimizing unplanned downtime during a 3300 XL to 3500 Series migration depends on the quality of pre-outage preparation. Engineering teams should complete a full channel-by-channel mapping of the existing 3300 XL installation — recording gap voltages, alarm setpoints, OK limits, and Proximitor serial numbers — before the outage begins. This baseline data allows the replacement 3500 rack to be pre-configured in the workshop using System 1 software, so that on-site commissioning is limited to gap voltage verification and communication link testing rather than full channel setup from scratch.

The 330101-00-30-50-02-00 transducer’s mechanical compatibility with existing probe bosses means that probe installation time is predictable and does not require machining or adapter fabrication. Once the probe is installed and the Proximitor is connected, gap voltage can be set and verified in under 30 minutes per channel using a standard digital voltmeter, allowing multiple channels to be commissioned in parallel by separate technicians during the outage window.

Original program logic in the DCS or safety system should not require modification as a result of the transducer replacement, provided that the analogue signal range and OK relay output wiring are preserved. Where the migration includes a change in monitor type — for example, replacing a 3300/16 dual-channel monitor with a 3500/42M six-channel monitor — the DCS engineer should confirm that the OK relay contact wiring is updated to match the 3500 rack’s relay output module pinout before the machine is started. Failure to update the OK relay wiring is a known cause of nuisance trips during post-migration startup.

KNMKS maintains multi-region stock of the 330101-00-30-50-02-00 to support both emergency replacement and planned outage schedules. Units can be dispatched on short lead times to minimize the gap between outage start and parts availability, and each unit is pre-tested and ready for installation on arrival at site.

Retrofit Support FAQ

Q: Is the 330101-00-30-50-02-00 a direct replacement for the original Bently Nevada 3300 XL 8mm proximity transducer?
A: Yes. The 330101-00-30-50-02-00 is electrically and mechanically compatible with the 3300 XL 8mm proximity transducer series. It uses the same probe tip diameter, integral cable configuration, and output bias voltage, and connects to existing Proximitor sensors and field wiring without modification. Gap voltage should be verified after installation to confirm correct positioning within the linear range.

Q: Can this transducer be used with the Bently Nevada 3500 Series monitors without additional signal conditioning?
A: Yes. The 330101-00-30-50-02-00 connects directly to the 3500 rack via the existing Proximitor sensor and field wiring. No signal conditioning adapters are required. The 3500/42M and 3500/45 monitors accept the standard Bently Nevada transducer output range, and channel configuration is performed in System 1 software.

Q: What pre-shipment testing is performed on each unit?
A: Each 330101-00-30-50-02-00 supplied by KNMKS is tested for electrical output against Bently Nevada factory specifications before dispatch. Testing confirms bias voltage output, cable continuity, and connector integrity. A support terms confirmed by quotation is provided from the dispatch date, covering manufacturing defects.

Q: What is the typical lead time and stock availability?
A: KNMKS maintains multi-region stock of the 330101-00-30-50-02-00 to support both emergency replacement and scheduled outage planning. Standard dispatch is available on short lead times. Contact [email protected] or call +86 18359268345 to confirm current stock levels and delivery timelines for your region.
