Bently Nevada 330101-00-30-20-12-05 Maintenance-Proven Spare Part for Factory Uptime

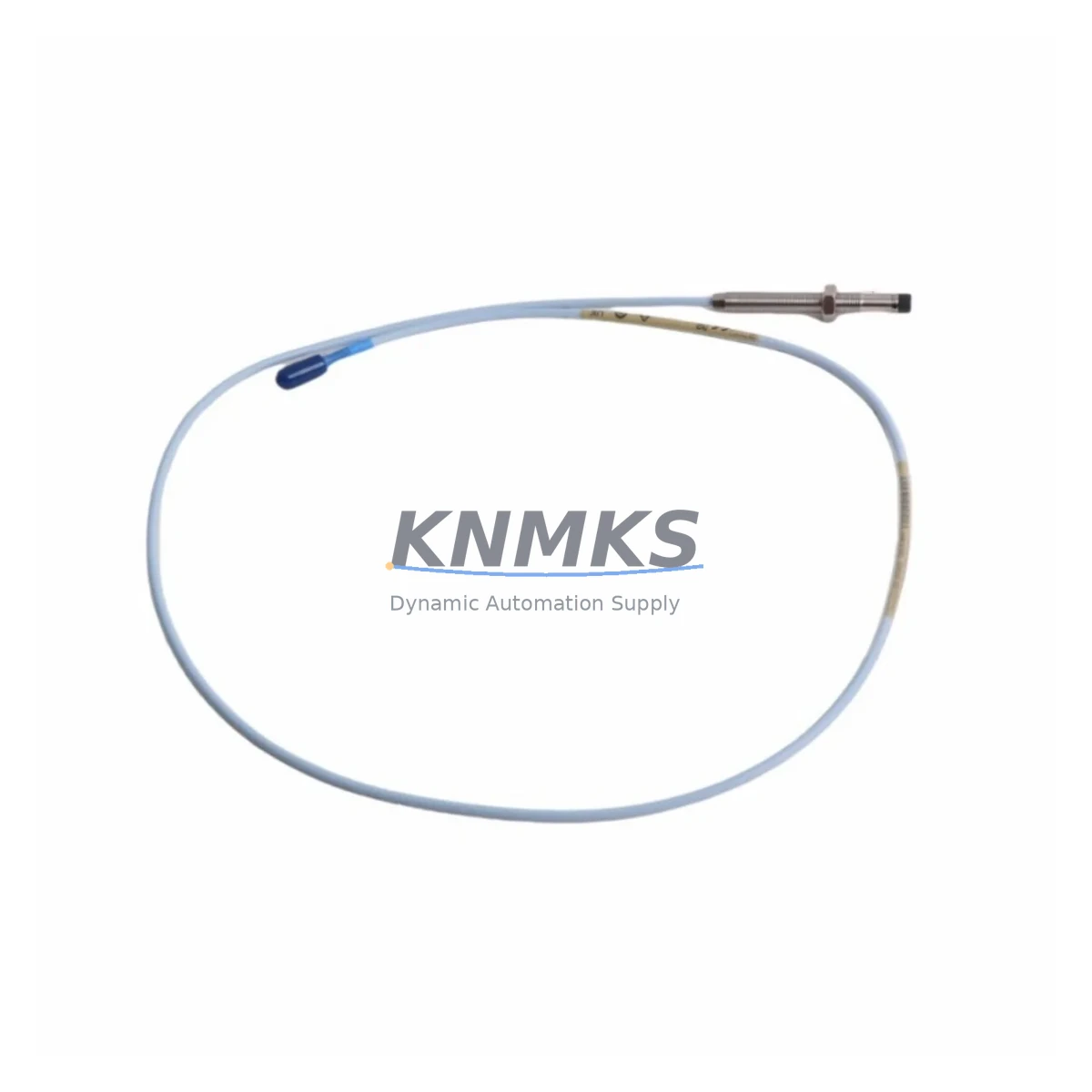

The Bently Nevada 330101-00-30-20-12-05 is an 8mm proximity transducer from the 3300 XL series, engineered for continuous vibration and position monitoring in rotating machinery environments. As a maintenance-proven spare part, it is widely deployed in turbines, compressors, pumps, and generators across oil & gas, power generation, petrochemical, and heavy manufacturing facilities. Keeping a verified replacement unit in your spare parts inventory is a fundamental strategy for minimizing unplanned downtime and protecting critical rotating assets.

For maintenance engineers managing condition monitoring systems, the 330101-00-30-20-12-05 represents a direct-fit replacement for aging or failed proximity transducers within the Bently Nevada 3300 XL platform. Its 8mm sensing tip, standard 5-meter cable configuration, and -24 VDC bias voltage output ensure seamless integration with existing 3300 XL proximitor/seismic monitors without requiring recalibration of the monitoring system. Procurement engineers can source this unit with confidence: each shipment undergoes pre-dispatch electrical verification, and the unit is backed by a support terms confirmed by quotation covering manufacturing defects and performance deviations.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330101-00-30-20-12-05 proximity transducer during a scheduled outage or emergency intervention, a thorough inspection of the surrounding measurement chain is essential to prevent repeat failures and ensure signal integrity. Begin by verifying the condition of the paired 3300 XL 8mm Proximitor (330180-X1-05) — the proximitor converts the transducer’s eddy-current signal into a usable DC voltage, and a degraded proximitor will produce erroneous readings even with a new probe installed.

Next, inspect the extension cable assembly (typically a 330130-series armored extension cable) for insulation damage, connector corrosion, or mechanical stress at the conduit entry points. A compromised extension cable is a common root cause of intermittent signal faults that are frequently misdiagnosed as transducer failure. While the control cabinet is open, check the 3300 XL monitor card (such as the 3300/16 or 3300/20 series) for alarm relay status, OK relay output continuity, and any indication of internal card faults.

For facilities running integrated machinery protection systems, this is also an appropriate time to inspect the 3500 series rack power supply or the dedicated -24 VDC power module feeding the proximitor loop. Voltage ripple or supply instability directly affects transducer linearity and can trigger nuisance trips. If the installation includes a signal conditioning terminal block or signal isolator between the proximitor output and the DCS/PLC input card, verify isolation resistance and confirm that the 4–20 mA or voltage output range remains within calibrated limits.

Procurement teams building annual maintenance kits for rotating machinery should consider stocking the 330101-00-30-20-12-05 alongside complementary components: a spare proximitor (330180-X1-05), at least one extension cable assembly, and a set of 3300 XL monitor fuses or protection modules. For facilities with legacy Bently Nevada 7200 series installations running in parallel, cross-referencing the spare parts list with equivalent 3300 XL components ensures a smooth migration path and reduces the risk of sourcing obsolete parts under emergency conditions.

Site Replacement Workflow

Step 1 — Isolation and Safety: Coordinate with the control room to acknowledge and suppress the relevant vibration channel alarm. Follow site LOTO (Lockout/Tagout) procedures before accessing the transducer mounting location on the bearing housing or thrust collar.

Step 2 — Transducer Removal: Disconnect the extension cable at the field junction box. Unthread the 330101-00-30-20-12-05 probe from its mounting bracket, noting the gap distance setting (typically 1.0–1.5 mm for radial applications). Record the existing gap for reference during reinstallation.

Step 3 — New Unit Installation: Thread the replacement 330101-00-30-20-12-05 into the mounting bracket. Set the probe gap using a calibrated gap tool or oscilloscope/voltmeter method: at the nominal gap, the proximitor output should read approximately -10.0 to -11.0 VDC. Reconnect the extension cable and verify connector seating.

Step 4 — Signal Verification: At the 3300 XL monitor, confirm the OK relay has energized and the channel is reading within the expected vibration baseline for the machine at rest or at operating speed. Compare readings against historical trend data to validate correct installation.

Step 5 — Documentation: Update the maintenance management system (CMMS) with the replacement date, new unit serial number, gap setting, and post-installation signal readings. This record supports support requests and future predictive maintenance scheduling.

This workflow applies equally to radial vibration, axial position, and differential expansion measurement points, making the 330101-00-30-20-12-05 a versatile and standardized spare across multiple measurement functions within the same 3300 XL system.

Spare Parts Support FAQ

Q1: Is the 330101-00-30-20-12-05 compatible with both 3300 XL monitors and older 3300 series monitors?
The 330101-00-30-20-12-05 is designed and specified for the 3300 XL platform. While the physical connector and gap range may appear similar to earlier 3300 series probes, Bently Nevada specifies distinct sensitivity and bias voltage characteristics for the XL series. Always verify monitor compatibility using the 3300 XL system documentation before installation in a legacy 3300 (non-XL) rack to avoid measurement errors or OK relay faults.

Q2: What pre-shipment testing is performed on each unit?
Every 330101-00-30-20-12-05 unit dispatched from our inventory undergoes electrical continuity verification, insulation resistance check, and output signal validation against the 3300 XL specification. A test report is available upon request. Units are packaged in anti-static, shock-protected packaging to maintain condition during international transit.

Q3: How should this spare part be stored to maximize shelf life?
Store the 330101-00-30-20-12-05 in its original packaging in a dry, temperature-controlled environment (10°C to 40°C, relative humidity below 75% non-condensing). Avoid storage near strong magnetic fields or sources of mechanical vibration. Under these conditions, the unit can be held in reserve inventory for 3–5 years without performance degradation, supporting long-term spare parts strategies for aging 3300 XL installations.

Q4: What is covered under the support terms confirmed by quotation, and how is a claim initiated?
The support terms confirmed by quotation cover manufacturing defects, premature component failure under normal operating conditions, and deviations from published electrical specifications. It does not cover damage resulting from incorrect installation, overvoltage, mechanical impact, or use outside the specified environmental range. To initiate a support terms claim, contact our technical support team with the unit serial number, purchase date, and a description of the observed fault. Replacement or repair is processed within 5–10 business days of fault confirmation.
