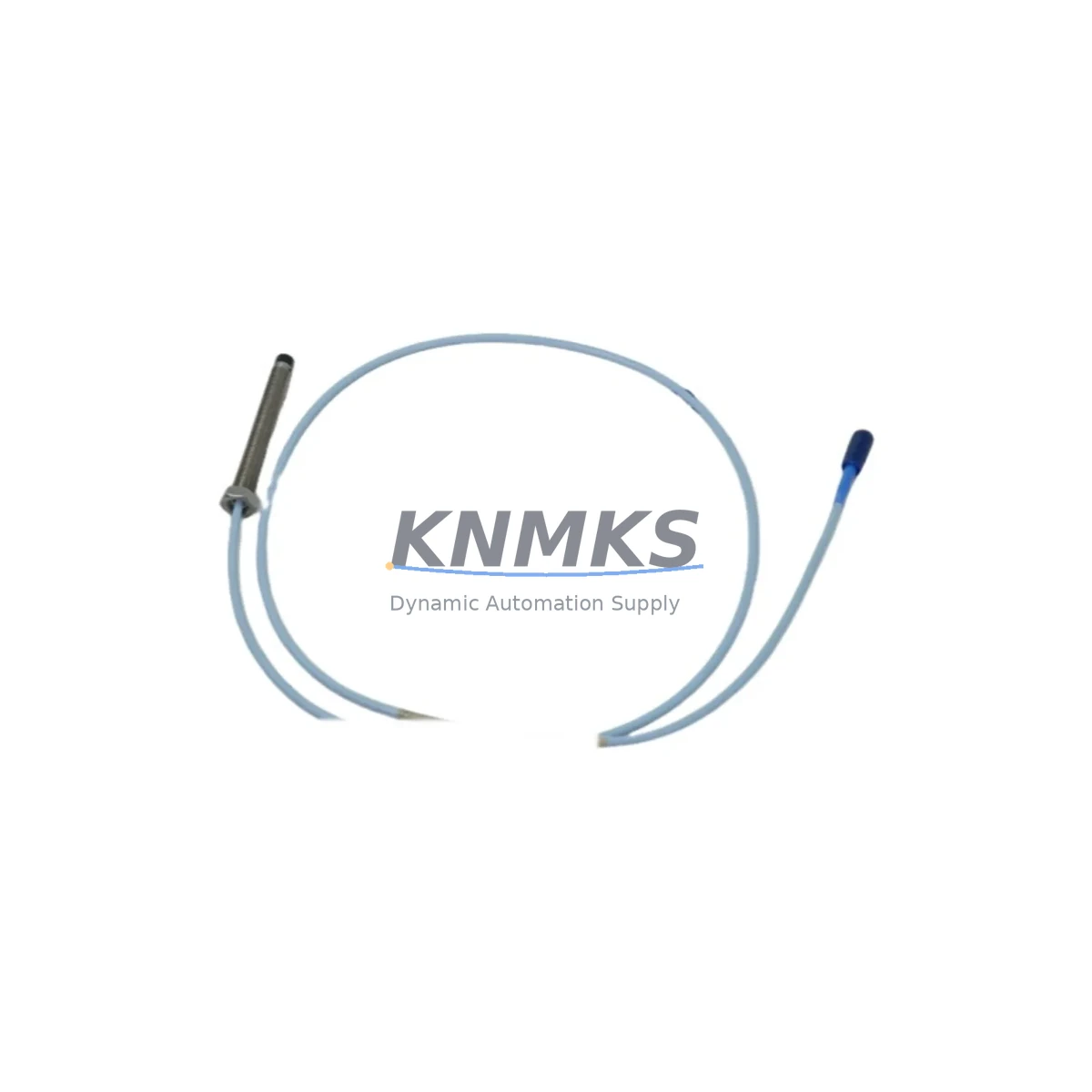

Bently Nevada 330101-00-30-10-11-00 Fail-Safe Proximity Probe

Overview

Bently Nevada 330101-00-30-10-11-00 Fail-Safe Proximity Probe: Industrial Control Reliability & Fault Protection

The Bently Nevada 330101-00-30-10-11-00 is an 8mm eddy-current proximity probe engineered for the Bently Nevada 3300 XL Series continuous vibration monitoring system. Designed to deliver fail-safe, uninterrupted shaft displacement and vibration measurement in the most demanding industrial environments, this probe is a critical component in rotating machinery protection circuits across petrochemical, power generation, mining, metallurgy, water treatment, port, and continuous manufacturing facilities worldwide.

Where unplanned downtime carries catastrophic safety and financial consequences, the 330101-00-30-10-11-00 provides the measurement integrity that plant engineers and reliability teams depend on. Its robust construction and precision-calibrated output ensure that control loops, safety interlock systems, and condition monitoring platforms receive accurate, drift-free signals — even under sustained mechanical vibration, high electromagnetic interference, elevated temperatures, and moisture-laden or dusty atmospheres.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a well-engineered rotating machinery protection cabinet, the 330101-00-30-10-11-00 proximity probe operates as the primary sensing element within a complete Bently Nevada 3300 XL Proximity Transducer System. The probe connects via a matched extension cable — typically the Bently Nevada 330130 series extension cable — to the 3300 XL Proximitor® Sensor, which conditions the raw eddy-current signal into a calibrated DC voltage output suitable for the monitoring rack.

Within the control cabinet, the Proximitor output feeds directly into a Bently Nevada 3500 Series Machinery Protection System rack — a modular, safety-rated platform that processes vibration, position, and speed signals from multiple transducer channels simultaneously. The 3500 rack’s relay output modules drive emergency shutdown (ESD) contactors and safety interlock relays, ensuring that any exceedance of vibration alarm or danger setpoints triggers a controlled, fail-safe machine trip before mechanical damage propagates.

To maintain signal integrity across long cable runs in high-EMI environments — common in variable-frequency drive (VFD) panels, large motor control centers, and arc furnace control rooms — the cabinet design should incorporate Bently Nevada 3300 XL series armored extension cables with continuous braided shielding. Surge protection at the cabinet entry point, using transient voltage suppression (TVS) devices compatible with the Proximitor’s input impedance, guards against lightning-induced surges and switching transients that could corrupt the DC gap voltage and trigger spurious trips.

Power supply redundancy is equally critical. The 3300 XL Proximitor requires a stable –24 VDC supply; pairing it with a Bently Nevada 3500/15 Power Supply module — which provides regulated, isolated DC rails with built-in diagnostics — eliminates power-related signal anomalies. For installations requiring SIL-rated functional safety, the complete transducer-to-rack signal chain, including the 330101-00-30-10-11-00 probe, should be validated against IEC 61511 loop integrity requirements, with proof-test intervals documented in the facility’s Safety Instrumented System (SIS) management plan.

Critical Industrial Safety Applications

Petrochemical & Refinery: In compressor trains, centrifugal pumps, and steam turbine-driven process units, the 330101-00-30-10-11-00 monitors shaft radial vibration and journal bearing clearance in real time. Any bearing wear, rotor imbalance, or oil film instability that causes shaft displacement beyond the danger setpoint triggers an immediate ESD signal through the 3500 rack, preventing catastrophic seal failure, process gas release, or fire. Continuous monitoring eliminates the need for scheduled manual checks in hazardous classified areas, reducing personnel exposure to toxic atmospheres.

Power Generation: Gas turbines, steam turbines, and large generator sets in power plants operate at shaft speeds where even a 25-micron increase in vibration amplitude can indicate imminent bearing failure. The 330101-00-30-10-11-00, installed at each bearing journal, provides the sub-millisecond response time required to protect multi-hundred-megawatt assets. Its thermally stable output ensures that alarm setpoints remain accurate across the full turbine operating temperature range, from cold start-up through full-load steady state.

Mining & Mineral Processing: Ball mills, SAG mills, and large slurry pumps in mining operations are subject to extreme vibration, shock loading, and abrasive dust ingress. The probe’s robust stainless-steel housing and sealed coaxial construction resist the mechanical abuse and contamination that would degrade lesser sensors. Reliable vibration data from the 330101-00-30-10-11-00 enables predictive maintenance scheduling, reducing unplanned mill stoppages that can cost tens of thousands of dollars per hour in lost production.

Water Treatment & Pumping Stations: High-capacity centrifugal pumps in water supply and wastewater treatment facilities run continuously, often unattended. Proximity probe monitoring of pump shaft vibration and axial position detects cavitation, impeller wear, and coupling misalignment before they escalate to seal failure and environmental contamination incidents. The 330101-00-30-10-11-00’s compatibility with the 3500 Series rack allows integration into SCADA systems for remote alarm annunciation and automated shutdown.

Metallurgy & Steel: Rolling mill drives, continuous casters, and induction furnace blowers operate in environments with intense electromagnetic fields, high ambient temperatures, and heavy mechanical vibration. The shielded coaxial design of the 330101-00-30-10-11-00 maintains signal fidelity in these conditions, providing the reliable vibration baseline that metallurgical plant engineers need to schedule bearing replacements during planned maintenance windows rather than emergency shutdowns.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 330101-00-30-10-11-00?
The support terms confirmed by quotation cover all manufacturing defects, coil winding failures, connector integrity issues, and functional performance deviations from the Bently Nevada 3300 XL specification. Support requests are supported with a replacement unit dispatched from stock, minimizing site downtime. The confirmed support period begins from the date of shipment and is documented with each delivery.

Q2: What pre-shipment testing is performed on each probe?
Every 330101-00-30-10-11-00 unit undergoes functional verification prior to dispatch, including coil impedance measurement, gap sensitivity calibration check against the 7.87 V/mm nominal output, and connector continuity testing. Units that do not meet Bently Nevada 3300 XL performance specifications are quarantined and not shipped. A test record is available upon request for quality-critical installations.

Q3: Is the 330101-00-30-10-11-00 a direct drop-in replacement for existing 3300 XL installations?
Yes. The 330101-00-30-10-11-00 is dimensionally and electrically compatible with the Bently Nevada 3300 XL Proximity Transducer System. It uses the standard 8mm probe thread, coaxial connector, and –24 VDC supply architecture. No recalibration of the Proximitor sensor or 3500 rack is required when replacing a like-for-like unit, provided the extension cable length and target material remain unchanged.

Q4: Can long-term supply and spare-part availability be guaranteed?
We maintain dedicated stock of the 330101-00-30-10-11-00 and related 3300 XL series components to support blanket order agreements, planned maintenance programs, and emergency spare requirements. Customers with critical fleet applications are encouraged to discuss consignment stock or scheduled delivery arrangements to ensure uninterrupted access to this safety-critical spare part.
