Bently Nevada 330101-00-30-10-02-05 Proximity Probe

Overview

Bently Nevada 330101-00-30-10-02-05 Proximity Probe: Migration-Ready Replacement for Legacy 3300 XL Vibration Monitoring Systems

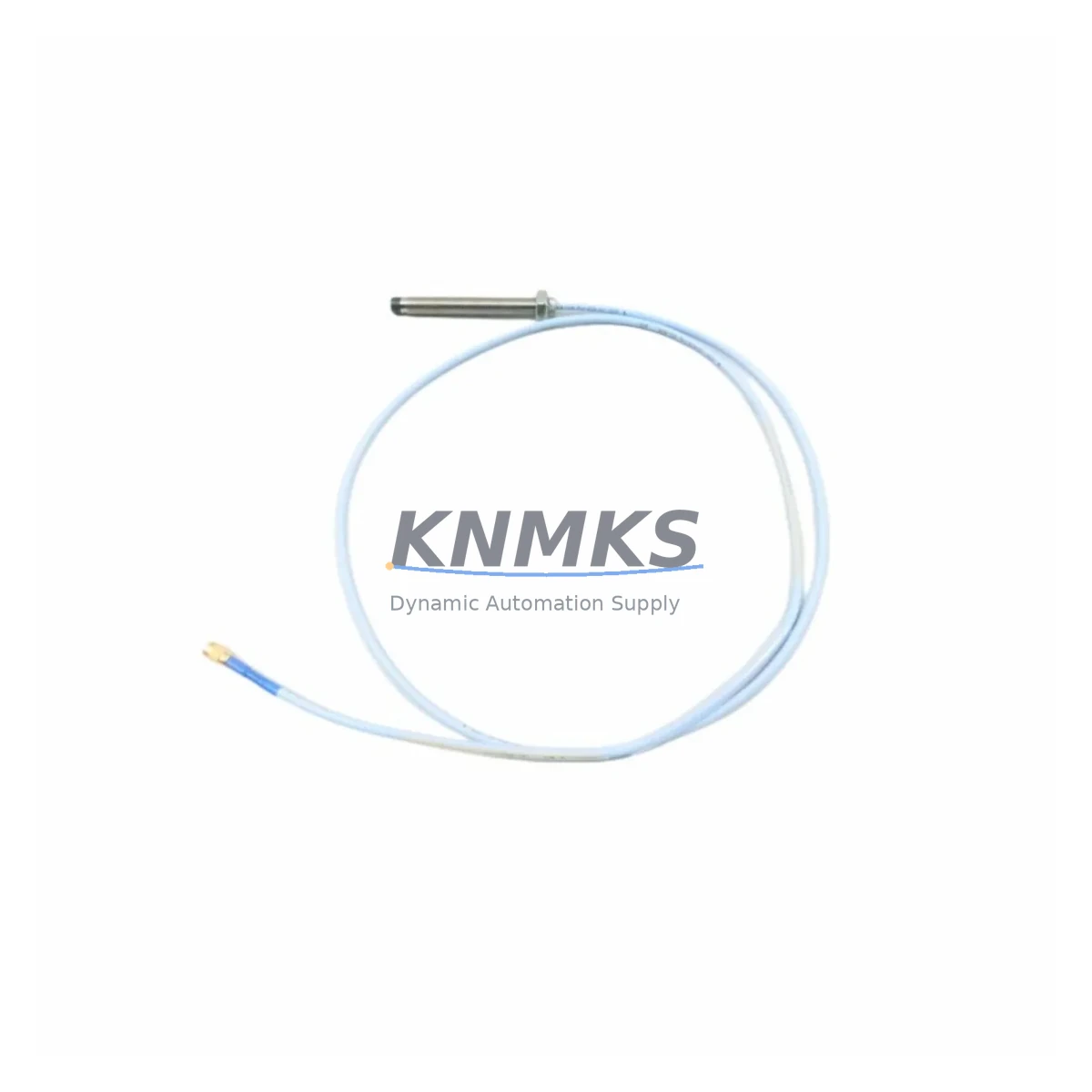

The Bently Nevada 330101-00-30-10-02-05 is an 8mm eddy-current proximity probe designed for continuous shaft vibration and position monitoring in rotating machinery. As a direct retrofit replacement within the Bently Nevada 3300 XL series, this probe is widely deployed in turbomachinery protection systems, compressor trains, steam turbines, and critical pump monitoring loops where legacy hardware must be maintained or upgraded without disrupting existing control architecture.

For maintenance engineers managing aging DCS or vibration monitoring infrastructure, sourcing a verified replacement for the 330101-00-30-10-02-05 is a critical step in reducing unplanned downtime. This probe integrates directly with the Bently Nevada 3300 XL proximitor/driver system, preserving existing cable routing, connector pinouts, and signal conditioning without requiring panel rewiring or software reconfiguration. Pre-shipment functional testing is performed on every unit to confirm output linearity, gap voltage response, and sensitivity coefficient (V/mm) before dispatch.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

When integrating the 330101-00-30-10-02-05 into an existing vibration monitoring retrofit, the scope of work extends beyond the probe itself. A complete 3300 XL channel consists of the proximity probe, an extension cable (typically the Bently Nevada 330130-080-00-00 or 330180 series), and a proximitor/driver module such as the 3300 XL 8mm Proximitor. Each component in the signal chain must be matched by sensitivity coefficient and cable length to maintain system calibration. Substituting only the probe without verifying the extension cable condition and proximitor output range is a common source of false alarms or missed trips after maintenance.

For control cabinet upgrades where the 3300 XL rack is being retained but individual monitor cards are being replaced, engineers should confirm backplane slot assignments and I/O channel mapping before removing the existing probe wiring. The 3300/16 Dual Voting Monitor and 3300/20 Radial Vibration Monitor both accept 8mm probe inputs, but their channel configuration and OK relay logic differ. If the site is migrating from an older 7200 series monitor to the 3300 XL platform, terminal block wiring, shield grounding practices, and signal common references must all be re-evaluated to prevent ground loop interference on the analog vibration signal.

In applications where the control system is being upgraded to a modern DCS or safety instrumented system (SIS), the 3300 XL monitor rack typically remains in service as a dedicated machinery protection layer, with 4–20 mA or relay outputs feeding the new control platform. In this configuration, the 330101-00-30-10-02-05 probe continues to serve its original function without modification, while the upstream integration work focuses on signal conditioning, scaling, and alarm setpoint migration in the new HMI or SCADA environment. Verifying that the new HMI faceplate correctly reflects vibration units (µm pk-pk or mil pk-pk) and alarm thresholds from the original system documentation is essential before commissioning.

Where I/O expansion is required — for example, adding axial position monitoring alongside existing radial vibration channels — the 3300 XL Thrust Monitor card can be added to the same rack, sharing the existing power supply and communication backplane. This avoids the need for a separate enclosure and simplifies cable management in congested control rooms. Signal isolators may be required at the interface between the 3300 XL rack outputs and the new control system analog input cards to prevent ground potential differences from corrupting vibration readings.

Downtime Control During System Migration

Minimizing production downtime during a proximity probe replacement or vibration monitoring system upgrade requires a structured pre-outage preparation process. Before the maintenance window opens, the replacement 330101-00-30-10-02-05 probe should be bench-tested against the site’s spare proximitor to confirm gap voltage response and sensitivity match. This eliminates the risk of discovering a calibration mismatch during the outage window when time pressure is highest.

During the swap, the original probe wiring, gap measurement, and OK relay status should be documented before disconnection. The new probe should be installed to the same mechanical gap (verified with a digital voltmeter at the proximitor output), and the OK relay should be confirmed healthy before the monitor is returned to service. If the site uses a dual-voting or 2oo3 protection logic configuration, the channel can often be bypassed in the protection system during the swap, allowing the machine to remain online while the replacement is completed — provided the site’s safety procedures permit single-channel bypass.

For planned turnarounds where multiple probes are being replaced across a machine train, staging all replacement probes, extension cables, and proximitor modules as a matched set before the outage begins is strongly recommended. This approach, combined with pre-labeled terminal connections and a channel-by-channel commissioning checklist, consistently reduces probe replacement time per channel and protects the integrity of the original control logic without requiring program modifications.

Retrofit Support FAQ

Q: Is the 330101-00-30-10-02-05 a direct replacement for other 330101 suffix variants?
A: The 330101 base part number covers a family of 8mm proximity probes with varying cable lengths, temperature ratings, and connector configurations. The suffix -00-30-10-02-05 specifies a 1.0m probe cable, standard temperature rating, and 5mm probe tip. Before substituting a different suffix variant, confirm that the cable length, sensitivity coefficient, and connector type match the existing extension cable and proximitor configuration at your site.

Q: What pre-shipment testing is performed on this probe?
A: Each unit undergoes functional output testing to verify gap voltage linearity across the specified measurement range, sensitivity coefficient (7.87 V/mm), and OK output status. A test report is available on request. Units that do not meet Bently Nevada original specification are not dispatched.

Q: Can this probe be used with non-Bently Nevada monitor systems?
A: The 330101-00-30-10-02-05 is calibrated for use with Bently Nevada 3300 XL proximitor drivers. Use with third-party eddy-current drivers is possible if the driver accepts 8mm probe geometry and is calibrated to the same sensitivity coefficient, but compatibility must be verified by the end user. We recommend confirming with your system integrator before substituting the proximitor driver.

Q: What support terms and inventory support is available?
A: This probe is covered by a support terms confirmed by quotation against manufacturing defects from the date of shipment. Stock is maintained to support urgent spare part requirements and planned turnaround schedules. For volume orders or long-term supply agreements covering multiple units across a machine train or plant-wide monitoring system, contact our sales team to discuss availability and lead time commitments.
