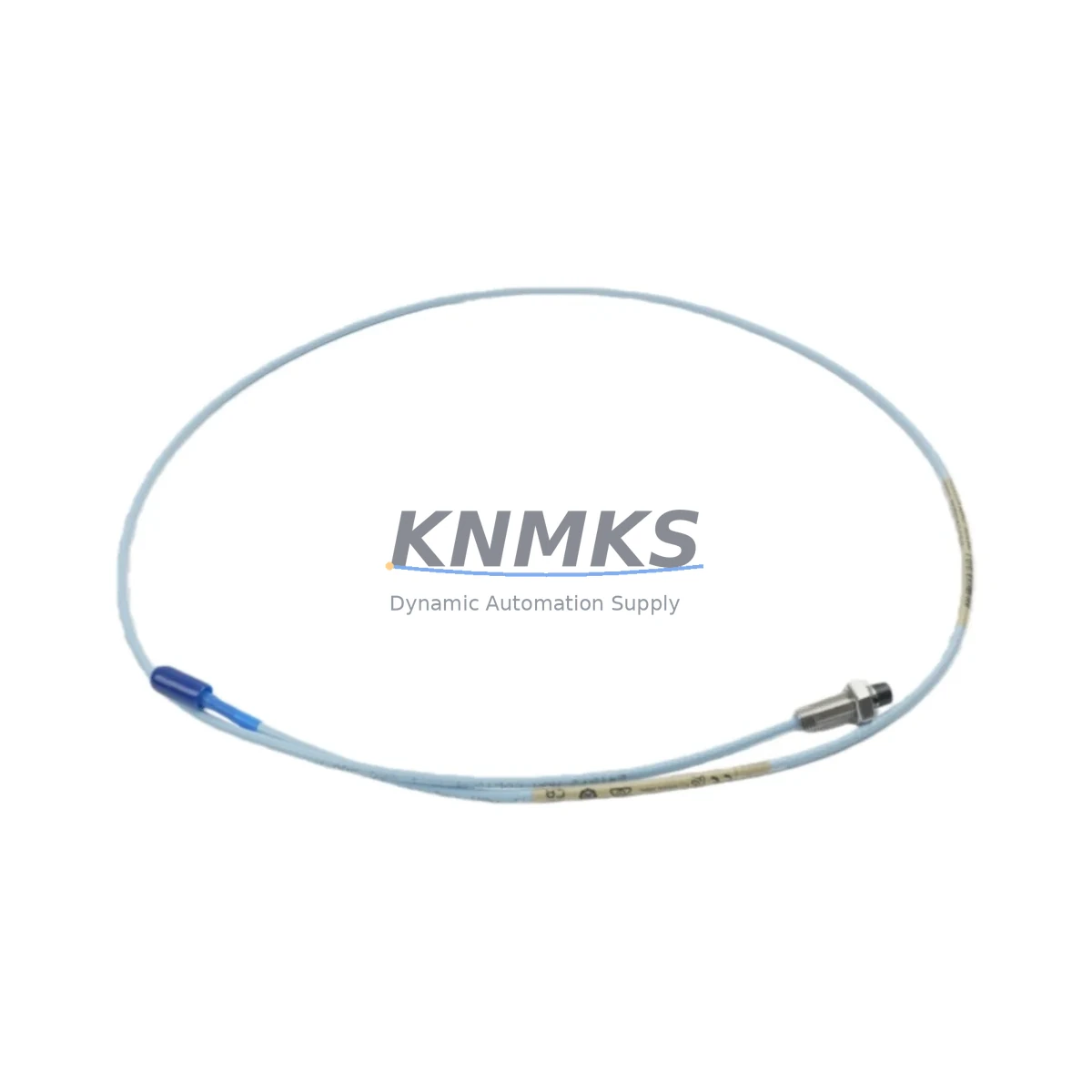

Bently Nevada 330101-00-29-10-02-00 Fail-Safe Proximity Probe

Overview

Bently Nevada 330101-00-29-10-02-00 Fail-Safe Proximity Probe: Critical Industrial Field Reliability

The Bently Nevada 330101-00-29-10-02-00 is an 8mm eddy current proximity probe from the industry-proven 3300 XL Series, engineered for continuous, fail-safe vibration and position monitoring in the most demanding industrial environments. Designed to operate reliably in petrochemical plants, power generation facilities, mining operations, and heavy manufacturing lines, this probe delivers the measurement precision and signal integrity that critical rotating machinery protection demands.

In high-stakes control architectures where unplanned downtime carries six-figure costs per hour, the 330101-00-29-10-02-00 provides the stable, low-drift output that safety interlock systems and condition monitoring platforms depend on. Its eddy current sensing principle is inherently non-contact, eliminating mechanical wear and ensuring consistent gap measurement even under continuous shaft rotation, high-speed vibration, and thermal cycling.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The 330101-00-29-10-02-00 proximity probe is designed to integrate seamlessly into a complete 3300 XL Series monitoring architecture. In a typical critical machinery protection cabinet, this probe pairs with the Bently Nevada 3300 XL 8mm Extension Cable (330130-045-00-00) to bridge the gap between the probe tip and the proximitor driver module, maintaining signal integrity across long cable runs in high-EMI environments such as motor control centers and variable frequency drive (VFD) enclosures.

The signal is conditioned by the Bently Nevada 3300 XL Proximitor Sensor (330180-X1-05), which converts the raw eddy current signal into a calibrated DC voltage output suitable for direct input to the System 1 Evolution condition monitoring platform or a safety-rated PLC such as the Rockwell Automation GuardLogix 5580. In safety instrumented systems (SIS) operating under IEC 61511, the probe output feeds into voted logic solvers where 2oo3 (two-out-of-three) voting architectures prevent spurious trips while maintaining protective integrity.

For cabinet thermal management — a critical factor in probe signal stability — the installation should include adequate ventilation or forced-air cooling to keep ambient temperatures within the probe’s rated range. Surge protection on the signal lines, such as a Phoenix Contact TRABTECH signal surge arrester, is recommended in outdoor substations or installations exposed to lightning risk. Where the control cabinet also houses Bently Nevada 3500 Series rack monitors for broader machinery protection, the 330101-00-29-10-02-00 can be integrated into the same wiring infrastructure, reducing installation complexity and simplifying periodic calibration routines.

Critical Industrial Safety Applications

Petrochemical & Refinery: In compressor trains and centrifugal pump systems at refineries, the 330101-00-29-10-02-00 monitors radial shaft vibration and relative shaft position in real time. Any deviation beyond alarm setpoints triggers an automated shutdown sequence, preventing catastrophic seal failures, bearing collapses, or process fluid releases that could escalate to fire or explosion hazards.

Power Generation: Steam turbine and gas turbine installations rely on proximity probes to detect rotor eccentricity, shaft bow, and critical speed crossings during startup and shutdown. The 3300 XL probe’s wide operating temperature range makes it suitable for high-temperature bearing housings adjacent to turbine casings, where conventional sensors would fail prematurely.

Mining & Mineral Processing: Ball mills, SAG mills, and large conveyor drive systems in mining operations subject instrumentation to extreme vibration, dust ingress, and moisture. The IP67-rated probe body and shielded cable construction of the 330101-00-29-10-02-00 maintain measurement accuracy in these harsh conditions, supporting predictive maintenance programs that reduce unplanned mill stoppages.

Water & Wastewater Treatment: Large vertical turbine pumps and centrifugal blowers in water treatment plants require continuous shaft monitoring to detect impeller imbalance and bearing wear before they cause flooding or process interruption. The non-contact sensing principle eliminates the risk of probe contamination from process fluids.

Metallurgy & Steel: Rolling mill drives and continuous casting equipment operate under extreme mechanical loads and thermal gradients. The 330101-00-29-10-02-00’s robust construction and high-temperature rating ensure reliable operation in steel plant environments where ambient temperatures and electromagnetic interference levels are among the highest in industry.

Port & Marine: Shipboard propulsion systems and port crane drives require vibration monitoring solutions that withstand salt air, humidity, and constant mechanical shock. The sealed probe body and corrosion-resistant construction of the 3300 XL series make it a proven choice for marine and offshore applications.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 330101-00-29-10-02-00?
The support terms confirmed by quotation cover all manufacturing defects, signal output deviations outside published specifications, and connector or cable integrity failures under normal operating conditions. Each unit undergoes pre-shipment functional testing including sensitivity verification and insulation resistance checks before dispatch.

Q2: How is each probe tested before shipment?
Every 330101-00-29-10-02-00 unit is bench-tested against a calibrated 3300 XL Proximitor to verify sensitivity (7.87 V/mm ±3%), linear range, and DC output stability. Test records are retained and available upon request for quality-critical installations in SIS or API 670 applications.

Q3: Is the 330101-00-29-10-02-00 compatible with existing 3300 XL system installations?
Yes. This probe is a direct, pin-compatible replacement for all 3300 XL 8mm proximity probe variants. It is compatible with the full range of 3300 XL Proximitor sensors and 3500 Series rack monitors without requiring recalibration of the monitoring system, provided the extension cable length and target material remain unchanged.

Q4: Can long-term supply and replacement support be guaranteed?
KNMKS maintains standing inventory of the 330101-00-29-10-02-00 and key 3300 XL Series accessories to support planned maintenance shutdowns, emergency replacements, and long-term spare parts programs. Supply commitments for critical infrastructure projects are available upon request. Contact our team to discuss stocking agreements tailored to your maintenance cycle.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330101-00-29-10-02-00
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330101-00-29-10-02-00
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
