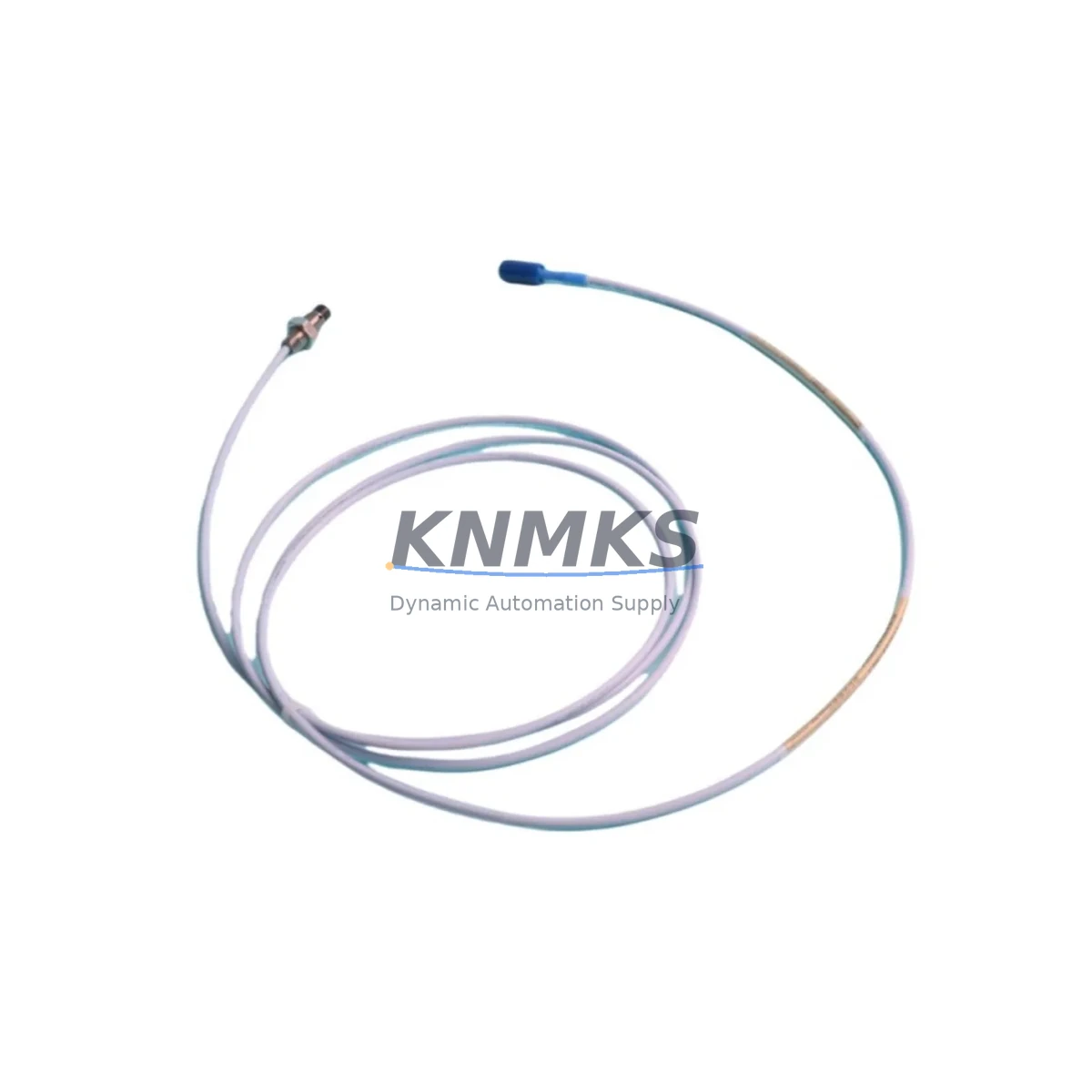

Bently Nevada 330101-00-28-90-02-00 Migration-Ready Proximity Transducer

Overview

Bently Nevada 330101-00-28-90-02-00 Migration-Ready Proximity Transducer for Legacy Control Systems

The Bently Nevada 330101-00-28-90-02-00 is an 8mm eddy-current proximity transducer engineered for the 3300 XL Series continuous machinery monitoring platform. As legacy Bently Nevada 3300 and 7200 Series systems reach end-of-support milestones, plant engineers and reliability teams are increasingly tasked with sourcing verified drop-in replacements that preserve existing wiring, conduit routing, and monitor channel calibration. The 330101-00-28-90-02-00 addresses this need directly: it maintains the standard 5-metre integral cable configuration, -24 VDC bias voltage output, and 200 mV/mil (7.87 V/mm) scale factor that the 3300 XL Proximitor® monitor expects, eliminating the need for recalibration or signal-conditioning rework during a planned or emergency replacement.

For facilities running Bently Nevada 3300 XL 16-channel or 8-channel rack systems, the transducer integrates without modification into existing Proximitor® sensor housings and junction boxes. Engineers replacing worn or damaged probes on rotating machinery — including steam turbines, gas compressors, centrifugal pumps, and gearboxes — can complete a like-for-like swap while the machine is offline, restoring full vibration and position monitoring capability within a single maintenance window. The probe tip geometry and thread specification (M10 × 1.0) match the original factory configuration, so existing probe holders and armour-cable assemblies remain serviceable.

When planning a broader control system migration from a legacy Bently Nevada 3300 platform to a System 1 Evolution or 3500 Series rack, the 330101-00-28-90-02-00 can serve as an interim transducer solution while the monitoring rack and I/O modules are upgraded in phases. This phased approach allows the field wiring — including the Bently Nevada 330130 extension cable and 330180 Proximitor® sensor — to remain in place until the new 3500/42M Proximitor® I/O module is commissioned and loop-checked. Retaining the existing field wiring during the rack migration significantly reduces installation labour and minimises the risk of wiring errors that could trigger nuisance trips during startup.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit begins well before the maintenance window opens. When replacing the 330101-00-28-90-02-00 in a 3300 XL rack, the first step is to audit the Proximitor® sensor — typically the 330180-51-00 or 330180-91-00 — to confirm it is within its calibrated service life and that the driver output impedance is within specification. A degraded Proximitor® will produce erratic gap readings even with a new probe installed, so replacing both the transducer and the Proximitor® as a matched pair is recommended when the system has been in continuous service for more than five years.

For facilities migrating from a 3300 XL 16-channel rack to a 3500 Series rack, the I/O module selection is critical. The 3500/42M Proximitor®/Seismic Monitor accepts the same 330101-series probes and 330180 Proximitor® sensors, but the rack backplane connector pinout differs from the 3300 XL, requiring new field wiring terminations at the I/O module terminal block. During this transition, the 3500/20 Rack Interface Module and 3500/05 Power Supply Module must be sized to support the full channel count of the new rack — a common oversight that leads to power budget shortfalls when additional I/O cards are added later.

Where the control system upgrade extends to the HMI layer, engineers should verify that the System 1 Evolution software configuration reflects the new channel assignments and alarm setpoints before the machine is returned to service. Tag names, dynamic data links, and historian archive paths tied to the old 3300 XL rack addresses must be remapped to the 3500 rack node addresses. Failing to update these links results in flat-line trends in the historian and missed alarm annunciation — a risk that is best mitigated by a structured pre-startup checklist that covers both the DCS/SCADA tag database and the Bently Nevada System 1 configuration file.

Signal isolation is another consideration when the 330101-00-28-90-02-00 output is shared with a DCS analogue input card. A signal isolator or signal conditioner inserted between the Proximitor® output and the DCS input card prevents ground loops that can introduce 50/60 Hz noise into the vibration signal, which would otherwise appear as a spurious sub-synchronous component in the spectrum. This is particularly important in older facilities where the instrument earth and power earth are not fully separated at the marshalling cabinet.

Downtime Control During System Migration

Minimising unplanned downtime during a proximity transducer replacement or rack migration requires a disciplined pre-outage preparation process. Before the machine is taken offline, the replacement 330101-00-28-90-02-00 should be bench-tested against a known-good Proximitor® to verify the static gap voltage and dynamic response. A pre-shipment functional test report is included with each unit supplied by KNMKS, providing documented evidence of probe performance before it reaches the field.

During the outage, the recommended sequence is: (1) record the existing gap voltage and alarm setpoints from the 3300 XL monitor display or System 1 trend screen; (2) remove the old probe and clean the probe holder threads; (3) install the new 330101-00-28-90-02-00 and set the air gap to the manufacturer’s recommended centre-of-range value (approximately 1.0–1.25 mm / 40–50 mil); (4) power up the Proximitor® and verify the bias voltage is within the -17 to -24 VDC acceptance window; (5) confirm the gap voltage on the monitor matches the pre-outage baseline within ±0.5 VDC before releasing the machine for restart.

For phased rack migrations where the 3300 XL and 3500 Series racks are running in parallel during a transition period, it is essential to ensure that both racks are not simultaneously driving the same alarm output relay. A relay voting logic review — typically performed in the Safety Instrumented System (SIS) or DCS logic — should be completed before the parallel operation period begins to prevent conflicting trip signals from reaching the machine protection system. Maintaining a detailed migration log that records each channel’s cutover date, the technician who performed the work, and the post-cutover gap voltage reading provides an auditable record that supports both reliability engineering reviews and insurance compliance requirements.

Retrofit Support FAQ

Q1: Is the 330101-00-28-90-02-00 a direct replacement for the 330101-00-28-05-02-00?
The primary difference between these part numbers is the integral cable length: the -28-90 suffix denotes a 5-metre cable, while the -28-05 suffix denotes a shorter cable. If your existing conduit run and junction box location accommodate a 5-metre cable, the 330101-00-28-90-02-00 is a functional replacement. Verify the cable routing clearance before ordering to avoid excess cable coiling inside the junction box, which can introduce capacitive coupling errors.

Q2: What commissioning checks are required after installing this transducer in a 3500 Series rack?
After installation, perform a static gap check using the 3500 rack’s front-panel display or the System 1 Evolution live data screen. Confirm the bias voltage is within the Proximitor® specification (-17 to -24 VDC), set the alert and danger alarm setpoints to match the machine OEM’s vibration limits, and perform a slow-roll check at barring-gear speed to verify the runout compensation value (if applicable) is correctly entered in the monitor configuration. Document all setpoint values in the machine’s maintenance record before returning to service.

Q3: Can this transducer be used with non-Bently Nevada monitors or third-party vibration systems?
The 330101-00-28-90-02-00 is calibrated to the Bently Nevada 200 mV/mil scale factor and is optimised for use with Bently Nevada Proximitor® sensors and 3300/3500 Series monitors. Use with third-party monitors is possible if the monitor accepts a -24 VDC bias input and is configured for the 200 mV/mil scale factor, but KNMKS recommends verifying compatibility with the monitor manufacturer before installation. Scale factor correction tables may be required for non-standard target materials.

Q4: What does the support terms confirmed by quotation cover, and what is the lead time for replacement stock?
The support terms confirmed by quotation cover manufacturing defects in materials and workmanship from the date of shipment. Each unit is functionally tested prior to dispatch, and a test report is available upon request. KNMKS maintains buffer stock of the 330101-00-28-90-02-00 to support emergency replacement requirements; standard lead time for in-stock units is 3–5 business days for international shipments. Contact [email protected] or +86 18359268345 for current stock availability and expedited shipping options.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330101-00-28-90-02-00
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330101-00-28-90-02-00
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
