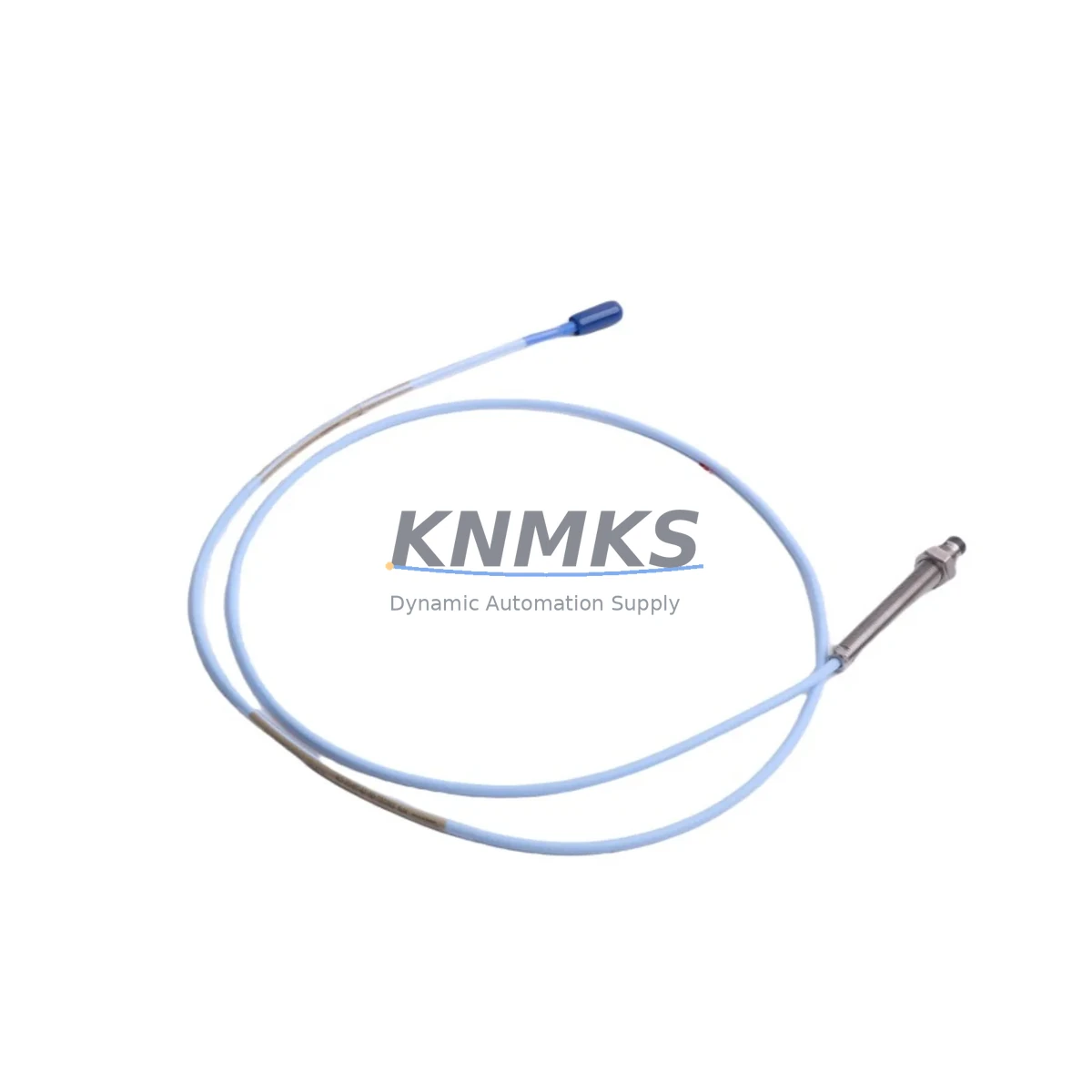

Bently Nevada 330101-00-28-20-12-05 Migration-Ready Proximity Probe

Overview

Bently Nevada 330101-00-28-20-12-05 Migration-Ready Proximity Probe for Legacy Control Systems

The Bently Nevada 330101-00-28-20-12-05 is an 8mm eddy current proximity probe engineered for direct integration into legacy 3300 XL vibration monitoring systems. As rotating machinery protection platforms age and OEM support windows close, maintenance engineers face increasing pressure to source verified replacement components that preserve existing wiring infrastructure, signal conditioning chains, and machinery protection logic without triggering a full system overhaul. This probe is stocked, tested, and shipped with a support terms confirmed by quotation to support planned and emergency retrofit scenarios across turbines, compressors, pumps, and gearboxes in oil & gas, power generation, petrochemical, and heavy industrial environments.

When replacing a worn or failed proximity probe in a 3300 XL installation, the first confirmation step is cable length and connector compatibility. The 330101-00-28-20-12-05 carries a 28-inch probe cable with a 20-foot extension cable and a 5-meter armored lead, matching the original Bently Nevada field wiring standard. Engineers should verify that the existing Bently Nevada 3300 XL proximitor/seismic module — typically the 330180 or 330130 series — is calibrated for the 8mm tip geometry and the -24 VDC bias voltage range before installation. No recalibration of the proximitor is required when replacing a like-for-like 330101 series probe, which significantly reduces commissioning time during planned outages.

For sites migrating from older 7200 series Bently Nevada hardware to the current 3500 platform, the 330101-00-28-20-12-05 remains compatible as an interim field sensor while the rack infrastructure is upgraded. The 3500/42M proximity monitor accepts the same -24 VDC gap voltage output and 200 mV/mil sensitivity standard, allowing the probe to remain in service during a phased migration where the 3500 rack replaces the 3300 XL chassis without disturbing the machine-side sensor installation. This approach is widely used to control downtime during turbine overhaul windows where sensor replacement and rack migration cannot be completed simultaneously.

Terminal wiring adaptation is a critical checkpoint. The 330101 series uses a standard BNC-to-terminal block interface at the proximitor input. When the existing junction box or field terminal assembly uses a different connector format — common in older Emerson or Honeywell DCS-integrated monitoring loops — a field-fabricated adapter or the Bently Nevada 330130-080-00-00 extension cable assembly may be required to maintain signal integrity. Engineers should also confirm that the armored cable routing path is free of electromagnetic interference sources, particularly near variable frequency drives or high-current bus bars, as proximity probe signals in the millivolt range are susceptible to induced noise that can trigger false vibration alarms.

In multi-channel monitoring cabinets where the 3300 XL rack hosts both radial vibration and axial position channels, replacing a single 330101 probe does not require reloading the machinery protection setpoints stored in the 3300 XL monitor. However, if the replacement is part of a broader upgrade that includes swapping the 3300/16 dual-channel monitor card or the 3300/55 trip multiplier module, the setpoint configuration should be exported and verified against the original machinery protection philosophy document before the new cards are commissioned. This is especially important in API 670-compliant installations where independent voting logic governs trip and alarm outputs.

Sites operating Bently Nevada systems integrated with a Honeywell Experion PKS or Emerson DeltaV DCS should confirm that the 4–20 mA output from the proximitor module — routed through the DCS I/O marshalling cabinet — remains within the expected engineering unit range after probe replacement. A gap voltage check at the proximitor terminal using a calibrated voltmeter is the fastest field verification method and should be documented as part of the post-installation commissioning record. For installations where the DCS historian is configured to trend proximity probe gap voltage alongside vibration amplitude, the historian tag scaling should be reviewed to ensure the new probe’s sensitivity curve matches the configured span.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful 330101-00-28-20-12-05 retrofit begins with a complete audit of the existing monitoring chain. The probe interfaces with the Bently Nevada 330180-X0-05 proximitor, which converts the eddy current signal to a calibrated gap voltage. In installations where the proximitor is mounted in a remote enclosure rather than on the machine, the 330130-080-00-00 armored extension cable provides the necessary signal path between the probe and the proximitor without introducing ground loops. Engineers planning a phased migration to the 3500 platform should note that the 3500/42M proximity monitor card accepts the same probe and extension cable assembly, making the 330101 series a bridge component that supports both legacy and current-generation rack architectures.

In control cabinets where the 3300 XL rack shares a backplane with relay output modules and power supply units, the 3300/20 power supply module should be inspected for output voltage stability before the new probe is commissioned. A degraded power supply can introduce noise into the proximity signal chain that mimics mechanical vibration, leading to nuisance alarms. Similarly, the 3300/16 dual-channel monitor card should be checked for firmware revision compatibility if the site is running a mixed-generation rack configuration. For installations that include a Bently Nevada 3300/55 trip multiplier or a 3300/46 keyphasor module, the signal routing through the backplane should be verified to confirm that the replacement probe’s gap voltage is correctly distributed to all dependent channels.

Sites integrating proximity monitoring data into a Honeywell Experion PKS or Emerson DeltaV DCS via a Bently Nevada System 1 software interface should confirm that the System 1 asset configuration reflects the updated probe serial number and calibration date. This is a documentation requirement under most plant asset management programs and ensures that the machinery protection audit trail remains complete. For plants using a Modbus or FOUNDATION Fieldbus gateway to bridge the 3300 XL monitor outputs to the DCS I/O network, the gateway configuration should be reviewed to confirm that the proximity channel address mapping is unchanged after the probe replacement.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement requires pre-staging the 330101-00-28-20-12-05 and all associated tooling — including the probe driver, torque wrench, and gap-setting gauge — before the machine is taken offline. The gap-setting procedure for the 8mm probe in a 3300 XL installation targets a nominal gap of 50 mils (1.27 mm), corresponding to a bias voltage of approximately -10 VDC at the proximitor output. This value should be verified with a calibrated voltmeter at the proximitor terminal strip before the machine is returned to service.

To protect the original program logic and machinery protection setpoints during the replacement, the 3300 XL monitor configuration should be exported using the Bently Nevada System 1 configuration backup utility before any hardware is disturbed. If the replacement is part of a broader upgrade that includes swapping monitor cards or migrating to the 3500 rack, the exported configuration file provides the baseline for re-entering setpoints on the new hardware. This approach eliminates the risk of setpoint transcription errors and ensures that the machinery protection philosophy is preserved across the hardware transition.

For critical machines where continuous monitoring is required during the probe replacement, a temporary portable vibration monitor — such as a handheld data collector configured for proximity probe input — can be connected to the proximitor output terminal to maintain vibration surveillance while the permanent monitor channel is taken out of service. This practice is common in API 670-compliant installations where the machinery protection standard requires continuous monitoring of radial vibration on critical rotating equipment. Once the replacement probe is installed and the gap voltage is verified, the permanent monitor channel can be returned to service and the temporary monitor disconnected.

Retrofit Support FAQ

Q1: Is the 330101-00-28-20-12-05 a direct replacement for all 330101 series probes?
Yes. The 330101-00-28-20-12-05 is a direct drop-in replacement for other 330101 series variants with the same cable length and connector configuration. Verify the probe cable length (28 inches), extension cable length (20 feet), and armored lead length (5 meters) match your existing installation before ordering. No recalibration of the proximitor is required for a like-for-like replacement.

Q2: What commissioning steps are required after installation?
After mechanical installation, perform a gap voltage check at the proximitor terminal strip using a calibrated voltmeter. The nominal gap voltage for a 50-mil (1.27 mm) gap is approximately -10 VDC. Verify that the vibration channel reads within the expected baseline range on the 3300 XL monitor before returning the machine to service. Document the gap voltage, probe serial number, and installation date in the plant maintenance management system.

Q3: Can this probe be used with the Bently Nevada 3500 platform during a phased migration?
Yes. The 330101-00-28-20-12-05 is compatible with the 3500/42M proximity monitor card, which accepts the same -24 VDC bias voltage and 200 mV/mil sensitivity standard as the 3300 XL system. This makes the probe suitable for use as a bridge component during a phased migration where the rack infrastructure is upgraded before the machine-side sensors are replaced.

Q4: What support terms and pre-shipment testing does this unit include?
Every 330101-00-28-20-12-05 unit is function-tested prior to shipment and covered by a support terms confirmed by quotation against manufacturing defects and signal performance failures under normal operating conditions. In-stock units are available for same-week dispatch to support emergency replacement and planned outage schedules. Contact our team for lead time confirmation and bulk order pricing.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330101-00-28-20-12-05
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330101-00-28-20-12-05
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
