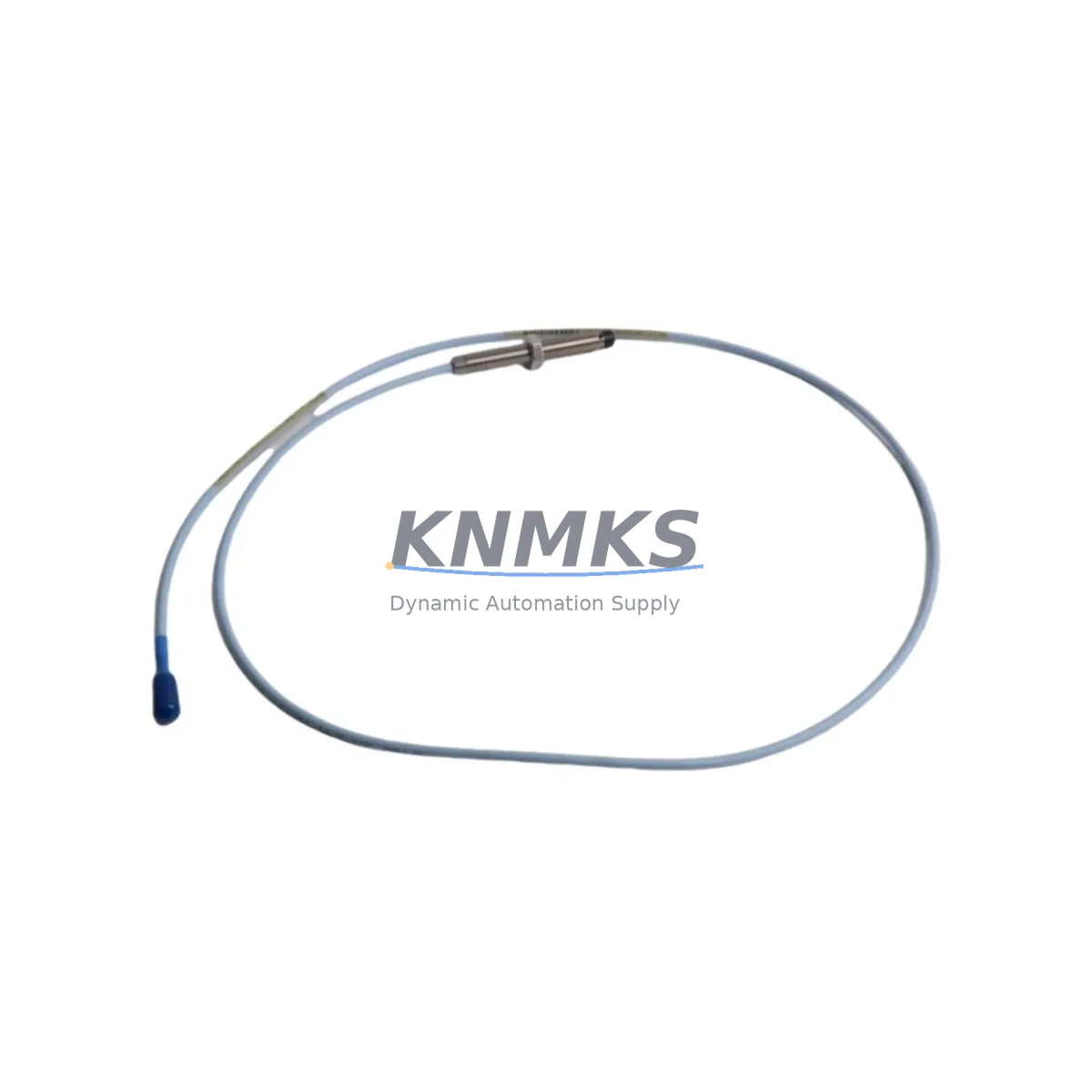

Bently Nevada 330101-00-28-20-02-CN Maintenance-Proven Spare for Factory Uptime

The Bently Nevada 330101-00-28-20-02-CN is an 8mm proximity transducer engineered for the 3300 XL Series continuous machinery monitoring system. Designed for non-contact vibration and position measurement on rotating equipment, this transducer is a critical spare in turbine, compressor, pump, and motor protection circuits across energy, petrochemical, and heavy manufacturing facilities. Maintaining a verified stock of this part directly reduces unplanned downtime risk and supports rapid fault isolation during machinery trips.

For maintenance engineers managing rotating equipment health, the 330101-00-28-20-02-CN delivers consistent eddy-current sensing performance with a 200 mV/mil (7.87 V/mm) sensitivity output, compatible with the 3300 XL proximitor/seismic monitor system. Its 28-inch (711 mm) armored extension cable and 20-foot (6.1 m) interconnect cable configuration make it suitable for standard turbine pedestal installations where cable routing distance is a design constraint.

Procurement engineers sourcing this part for critical asset maintenance programs should verify the complete cable assembly configuration — including the extension cable length suffix (-28), interconnect cable length (-20), and connector type (-02-CN) — to ensure exact system compatibility before installation. Substituting an incorrect cable length variant can introduce signal errors that trigger false alarms or mask real vibration events.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling a replacement of the 330101-00-28-20-02-CN during planned outage windows or emergency shutdowns, maintenance teams should treat this transducer as part of a broader proximity system inspection. The 3300 XL proximitor module — typically a 330180-X1-05 or equivalent seismic/proximity monitor card — should be bench-tested alongside the new transducer to confirm the complete measurement chain is functional before returning the machine to service.

The interconnect cable between the transducer and proximitor is a common failure point in high-vibration environments. Inspect the 330130-045-00-00 or equivalent armored interconnect cable for jacket abrasion, connector corrosion, and continuity. A degraded cable can produce erratic gap voltage readings that mimic transducer failure, leading to unnecessary part replacement and extended downtime.

Power supply integrity is equally critical. The 3300 XL system relies on a stable -24 VDC instrument power supply — verify that the rack power module (such as the 3300/20 power supply) is within specification and that terminal block connections are torqued correctly. Loose power terminals are a leading cause of intermittent proximity system faults in high-vibration machinery cabinets.

For facilities running integrated machinery protection systems, the 3500 Series rack components — including I/O modules, relay output modules, and communication gateway cards — should be cross-checked during the same maintenance window. If the plant uses a System 1 or Orbit condition monitoring platform, confirm that the new transducer’s calibration data is updated in the software database to maintain accurate trend baselines.

Spare parts inventory best practice for rotating equipment programs recommends holding at least one 330101-00-28-20-02-CN per critical machine train, alongside a matched proximitor card and a spare interconnect cable set. For facilities with multiple identical turbine or compressor trains, a pooled critical spares strategy — with defined reorder triggers based on consumption history — minimizes both carrying cost and stockout risk.

Site Replacement Workflow

Step 1 — Isolation & Lockout: Follow site LOTO procedures. De-energize the 3300 XL monitor rack and confirm zero energy state at the terminal block feeding the transducer circuit.

Step 2 — Gap Voltage Baseline: Before disconnecting the old transducer, record the existing gap voltage reading from the proximitor output. This establishes a reference for the new installation.

Step 3 — Cable Disconnection: Disconnect the extension cable at the proximitor junction box. Label all conductors before removal to prevent miswiring during reinstallation.

Step 4 — Transducer Removal: Unthread the transducer from the probe holder. Note the number of turns to achieve the original gap setting — this accelerates reinstallation of the replacement unit.

Step 5 — New Transducer Installation: Thread the 330101-00-28-20-02-CN into the probe holder. Set the gap to the machine OEM specification (typically 50 mil / 1.27 mm for 8mm probes) using a non-ferrous feeler gauge or by monitoring gap voltage during adjustment.

Step 6 — Cable Reconnection & Continuity Check: Reconnect the extension and interconnect cables. Verify continuity and insulation resistance before re-energizing the monitor rack.

Step 7 — System Verification: Re-energize the 3300 XL rack. Confirm gap voltage is within the linear range (-10 VDC ± 1 VDC at nominal gap). Check that the monitor channel is alarm-free and that vibration readings are stable at machine idle speed before returning to full load.

This workflow supports a target replacement time of under 2 hours for a trained maintenance technician, minimizing production impact during unplanned outage events.

Spare Parts Support FAQ

Q1: Is the 330101-00-28-20-02-CN a direct replacement for other 330101 series variants?
The 330101 series uses a structured part number where each suffix segment defines cable length and connector type. The -28-20-02-CN variant is only a direct drop-in replacement for units with identical suffix codes. Substituting a different cable length (e.g., -28-10 or -28-30) will change the system gap voltage calibration and may require re-gapping the transducer. Always verify the full part number before ordering.

Q2: What pre-shipment testing is performed on this spare?
Each 330101-00-28-20-02-CN unit is inspected for physical integrity, connector condition, and cable continuity prior to shipment. Units sourced from verified supply channels are shipped with original manufacturer packaging where available. A support terms confirmed by quotation from the date of shipment covers defects in materials and workmanship under normal operating conditions.

Q3: Can this transducer be used in hazardous area (Ex) installations?
The standard 330101-00-28-20-02-CN is rated for general industrial environments. For installations in classified hazardous areas (Zone 1/2 or Division 1/2), verify the specific Ex-rated variant required by your site safety documentation. Bently Nevada offers intrinsically safe and explosion-proof proximity transducer configurations — confirm the correct variant with your site electrical area classification drawings before procurement.

Q4: What is the long-term supply availability for this part?
The 3300 XL series remains widely deployed across global rotating equipment fleets, and the 330101 transducer family continues to be supported through authorized distribution and specialist industrial spare parts channels. For facilities with long-term maintenance contracts or annual shutdown planning, we recommend establishing a standing supply agreement to lock in availability and pricing. Contact our team to discuss volume commitments and lead time guarantees for your maintenance program.
