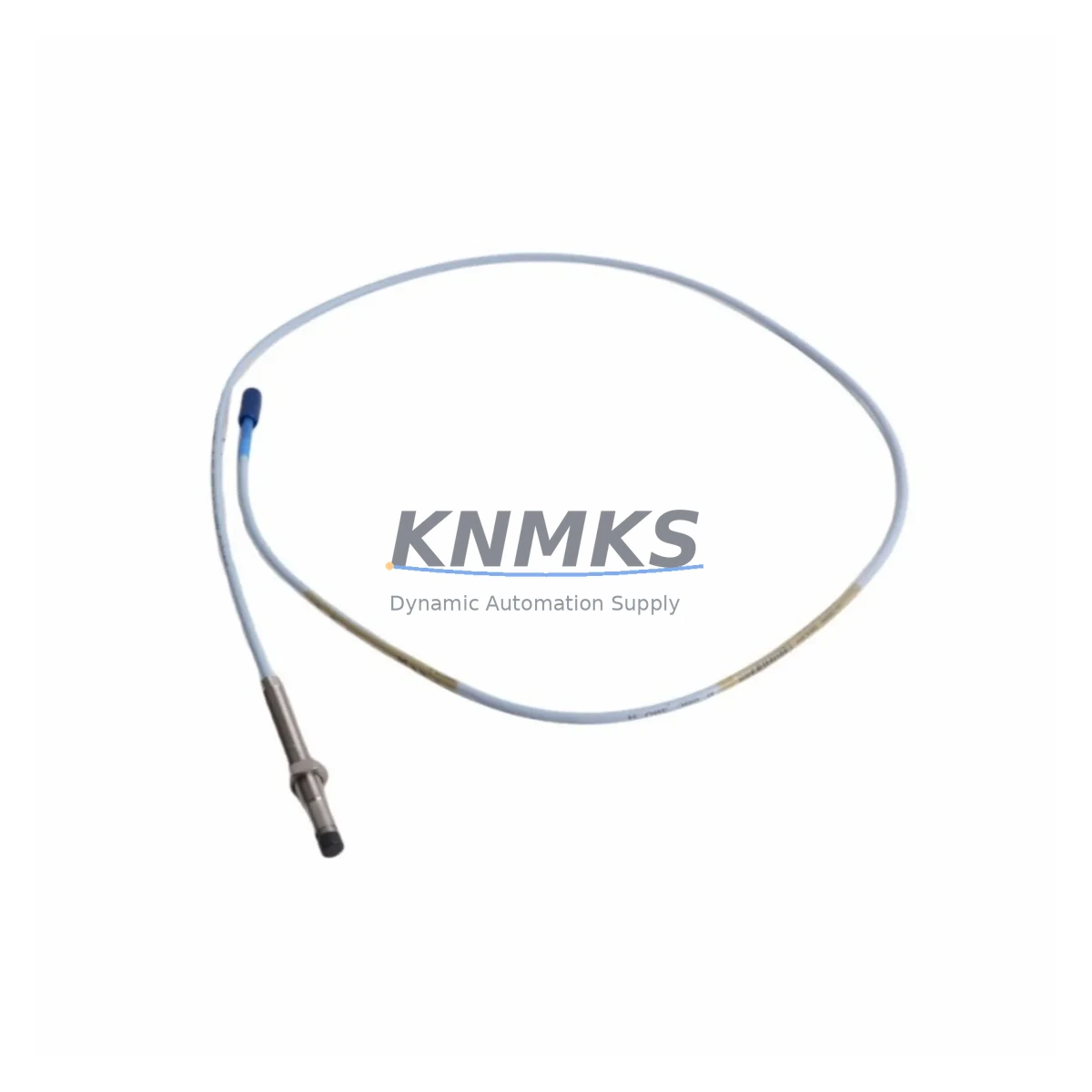

Bently Nevada 330101-00-28-20-02-05 Fail-Safe Proximity Transducer

Overview

Bently Nevada 330101-00-28-20-02-05 Fail-Safe Proximity Transducer for Industrial Control Reliability

The Bently Nevada 330101-00-28-20-02-05 is an 8mm eddy-current proximity transducer from the renowned 3300 XL Series, engineered to deliver fail-safe, continuous shaft vibration and position monitoring in the most demanding industrial environments. Designed for critical machinery protection systems, this transducer provides the signal integrity and environmental resilience required to prevent unplanned shutdowns, protect rotating equipment, and maintain safe, reliable operation across petrochemical, power generation, mining, water treatment, metallurgical, port, and continuous manufacturing facilities.

In high-stakes industrial settings — where a single sensor failure can cascade into a full process shutdown or a dangerous machinery overspeed event — the 330101-00-28-20-02-05 delivers the measurement precision and fault-tolerant performance that safety engineers and reliability teams depend on. Its eddy-current sensing principle operates without physical contact, eliminating mechanical wear and ensuring long-term measurement stability even under severe shaft runout, thermal cycling, and aggressive chemical exposure.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a fully integrated machinery protection architecture, the 330101-00-28-20-02-05 proximity transducer operates as the primary sensing element within a multi-layer safety and control system. It is typically paired with the Bently Nevada 3300 XL Proximitor® Sensor (such as the 330180-91-00), which conditions the raw eddy-current signal into a clean, calibrated voltage output suitable for direct input to the Bently Nevada 3500/40M Proximitor® Monitor — a rack-mounted module responsible for real-time vibration alarming, danger trip output, and API 670-compliant machinery protection.

Within the control cabinet, signal integrity is further protected by the Bently Nevada 330130-045-00-CN extension cable, which maintains the coaxial shielding continuity between the probe and the Proximitor sensor across long cable runs in high-EMI environments. In facilities where power quality is a concern — such as those with large variable frequency drives, arc furnaces, or heavy motor switching — the addition of a dedicated 24 VDC isolated power supply module (such as those from the Phoenix Contact QUINT series) ensures that transient voltage spikes and ground loops do not corrupt the proximity signal or trigger spurious trip events.

For plants operating under functional safety standards (IEC 61511 / IEC 61508), the 330101-00-28-20-02-05 is commonly integrated into a Safety Instrumented System (SIS) alongside a Triconex or Rockwell GuardLogix safety PLC, where the proximity output feeds directly into a voted 2oo3 (two-out-of-three) logic solver. This architecture ensures that no single sensor failure — whether open-circuit, short-circuit, or signal drift — can cause either a spurious shutdown or a failure to trip, maintaining both process availability and personnel safety. In dusty, humid, or chemically aggressive environments such as mining headframes or coastal LNG terminals, the transducer’s sealed construction and the use of Bently Nevada armored probe assemblies provide additional mechanical protection against abrasion, moisture ingress, and corrosive atmospheres.

Critical Industrial Safety Applications

The Bently Nevada 330101-00-28-20-02-05 proximity transducer is deployed across a wide spectrum of critical industrial applications where continuous, fail-safe shaft monitoring is non-negotiable:

Petrochemical & Refinery: Installed on centrifugal compressors, reactor charge pumps, and steam turbine trains, this transducer provides the real-time radial vibration and shaft eccentricity data required to detect bearing degradation, rotor imbalance, and oil whirl instability before they escalate to catastrophic failure. In hydrocracker and ethylene cracker service, where unplanned shutdowns carry multi-million-dollar consequences, the 330101-00-28-20-02-05 is a cornerstone of the machinery protection strategy.

Power Generation: On gas turbines, steam turbines, and large boiler feed pumps, this transducer feeds the 3500 Series monitoring system with the shaft position and vibration data needed to enforce API 670 trip setpoints. Its wide frequency response (DC to 10,000 Hz) captures both low-speed eccentricity and high-frequency blade-pass events, making it suitable for both slow-roll checks and full-speed operation monitoring.

Mining & Mineral Processing: In ball mill drives, SAG mill pinion bearings, and slurry pump trains operating in dusty, high-vibration environments, the sealed construction and robust coaxial cable assembly of the 330101-00-28-20-02-05 ensure reliable signal transmission even when exposed to fine ore dust, water spray, and mechanical shock loads that would compromise lesser sensors.

Water & Wastewater Treatment: Large vertical turbine pumps and blower trains in water treatment plants benefit from continuous proximity monitoring to detect shaft deflection caused by hydraulic imbalance or cavitation. Early detection via the 330101-00-28-20-02-05 allows maintenance teams to schedule corrective action during planned outages rather than responding to emergency failures.

Metallurgy & Steel: On rolling mill main drives, continuous caster pinch rolls, and ID fan shafts in sinter plants, this transducer withstands the extreme electromagnetic interference generated by large thyristor drives and induction furnaces, delivering clean, stable proximity signals to the protection system even in the harshest electrical environments.

Port & Marine: Installed on ship propulsion shaft lines, crane slewing ring drives, and bulk material conveyor head pulleys, the 330101-00-28-20-02-05 provides the shaft monitoring capability needed to comply with classification society requirements and prevent catastrophic drivetrain failures in remote or offshore locations where spare parts logistics are challenging.

Safety and Quality FAQ

Q1: What support terms does the 330101-00-28-20-02-05 carry, and what does it cover?
Every unit supplied by KNMKS carries a support terms confirmed by quotation covering manufacturing defects, signal output accuracy, and mechanical integrity. Prior to shipment, each transducer undergoes functional testing including sensitivity verification, linear range confirmation, and insulation resistance checks. If a unit fails within the confirmed support period under normal operating conditions, KNMKS will provide a replacement or documented resolution support.

Q2: How is the unit tested before shipment?
Each 330101-00-28-20-02-05 is bench-tested using a calibrated Proximitor sensor and a precision target material to verify the 7.87 V/mm sensitivity, confirm the linear range from 0.25 mm to 2.26 mm, and check for cable continuity and shield integrity. A test report is available upon request for customers requiring traceability documentation for their quality management systems.

Q3: Is this transducer compatible with existing Bently Nevada 3500 Series monitoring systems?
Yes. The 330101-00-28-20-02-05 is fully compatible with the Bently Nevada 3300 XL Proximitor® Sensor family and the 3500 Series rack-mounted monitors, including the 3500/40M, 3500/42M, and 3500/45 modules. It is a direct drop-in replacement for worn or failed probes in existing installations, requiring no recalibration of the monitor system when the same cable length and target material are maintained.

Q4: Can KNMKS support long-term supply and emergency replacement requirements?
KNMKS maintains standing inventory of the 330101-00-28-20-02-05 and related 3300 XL Series components to support both planned maintenance programs and emergency breakdown situations. Orders placed before 14:00 CST are typically processed for same-day dispatch. For customers with critical spare parts programs, KNMKS can arrange consignment stock agreements and priority supply contracts to ensure zero lead-time availability when it matters most.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330101-00-28-20-02-05
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330101-00-28-20-02-05
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
