Bently Nevada 330101-00-28-10-02-05 Migration-Ready Proximity Probe

Overview

Bently Nevada 330101-00-28-10-02-05 Migration-Ready Proximity Probe for Legacy Control Systems

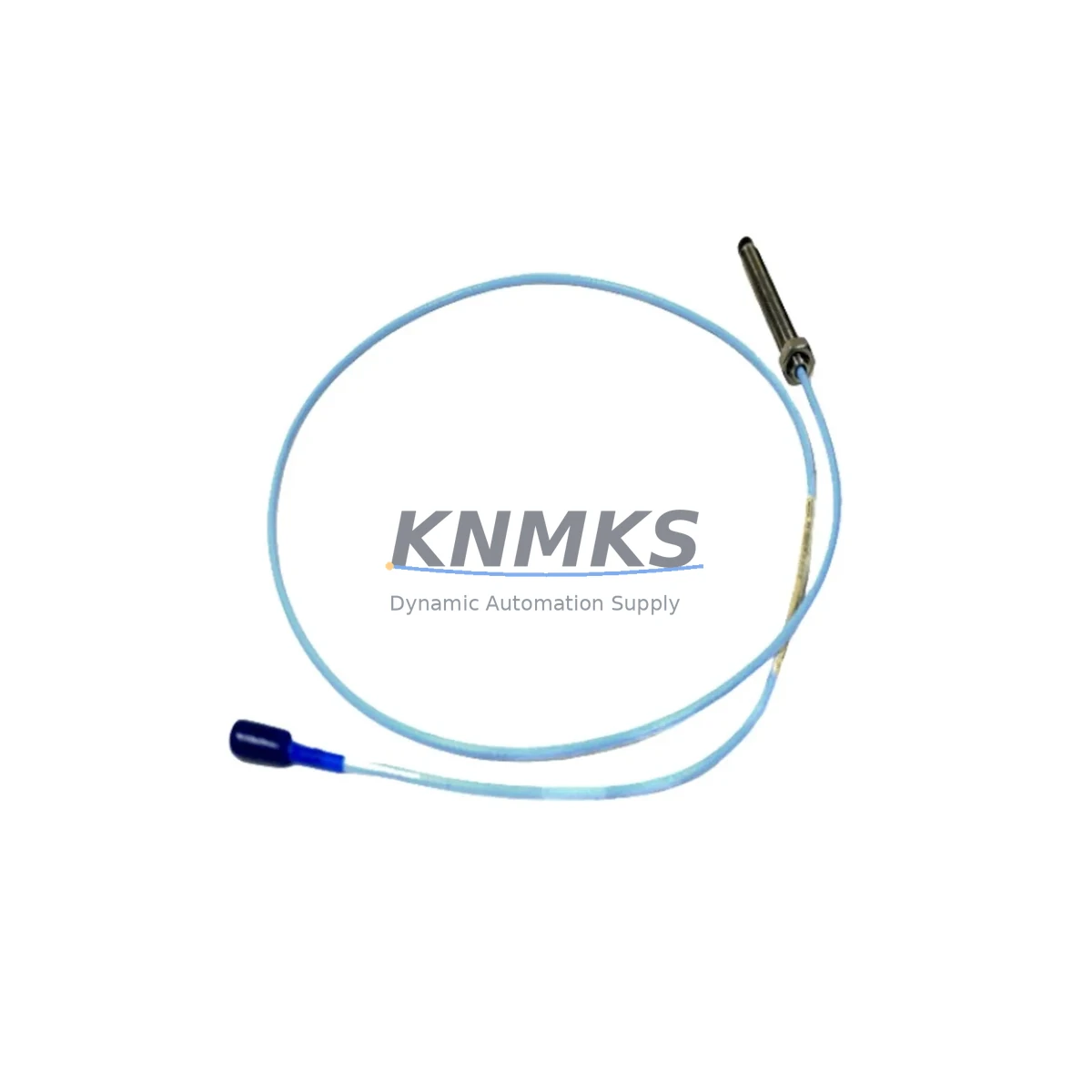

The Bently Nevada 330101-00-28-10-02-05 is an eddy current proximity probe engineered for the 3300 XL Series vibration monitoring platform. Designed for continuous shaft displacement and radial vibration measurement, this probe is a direct retrofit replacement for legacy Bently Nevada 3300 Series installations where the original probe has reached end-of-life, been discontinued, or is no longer available through standard OEM channels. With a 28-inch (711 mm) probe cable, 10-32 UNF thread body, and 5-metre extension cable compatibility, the 330101-00-28-10-02-05 integrates into existing conduit runs and terminal blocks without requiring mechanical rework of the machine train or bearing housing.

For maintenance engineers managing rotating machinery — including steam turbines, gas compressors, centrifugal pumps, and gearboxes — sourcing a verified replacement for this probe is critical to restoring API 670-compliant vibration monitoring. The 330101-00-28-10-02-05 is pre-shipment tested against Bently Nevada gap voltage and sensitivity specifications (typically –18 VDC at 50 mil gap, 200 mV/mil sensitivity) before dispatch, ensuring the replacement unit performs within the original system calibration envelope without requiring full recalibration of the 3300 XL monitor rack.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 330101-00-28-10-02-05 into an operating plant requires a structured review of the surrounding measurement chain. The probe alone does not function in isolation — it operates as part of a three-component system alongside the extension cable and the proximitor/oscillator driver. When replacing a failed or end-of-life probe, engineers should simultaneously inspect the Bently Nevada 3300 XL 8mm Extension Cable (typically 5-metre, part series 330130) for jacket cracking, connector corrosion, or impedance drift. A degraded extension cable will introduce gap voltage offset errors even with a new probe installed.

At the monitor rack level, the Bently Nevada 3300/16-05-01-00 Dual Vibration Monitor or equivalent 3300 XL monitor card must be confirmed as active and correctly addressed within the rack backplane. If the rack itself is being upgraded as part of a broader control system migration — for example, transitioning from a legacy DCS to a modern Emerson Ovation or Honeywell Experion platform — the 3300 XL rack can typically be retained as a standalone vibration monitoring subsystem, with 4–20 mA or relay outputs wired to the new DCS I/O marshalling cabinet. This approach avoids the cost and risk of replacing the entire vibration monitoring infrastructure during a DCS cutover.

For plants running mixed-vintage machinery, it is common to find the 330101-00-28-10-02-05 installed alongside Bently Nevada 3300 XL Keyphasor probes (series 330180) on the same shaft. The Keyphasor channel provides the phase reference signal used by System 1 software for vector analysis and balancing. When replacing radial probes, confirm that the Keyphasor probe gap and signal are unaffected — a disturbed Keyphasor signal will corrupt all vector-based vibration readings across the entire machine train, not just the replaced channel.

In control cabinet upgrades where terminal blocks are being replaced or re-labelled, pay close attention to the proximitor output wiring at the JB (junction box) and at the monitor rack terminal strip. The –24 VDC supply, signal output, and common (COM) conductors must be correctly identified and landed. Mislabelled terminals are a leading cause of post-retrofit commissioning delays. Use the original loop drawing and the 3300 XL installation manual to verify terminal assignments before energising the new probe circuit. Where the original loop drawing is unavailable, the gap voltage reading at the monitor card test point provides a reliable in-situ verification method.

For facilities managing a large installed base of Bently Nevada probes across multiple machine trains, maintaining a buffer stock of the 330101-00-28-10-02-05 and its companion extension cables is strongly recommended. Lead times for legacy Bently Nevada spare parts from OEM channels can extend to 16–24 weeks. A pre-tested, warehoused spare eliminates this risk and supports a mean-time-to-repair (MTTR) target of under four hours for a probe replacement on a critical machine.

Downtime Control During System Migration

Replacing the 330101-00-28-10-02-05 on an operating machine train requires careful coordination with the plant operations team to minimise exposure time and protect the integrity of the original vibration monitoring logic. The recommended approach is a planned outage window aligned with a scheduled maintenance shutdown, rather than an opportunistic replacement during an unplanned trip — unplanned replacements under time pressure increase the risk of incorrect gapping, reversed wiring, or missed commissioning steps.

Before the outage window opens, prepare a pre-replacement checklist: record the existing gap voltage on all channels in the affected rack, photograph the terminal block wiring at the junction box and monitor rack, and confirm that a pre-tested replacement probe and extension cable are on-site. During the replacement, maintain the original program logic in the DCS or safety system — the 3300 XL monitor outputs (relay contacts and analogue signals) remain wired and active throughout the probe swap, so the DCS alarm and trip logic is unaffected as long as the monitor card is not powered down.

After installing and gapping the new 330101-00-28-10-02-05, verify the gap voltage at the monitor card test point before re-energising the machine. Compare the new gap voltage against the pre-outage baseline. A deviation of more than ±1 VDC from the original baseline warrants investigation before restart — common causes include a probe seated at a different depth due to thread wear, a damaged extension cable connector, or a proximitor with degraded internal components. Once gap voltage is confirmed within specification, record the new baseline in the plant historian and update the maintenance management system (CMMS) with the replacement date, probe serial number, and gap voltage reading. This documentation supports the support terms confirmed by quotation claim process and provides traceability for future maintenance cycles.

For critical machines where continuous monitoring is required and a planned outage is not immediately available, consult the 3300 XL installation manual for guidance on hot-swap procedures. Not all monitor configurations support live probe replacement — confirm with the control system engineer before attempting any work on an energised rack.

Retrofit Support FAQ

Q1: Is the 330101-00-28-10-02-05 a direct drop-in replacement for my existing Bently Nevada 3300 Series probe?
In most cases, yes. The 330101-00-28-10-02-05 is designed for the 3300 XL 8mm eddy current system and is compatible with the standard 3300 XL monitor cards and extension cables. Confirm the probe cable length (28 inches) matches your existing conduit stub before ordering. If your installation uses a different stub length, the companion extension cable can be adjusted to compensate.

Q2: Do I need to recalibrate the 3300 XL monitor after installing the replacement probe?
Not typically. The 330101-00-28-10-02-05 is manufactured to the same sensitivity and gap voltage specification as the original probe. After installation and gapping, verify the gap voltage at the monitor card test point. If the reading is within ±1% of the monitor’s configured gap voltage, no recalibration is required. Full recalibration is only necessary if the monitor card sensitivity setting was previously adjusted to compensate for a degraded probe.

Q3: What is included with the shipment, and how is the probe tested before dispatch?
Each 330101-00-28-10-02-05 unit is pre-shipment tested for gap voltage and sensitivity against Bently Nevada specifications. A test report is included with the shipment. The unit is packaged in anti-static, impact-resistant packaging suitable for international air freight. Standard lead time from confirmed order is 3–7 business days for in-stock units. Expedited shipping is available for critical plant shutdowns.

Q4: What support terms coverage applies, and how do I make a claim?
All units carry a support terms confirmed by quotation from the date of shipment, covering manufacturing defects and specification non-conformance. Support requests are processed via [email protected] with the original order number, installation date, gap voltage readings, and a description of the fault. Units that have been physically damaged, incorrectly gapped, or installed in a system outside the 3300 XL specification are not covered under support terms.
