Bently Nevada 330101-00-28-10-02-00 Spare Part

Overview

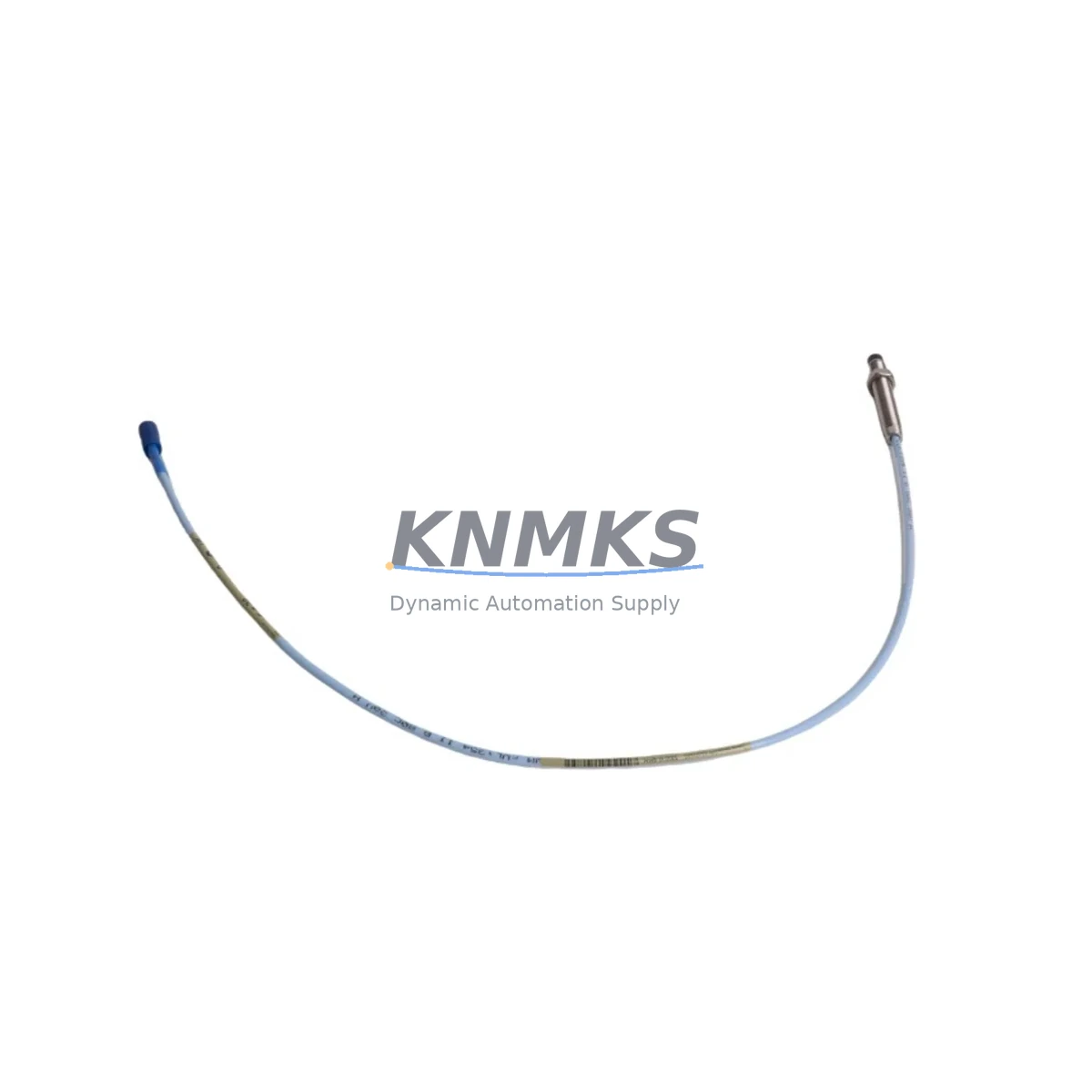

Bently Nevada 330101-00-28-10-02-00 Spare Part: Maintenance-Proven Proximity Probe for Factory Uptime

The Bently Nevada 330101-00-28-10-02-00 is an original proximity probe designed for the 3300 XL Series vibration monitoring system — one of the most widely deployed machinery protection platforms in rotating equipment applications worldwide. Whether you are managing a planned annual overhaul, responding to an unscheduled shutdown, or building a strategic spare parts inventory for a critical turbine or compressor train, this proximity probe is a direct, verified replacement that restores system integrity without requiring reconfiguration or recalibration of your existing 3300 XL monitor rack.

Maintenance engineers and reliability teams operating gas turbines, steam turbines, centrifugal compressors, pumps, and gearboxes depend on the 3300 XL proximity probe system to deliver continuous shaft vibration and position data. When a probe fails — whether due to cable damage, connector corrosion, tip wear, or signal drift — the entire channel goes dark, triggering a danger alarm or forcing a manual bypass. Having a verified 330101-00-28-10-02-00 on the shelf means the difference between a two-hour probe swap and a multi-day production loss waiting for freight.

This unit ships tested and verified against original Bently Nevada performance specifications. Each unit undergoes pre-shipment functional checks covering output voltage linearity, gap sensitivity, and cable continuity before dispatch. A support terms confirmed by quotation is included from the date of shipment, covering manufacturing defects and performance deviations from published specifications.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330101-00-28-10-02-00 proximity probe in a 3300 XL channel, a disciplined maintenance engineer does not stop at the probe itself. The 3300 XL transducer system is a three-component chain — probe, extension cable, and driver — and a fault in any one element produces identical symptoms at the monitor: a loss of OK status, a gap voltage out of range, or erratic vibration readings. Before closing the work order, verify the condition of the paired 330130 or 330180 extension cable and the corresponding 330180 proximitor/driver module. Connector corrosion, cable kinking near the junction box, or a cracked driver housing are common co-failure modes that will cause a repeat failure within weeks if left unaddressed.

At the monitor rack level, inspect the 3300/16 or 3300/20 monitor module that receives this channel’s signal. Check the OK relay output, the danger setpoint configuration, and the buffered output BNC connector for oxidation. If the rack has been in service for more than eight years, consider scheduling a rack-level inspection of the 3300/05 power supply module — a degraded rack power supply is a silent contributor to probe system instability that is frequently overlooked during single-channel troubleshooting.

For installations where the 330101-00-28-10-02-00 monitors axial position on a thrust bearing, also verify the condition of the 3300/55 thrust position monitor and its associated relay module. Axial position channels carry higher criticality than radial vibration channels in most machinery protection philosophies, and a simultaneous probe and monitor inspection during a planned outage is far more cost-effective than two separate entries into the machinery train.

In control cabinet environments, check the terminal blocks and shielded cable routing between the junction box and the monitor rack. Unshielded runs or shared conduit with high-voltage power cables are a persistent source of noise injection that degrades proximity probe signal quality. If the installation uses a signal isolator or Zener barrier module for intrinsically safe area compliance, inspect the barrier for correct fuse rating and terminal torque — a loose terminal is a common cause of intermittent OK dropouts that are difficult to reproduce during troubleshooting.

Site Replacement Workflow

Step 1 — Pre-replacement verification. Confirm the existing probe SKU on the nameplate before ordering. The 330101-00-28-10-02-00 encodes probe length (28 in), tip diameter (10 mm), and connector style (02) in the part number. Substituting a probe with a different length or tip diameter will shift the gap voltage calibration and may trigger false danger alarms or mask real vibration events.

Step 2 — System bypass and isolation. Follow your site’s machinery protection bypass procedure. Inhibit the channel at the monitor before disconnecting the probe to prevent a spurious trip. Document the pre-removal gap voltage and vibration reading as a baseline for post-installation verification.

Step 3 — Probe removal and inspection. Disconnect the extension cable at the probe connector. Inspect the connector pins for corrosion or mechanical damage. Remove the probe from the bracket, noting the installed gap depth for reference during reinstallation.

Step 4 — New probe installation. Install the 330101-00-28-10-02-00 to the same gap depth as the removed unit. Reconnect the extension cable. Restore DC power to the driver and allow 30 seconds for the output to stabilize before reading gap voltage.

Step 5 — Gap voltage verification. Measure the output voltage at the monitor’s buffered output or at the driver output connector. For a 10 mm tip probe at nominal 1.0 mm gap, expect approximately −10.2 VDC ± 0.5 V. Adjust the probe gap if the reading is outside the acceptable window per the 3300 XL installation manual.

Step 6 — Channel reinstatement. Remove the bypass, confirm OK status at the monitor, and verify that vibration and position readings are within expected operating range. Log the replacement in the equipment maintenance record with the new probe serial number and post-installation gap voltage.

Spare Parts Support FAQ

Q1: Is the 330101-00-28-10-02-00 a direct drop-in replacement for older 330101 series probes?
Yes. The 330101-00-28-10-02-00 is backward compatible with all 3300 XL driver and extension cable combinations. It is also functionally compatible with earlier 3300 series installations when used with the correct extension cable and driver. No reconfiguration of the monitor module is required provided the replacement probe matches the original tip diameter and cable length.

Q2: What is included in the support terms confirmed by quotation, and how is a support terms claim handled?
The support terms confirmed by quotation cover manufacturing defects and performance deviations from published Bently Nevada specifications, including output sensitivity, linearity, and OK status behavior. To initiate a claim, contact [email protected] with the order number, installation date, and a description of the observed fault. Support terms units are replaced or credited; field-damaged units are evaluated case by case.

Q3: How should the 330101-00-28-10-02-00 be stored as a long-term shelf spare?
Store in the original anti-static packaging in a dry, temperature-controlled environment (10°C to 40°C, <70% RH non-condensing). Protect the probe tip from mechanical contact and keep the connector capped. Inspect the connector and cable jacket annually for corrosion or cracking. Properly stored proximity probes maintain specification compliance for five or more years; however, we recommend a bench verification of gap voltage sensitivity before installing any unit stored for more than three years.

Q4: Can you support long-term or blanket purchase orders for the 330101-00-28-10-02-00?
Yes. KNMKS maintains dedicated stock of the 330101-00-28-10-02-00 and related 3300 XL components to support planned maintenance programs and annual turnaround schedules. Blanket orders with scheduled quarterly releases are available. Contact [email protected] or +86 18359268345 to discuss volume pricing, lead time commitments, and consignment stock arrangements.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330101-00-28-10-02-00
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330101-00-28-10-02-00
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
