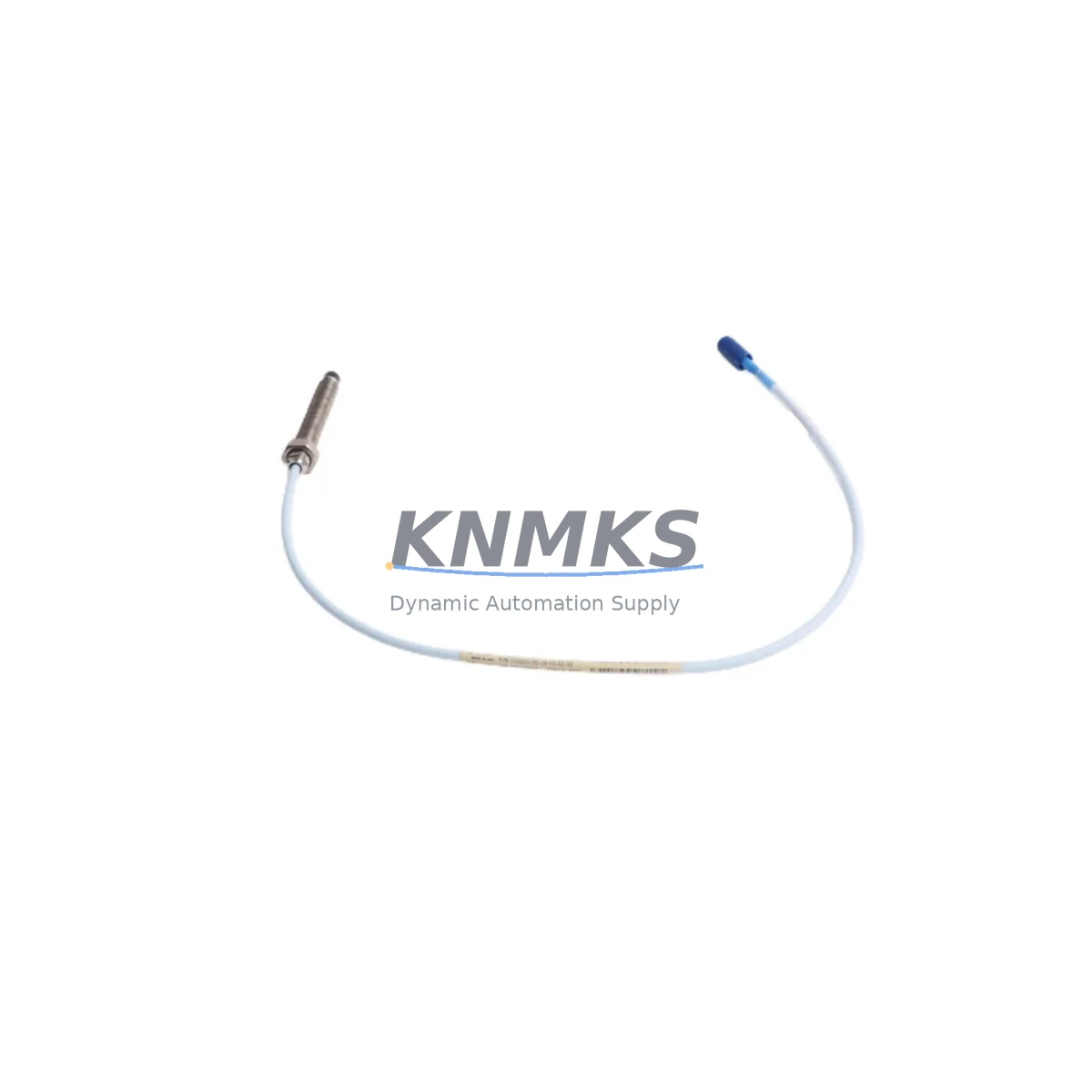

Bently Nevada 330101-00-28-05-02-00 Spare Part

Overview

Bently Nevada 330101-00-28-05-02-00 Spare Part for Factory Uptime

The Bently Nevada 330101-00-28-05-02-00 is an eddy-current proximity probe from the industry-standard 3300 XL Series, engineered for continuous shaft vibration and position monitoring in rotating machinery protection systems. This SKU is widely deployed in turbine control cabinets, compressor trains, pump protection panels, and critical DCS-integrated condition monitoring loops across oil & gas, power generation, petrochemical, and heavy industrial facilities.

Maintaining an on-hand inventory of the 330101-00-28-05-02-00 is a proven strategy for maintenance engineers who cannot afford unplanned downtime. When a proximity probe fails or drifts out of calibration tolerance, the entire vibration channel goes offline — triggering protective shutdowns or masking real machinery faults. Having a verified, SKU-matched replacement on the shelf means the channel can be restored within a single maintenance window, keeping the protection system fully armed and the production line running.

This unit ships from verified stock, undergoes pre-dispatch functional inspection, and is backed by a support terms confirmed by quotation covering manufacturing defects and performance conformance to Bently Nevada 3300 XL Series specifications.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330101-00-28-05-02-00 proximity probe is replaced in the field, experienced maintenance engineers treat the event as a trigger for a broader channel audit — not just a one-for-one swap. The probe is only one element of a complete eddy-current measurement chain, and a degraded or mismatched component anywhere in the loop will compromise the accuracy of the entire vibration protection system.

Start by inspecting the 3300 XL extension cable (typically a 330130-series matched cable) that connects the probe to the Proximitor. Extension cables are subject to mechanical fatigue, connector corrosion, and insulation breakdown — especially in high-vibration or high-temperature environments. A worn cable paired with a new probe will produce erratic gap readings and may trigger nuisance trips.

Next, verify the 3300 XL Proximitor sensor (e.g., 330180 series). The Proximitor conditions the probe signal and provides the –24 VDC bias supply. If the Proximitor has been in service for an extended period or has been exposed to moisture ingress, its output linearity should be validated against a calibration standard before the new probe is commissioned.

At the monitor rack level, confirm that the corresponding Bently Nevada 3500 Series monitor card is correctly configured for the probe/cable/Proximitor combination in use. Channel configuration errors — wrong scale factor, incorrect gap voltage setpoint, or mismatched OK limit — are a common source of false alarms after probe replacement.

For installations where the 3500 rack interfaces with a DCS or safety instrumented system (SIS) via 4–20 mA or digital communication, verify that the analog output signal is within the expected range after the new probe is gapped and the system is returned to service. Signal isolation barriers or signal conditioners in the I/O loop should also be inspected for drift, particularly in older installations where these components may not have been replaced during previous maintenance cycles.

Finally, review the terminal block wiring and cable shielding within the control cabinet. Loose terminations and compromised shield grounding are a leading cause of noise on proximity probe channels and can mask real vibration events or generate spurious alarms. A complete channel restoration — probe, cable, Proximitor, monitor card, I/O wiring, and signal path — is the standard that separates reactive maintenance from a genuine reliability improvement.

Maintaining a minimum stock of one spare 330101-00-28-05-02-00 probe, one matched extension cable, and one spare Proximitor per critical machine train is a widely adopted best practice in facilities where unplanned shutdowns carry significant production or safety consequences.

Site Replacement Workflow

1. Pre-replacement verification: Confirm the replacement SKU is 330101-00-28-05-02-00 and that the probe length (28 in), connector type, and series (3300 XL) match the installed configuration. Cross-reference the machine datasheet and the existing Proximitor label before removing the old probe.

2. Safe isolation: Follow site lock-out/tag-out (LOTO) procedures. De-energize the Proximitor supply at the monitor rack. Do not attempt to replace the probe under live bias voltage — the –24 VDC supply can cause measurement errors and poses a risk to sensitive electronics.

3. Probe removal and inspection: Remove the old probe and inspect the probe tip for physical damage, contamination, or corrosion. Inspect the probe mounting threads and the target surface (shaft or thrust collar) for wear or scoring that could affect gap linearity.

4. Installation and gapping: Install the new 330101-00-28-05-02-00 probe and set the air gap to the manufacturer-specified nominal gap voltage (typically –10.0 VDC ± 0.5 VDC for standard 3300 XL installations). Use a calibrated digital voltmeter at the Proximitor output to confirm the gap voltage before reconnecting to the monitor.

5. System recommission: Re-energize the monitor channel and verify OK status, gap voltage, and vibration baseline against historical trend data. Confirm that no alarms are active and that the channel is reading within expected limits before returning the machine to service.

6. Documentation: Record the replacement date, new probe serial number, gap voltage as-found and as-left values, and any observations about the old probe condition. This data supports future maintenance planning and support requests.

This workflow applies equally to scheduled outage replacements and emergency in-service swaps. The structured approach minimizes the risk of commissioning errors that could lead to a second unplanned shutdown shortly after the repair.

Spare Parts Support FAQ

Q1: Is the 330101-00-28-05-02-00 a direct drop-in replacement for older 3300 XL probes of the same length?
A: In most cases, yes. The 3300 XL series maintains backward compatibility within the same probe length and connector family. However, always verify the Proximitor model and monitor card configuration before installation, as some older installations may use legacy scale factors that require adjustment when a new probe is fitted.

Q2: How do you verify the probe is genuine and not a counterfeit or substandard copy?
A: All units supplied by KNMKS are sourced from verified channels and undergo pre-dispatch inspection including visual examination, connector integrity check, and where applicable, gap voltage linearity verification. Documentation of origin and inspection records is available on request. We do not supply unverified or grey-market components.

Q3: What is the recommended spare parts holding strategy for the 330101-00-28-05-02-00?
A: For facilities with multiple machines using 3300 XL proximity systems, a minimum of one probe per critical machine train is recommended, plus a shared pool of matched extension cables and Proximitor units. Annual review of spare parts consumption and lead times should inform stock level adjustments, particularly for sites in regions with longer import lead times.

Q4: What does the support terms confirmed by quotation cover, and what is the claims process?
A: The support terms confirmed by quotation cover manufacturing defects and failure to conform to Bently Nevada 3300 XL Series performance specifications under normal operating conditions. To initiate a support terms claim, contact [email protected] with the order reference, SKU, installation date, and a description of the fault. Replacement or credit will be arranged following technical review.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

BENTLY NEVADA
Bently Nevada

Model / Series

330101-00-28-05-02-00
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: BENTLY NEVADA 330101-00-28-05-02-00
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
