Bently Nevada 330101-00-27-50-02-05 Maintenance-Proven Spare Part for Factory Uptime

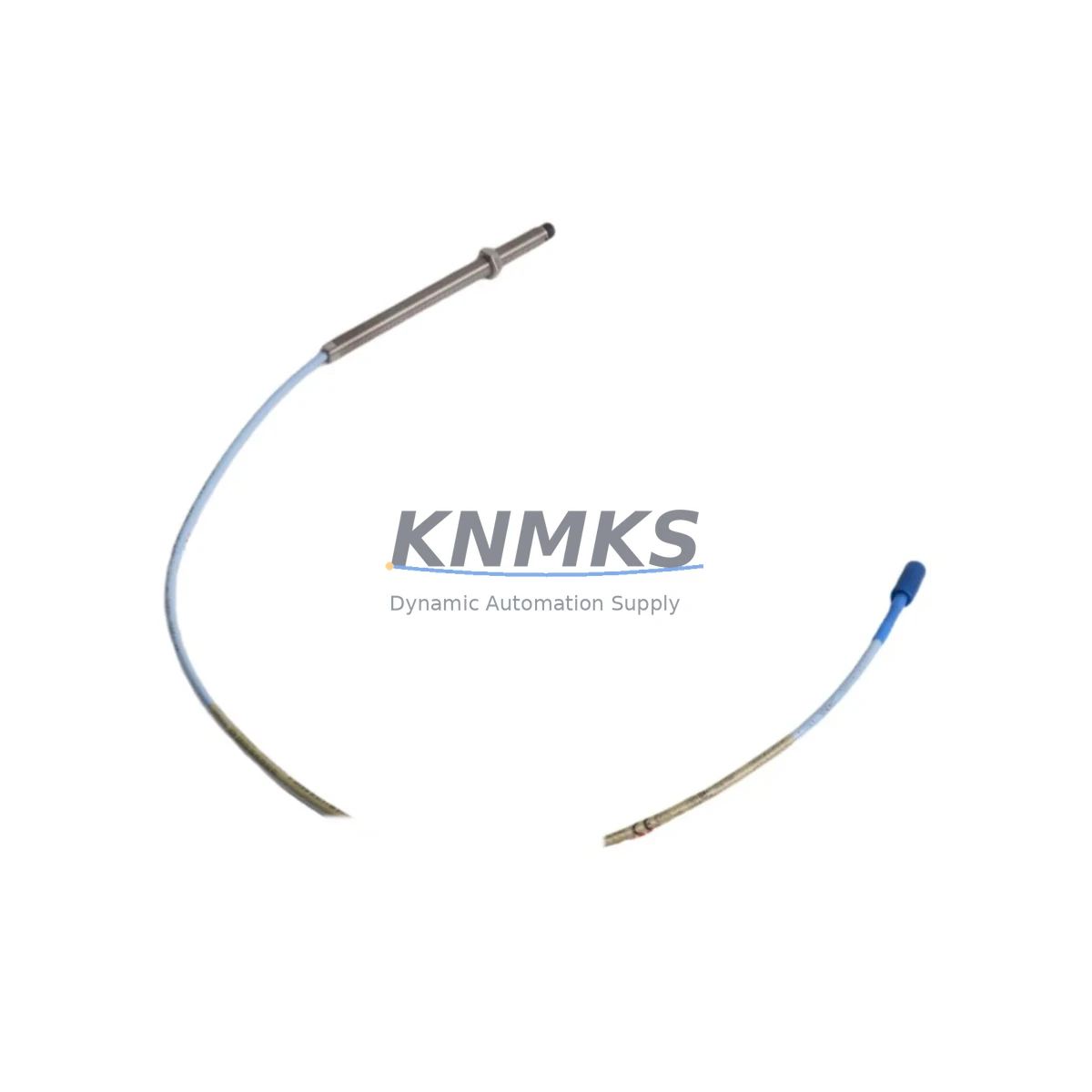

The Bently Nevada 330101-00-27-50-02-05 is an 8mm proximity transducer probe designed for continuous vibration and position monitoring within the 3300 XL Series system. As a maintenance-proven original spare part, it supports uninterrupted factory operation across rotating machinery applications including turbines, compressors, pumps, and motors. Sourced from verified supply channels, each unit is inspection-tested prior to dispatch and backed by a support terms confirmed by quotation — making it a reliable choice for both emergency replacement and planned spare parts inventory.

Maintenance engineers and procurement teams managing aging 3300 XL installations rely on this probe to sustain accurate shaft displacement and vibration readings. Its 8mm tip diameter, standard 5-metre armoured cable, and Bently Nevada-compatible connector ensure drop-in compatibility with existing field wiring and monitor rack configurations. Whether you are responding to a high-vibration alarm, executing a scheduled turnaround, or building a critical-spares buffer, the 330101-00-27-50-02-05 delivers the dimensional and electrical consistency required for safe, code-compliant reinstatement.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330101-00-27-50-02-05 proximity probe in the field, a disciplined maintenance engineer will treat the swap as an opportunity to audit the entire measurement chain. The probe alone does not operate in isolation — it forms a three-component system together with the Bently Nevada 330130 extension cable and the 3300 XL proximitor / oscillator-demodulator module (such as the 330180 series). If the probe is being replaced due to a drift alarm or signal loss, the extension cable connector pins and the proximitor input impedance should be verified before the new probe is commissioned.

At the monitor rack level, inspect the 3300 XL I/O module and its terminal block for corrosion, loose ferrules, or damaged shielding. The rack’s power supply module — typically a −24 VDC regulated unit — should be load-tested to confirm it can sustain the full complement of active channels without voltage sag. A degraded power supply is a common root cause of intermittent proximity readings that are incorrectly attributed to probe failure.

For installations where the 3300 XL rack interfaces with a DCS or safety system, verify the 4–20 mA output signal conditioner or signal isolator downstream of the monitor. Signal isolators prevent ground loops that can introduce noise into vibration readings and trigger nuisance trips. Similarly, check the Bently Nevada 3500 series communication gateway if the plant has migrated to a hybrid monitoring architecture — firmware compatibility between legacy 3300 XL racks and newer data acquisition nodes is a known integration risk.

During annual turnarounds, it is good practice to include the 3300 XL keyphasor module in the inspection scope alongside the proximity probes. Keyphasor signal integrity directly affects phase-referenced vibration analysis; a worn or contaminated keyphasor probe will corrupt the diagnostic data even when all displacement probes are functioning correctly. Fuse holders and DIN-rail mounted circuit protection within the control cabinet should also be checked — blown or weakened fuses on the −24 VDC rail are a silent failure mode that can cause an entire probe channel to read zero without triggering a rack fault.

For procurement engineers building a critical-spares list, we recommend holding at least one 330101-00-27-50-02-05 probe per monitored machine train, paired with a matching extension cable and a spare proximitor module. Long-term supply continuity is supported through our blanket-order programme, which allows you to reserve stock at today’s price for scheduled releases over a 12-month horizon.

Site Replacement Workflow

Step 1 — Isolation and permit: Obtain a hot-work or confined-space permit as applicable. Isolate the −24 VDC supply to the affected proximitor channel at the rack power distribution terminal. Do not de-energise the entire rack if other channels must remain in service.

Step 2 — Probe removal: Disconnect the extension cable from the probe at the field junction box. Unscrew the probe from its mounting bracket using the correct spanner — avoid gripping the cable. Record the installed gap voltage (typically −10 V to −18 V) from the monitor display before removal; this value will be used to set the replacement gap.

Step 3 — Inspection: Inspect the probe mounting hole for thread damage, contamination, or oil ingress. Clean the target area on the shaft and verify surface finish is within Bently Nevada’s recommended Ra specification. A rough or pitted target surface will degrade linearity and increase noise floor.

Step 4 — Installation: Thread the 330101-00-27-50-02-05 into the bracket by hand until snug, then back off to achieve the correct air gap (typically 1.0–1.5 mm for an 8mm probe). Reconnect the extension cable and restore −24 VDC supply. Observe the gap voltage on the monitor — it should fall within the linear range specified in the 3300 XL system manual.

Step 5 — Functional verification: Confirm that the monitor channel is reading correctly by comparing the static gap voltage against the pre-removal value. If the machine is running, verify that the dynamic vibration reading is within the expected baseline band. Document the as-left gap voltage in the maintenance management system.

Step 6 — System reinstatement: Clear the permit, update the spare-parts inventory record, and flag the replacement probe for return or disposal per site procedures. Notify the control room that the channel is back in service.

This workflow minimises downtime to under two hours for a trained technician and eliminates the risk of incorrect gap setting — the most common cause of repeat callouts after proximity probe replacement.

Spare Parts Support FAQ

Q1: Is the 330101-00-27-50-02-05 a direct replacement for older 330101 series probes?
Yes. The 330101-00-27-50-02-05 is dimensionally and electrically compatible with earlier 330101 variants used in 3300 XL systems. The suffix codes define cable length (27 = 27 inches), gap range (50), connector type (02), and jacket material (05). Confirm the suffix codes match your existing installation before ordering if your system uses a non-standard cable length or connector configuration.

Q2: How do you verify compatibility before shipment?
Each unit undergoes a pre-shipment electrical test covering output sensitivity, insulation resistance, and connector integrity. A test report is available on request. We also cross-reference the part number against the 3300 XL system documentation to confirm the probe is appropriate for your monitor rack revision.

Q3: What is the recommended inventory strategy for this probe?
For critical rotating machinery, we recommend a minimum of one spare probe per machine train, stored in a climate-controlled cabinet away from strong magnetic fields. For plants with five or more monitored trains, a blanket order covering 12 months of anticipated consumption provides price stability and guaranteed availability. Lead times for non-stocked variants can extend to 8–12 weeks; holding safety stock eliminates this risk entirely.

Q4: What does the support terms confirmed by quotation cover?
The support terms covers manufacturing defects, electrical performance outside published specifications, and connector or cable integrity failures under normal operating conditions. It does not cover damage caused by incorrect installation gap, mechanical impact, chemical exposure beyond the probe’s rated environment, or operation outside the specified supply voltage range. Support requests are processed within 5 business days of receipt of the returned unit.
