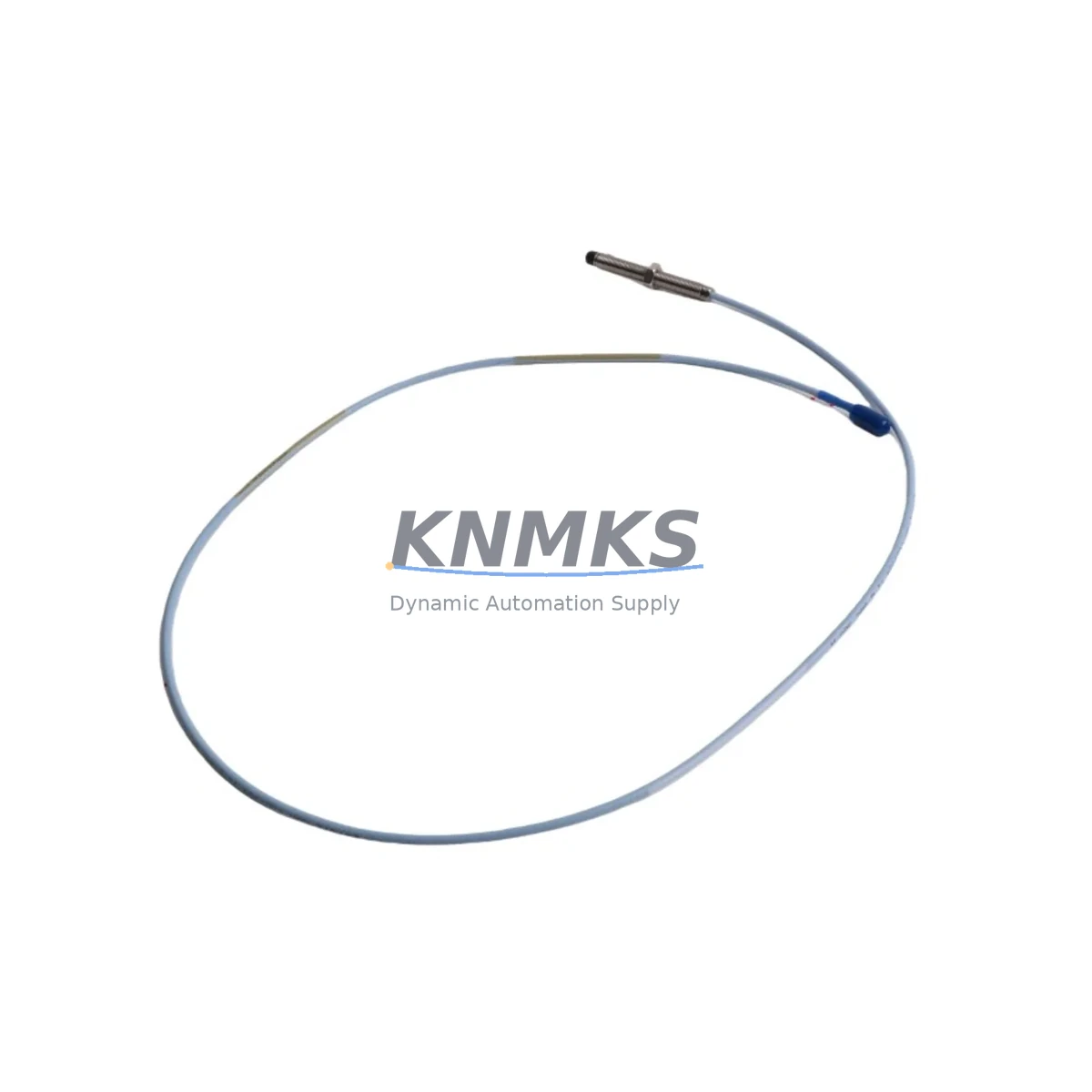

Bently Nevada 330101-00-27-10-02-00 Fail-Safe Proximity Probe

Overview

Bently Nevada 330101-00-27-10-02-00 Fail-Safe Proximity Probe: Fault-Tolerant Vibration Monitoring for Critical Industrial Control Reliability

In continuous production environments where unplanned shutdowns carry six-figure costs per hour, the integrity of every vibration monitoring channel is non-negotiable. The Bently Nevada 330101-00-27-10-02-00 is an 8mm eddy current proximity probe from the industry-proven 3300 XL Series, engineered to deliver fail-safe, high-resolution shaft displacement and vibration measurement across the most demanding rotating machinery applications. From steam turbines and compressors in petrochemical complexes to large induction motors in mining and metallurgical plants, this probe is a cornerstone of any safety-rated machinery protection strategy.

Unlike general-purpose sensors, the 330101-00-27-10-02-00 is designed with industrial safety at its core. Its eddy current sensing principle is inherently non-contact, eliminating mechanical wear and ensuring measurement continuity even under sustained high-speed shaft rotation. The probe’s robust stainless-steel housing and armored cable construction resist oil mist, coolant splash, process dust, and the mechanical vibration that degrades conventional wired sensors over time. This makes it a reliable long-term component in safety instrumented systems (SIS) and API 670-compliant machinery protection panels.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

The 330101-00-27-10-02-00 probe does not operate in isolation — it is one element of a layered machinery protection architecture. In a properly configured control cabinet, the probe signal is conditioned by the Bently Nevada 3300 XL Proximitor Sensor, which converts the raw eddy current signal into a calibrated DC voltage proportional to shaft gap. This conditioned signal feeds directly into a Bently Nevada 3500/40M Proximitor Monitor or equivalent rack-mounted monitor card, where alarm and danger setpoints are enforced in real time.

For installations subject to high electromagnetic interference — common in variable frequency drive (VFD) environments, arc furnace facilities, or large motor control centers — the shielded coaxial cable of the 330101-00-27-10-02-00 provides a critical first line of defense against signal noise and ground loops. Pairing this probe with a Bently Nevada 990 Vibration Transmitter or integrating it into a System 1 Evolution asset management platform further enhances the ability to detect early-stage bearing wear, rotor imbalance, and misalignment before they escalate to catastrophic failure.

In high-temperature turbine bearing housings or compressor seal areas, where ambient temperatures can exceed 150°C, the probe’s rated operating range ensures measurement stability without signal drift. Surge protection at the I/O terminal strip — using dedicated transient voltage suppressors compatible with the 3300 XL signal range — protects the monitoring chain from lightning-induced surges and switching transients generated by large contactors or bus transfer events. For redundant safety loops, dual-probe configurations using a matched Bently Nevada 330101-00-27-10-02-00 pair with a 3500/22M Transient Data Interface provide the voting logic required by SIL 2 safety integrity level applications.

Critical Industrial Safety Applications

The 330101-00-27-10-02-00 is deployed across a wide spectrum of critical industrial sectors where rotating machinery failure carries severe safety and financial consequences.

In petrochemical and refinery environments, this probe monitors shaft radial vibration on process gas compressors, boiler feed pumps, and crude oil transfer pumps — machinery that must sustain continuous operation across multi-year turnaround cycles. Any vibration exceedance triggers an automatic shutdown interlock, preventing seal failure and potential hydrocarbon release.

In power generation facilities — including coal-fired, gas turbine, and combined-cycle plants — the probe is installed on turbine journal bearings and generator shaft extensions. Real-time vibration data feeds into the plant DCS, enabling operators to trend bearing condition and schedule predictive maintenance without forced outages.

In mining and metallurgy, where ball mills, SAG mills, and large slurry pumps operate under extreme radial loads and high dust concentrations, the stainless-steel housing and sealed cable entry of the 330101-00-27-10-02-00 maintain measurement integrity in environments that rapidly degrade standard instrumentation.

In water and wastewater treatment plants, the probe monitors high-speed centrifugal pumps and blower units in humid, chemically aggressive atmospheres. Its non-contact measurement principle eliminates the sensor contamination risk associated with contact-type accelerometers in wet process areas.

In port and marine applications — including shipboard propulsion systems and harbor crane drives — the probe’s wide operating temperature range and vibration-resistant construction ensure reliable performance under the dynamic loading and thermal cycling inherent to marine machinery environments.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the 330101-00-27-10-02-00?
Every unit is backed by a support terms confirmed by quotation covering manufacturing defects and functional failures under normal operating conditions. Support requests are supported with direct technical assistance and expedited replacement to minimize site downtime.

Q2: How is the probe tested before shipment?
Each 330101-00-27-10-02-00 undergoes pre-shipment functional verification including sensitivity calibration check, cable continuity and insulation resistance test, and dimensional inspection of the probe tip and thread. Units that do not meet Bently Nevada 3300 XL Series performance specifications are not released for shipment.

Q3: Is this probe compatible with existing Bently Nevada 3300 and 3500 Series systems?
Yes. The 330101-00-27-10-02-00 is fully compatible with the Bently Nevada 3300 XL Proximitor driver and integrates directly with 3500 Series monitor racks. It maintains the standard 200 mV/mil sensitivity and signal range required by these systems, enabling drop-in replacement without recalibration of the monitoring system.

Q4: Can long-term supply be guaranteed for critical spare parts programs?
Yes. We maintain dedicated stock of the 330101-00-27-10-02-00 to support blanket purchase orders and scheduled maintenance programs. For facilities with multi-unit installations or annual turnaround requirements, we offer reserved inventory arrangements to ensure availability against planned and emergency demand.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330101-00-27-10-02-00
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330101-00-27-10-02-00
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
