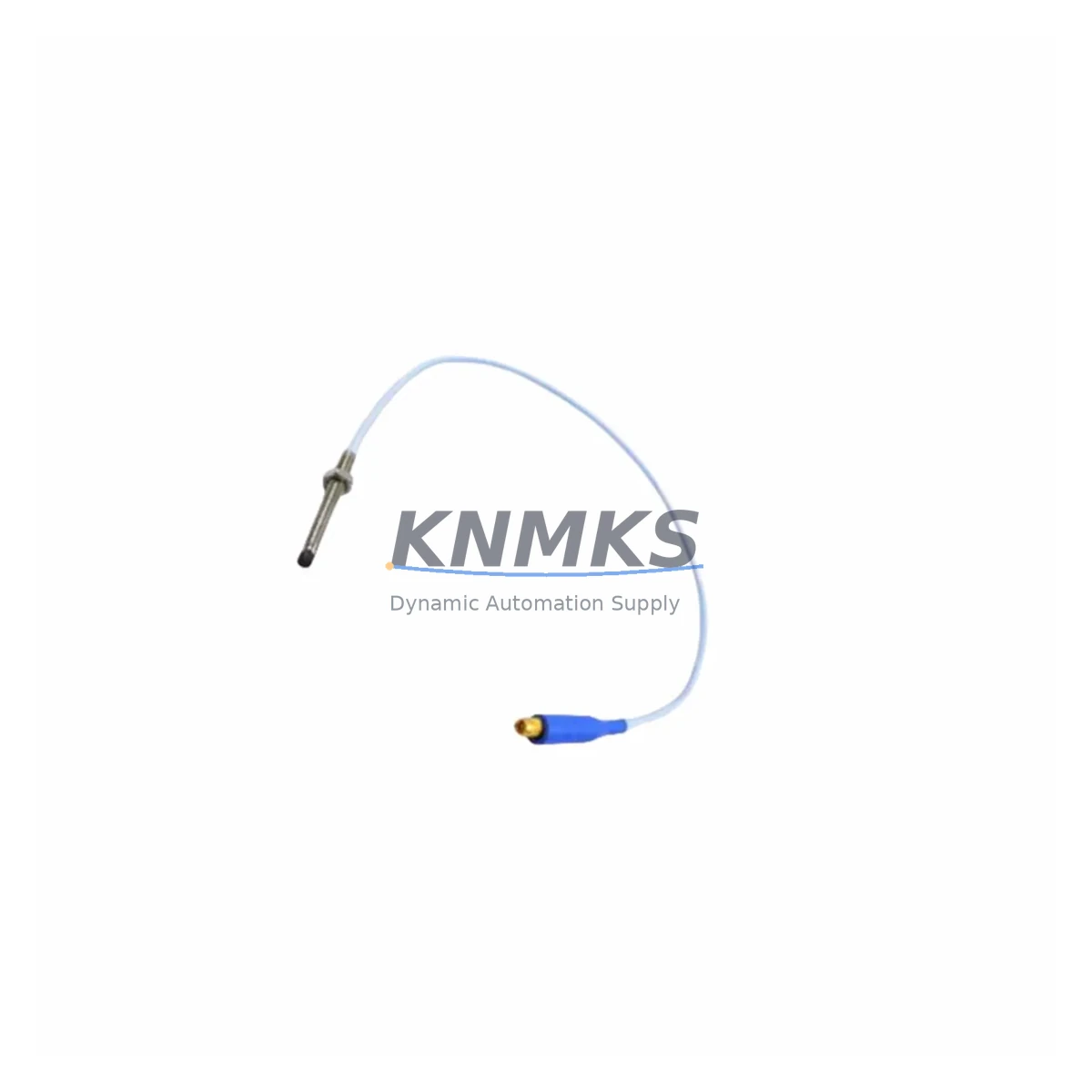

Bently Nevada 330101-00-26-10-02-05 Migration-Ready Proximity Probe for Legacy Control Systems

The Bently Nevada 330101-00-26-10-02-05 is a 25 mm (1-inch) proximity probe engineered for the 3300 XL Series eddy-current measurement system. Designed as a migration-ready replacement, this probe supports direct substitution in legacy vibration monitoring installations where the original Bently Nevada 3300 Series probes have reached end-of-life or are no longer available through standard supply channels. With a 2.6 m (102-inch) integral cable, standard 5 mm tip diameter, and -18.0 V DC nominal operating voltage, the 330101-00-26-10-02-05 maintains full signal chain compatibility with existing 3300 XL proximitor/extension cable assemblies and Bently Nevada 3500 Series rack-mounted monitoring systems.

For facilities managing aging turbomachinery protection systems — including steam turbines, gas compressors, centrifugal pumps, and gearboxes — the 330101-00-26-10-02-05 provides a verified drop-in path that avoids the need for full rack replacement or signal recalibration. The probe is pre-tested prior to shipment, supplied with a support terms confirmed by quotation, and stocked across multiple regions to support both emergency replacements and planned outage schedules. When combined with a compatible 330130 or 330180 extension cable and a 330180 proximitor, the complete measurement chain can be restored without modifying existing conduit runs or terminal block wiring.

Engineers planning a broader migration from legacy 3300 Series to 3500 Series architecture should note that the 330101-00-26-10-02-05 is fully compatible with the Bently Nevada 3500/42M Proximitor Monitor and the 3500/22M Transient Data Interface. This compatibility eliminates the need to re-engineer probe mounting brackets or retune gap voltage settings during the transition, significantly reducing commissioning time during scheduled turnarounds.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit using the 330101-00-26-10-02-05 begins with a thorough review of the existing probe-to-proximitor wiring. In most 3300 XL installations, the probe integral cable terminates at a junction box where it connects to a 330130 or 330180 extension cable routed back to the monitor rack. Before replacement, engineers should verify the extension cable length and condition — a degraded 330130-045-00-00 extension cable can introduce signal noise that mimics probe failure, so cable inspection is recommended as part of any probe swap.

At the rack level, confirm that the 3500/42M Proximitor Monitor channel is configured for the correct probe type and gap voltage. If the existing channel was previously calibrated for an older 330100 Series probe, a gap voltage re-check at the new probe installation point is advisable. The 3500 Series rack also supports the 3500/20 Rack Interface Module for Modbus or RS-232 communication back to the DCS or SCADA layer — verifying that this communication link remains intact after probe replacement prevents false alarms during restart.

For facilities also upgrading their vibration monitoring architecture, the 330101-00-26-10-02-05 can be deployed alongside the Bently Nevada 3500/40M Proximitor Monitor (for radial vibration) and the 3500/45 Position Monitor (for axial thrust). In multi-shaft train applications, coordinating the replacement of all probes in a single outage window — including X-Y probe pairs and keyphasor probes such as the 330180-51-05 — minimizes the number of planned shutdowns and reduces total retrofit cost.

Where installation space is constrained, the compact form factor of the 330101-00-26-10-02-05 (standard 5 mm tip, 3/8-24 UNF thread) fits existing probe bosses without machining modifications. If the original probe was secured with a locknut and jam nut arrangement, the same hardware is reusable. Confirm the final installed gap using a digital voltmeter at the proximitor output before returning the machine to service.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement requires pre-staging all components before the maintenance window opens. For the 330101-00-26-10-02-05, this means having the replacement probe, the correct extension cable, and a calibrated gap-setting tool available at the work site before the machine is taken offline. Where the 3500 Series rack supports hot-swap of individual monitor modules, the rack can remain powered during probe replacement, preserving the program logic and alarm setpoints stored in the 3500/20 Rack Interface Module.

To protect existing control logic, export the current channel configuration from the Bently Nevada System 1 software or the rack keypad before beginning work. This configuration file captures gap voltage setpoints, full-scale ranges, alarm thresholds, and Modbus register mappings — all of which should be verified against the new probe’s calibration data after installation. If the facility uses a Honeywell Experion PKS or Yokogawa CENTUM VP DCS, confirm that the vibration monitor’s analog output signals are placed in manual hold at the DCS level before disconnecting the probe, preventing spurious trips during the swap.

After installation, perform a static gap check, verify the proximitor output voltage, and confirm signal continuity through the extension cable before restarting the machine. A brief coast-down test at low speed allows the vibration monitoring system to confirm that the new probe is tracking shaft motion correctly before full-load operation resumes. This structured commissioning sequence typically adds less than 30 minutes to a standard probe replacement and significantly reduces the risk of a post-maintenance trip.

Retrofit Support FAQ

Q1: Is the 330101-00-26-10-02-05 a direct replacement for the original Bently Nevada 330101 Series probes?
Yes. The 330101-00-26-10-02-05 is a direct drop-in replacement for other 330101 Series variants with matching cable length (26 = 2.6 m) and connector configuration (05 = standard). The probe maintains the same tip diameter, thread size, and gap voltage characteristics, requiring no modification to existing probe bosses, extension cables, or monitor rack channel settings.

Q2: What commissioning steps are required after installation?
After mechanical installation, set the probe gap to achieve the nominal -10.0 V DC output at the proximitor. Verify signal continuity through the extension cable, confirm alarm setpoints in the 3500 Series rack, and check the DCS or SCADA communication link. A coast-down vibration check at low shaft speed is recommended before returning the machine to full-load operation.

Q3: Can this probe be used with the Bently Nevada 3500 Series rack without modification?
Yes. The 330101-00-26-10-02-05 is fully compatible with the 3500/42M Proximitor Monitor and the broader 3500 Series architecture. No firmware updates or hardware modifications to the rack are required. Existing extension cables (330130 Series) and proximitors (330180 Series) remain reusable.

Q4: What support terms and pre-shipment testing does KNMKS provide?
Every 330101-00-26-10-02-05 unit shipped by KNMKS undergoes functional testing and gap calibration verification before dispatch. All units are covered by a support terms confirmed by quotation from the date of shipment. Multi-region stock is maintained to support both emergency same-week dispatch and scheduled outage planning. Contact [email protected] or +86 18359268345 for availability and lead time confirmation.
