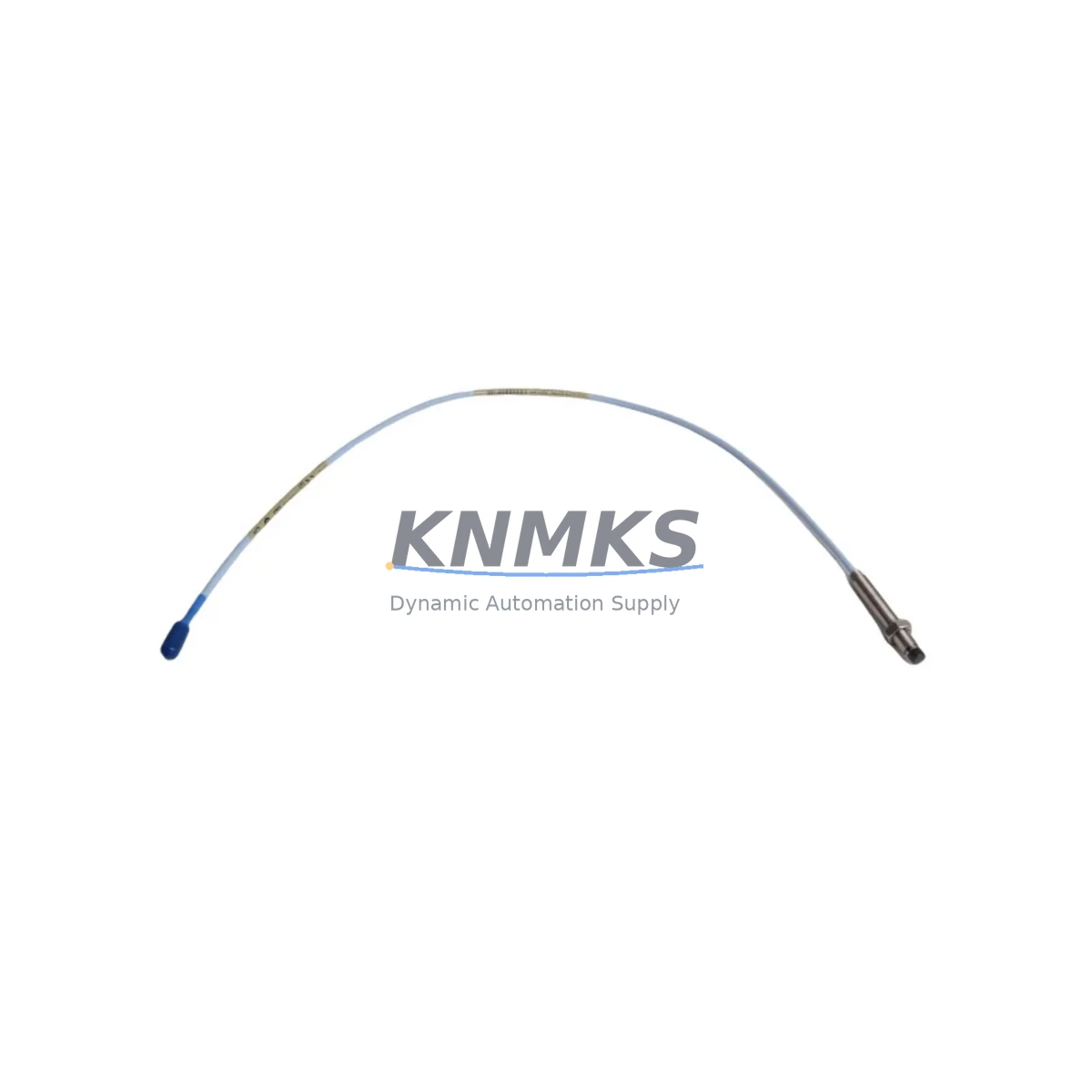

Bently Nevada 330101-00-25-20-12-05 Maintenance Spare: Proximity Probe for Factory Uptime

The Bently Nevada 330101-00-25-20-12-05 is an 8mm eddy-current proximity probe engineered for continuous vibration and position monitoring within the 3300 XL machinery protection system. In rotating equipment environments — turbines, compressors, pumps, and gearboxes — this probe is a first-line maintenance component. Its role in detecting shaft radial vibration, axial position, and differential expansion makes it a critical spare for any facility running Bently Nevada 3300 XL monitor racks. Unplanned probe failure without a qualified replacement on hand can extend machinery downtime from hours to days, particularly in facilities where the 3300 XL system is integrated into a DCS or SCADA safety interlock loop.

At KNMKS, every 330101-00-25-20-12-05 unit is sourced from verified supply channels, bench-tested for output voltage linearity and gap sensitivity prior to shipment, and backed by a support terms confirmed by quotation. Our inventory is maintained to support both emergency replacement orders and planned annual maintenance programs, with fast dispatch to minimize production interruption.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling replacement of the 330101-00-25-20-12-05 proximity probe, maintenance engineers should treat the probe as part of a complete measurement chain — not an isolated component. The 3300 XL system relies on a matched set of probe, extension cable, and driver to maintain calibrated output. If the probe is being replaced due to drift, impact damage, or end-of-life, the 330180 Series extension cable should be inspected simultaneously. Cable jacket abrasion, connector corrosion, or shield continuity loss will introduce noise into the vibration signal even with a new probe installed.

The 3300 XL monitor card (such as the 3300/16 dual-channel radial vibration monitor or the 3300/25 thrust position monitor) should be verified for alarm setpoint integrity after any probe swap. Monitor cards accumulate configuration drift over years of operation, and a probe replacement event is an ideal checkpoint to confirm that OK relay thresholds, danger setpoints, and time-delay parameters remain within the original machinery protection specification.

In control cabinet inspections, engineers should also check the 3300/05 power supply module that feeds the monitor rack. A degraded rack power supply can cause intermittent probe bias voltage fluctuation, which mimics probe failure symptoms. Replacing the probe without verifying supply rail stability is a common source of repeat callouts. Similarly, the 3300/46 or 3300/55 keyphasor module — if present in the same rack — should be confirmed operational, as keyphasor signal loss affects phase-referenced vibration analysis across all channels.

For facilities running the 3300 XL system in parallel with a DCS such as Emerson DeltaV or Honeywell Experion, the 4–20 mA analog output from the monitor card feeds directly into the DCS I/O module. After probe replacement and system re-gapping, the analog output should be loop-checked at the DCS marshalling cabinet to confirm signal integrity through the field junction box and any signal isolator or barrier in the loop. Galvanic isolators are commonly installed in hazardous-area installations and can degrade independently of the probe itself.

Annual maintenance kits for 3300 XL-equipped machinery should include at minimum: one spare 330101-00-25-20-12-05 probe per critical measurement point, one matched 330180 extension cable, and a set of spare 3300 XL monitor fuses (typically 1A slow-blow, rack-specific). Facilities with four or more monitored machines should consider blanket stock agreements to avoid allocation delays during peak turnaround seasons.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the existing probe part number against the machine datasheet and the 3300 XL system configuration record. The 330101-00-25-20-12-05 is an 8mm, 25 cm probe with a 5 m cable — verify that the replacement matches the installed probe length and cable length exactly, as mismatched assemblies will require recalibration of the gap voltage and may trigger false OK/Not-OK relay transitions during startup.

Step 2 — Safe isolation: Place the affected monitor channel in bypass mode via the 3300 XL front-panel or DCS override before disconnecting the probe. This prevents spurious trip signals from propagating to the machinery protection relay or DCS safety interlock during the swap.

Step 3 — Physical replacement: Remove the probe from the bracket, disconnect the extension cable at the field junction, and install the new 330101-00-25-20-12-05. Set the probe gap to the manufacturer-specified nominal gap (typically 1.0–1.5 mm for 8mm probes on steel targets) using a non-ferrous feeler gauge. Confirm the bias voltage output at the driver/monitor input connector falls within the linear range (-10 VDC to -18 VDC at nominal gap).

Step 4 — System re-commissioning: Remove the bypass, observe the vibration and position readings during machine coast-up, and confirm that overall vibration levels and DC gap voltage are stable and within alarm thresholds. Document the as-left gap voltage and vibration baseline in the maintenance management system (CMMS) for future reference.

Step 5 — Spare replenishment: Immediately initiate a replacement order for the consumed spare to restore inventory buffer. KNMKS maintains rolling stock of the 330101-00-25-20-12-05 and can fulfill replenishment orders within 2 business days to keep your critical spare inventory intact.

Spare Parts Support FAQ

Q1: Is the 330101-00-25-20-12-05 a direct drop-in replacement for older 330101 series probes?
Yes. The 330101-00-25-20-12-05 is backward-compatible with all 3300 XL monitor racks that accept 8mm proximity probes. It is also compatible with legacy 3300 series monitors (pre-XL) provided the driver and extension cable are matched. No firmware or configuration changes are required at the monitor card level for a like-for-like probe swap.

Q2: How does KNMKS verify the condition of each unit before shipment?
Every 330101-00-25-20-12-05 unit undergoes pre-shipment testing including output voltage linearity check across the full linear range, gap sensitivity verification at nominal target distance, and insulation resistance measurement on the cable assembly. A test report is available upon request. Units that do not meet Bently Nevada specification are quarantined and not shipped.

Q3: What is covered under the support terms confirmed by quotation?
The support terms confirmed by quotation cover manufacturing defects, output signal failure, and connector integrity under normal operating conditions. It does not cover physical damage from improper installation, over-torquing of the probe thread, or operation outside the specified temperature and gap range. Support requests are processed within 5 business days with advance replacement available for critical applications.

Q4: Can KNMKS support long-term supply agreements for the 330101-00-25-20-12-05?
Yes. KNMKS offers blanket purchase order arrangements and scheduled delivery programs for facilities with recurring annual maintenance requirements. Long-term supply agreements include price protection, priority allocation during market shortages, and dedicated account support. Contact [email protected] to discuss volume and scheduling terms.
