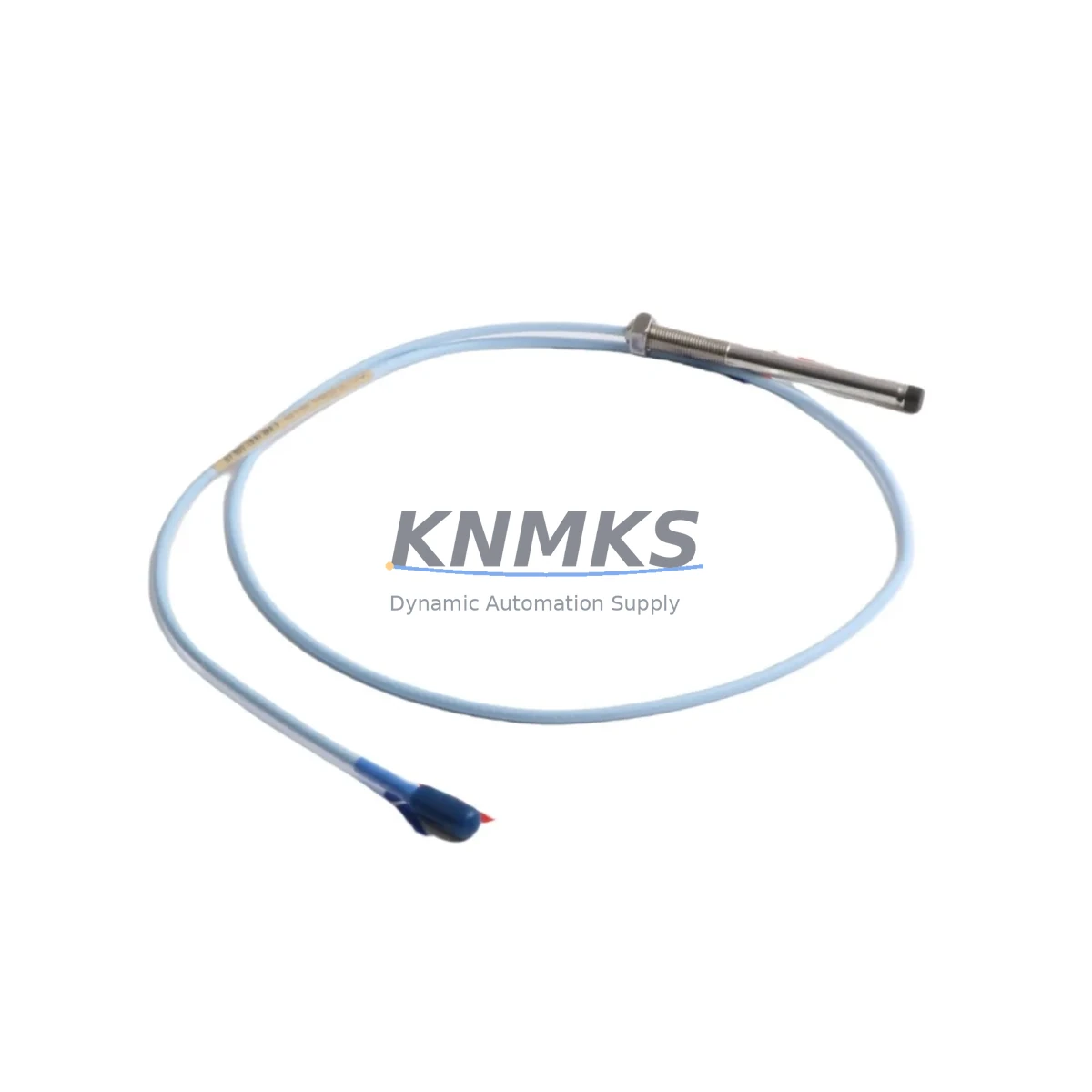

Bently Nevada 330101-00-25-20-12-00 Spare Part for Factory Uptime

The Bently Nevada 330101-00-25-20-12-00 is a 25 mm proximity probe engineered for continuous vibration and position monitoring in rotating machinery applications. As a core sensing element within the Bently Nevada 3300 XL Proximity Transducer System, this probe delivers reliable radial and axial shaft displacement measurements in turbines, compressors, pumps, and gearboxes operating under demanding industrial conditions. Maintaining a verified stock of the 330101-00-25-20-12-00 is a proven strategy for reducing unplanned downtime and protecting critical rotating assets across petrochemical, power generation, and heavy manufacturing facilities.

Each unit supplied by KNMKS is sourced from authorized channels, subjected to pre-shipment functional verification, and backed by a support terms confirmed by quotation. Whether you are executing a scheduled annual overhaul, responding to a vibration alarm, or building a strategic spare parts inventory for a multi-train plant, the 330101-00-25-20-12-00 is a direct, back-to-back compatible replacement that requires no system reconfiguration when installed within a properly maintained 3300 XL loop.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330101-00-25-20-12-00 proximity probe is flagged during a routine control cabinet inspection or triggers a high-vibration alarm, experienced maintenance engineers know that the probe itself is rarely the only component requiring attention. A disciplined replacement workflow should encompass the entire 3300 XL transducer loop to prevent repeat failures and ensure measurement integrity after the probe is back in service.

Begin by inspecting the 3300 XL Proximitor sensor (such as the 330180 series) mounted in the junction box or machinery monitor cabinet. The Proximitor converts the probe’s eddy-current signal into a calibrated voltage output; a degraded Proximitor can produce erratic readings even with a new probe installed. Simultaneously, check the extension cable (typically a 330130 series armored cable) that connects the probe to the Proximitor — cable jacket abrasion, connector corrosion, and shield continuity failures are among the most common root causes of proximity system faults in high-vibration environments.

At the machinery monitor level, verify the Bently Nevada 3500 series rack input card assigned to this channel. Cards such as the 3500/42M or 3500/45 process the Proximitor output and generate the 4–20 mA or relay trip signals used by the plant DCS or safety system. A channel that has been in continuous service for more than five years should be evaluated for recalibration or replacement during the same outage window. While the rack is open, inspect the power supply module (e.g., 3500/15 Power Supply) for output voltage stability, as a sagging −24 VDC rail will shift the probe’s operating gap voltage and introduce measurement error across all channels in the rack.

For plants running vibration monitoring alongside process control, also audit the signal isolator or barrier between the 3500 rack and the DCS analog input card. Zener barriers and galvanic isolators used in hazardous-area installations age with thermal cycling and should be part of the annual inspection checklist. Finally, confirm that the terminal blocks and grounding bus in the junction box are torqued to specification and free of oxidation — a high-resistance ground connection is a well-documented source of noise on proximity channels that can mask real shaft movement or generate nuisance trips.

Maintaining a minimum of two 330101-00-25-20-12-00 probes per critical machine train, alongside one spare Proximitor and one spare extension cable set, is a widely adopted inventory strategy in facilities where unplanned shutdowns carry significant production loss exposure.

Site Replacement Workflow

The 330101-00-25-20-12-00 is a direct mechanical and electrical replacement for earlier Bently Nevada 7200 series 8 mm probes when used with the appropriate 3300 XL Proximitor, making it a practical upgrade path for facilities still operating legacy transducer systems. Before installation, confirm the target shaft material and surface finish meet Bently Nevada’s calibration curve requirements — non-standard alloys may require a field calibration adjustment at the Proximitor.

During installation, set the probe gap to the manufacturer’s recommended nominal gap voltage (typically −10 VDC ± 0.5 VDC at 1.27 mm air gap) using a calibrated gap-setting tool and a precision feeler gauge. Lock the probe in position with the supplied locknut and verify that the integral cable is routed away from heat sources and moving parts. After reconnection, perform a static gap check at the Bently Nevada 3500 rack operator display or via System 1 software before returning the machine to service. Document the as-left gap voltage in the equipment maintenance record to establish a baseline for future trend analysis.

For facilities transitioning from discontinued probe models, KNMKS can provide cross-reference verification and application engineering support to confirm back-to-back compatibility before the replacement unit ships, reducing the risk of a second outage caused by an incorrect part selection.

Spare Parts Support FAQ

Q1: Is the 330101-00-25-20-12-00 compatible with both the 3300 XL and the older 3300 5 mm Proximitor systems?
The 330101-00-25-20-12-00 is an 8 mm probe calibrated for use with the 3300 XL 8 mm Proximitor. It is not directly interchangeable with 5 mm probe systems. Always verify the Proximitor model number before ordering to ensure the probe-Proximitor pair is matched to the same calibration curve.

Q2: What pre-shipment testing does KNMKS perform on the 330101-00-25-20-12-00?
Each unit undergoes functional gap-voltage verification, insulation resistance testing, and connector integrity inspection before dispatch. A test report is available upon request. The support terms confirmed by quotation cover manufacturing defects and functional failure under normal operating conditions from the date of shipment.

Q3: How should the 330101-00-25-20-12-00 be stored as a long-term spare?
Store the probe in its original packaging in a dry, temperature-controlled environment (10°C to 40°C) away from strong magnetic fields and solvents. Inspect the connector and cable jacket annually. Probes stored correctly for up to three years typically require only a gap-voltage verification before installation without additional reconditioning.

Q4: Can KNMKS support blanket orders or long-term supply agreements for the 330101-00-25-20-12-00?
Yes. KNMKS supports scheduled release orders and regional stock programs for maintenance teams managing multiple machine trains or multi-site facilities. Contact our team to discuss lead-time commitments, pricing tiers, and consignment stock arrangements that align with your annual maintenance budget cycle.
