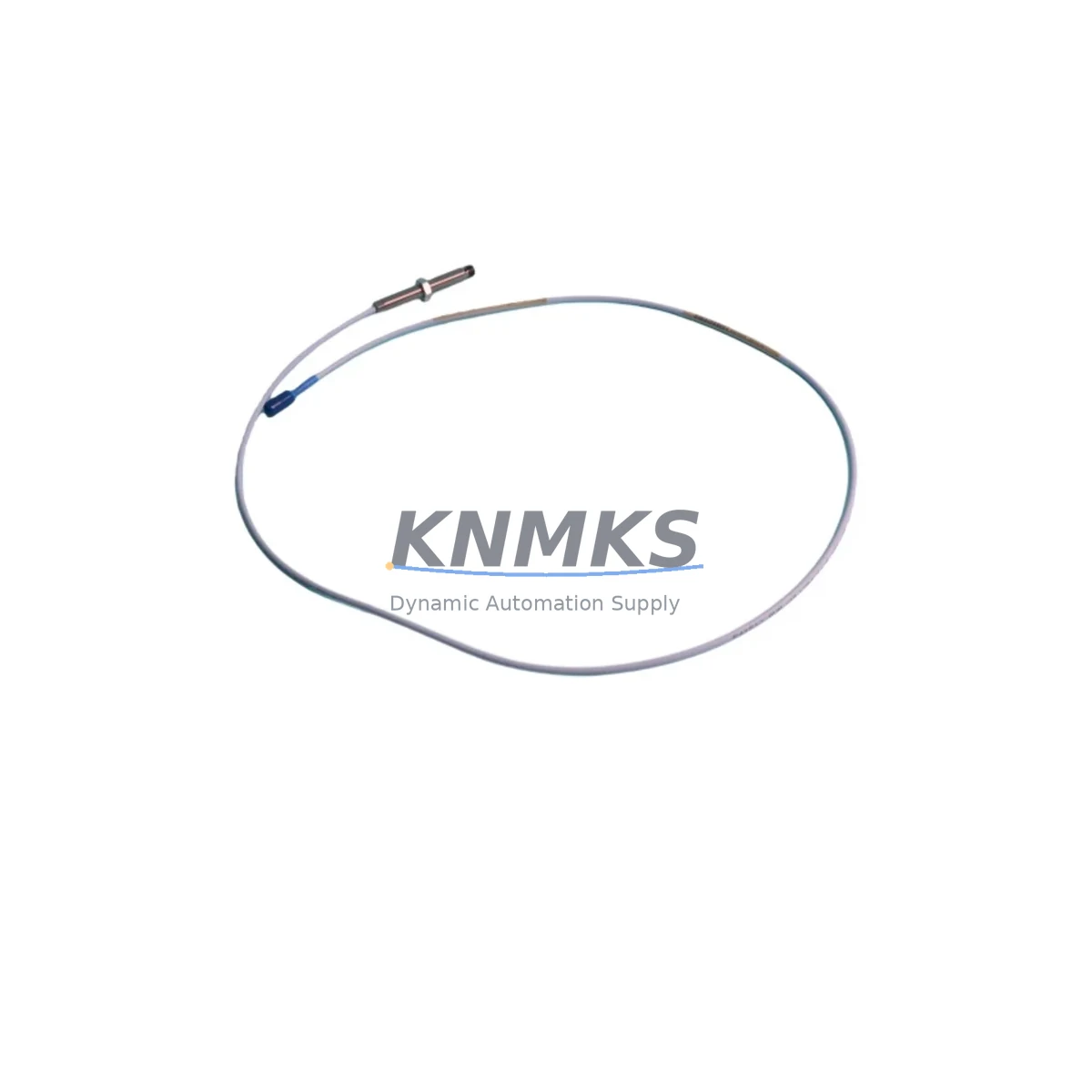

Bently Nevada 330101-00-25-10-02-00 Fail-Safe Proximity Transducer

Overview

Bently Nevada 330101-00-25-10-02-00 Fail-Safe Proximity Transducer: Fault Protection and Critical Industrial Field Reliability

The Bently Nevada 330101-00-25-10-02-00 is an 8mm eddy-current proximity transducer from the renowned 3300 XL Series, engineered specifically for continuous, fail-safe vibration and position monitoring in the most demanding industrial environments. Designed to meet the rigorous requirements of rotating machinery protection systems, this transducer delivers stable, high-accuracy output signals even under conditions of high electromagnetic interference, mechanical vibration, thermal cycling, and airborne contamination — making it a cornerstone component in any critical control cabinet or safety interlock loop.

In continuous production facilities — petrochemical plants, power generation stations, metallurgical mills, mining operations, water treatment infrastructure, and port or marine machinery rooms — unplanned downtime caused by sensor failure, signal drift, or communication anomalies can result in catastrophic equipment damage, safety incidents, and significant financial loss. The 330101-00-25-10-02-00 is purpose-built to eliminate these risks. Its eddy-current sensing principle operates without physical contact, removing mechanical wear as a failure mode and ensuring long-term measurement integrity across millions of operating cycles.

The transducer integrates seamlessly with the Bently Nevada 3300 XL Proximitor Sensor (such as the 330180 series), which conditions the raw transducer signal into a calibrated voltage output proportional to the gap between the probe tip and the observed target shaft. Together, they form a complete, safety-rated proximity measurement chain that feeds directly into vibration monitoring systems, machinery protection panels, and DCS or PLC-based interlock architectures. When paired with a Bently Nevada 3500 Series Machinery Protection System rack, the 330101-00-25-10-02-00 becomes part of a fully certified, redundant safety loop capable of triggering automatic shutdown before catastrophic bearing failure or rotor rub events occur.

In high-EMI environments — common in heavy motor drive rooms, arc furnace control areas, and variable frequency drive (VFD) cabinets — signal integrity is paramount. The 330101-00-25-10-02-00 features a shielded, armored cable assembly and a precision-wound coil that resists inductive and capacitive coupling from adjacent power conductors. This ensures that the 4–20 mA or voltage output reaching the monitoring rack remains clean and drift-free, preventing nuisance trips or, more critically, missed alarm conditions. For installations requiring extended cable runs between the transducer and its Proximitor, the system supports extension cables such as the 330130 Series Armored Extension Cable, maintaining signal fidelity over distances up to 9 meters without degradation.

Thermal stability is another defining characteristic of this transducer. Rated for operation across a wide ambient temperature range, it maintains calibration accuracy in both high-temperature turbine bearing housings and cold outdoor compressor stations. The stainless steel probe body and PTFE-insulated cable jacket resist chemical attack from lubricating oils, hydraulic fluids, process gases, and cleaning solvents — critical for longevity in petrochemical and refinery environments where sensor replacement during live operation is often impossible.

For control cabinet builders and system integrators, the 330101-00-25-10-02-00 simplifies installation with its standard 8mm thread body and defined gap-setting procedure. Proper installation alongside a calibrated Bently Nevada 330180 Proximitor ensures the system operates within its certified linear range, typically 0.25 mm to 2.25 mm, delivering a sensitivity of approximately 7.87 V/mm. This predictable, linear response is essential for accurate alarm and danger setpoint configuration in machinery protection applications. When integrated into a safety instrumented system (SIS) alongside components such as a Bently Nevada 3500/42M Proximitor Monitor, the transducer contributes to achieving the required Safety Integrity Level (SIL) for rotating equipment protection loops.

Every 330101-00-25-10-02-00 unit supplied by KNMKS undergoes a rigorous pre-shipment inspection protocol. Each transducer is bench-tested for output sensitivity, linearity, insulation resistance, and cable continuity before packaging. Units are shipped in anti-static, moisture-resistant packaging with full traceability documentation, ensuring that field engineers receive a component ready for immediate installation without additional incoming inspection delays. Stock is maintained on-hand to support urgent maintenance windows, planned turnarounds, and emergency spare parts programs — with global logistics support for delivery details confirmed by RFQ to any industrial site worldwide.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

A robust rotating machinery protection architecture extends well beyond a single transducer. In a typical critical control cabinet serving a high-speed compressor or steam turbine train, the 330101-00-25-10-02-00 proximity transducer works in concert with multiple protective and monitoring components to create a layered, fail-safe defense against unplanned shutdown events.

The transducer signal is first conditioned by the Bently Nevada 330180-X1-05 Proximitor Sensor, which provides the regulated power supply to the probe and converts the oscillator frequency shift into a DC voltage output. This signal then feeds into a Bently Nevada 3500/42M Proximitor Monitor card housed within the 3500 rack, where it is compared against programmed alarm and danger setpoints. The 3500 rack’s internal power supply module — such as the Bently Nevada 3500/15 Power Supply — provides isolated, regulated DC power to all monitor cards, ensuring that upstream AC power fluctuations, voltage sags, or transient surges do not propagate into the measurement chain and cause false trips or missed detections.

For installations in environments with significant ground loops or common-mode noise — such as those near large transformer banks or high-current bus bars — the addition of a Bently Nevada 3500/20 Rack Interface Module provides the communication gateway between the protection rack and the plant DCS or safety PLC, using Modbus or other industrial protocols to relay real-time vibration data without introducing ground-referenced noise into the analog measurement circuits. In parallel, a dedicated Bently Nevada 330130 Armored Extension Cable ensures that the coaxial signal path between the transducer and its Proximitor remains mechanically protected and electrically shielded throughout its routing through cable trays, conduit, and junction boxes — even in areas subject to continuous mechanical vibration or rodent activity.

Together, these components form a complete, integrated protection chain: from the rotating shaft surface, through the proximity transducer, along the shielded extension cable, into the Proximitor sensor, through the monitor card, and out to the plant safety system — with every link in the chain designed for fail-safe, continuous operation in the harshest industrial conditions.

Critical Industrial Safety Applications

The Bently Nevada 330101-00-25-10-02-00 proximity transducer is deployed across a wide spectrum of critical industrial applications where rotating machinery reliability directly determines process safety and production continuity.

In petrochemical and refinery operations, this transducer monitors radial vibration and axial position on centrifugal compressors, process pumps, and expanders operating continuously in hazardous area classifications. Any deviation beyond alarm setpoints triggers an automatic shutdown sequence, preventing seal failures, bearing collapses, or rotor-stator contact events that could result in process gas release or fire. In power generation — both thermal and combined-cycle plants — the 330101-00-25-10-02-00 is installed on steam turbine journal bearings and generator shaft extensions, providing the real-time vibration data that operators and protection systems rely on to maintain safe, efficient operation through load transients, startup sequences, and coast-down events.

Mining and mineral processing facilities deploy this transducer on large ball mill pinion bearings, crusher drive shafts, and slurry pump assemblies, where the combination of heavy shock loads, abrasive dust ingress, and high ambient temperatures creates an exceptionally challenging measurement environment. The 330101-00-25-10-02-00’s robust stainless steel construction and sealed cable assembly maintain measurement integrity under these conditions, providing early warning of developing bearing defects before they progress to catastrophic failure. In water and wastewater treatment plants, the transducer monitors large vertical turbine pumps and blower assemblies in humid, chemically aggressive environments, supporting predictive maintenance programs that minimize unplanned outages in critical public infrastructure.

Metallurgical and steel mill applications leverage the transducer’s high-temperature tolerance and EMI immunity to monitor rolling mill drive shafts and continuous caster pinch roll assemblies operating in environments with intense electromagnetic fields from induction heating systems and high-current DC drives. Port and marine installations use the 330101-00-25-10-02-00 on ship propulsion shaft lines, crane hoist gearboxes, and LNG terminal compressor trains, where saltwater corrosion resistance and vibration immunity are essential for reliable long-term operation.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 330101-00-25-10-02-00?
The support terms confirmed by quotation cover all manufacturing defects, functional failures, and out-of-specification performance identified under normal operating conditions consistent with the product’s rated specifications. If a unit fails within the confirmed support period due to a covered defect, KNMKS will provide a replacement unit with full pre-shipment testing at no additional cost. The confirmed support period begins from the date of shipment.

Q2: What pre-shipment testing is performed on each unit?
Every 330101-00-25-10-02-00 transducer is individually tested before shipment. The test protocol includes output sensitivity verification (mV/mil or V/mm), linearity check across the full operating gap range, insulation resistance measurement between the coaxial conductors and the probe body, and cable continuity and shield integrity verification. Units that do not meet specification are quarantined and not shipped. Test records are available upon request for quality-critical applications.

Q3: Is this transducer compatible with existing Bently Nevada 3300 XL and 3500 Series systems?
Yes. The 330101-00-25-10-02-00 is a standard 3300 XL Series 8mm proximity transducer designed for direct compatibility with Bently Nevada 330180 Series Proximitor Sensors and the full range of 3500 Series monitor cards. It is a direct functional replacement for equivalent 3300 XL transducers in existing installations, requiring only standard gap-setting verification during commissioning. No firmware changes or system reconfiguration are required.

Q4: Can KNMKS support long-term spare parts supply and emergency replacement needs?
KNMKS maintains on-hand inventory of the 330101-00-25-10-02-00 to support both planned maintenance programs and emergency replacement requirements. For facilities operating critical rotating machinery with extended lead times for OEM procurement, KNMKS provides a reliable alternative supply channel with global delivery details confirmed by RFQ, full traceability documentation, and consistent product quality backed by the support terms confirmed by quotation. Long-term supply agreements and consignment stock arrangements are available for high-volume or strategically critical customers.
