Bently Nevada 330101-00-25-10-01-05 Maintenance-Proven Spare Part

Overview

Bently Nevada 330101-00-25-10-01-05 Maintenance-Proven Spare Part for Factory Uptime

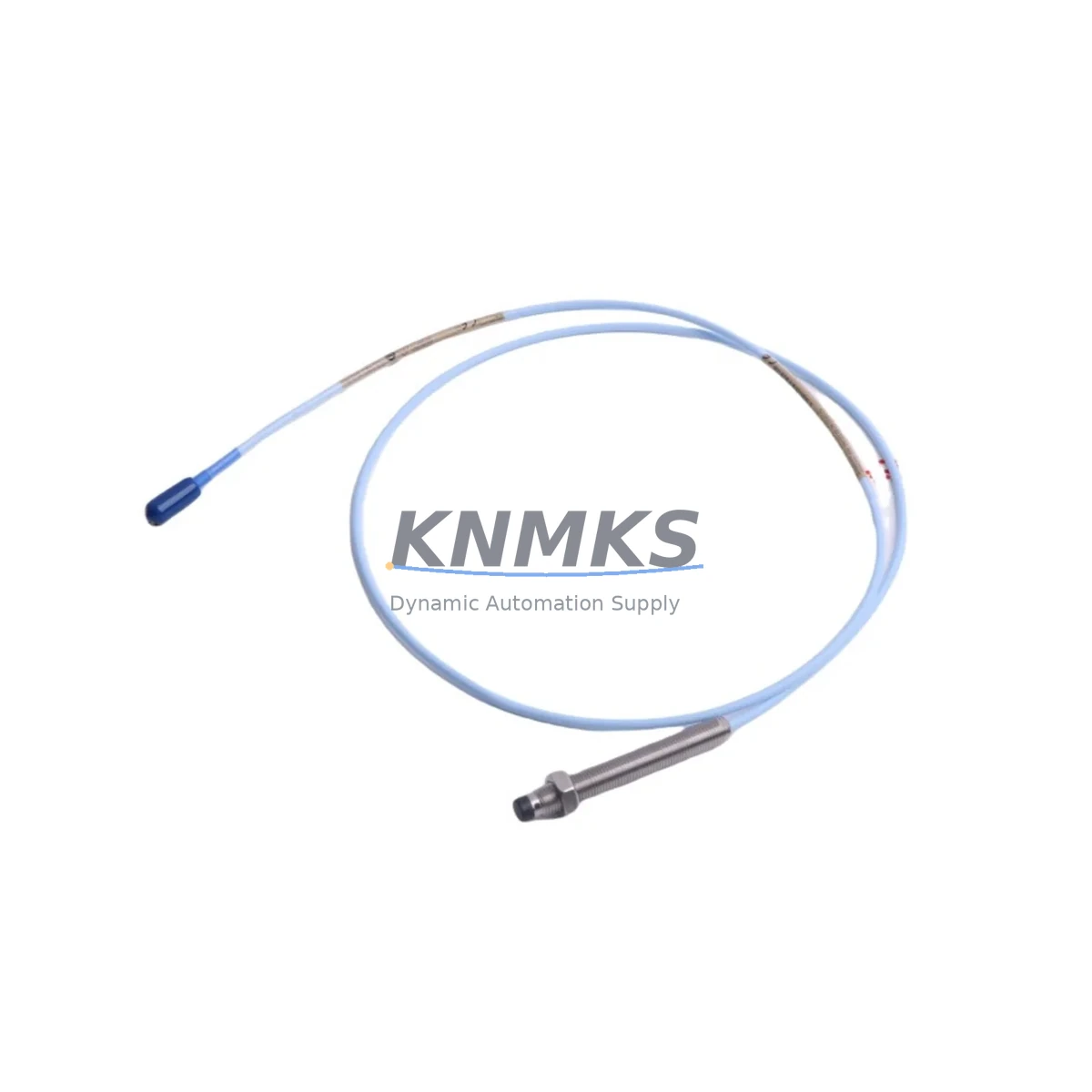

The Bently Nevada 330101-00-25-10-01-05 is an 8mm eddy current proximity probe engineered for the 3300 XL Series vibration monitoring system — one of the most widely deployed machinery protection platforms in rotating equipment facilities worldwide. Whether you are managing a planned annual overhaul, responding to an unplanned trip event, or building a strategic spare parts inventory for a critical compressor train or turbine skid, this probe delivers the dimensional accuracy, signal linearity, and environmental robustness required for continuous, reliable operation.

Maintenance engineers and reliability teams operating gas turbines, steam turbines, centrifugal compressors, pumps, and gearboxes depend on the 3300 XL proximity system to detect shaft radial vibration, axial position, and differential expansion in real time. When a probe fails or degrades — whether from cable fatigue, connector corrosion, tip damage, or calibration drift — the entire measurement channel is compromised. Replacing the 330101-00-25-10-01-05 with a verified original spare restores full system integrity without requiring recalibration of the entire loop, provided the extension cable and proximitor remain within specification.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330101-00-25-10-01-05 probe in the field, a disciplined maintenance engineer will not stop at the probe itself. The 3300 XL measurement channel is a three-component system: the probe, the extension cable, and the proximitor module. Replacing only the probe while leaving a degraded 330130 Series extension cable in place is a common source of repeat failures. Inspect the extension cable for jacket cracking, connector pin corrosion, and impedance drift before reinstalling.

The 3300 XL Proximitor module (such as the 3300/16 or 3300/20) should be verified for output voltage within the linear range using a calibrated gap tool. If the proximitor output is outside the ±0.5 V tolerance at the nominal gap, replace the proximitor as part of the same work order to avoid a second outage. In multi-channel racks, also inspect the 3300 Series I/O module and terminal board for loose wiring, oxidized terminals, and correct channel assignment.

For facilities running Bently Nevada System 1 or 3500 Series machinery protection racks alongside legacy 3300 XL hardware, ensure that the 3500/42M Proximitor I/O Module or equivalent is not inadvertently substituted — the 3300 XL and 3500 series use different proximitor electronics and are not interchangeable without reconfiguration. Procurement teams should maintain separate spare pools for each platform.

Power supply integrity is equally critical. The 3300 XL system requires a stable –24 VDC supply. Verify the rack power supply module output under load, and check for ripple or voltage sag that could shift the proximitor bias point. A marginal power supply is frequently overlooked during probe replacement and can cause nuisance trips after the new probe is installed.

Finally, for facilities with hazardous area installations, confirm that the Zener barrier or galvanic isolator associated with the probe channel is within calibration and that its entity parameters remain compatible with the 330101-00-25-10-01-05 probe. Barrier degradation is a silent failure mode that can cause the new probe to read incorrectly even when the probe itself is fully functional.

Site Replacement Workflow

Step 1 — Isolation and Permit: Obtain a work permit and isolate the measurement channel at the rack. Do not rely solely on software inhibit; physically disconnect the proximitor output from the voting logic if the machine remains online.

Step 2 — Gap Measurement Before Removal: Record the existing probe gap voltage and physical gap dimension. This baseline confirms whether the previous probe had drifted and provides a reference for the new installation.

Step 3 — Probe Removal: Unscrew the 330101-00-25-10-01-05 from the bracket using the correct spanner. Inspect the probe tip for impact marks, the threads for galling, and the integral cable for jacket damage. Document findings for the maintenance record.

Step 4 — Extension Cable Inspection: Disconnect the 330130 extension cable at both ends. Measure coaxial impedance and check for continuity. Replace if impedance is outside the 95 Ω ± 5% specification.

Step 5 — New Probe Installation: Install the replacement 330101-00-25-10-01-05 to the correct gap per the OEM specification (typically 1.0 mm / 40 mil for standard steel targets). Torque to specification and secure the locknut.

Step 6 — System Verification: Reconnect the extension cable and proximitor. Verify output voltage at the rack terminal board. Confirm the channel reads within the linear range and that the System 1 or DCS historian is receiving a valid signal before releasing the permit.

Step 7 — Documentation: Update the CMMS with the new probe serial number, installation date, gap setting, and output voltage. Schedule the next inspection interval per your predictive maintenance program.

This workflow minimizes total downtime, eliminates repeat failures from overlooked adjacent components, and ensures full system compatibility is restored — not just the probe itself.

Spare Parts Support FAQ

Q1: Is the 330101-00-25-10-01-05 compatible with both the 3300 XL and the older 3300 Series racks?
The 330101-00-25-10-01-05 is designed and calibrated for the 3300 XL 8mm system. While the physical connector is similar to earlier 3300 Series probes, the proximitor electronics and calibration curves differ. Always verify the proximitor part number on your rack before ordering. If your facility runs mixed-generation hardware, contact our technical team to confirm compatibility before installation.

Q2: What is included in the support terms confirmed by quotation, and how does the claims process work?
Every 330101-00-25-10-01-05 shipped from KNMKS carries a support terms confirmed by quotation covering manufacturing defects, calibration failures, and premature component failure under normal operating conditions. Each unit is tested and documented before dispatch. In the event of a support terms claim, contact [email protected] with the order number and failure description. We will arrange a replacement or credit within 5 business days.

Q3: Can KNMKS support long-term supply agreements for this probe model?
Yes. KNMKS maintains dedicated stock of the 330101-00-25-10-01-05 and related 3300 XL components to support annual maintenance contracts, turnaround projects, and OEM-equivalent spare parts programs. We can provide blanket purchase orders, consignment stock arrangements, and scheduled delivery programs to align with your planned outage calendar. Contact [email protected] or +86 18359268345 to discuss a supply agreement.

Q4: How should I store spare probes to maximize shelf life?
Store the 330101-00-25-10-01-05 in its original packaging in a dry, temperature-controlled environment (10°C to 40°C, <70% RH non-condensing). Keep the probe tip protected with the supplied cap and avoid coiling the integral cable tighter than a 50 mm radius. Inspect stored spares annually for connector oxidation and cable jacket condition. Probes stored correctly retain full calibration for a minimum of 3 years.
