Bently Nevada 330101-00-25-05-11-00 Migration-Ready Proximity Probe

Overview

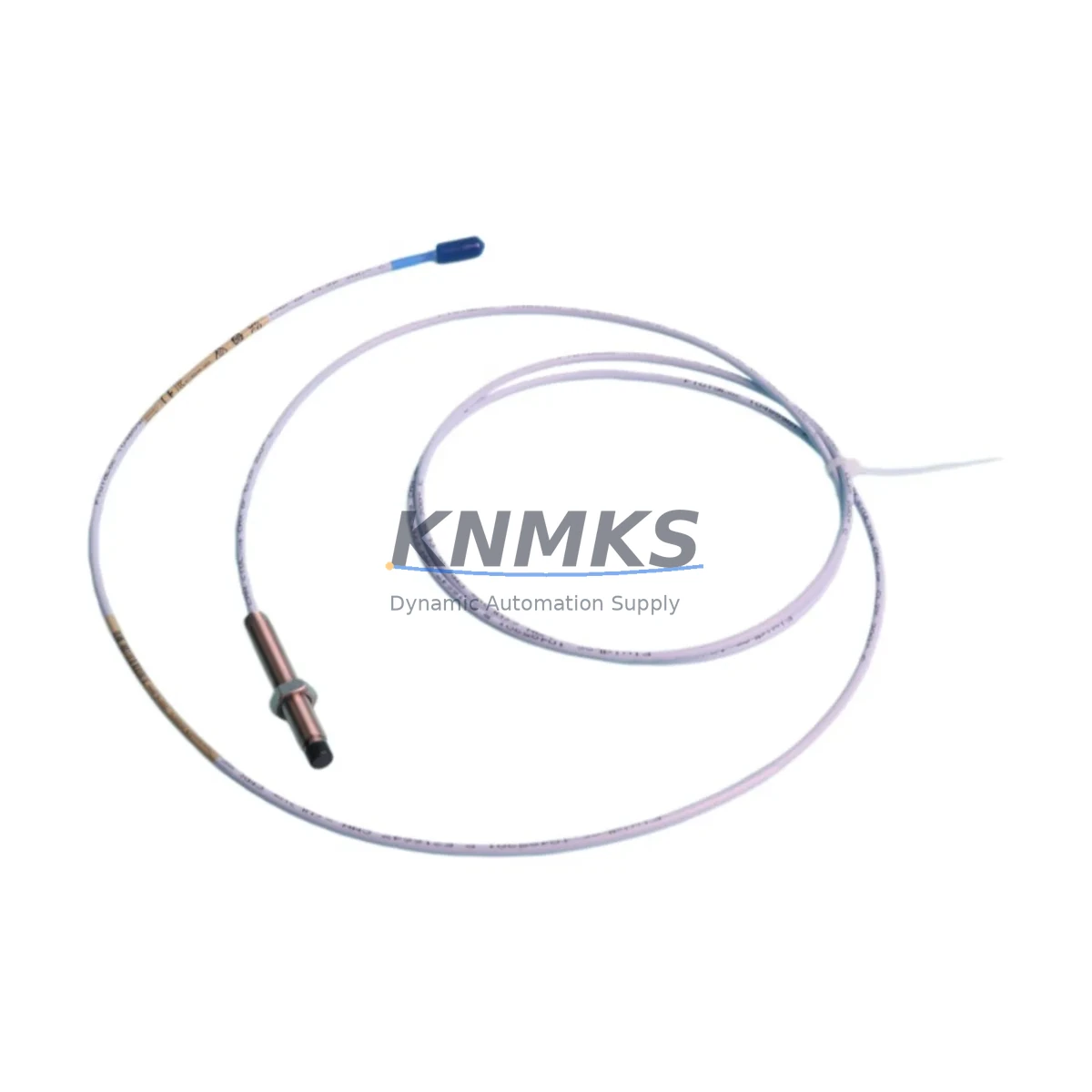

Bently Nevada 330101-00-25-05-11-00 Migration-Ready Proximity Probe for Legacy Control Systems

The Bently Nevada 330101-00-25-05-11-00 is a 25mm eddy current proximity probe from the 3300 XL Series, engineered for non-contact vibration, position, and speed measurement in rotating machinery. As legacy vibration monitoring platforms approach end-of-life and OEM support windows close, this probe remains one of the most sought-after drop-in replacements for facilities operating aging turbine protection, compressor monitoring, and pump surveillance systems. Whether you are executing a planned control system upgrade or responding to an unplanned failure, the 330101-00-25-05-11-00 delivers the dimensional accuracy, signal linearity, and cable compatibility required to restore system integrity with minimal downtime.

This probe is fully compatible with the Bently Nevada 3300 XL signal conditioning ecosystem, including the 3300 XL 8mm, 11mm, and 25mm driver/extension cable assemblies. When replacing a failed or obsolete probe in an existing installation, engineers must verify the extension cable length and driver module pairing — the 330101-00-25-05-11-00 is rated for use with the 330130 series extension cables and the 330180 series proximitor sensors. Mismatched cable lengths or driver gain settings are the most common source of calibration errors during field replacement, and confirming these parameters before shutdown significantly reduces commissioning time.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the 330101-00-25-05-11-00 in an active machinery protection system requires a structured approach that accounts for the full signal chain — from probe tip to monitor output. In most 3300 XL installations, the probe is paired with a 330130 extension cable and a 330180 proximitor sensor mounted in a field junction box or directly on the monitor rack. Before removing the failed probe, technicians should document the existing gap voltage (typically between -10V and -18V DC at the proximitor output) and confirm the total cable system length, as the 330180 proximitor is calibrated for a specific combined probe-plus-extension length. Substituting a probe with a different integral cable length without recalibrating the driver will shift the linear range and introduce measurement error.

For facilities migrating from older 3300 Series racks to the 3500 Series machinery protection system, the 330101-00-25-05-11-00 probe remains mechanically and electrically compatible, but the monitor card configuration — including full-scale range, alert and danger setpoints, and Keyphasor channel assignments — must be re-entered in the 3500 rack’s configuration software. The 3500/42M Proximitor I/O module accepts the same probe signal and wiring termination, making the probe itself a non-issue in cross-generation migrations. The primary engineering effort shifts to verifying that the 3500 rack’s channel configuration matches the original 3300 alarm philosophy and that any DCS or SCADA integration points receiving 4–20mA outputs from the monitor are updated to reflect the new rack’s analog output scaling.

In control cabinet upgrades where space is constrained, the 330101-00-25-05-11-00’s standard M14 x 1.5 thread and bracket-mount design allows direct reinstallation into existing probe holders without machining. However, if the original probe holder has corroded or the mounting boss has been damaged, a replacement stainless steel probe holder should be sourced concurrently to avoid a second shutdown. For systems where the original Keyphasor probe — often a 330101 or 330104 series unit — has also degraded, replacing both the vibration probe and the Keyphasor reference probe during the same outage window eliminates the risk of a follow-up forced outage. Similarly, if the proximitor sensor housing shows signs of moisture ingress or connector corrosion, replacing the 330180 proximitor at the same time as the probe is a cost-effective decision that protects the integrity of the newly installed signal chain.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement begins with pre-outage preparation. Before the machine is taken offline, the replacement 330101-00-25-05-11-00 should be bench-tested against a known-good 330180 proximitor and a calibration target to confirm the probe’s linear range and sensitivity (nominally 7.87 V/mm for the 3300 XL 25mm system). This pre-shipment verification — which KNMKS performs on every unit before dispatch — ensures that the replacement probe will not introduce a second fault condition when installed in the field.

During the outage, the recommended sequence is: isolate the monitor channel and bypass the OK relay to prevent spurious trips on adjacent channels; remove the failed probe and extension cable assembly; install the replacement 330101-00-25-05-11-00 with the existing or replacement 330130 extension cable; set the static gap to the midpoint of the linear range (approximately 1.0–1.5mm for a 25mm probe on a steel target); power the proximitor and confirm the gap voltage falls within the calibrated linear range; restore the OK relay and verify the monitor channel returns to normal status before restarting the machine. This sequence, when followed with pre-verified replacement hardware, typically allows a single-probe replacement to be completed within a two-to-four hour maintenance window, preserving the original program logic, HMI alarm displays, and DCS integration without any software changes.

For facilities operating under API 670 machinery protection requirements, all replacement probes should be accompanied by a calibration certificate confirming sensitivity and linear range. KNMKS supplies calibration documentation with each 330101-00-25-05-11-00 shipment, supporting compliance with site quality management systems and reducing the documentation burden on maintenance teams during post-outage reporting.

Retrofit Support FAQ

Q: Is the 330101-00-25-05-11-00 a direct replacement for the original Bently Nevada part?
A: Yes. The 330101-00-25-05-11-00 is a form-fit-function replacement for the original Bently Nevada 3300 XL 25mm proximity probe. It uses the same M14 x 1.5 thread, the same integral cable connector, and the same sensitivity specification, allowing direct installation into existing probe holders and extension cable assemblies without modification.

Q: What commissioning steps are required after installation?
A: After mechanical installation, set the static air gap to the midpoint of the probe’s linear range and confirm the proximitor output voltage falls within the calibrated window (typically -10V to -18V DC). Verify the monitor channel’s OK status, check that alert and danger setpoints are active, and perform a dynamic signal check by briefly deflecting the probe tip to confirm the monitor responds correctly before returning the machine to service.

Q: Can this probe be used with both 3300 Series and 3500 Series monitor racks?
A: The 330101-00-25-05-11-00 probe is natively compatible with the 3300 XL monitor rack. It is also compatible with the 3500 Series when used with the appropriate 3500/42M Proximitor I/O module. Channel configuration in the 3500 rack must be set to match the probe’s sensitivity and the total cable system length to ensure accurate measurement.

Q: What is the support terms and how is the unit tested before shipment?
A: Every 330101-00-25-05-11-00 supplied by KNMKS carries a support terms confirmed by quotation covering defects in materials and workmanship. Each unit is functionally tested against a calibrated reference system before shipment, and a calibration record is included with the delivery documentation. In-stock units are available for same-day or next-day dispatch to support urgent maintenance requirements.
