Bently Nevada 330101-00-24-10-02-05 Spare Part for Factory Uptime

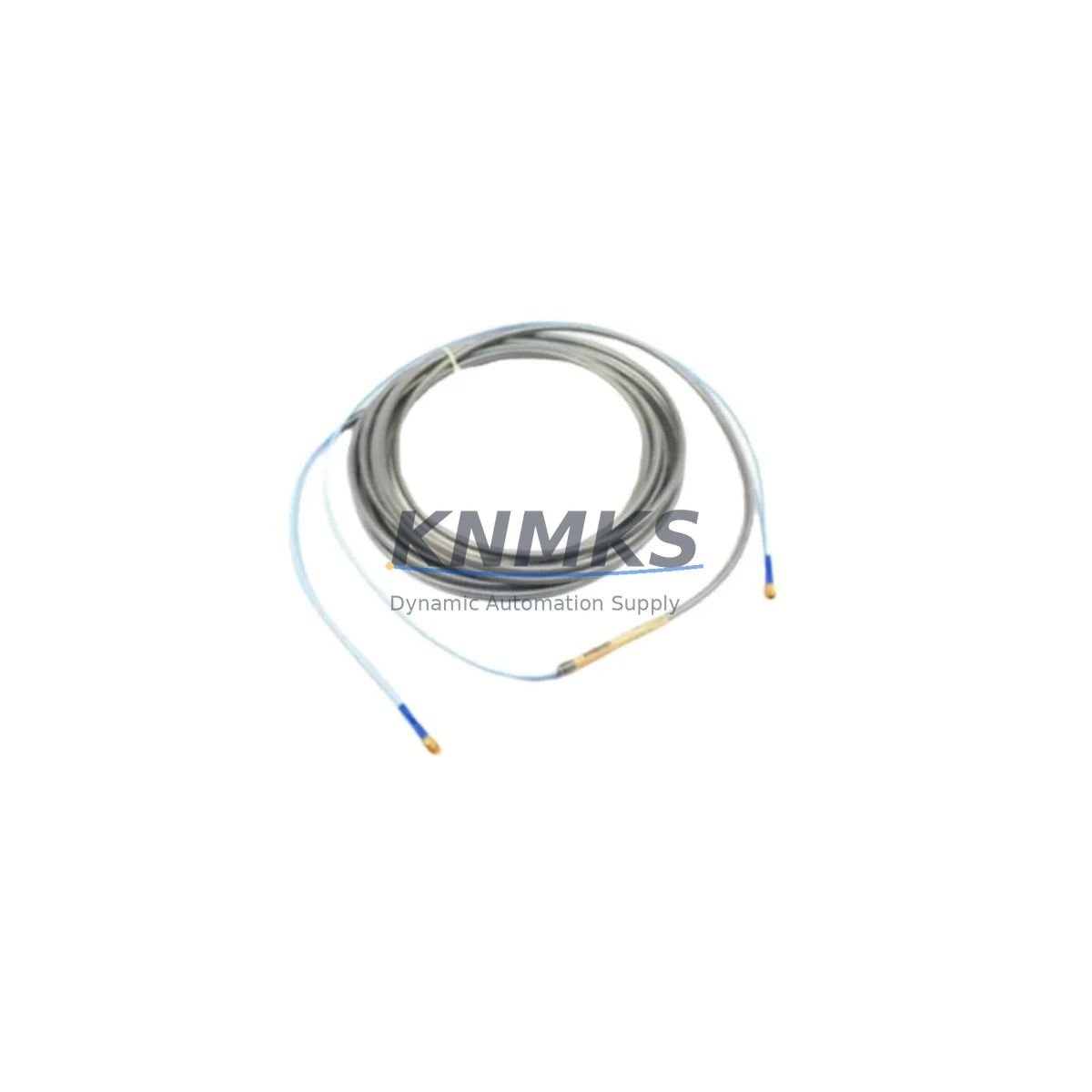

The Bently Nevada 330101-00-24-10-02-05 is an original proximity probe engineered for the 3300 XL Series continuous vibration monitoring system — one of the most widely deployed machinery protection platforms in rotating equipment facilities worldwide. This probe is a non-contacting, eddy-current-based transducer designed to measure radial shaft vibration, axial position, and differential expansion on turbines, compressors, pumps, and motors operating in critical process environments.

For maintenance engineers managing aging turbomachinery or DCS-integrated protection systems, the 330101-00-24-10-02-05 represents a precision-matched spare that eliminates calibration uncertainty and system compatibility risk. Its 24-inch (610 mm) integral cable length and 5-meter extension cable compatibility make it a direct field replacement for installed 3300 XL probe assemblies without requiring re-ranging or system reconfiguration. Stocking this SKU as a ready-to-deploy spare is a proven strategy for reducing unplanned downtime in facilities where vibration trip events can cascade into multi-day production losses.

Procurement engineers sourcing this part should verify the complete probe-extension-proximitor assembly to ensure system-level compatibility. The 330101-00-24-10-02-05 is designed to operate with the Bently Nevada 330130 series extension cables and the 3300 XL 8mm proximitor modules. Mismatched cable lengths or proximitor versions can introduce scale factor errors that compromise trip setpoint accuracy — a critical risk in API 670-compliant protection systems.

All units are pre-shipment tested for electrical continuity, gap voltage linearity, and sensitivity conformance before dispatch. support terms confirmed by quotation applies from date of shipment. Global stock availability supports rapid dispatch to North America, Europe, and Asia-Pacific maintenance sites.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330101-00-24-10-02-05 proximity probe in a 3300 XL monitoring loop, a disciplined maintenance engineer will treat the replacement as an opportunity to inspect the entire transducer chain. The 330130 series extension cable — which bridges the probe to the proximitor module — is a frequent source of intermittent faults due to connector corrosion, mechanical fatigue at conduit entry points, or insulation degradation in high-temperature environments. Replacing the probe without inspecting the extension cable can result in a repeat fault within weeks.

The 3300 XL Proximitor module (typically a 330180 or equivalent) should be checked for output voltage stability and verified against the expected gap voltage range (typically –10 VDC ±0.5 V at the recommended installation gap). A proximitor showing drift or noise on the DC output is a leading indicator of internal component degradation and should be flagged for replacement during the same maintenance window.

At the rack level, inspect the 3500 series monitoring rack I/O modules and barrier isolators if the 3300 XL signals are routed into a Bently Nevada 3500 system. Signal conditioning barriers — particularly Zener barriers or galvanic isolators used in hazardous area installations — can introduce impedance mismatches that affect scale factor accuracy. Verify barrier model compatibility with the 8mm probe system specification.

For facilities running integrated DCS or safety instrumented systems, confirm that the 4–20 mA output modules or relay output cards associated with the vibration channel are functioning within specification. A vibration trip that fails to actuate the relay output due to a faulty output card represents a dangerous gap in machinery protection — one that a probe replacement alone will not resolve.

Procurement teams should also consider stocking the 330130-080-00-00 extension cable (8-meter) and a spare 330180-X1-05 proximitor as companion spares to the 330101-00-24-10-02-05 probe. A complete transducer assembly spare — probe, cable, and proximitor — enables a full channel swap in under 30 minutes, minimizing mean time to repair (MTTR) during a vibration-related trip event.

Site Replacement Workflow

Step 1 — Isolation & Permit: Obtain a work permit and isolate the monitoring channel at the 3300 XL or 3500 rack. Do not remove the probe under live machinery conditions unless the system is configured for hot-swap with redundant channel coverage.

Step 2 — Gap Measurement: Before removing the old probe, record the installed gap voltage using a calibrated voltmeter at the proximitor output. This baseline confirms the target shaft surface condition and provides a reference for the replacement installation.

Step 3 — Probe Removal: Disconnect the extension cable at the probe connector. Unthread the probe from the mounting bracket using the appropriate spanner. Inspect the probe tip for physical damage, contamination, or oil ingress that may indicate a root cause beyond normal wear.

Step 4 — New Probe Installation: Install the 330101-00-24-10-02-05 replacement probe. Set the installation gap per the system documentation (typically 1.0 mm / 40 mil for 8mm probes on steel targets). Verify gap voltage at the proximitor output: target –10.0 VDC ±0.5 V.

Step 5 — System Verification: Reconnect the monitoring channel and verify that the vibration reading is within the expected baseline range for the machine at normal operating speed. Confirm that no alert or danger setpoints are falsely triggered. Document the replacement in the maintenance management system (CMMS) with the new probe serial number and installation date.

Step 6 — Spare Replenishment: Immediately initiate a purchase order to replenish the consumed spare. Facilities operating critical rotating equipment should maintain a minimum of one complete transducer assembly (probe + extension cable + proximitor) per monitored machine train.

Spare Parts Support FAQ

Q1: Is the 330101-00-24-10-02-05 a direct replacement for older 3300 series probes?
The 330101-00-24-10-02-05 is designed for the 3300 XL 8mm system. While it shares physical dimensions with some earlier 3300 series probes, the XL series uses a revised scale factor and proximitor pairing. Always verify the proximitor model and system documentation before substituting across series generations. If your installed system uses a pre-XL 3300 proximitor, consult the Bently Nevada compatibility matrix or contact our technical team before ordering.

Q2: What is the lead time and stock availability?
The 330101-00-24-10-02-05 is maintained in forward stock for rapid dispatch. Standard orders ship within 1–3 business days. For bulk procurement or long-term supply agreements covering 12-month maintenance cycles, contact our sales team to discuss reserved stock arrangements and volume pricing.

Q3: How is the unit tested before shipment?
Every unit undergoes 100% pre-shipment electrical testing including gap voltage linearity verification, sensitivity conformance check (200 mV/mil ±10%), and coaxial connector continuity. Test records are available upon request for quality-critical procurement processes.

Q4: What does the support terms confirmed by quotation cover?
The support terms confirmed by quotation cover manufacturing defects, electrical failure under normal operating conditions, and sensitivity out-of-specification performance. Support requests are supported with replacement dispatch or full credit. The confirmed support period begins from the date of shipment and applies to units installed and operated within the published environmental and electrical specifications.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345
