Bently Nevada 330101-00-23-90-02-CN Maintenance-Proven Spare Part for Factory Uptime

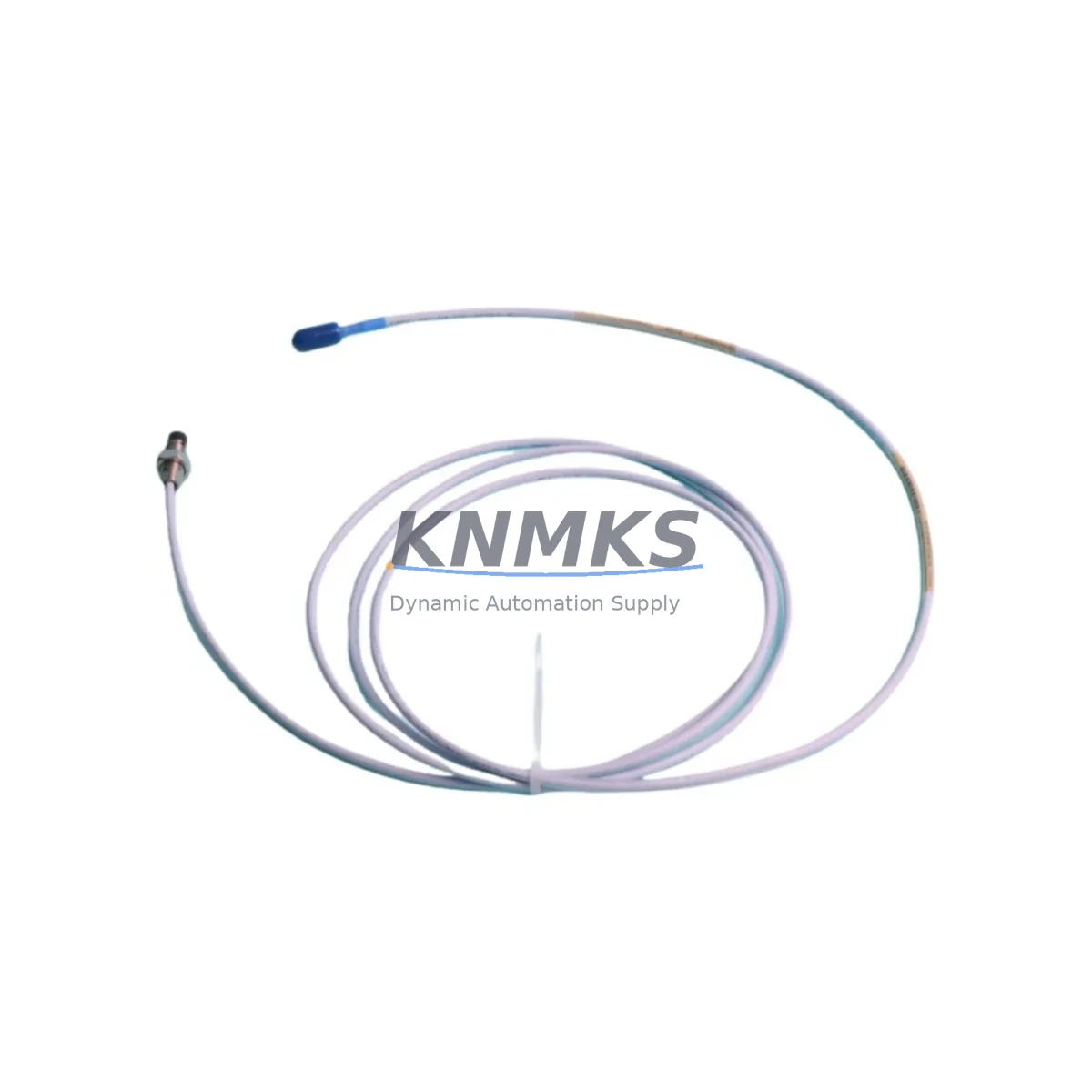

The Bently Nevada 330101-00-23-90-02-CN is an 8mm proximity probe designed for the 3300 XL Series continuous vibration monitoring system. As a critical sensing element in rotating machinery protection, this probe measures radial shaft displacement and provides real-time feedback to the monitoring rack, enabling early detection of bearing wear, rotor imbalance, and shaft misalignment before catastrophic failure occurs.

For maintenance engineers managing turbines, compressors, pumps, and motors in continuous-process industries, the 330101-00-23-90-02-CN represents a front-line defense against unplanned downtime. Its 200 mV/mil (7.87 V/mm) sensitivity, combined with a linear range of 0.25 mm to 2.25 mm, makes it a precision instrument that must be replaced with an original, factory-calibrated spare to maintain system accuracy and API 670 compliance.

Procurement engineers sourcing this part should verify that the replacement probe is matched to the correct extension cable and proximitor/driver module. The 330101-00-23-90-02-CN is designed to work within a complete measurement loop: the probe, a compatible extension cable such as the 330130-045-00-00, and a proximitor module such as the 3300 XL 8mm Proximitor (3300/16-23-01-00-00-00-00). Mismatching any element in this loop will result in calibration errors and false alarms, which can be more disruptive than the original fault condition.

During scheduled outages and annual turnarounds, maintenance teams should treat the proximity probe as a consumable item in high-vibration environments. Probe tip wear, coaxial cable jacket degradation, and connector corrosion are the most common failure modes. When replacing the 330101-00-23-90-02-CN, it is best practice to simultaneously inspect the full signal chain: check the extension cable for kinks or shield damage, verify the proximitor output voltage at the 3300 rack I/O module, and confirm that the OK relay output on the monitor card is functioning correctly. If the system uses a 3300/20-23-01-00-00-00-00 dual-channel monitor, both channels should be verified even if only one probe has failed.

For control cabinet inspections, engineers should also check the terminal block connections at the junction box, inspect the barrier or Zener barrier if the installation is in a hazardous area, and verify that the cable shield is grounded at one end only to prevent ground loops. Fuse integrity on the power supply rail feeding the 3300 rack should be confirmed, and the rack backplane connectors should be reseated if the system has been in service for more than five years.

KNMKS maintains ready stock of the 330101-00-23-90-02-CN and related 3300 XL Series components to support emergency replacement, planned maintenance, and long-term spare parts inventory programs. All units are tested prior to shipment and covered by a support terms confirmed by quotation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective maintenance planning for a 3300 XL vibration monitoring loop requires treating the 330101-00-23-90-02-CN as part of a system, not an isolated component. When this probe is scheduled for replacement during a planned outage, the maintenance window should also include inspection of the 330130-045-00-00 extension cable for jacket cracking or connector pin corrosion, and verification of the 3300 XL Proximitor module output using a calibrated gap tool.

At the rack level, the 3300/16-23-01-00-00-00-00 or 3300/20-23-01-00-00-00-00 monitor card should be checked for alarm setpoint integrity and OK relay function. The rack power supply module — typically a 3300/05 or equivalent — should be load-tested to confirm it is delivering stable -24 VDC to all channels. If the installation includes a System 1 or System 1 Evolution software interface, the channel configuration should be verified after probe replacement to ensure the new probe’s serial number and calibration data are correctly entered.

For hazardous area installations, the Zener barrier or galvanic isolator in the intrinsically safe circuit must be inspected for continuity and correct voltage clamping. Terminal block torque values at the field junction box should be verified, and the cable shield grounding point should be confirmed as single-ended. In multi-machine installations, it is common to find that a probe failure on one machine has caused nuisance alarms on adjacent channels due to shared power supply loading — checking the power supply output under full load is therefore a recommended step in any probe replacement workflow.

Procurement engineers building annual spare parts lists for 3300 XL systems should consider stocking the 330101-00-23-90-02-CN alongside matched extension cables, at least one spare proximitor module, and a set of monitor card fuses. For critical machines with no redundancy, a complete spare measurement loop — probe, cable, and proximitor — is the minimum recommended inventory level.

Site Replacement Workflow

Replacing the 330101-00-23-90-02-CN in the field follows a structured sequence to minimize downtime and avoid introducing new faults. Begin by confirming the machine is in a safe state and the monitoring channel has been bypassed or acknowledged at the 3300 rack to prevent spurious trips during the replacement. Document the existing probe gap voltage using the test point on the proximitor or monitor card before disconnecting the old probe.

Remove the old probe by unscrewing it from the mounting bracket, taking care not to damage the coaxial cable. Inspect the mounting threads and bracket for wear or corrosion. Install the new 330101-00-23-90-02-CN and set the gap to the manufacturer-specified value — typically 1.0 mm (40 mil) for most shaft materials — using a non-ferrous feeler gauge or a calibrated gap tool. Reconnect the extension cable and verify the output voltage at the proximitor test point matches the expected value for the set gap.

Once the gap is confirmed, restore the monitoring channel and observe the system for at least 15 minutes under normal operating conditions before releasing the machine to production. Record the replacement in the maintenance management system, including the new probe serial number, gap setting, and output voltage. This record is essential for future troubleshooting and for demonstrating API 670 compliance during audits.

For older systems where the 330101-00-23-90-02-CN is replacing a legacy probe from an earlier Bently Nevada series, confirm that the new probe’s sensitivity and linear range are compatible with the existing monitor card setpoints. In some cases, alarm and danger setpoints may need to be recalculated to account for differences in probe characteristics between generations.

Spare Parts Support FAQ

Q: Is the 330101-00-23-90-02-CN compatible with all 3300 XL monitor cards?
A: The 330101-00-23-90-02-CN is designed for use with 3300 XL 8mm Proximitor systems and is compatible with 3300/16 and 3300/20 series monitor cards. Always verify the monitor card’s input configuration matches the probe’s sensitivity (200 mV/mil) before installation. If the existing system uses a different proximitor version, consult the system documentation or contact KNMKS for compatibility confirmation.

Q: What is the recommended spare parts inventory strategy for critical rotating machinery?
A: For machines classified as critical (no installed spare), the minimum recommended inventory is one complete measurement loop per monitored point: one 330101-00-23-90-02-CN probe, one matched extension cable, and one spare proximitor module. For semi-critical machines, a shared pool of probes and cables covering 20–30% of installed points is a common industry practice. KNMKS can assist with inventory planning and long-term supply agreements.

Q: How does KNMKS verify the condition of the 330101-00-23-90-02-CN before shipment?
A: All units are functionally tested prior to shipment using calibrated test equipment to verify sensitivity, linear range, and connector integrity. Test results are available upon request. Each unit is covered by a support terms confirmed by quotation from the date of shipment, covering defects in materials and workmanship under normal operating conditions.

Q: Can KNMKS support long-term supply for discontinued or end-of-life Bently Nevada parts?
A: Yes. KNMKS specializes in long-term supply of industrial spare parts, including components that are no longer in active production. We maintain strategic stock of the 330101-00-23-90-02-CN and related 3300 XL Series components and can provide supply continuity agreements for customers managing aging systems. Contact [email protected] or +86 18359268345 to discuss your requirements.
