Bently Nevada 330101-00-22-10-02-05 Migration-Ready Proximity Probe

Overview

Bently Nevada 330101-00-22-10-02-05 Migration-Ready Proximity Probe for Legacy Control Systems

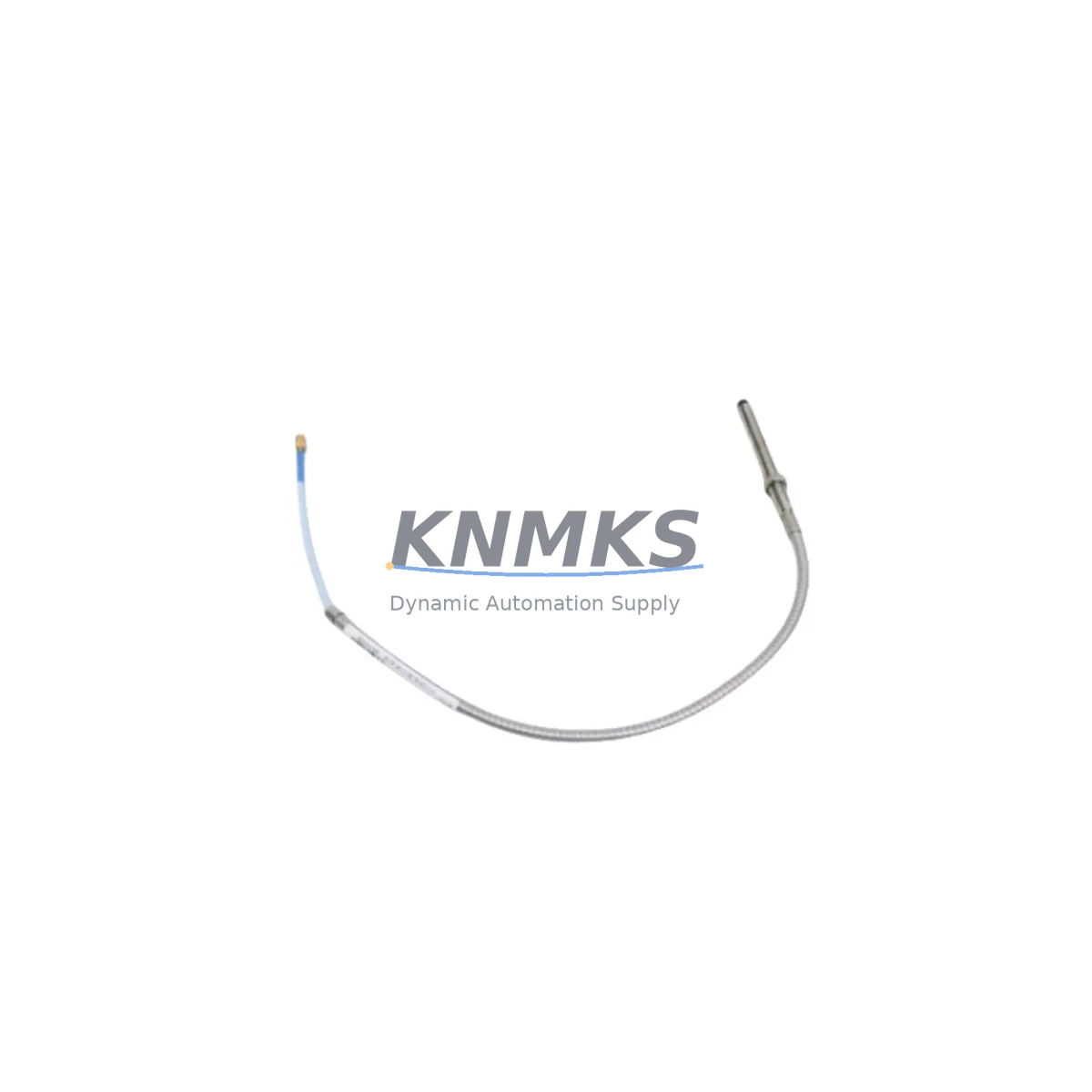

The Bently Nevada 330101-00-22-10-02-05 is an 8mm eddy-current proximity probe designed for continuous shaft vibration and position monitoring within the 3300 XL Series machinery protection platform. As original equipment manufacturers phase out legacy instrumentation and end-of-life part numbers become increasingly difficult to source, the 330101-00-22-10-02-05 remains one of the most requested drop-in replacements for rotating machinery applications in power generation, oil & gas, petrochemical, and heavy industrial sectors.

This probe is engineered to interface directly with the Bently Nevada 3300 XL proximitor/seismic monitor system, maintaining the same 200 mV/mil (7.87 V/mm) output sensitivity, -18 VDC to -24 VDC supply voltage range, and standard 5-meter integral cable configuration. When replacing a worn or failed unit on an existing installation, engineers must verify the existing junction box wiring, confirm the proximitor module part number — typically a 330180-X1-05 or 330180-X1-00 series — and ensure the gap voltage is re-established within the -10 VDC to -12 VDC operating window before returning the machine to service.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 330101-00-22-10-02-05 into an aging machinery protection system requires a structured approach that accounts for both the mechanical and electrical interfaces of the surrounding instrumentation. In most installations, the probe is paired with a 330130 series extension cable — commonly the 330130-080-00-00 (8-meter) or 330130-050-00-00 (5-meter) variant — which routes the signal from the machine casing to the proximitor module mounted in the control cabinet. Before disconnecting the old probe, technicians should record the existing gap voltage reading from the 330180 proximitor to use as a baseline during recommissioning.

Within the control cabinet, the 3300 XL rack typically houses a combination of the 3300/16 power supply module, the 3300/20 dual-channel monitor cards, and in some configurations, a 3300/46M or 3300/55 communication gateway for interfacing with a DCS or SCADA platform via Modbus RTU or Ethernet/IP. When the probe replacement is performed as part of a broader system upgrade — for example, migrating from a legacy 3300 Series rack to a current System 1 Evolution platform — the I/O mapping, channel configuration, and alarm setpoints stored in the existing monitor firmware must be documented and transferred to the new configuration before the old rack is decommissioned.

For installations where the control cabinet also contains a 3500 Series rack running in parallel for critical machinery, the 330101-00-22-10-02-05 probe can serve as an interim replacement while the full migration to 3500/42M or 3500/45 position monitor cards is planned. In these hybrid environments, maintaining consistent wiring labeling, terminal block assignments, and cable routing discipline is essential to avoid cross-channel errors during the transition period. A Bently Nevada 330930 field wiring termination block or equivalent DIN-rail terminal assembly should be used to maintain clean signal separation between the legacy and new system wiring.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement or broader 3300 XL system migration begins with pre-staging all replacement components before the maintenance window opens. For the 330101-00-22-10-02-05, this means having the replacement probe, the correct extension cable, a calibrated gap-setting tool, and the proximitor module — such as the 330180-X1-05 — bench-tested and verified before the machine is taken offline.

The original program logic stored in the 3300 XL monitor should be exported and archived prior to any hardware swap. If the installation uses a System 1 software platform for condition monitoring, the existing channel configuration, full-scale ranges, alert and danger setpoints, and Keyphasor assignments should be saved as a named configuration backup. This protects against accidental parameter loss if the monitor card requires a firmware update during the replacement process.

On-site commissioning of the 330101-00-22-10-02-05 follows a standard gap-setting procedure: with the machine stationary, adjust the probe tip-to-shaft gap to achieve a DC output voltage of approximately -10.4 VDC to -11.0 VDC at the proximitor output terminals, confirming the reading against the calibration curve for the specific target material. Once the gap is set and locked, the machine can be brought to operating speed while the vibration and position readings are verified against historical baseline values. Any deviation greater than 10% from the pre-replacement baseline should be investigated before the machine is returned to full load.

All units supplied by KNMKS are pre-shipment tested against Bently Nevada factory specifications, with test records available upon request. The support terms confirmed by quotation cover manufacturing defects and performance deviations from published specifications under normal operating conditions.

Retrofit Support FAQ

Q1: Is the 330101-00-22-10-02-05 a direct replacement for other 330101 suffix variants?
The 330101-00-22-10-02-05 is directly interchangeable with other 330101 series probes sharing the same 8mm diameter, 5-meter cable, and standard target material specification. Suffix variations primarily indicate connector type, cable jacket material, and temperature rating. Confirm the suffix against your existing installation drawing before ordering to ensure full mechanical and electrical compatibility.

Q2: What commissioning steps are required after installation?
After mechanical installation, re-establish the probe gap to achieve the correct DC bias voltage at the proximitor output (-10 VDC to -12 VDC typical). Verify the vibration channel reading at the 3300 XL monitor against the machine’s baseline. If the installation is connected to a System 1 platform, confirm the channel is communicating correctly and that no fault codes are present before returning the machine to service.

Q3: Can this probe be used with a 3500 Series monitor rack?
The 330101-00-22-10-02-05 is optimized for the 3300 XL platform. While the probe’s analog output is electrically compatible with 3500 Series proximitor inputs in some configurations, formal cross-platform compatibility should be verified against the 3500 Series channel configuration and the specific proximitor module in use. For a full 3500 Series migration, consider the 330780 or 330900 series probes designed specifically for that platform.

Q4: What is the support terms coverage and how is pre-shipment testing performed?
All 330101-00-22-10-02-05 units supplied by KNMKS carry a support terms confirmed by quotation from the date of shipment, covering manufacturing defects and performance non-conformance under normal operating conditions. Pre-shipment testing includes output sensitivity verification, insulation resistance check, and gap voltage calibration against a reference target. Test certificates are available upon request. For inventory availability and lead time, contact [email protected] or call +86 18359268345.
