Bently Nevada 330101-00-20-50-02-CN Spare Probe: Maintenance-Proven Spare Part for Factory Uptime

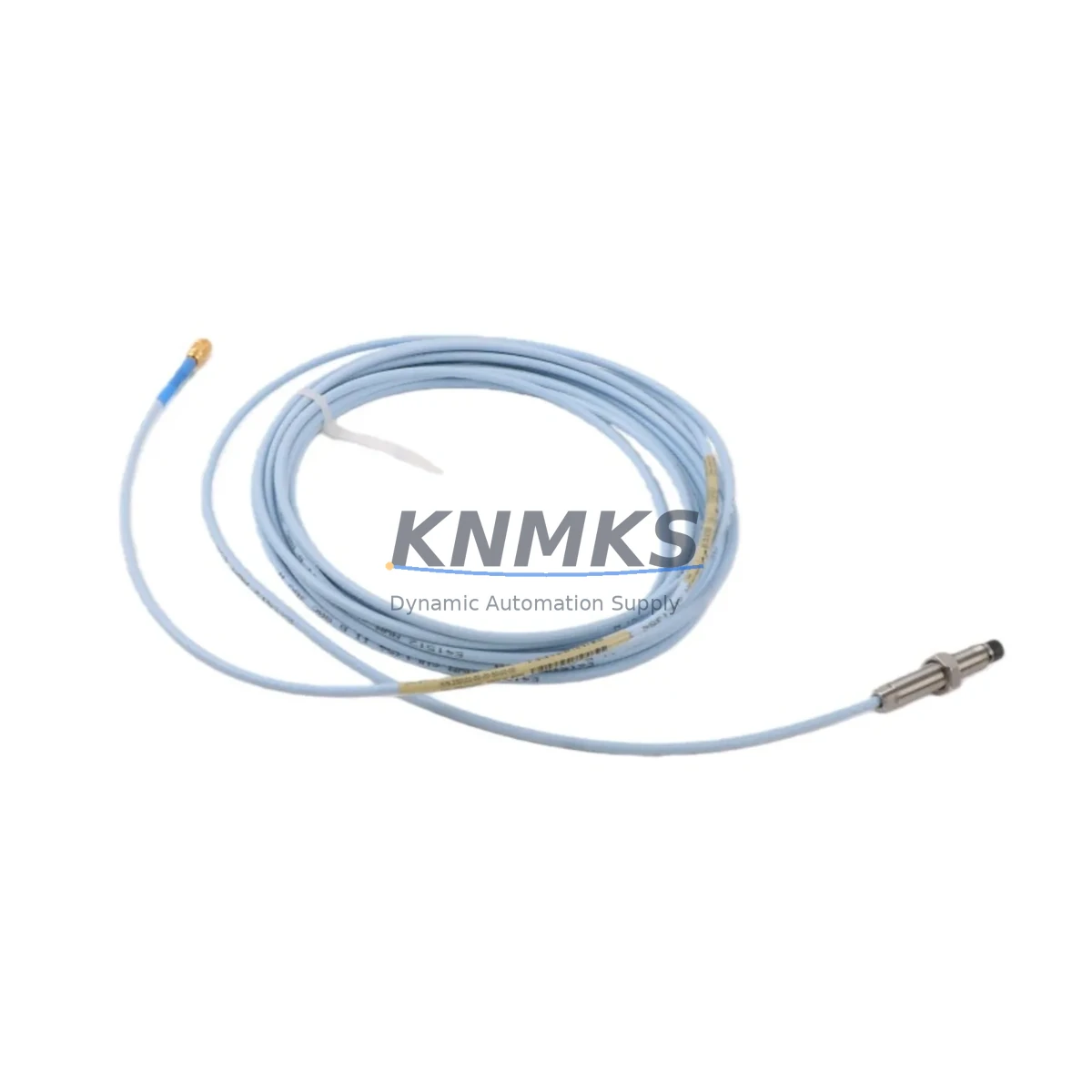

The Bently Nevada 330101-00-20-50-02-CN is an 8mm proximity probe designed for the 3300 XL continuous vibration monitoring system. As a critical sensing element in rotating machinery protection, this probe measures radial shaft vibration, axial position, and differential expansion in turbines, compressors, pumps, and motors across energy, petrochemical, and heavy manufacturing facilities. Maintaining a verified stock of this probe is essential for any maintenance team responsible for API 670-compliant machinery protection systems.

For maintenance engineers and procurement teams managing rotating equipment reliability programs, the 330101-00-20-50-02-CN represents a non-negotiable spare. Its 20-inch (500mm) cable length and 50mm probe body length make it a direct fit for standard 3300 XL transducer installations without field modification. When a probe fails during a scheduled outage or unplanned trip, having a pre-tested, original replacement on the shelf is the difference between a two-hour recovery and a multi-day production loss.

KNMKS supplies this probe as a fully tested original spare with support terms confirmed by quotation coverage, pre-shipment functional verification, and long-term supply commitment — supporting both emergency replacement orders and annual maintenance planning cycles.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330101-00-20-50-02-CN in the field, a thorough inspection of the surrounding transducer loop is essential to prevent repeat failures and ensure measurement accuracy. The Bently Nevada 3300 XL transducer system is a three-component assembly: the probe, the extension cable (typically a 330130-series or 330180-series Proximitor extension), and the Proximitor sensor driver module. All three components must be matched and verified together — replacing only the probe without checking the extension cable and driver can result in calibration errors or false trips.

Maintenance engineers should also inspect the 3300 XL monitor rack and its associated I/O modules during any probe replacement event. Verify that the monitor channel assigned to the replaced probe is reading correctly after reinstallation, and confirm that the 3500/42M Proximitor I/O Module or equivalent rack card shows no fault flags. If the system uses a 3500 Series rack alongside the 3300 XL, check the backplane connections and verify that the communication module (such as the 3500/92 Communication Gateway) is transmitting updated vibration data to the DCS or SCADA layer without interruption.

For installations in high-temperature or high-vibration environments, inspect the probe mounting bracket, the armored extension cable conduit, and the terminal block connections at the junction box. Loose or corroded terminals are a common secondary cause of probe signal degradation. Additionally, verify the signal isolator or barrier in the intrinsically safe circuit (where applicable) — a degraded Zener barrier or galvanic isolator can introduce noise that mimics probe wear. Fuse protection on the Proximitor power supply rail should also be checked and replaced on a scheduled basis as part of the annual inspection cycle.

For procurement engineers building a spare parts inventory, the 330101-00-20-50-02-CN should be stocked alongside its matched extension cable and at least one spare Proximitor sensor driver to form a complete transducer set. This approach eliminates the risk of a partial replacement scenario during an emergency outage.

Site Replacement Workflow

Step 1 — Isolation & Lockout: Follow site LOTO procedures. De-energize the Proximitor sensor power supply before disconnecting the probe. Confirm the monitor channel is in bypass mode to prevent false trip signals during replacement.

Step 2 — Probe Removal: Unscrew the probe from the mounting bracket. Note the gap voltage reading before removal (typically –10 to –18 VDC for a healthy installation). Record the as-found gap distance for comparison after reinstallation.

Step 3 — Inspection: Inspect the probe tip for physical damage, contamination, or corrosion. Check the integral cable for kinks, abrasion, or connector damage. If the extension cable shows any wear, replace it simultaneously with the probe.

Step 4 — Installation: Thread the replacement 330101-00-20-50-02-CN into the mounting bracket. Set the probe gap to the manufacturer-specified distance (typically 50 mil / 1.27 mm for 8mm probes on steel targets). Verify gap voltage is within the –10 to –18 VDC range using a calibrated voltmeter.

Step 5 — Verification: Remove the monitor channel from bypass. Confirm the vibration reading is stable and within baseline. Check for alarm or danger setpoint integrity in the 3300 XL monitor. Log the replacement in the maintenance management system (CMMS) with the new probe serial number.

Step 6 — Documentation: Update the spare parts inventory record. If the replaced probe is the last unit on the shelf, initiate a replenishment order immediately to maintain minimum stock levels.

Spare Parts Support FAQ

Q1: Is the 330101-00-20-50-02-CN compatible with both the 3300 XL and 3500 Series monitors?
The 330101-00-20-50-02-CN is designed and calibrated for the Bently Nevada 3300 XL transducer system. While the physical probe may be installed in other eddy current systems, full compatibility and calibration accuracy are guaranteed only when used with the matched 3300 XL Proximitor sensor and extension cable. For 3500 Series applications, verify the specific transducer set requirements with your system documentation before ordering.

Q2: What pre-shipment testing does KNMKS perform on this probe?
Every 330101-00-20-50-02-CN shipped by KNMKS undergoes functional verification including gap voltage output check, sensitivity confirmation, and cable continuity test. A test report is available upon request. All units are covered by a support terms confirmed by quotation from the date of shipment.

Q3: Can KNMKS support long-term or blanket purchase orders for this SKU?
Yes. KNMKS supports long-term supply agreements and blanket PO arrangements for the 330101-00-20-50-02-CN and related 3300 XL transducer components. This is recommended for facilities with multiple monitored machines to ensure consistent availability and avoid lead time risk during peak maintenance seasons.

Q4: What is the recommended minimum stock level for a facility running multiple 3300 XL systems?
Industry best practice for API 670-compliant facilities is to maintain a minimum of two complete transducer sets (probe + extension cable + Proximitor driver) per monitored machine train, plus a facility-level buffer of 10–20% of the total installed probe count. For facilities with 10 or more monitored machines, a standing replenishment agreement with a verified supplier such as KNMKS is strongly recommended to prevent stockout risk during unplanned outages.
