Bently Nevada 330101-00-20-50-02-05 Spare Proximity Probe: Maintenance-Proven Part for Factory Uptime

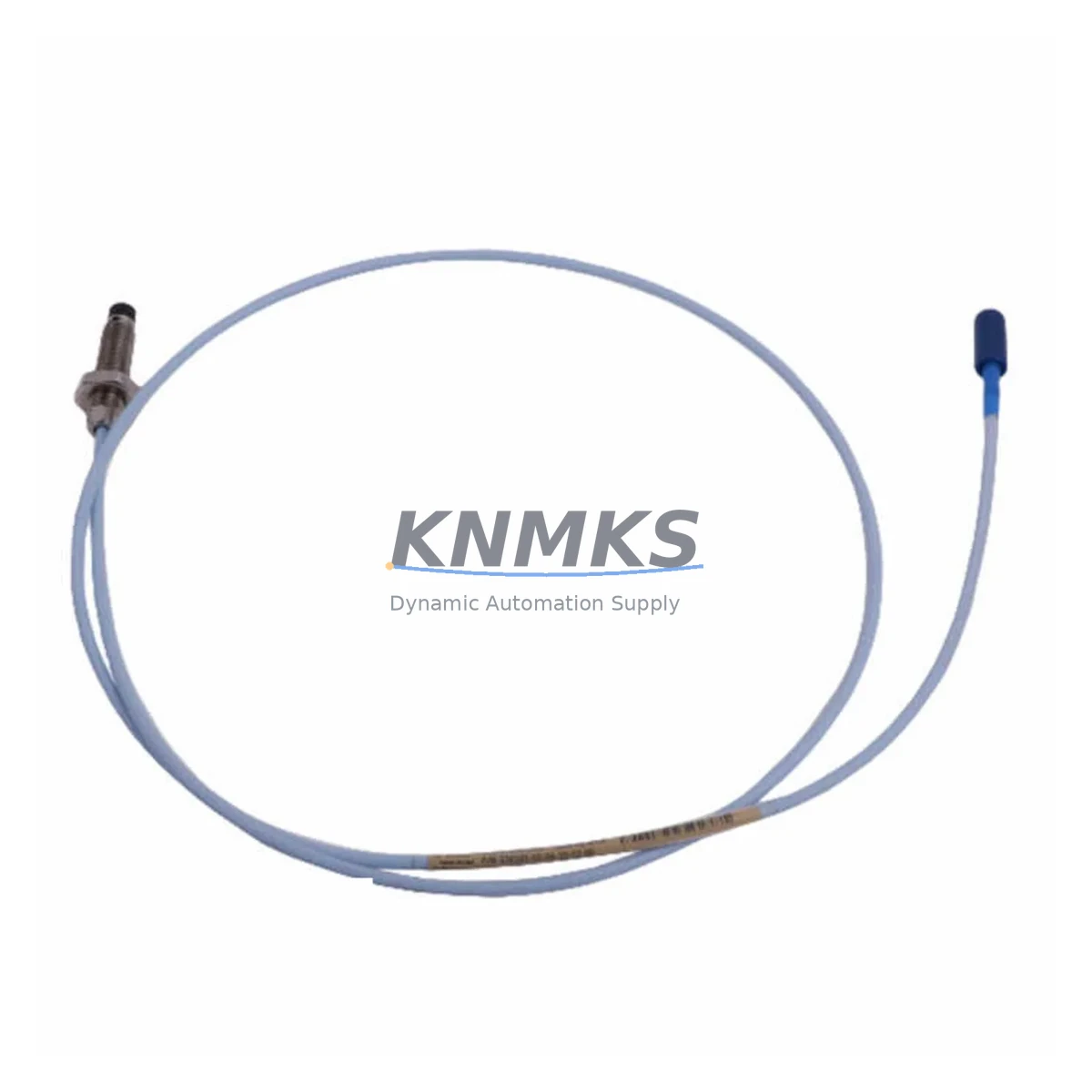

The Bently Nevada 330101-00-20-50-02-05 is an 8mm proximity probe engineered for the 3300 XL Series continuous vibration monitoring system. Designed for rotating machinery protection in turbines, compressors, pumps, and motors, this probe delivers reliable radial vibration, axial position, and differential expansion measurements in demanding industrial environments. Sourced as an original spare, pre-shipment tested, and backed by a support terms confirmed by quotation, the 330101-00-20-50-02-05 is a direct drop-in replacement that minimizes downtime and restores system integrity without recalibration risk.

Maintenance engineers and procurement teams managing legacy 3300 XL installations rely on this probe for scheduled outage kits, emergency replacements, and long-term spare parts inventory. With multi-region stock and fast global dispatch, KNMKS ensures critical replacement parts reach your site before the next planned or unplanned shutdown window.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330101-00-20-50-02-05 proximity probe during a planned outage or emergency shutdown, a thorough inspection of the surrounding measurement loop is essential to prevent repeat failures and ensure accurate vibration data after restart. The probe does not operate in isolation — it is part of a complete eddy-current measurement chain that must be verified as a system.

Begin with the 3300 XL 8mm Proximitor Sensor (330180-91-00), the signal conditioning driver that pairs directly with this probe. A degraded or mismatched Proximitor will produce offset gap voltages and false vibration alarms even with a new probe installed. Inspect the Proximitor for moisture ingress, connector corrosion, and correct gap voltage output (typically -10 VDC at the nominal operating gap).

Next, inspect the extension cable assembly (330130-080-00-00) connecting the probe to the Proximitor. Cable damage, kinking near the bearing housing, or connector pin corrosion are common failure points in high-vibration environments. Replace the cable if continuity or insulation resistance is outside specification.

The 3300 XL rack power supply module feeding the monitoring system should be checked for output voltage stability. A drifting -24 VDC supply will affect all channels simultaneously and is frequently misdiagnosed as a probe failure. Verify ripple and regulation under load before commissioning the new probe.

For systems using the 3500/42M Proximitor/Seismic Monitor or integrated 3500 rack, confirm that the I/O module terminal assignments and channel configuration match the replacement probe’s wiring. Incorrect terminal mapping will result in reversed polarity readings or no output signal.

If the machine train includes thrust position monitoring, also inspect the 330105 or 330106 series thrust probes installed on the same shaft. Thrust and radial probes share the same rack infrastructure, and a common-mode power or grounding issue will affect all channels. Replacing only the failed probe without checking adjacent channels risks a second unplanned outage within the same maintenance cycle.

Finally, review the rack I/O terminal barrier or Zener barrier modules if the installation is in a hazardous area (Zone 1/2 or Division 1/2). Barrier degradation can introduce loop resistance that shifts the probe’s operating point outside the linear range, producing systematic measurement error that is difficult to diagnose without a full loop calibration check.

Stocking a complete probe-plus-Proximitor kit — including one spare extension cable — is the recommended inventory strategy for any facility running 3300 XL systems on critical rotating equipment. KNMKS maintains multi-region stock of the full 3300 XL probe family to support both emergency dispatch and scheduled outage kitting.

Site Replacement Workflow

Step 1 — Isolation and lockout: Follow site LOTO procedures. De-energize the 3300 XL rack channel associated with the probe being replaced. Do not remove the probe under live power; the Proximitor output will spike and may trigger spurious trips on adjacent channels.

Step 2 — Probe removal: Unscrew the probe from the bearing housing bracket using the correct spanner. Note the installed gap (number of turns from contact) for reference during reinstallation. Inspect the probe tip for impact damage, pitting, or contamination that may indicate a secondary mechanical issue.

Step 3 — Target surface inspection: Before installing the new 330101-00-20-50-02-05, inspect the shaft target area for runout, scratches, or surface treatment changes. Electrical runout exceeding 0.25 mil pk-pk should be documented and reported to the reliability engineer, as it will appear as a 1X vibration component after reinstallation.

Step 4 — Installation and gap setting: Thread the new probe into the bracket and set the gap to the system-specified nominal value (typically 50 mil / 1.27 mm for this probe). Verify gap voltage at the Proximitor output with a calibrated voltmeter before reconnecting the rack.

Step 5 — Loop verification: Re-energize the channel and confirm gap voltage, vibration baseline, and alarm setpoints in the 3300 XL or 3500 rack display. Compare readings against the pre-outage baseline trend. Any deviation greater than 10% warrants investigation before returning the machine to service.

Step 6 — Documentation: Record the replacement date, new probe serial number, gap setting, and post-installation gap voltage in the site maintenance management system (CMMS). Update the spare parts inventory to trigger reorder of the consumed probe.

Spare Parts Support FAQ

Q1: Is the 330101-00-20-50-02-05 a direct replacement for older 330101 series probes?
Yes. The 330101-00-20-50-02-05 is backward compatible with earlier 330101 series 8mm probes used in 3300 XL and legacy 3300 systems, provided the Proximitor driver model is also 3300 XL series. If the existing Proximitor is a pre-XL 3300 model, verify sensitivity and gap voltage specifications before installation to confirm full system compatibility.

Q2: What pre-shipment testing does KNMKS perform on this probe?
Each 330101-00-20-50-02-05 unit is bench-tested for gap voltage output, sensitivity linearity, and cable continuity before dispatch. Test records are available on request. Units that do not meet Bently Nevada factory specifications are quarantined and not shipped. This testing protocol supports the support terms confirmed by quotation covering manufacturing defects and performance deviations under normal operating conditions.

Q3: How should this probe be stored in a spare parts inventory?
Store in the original packaging or an anti-static, moisture-resistant bag in a temperature-controlled environment (0°C to 40°C, <85% RH non-condensing). Avoid storing near strong magnetic fields or solvents. Inspect the probe tip and connector annually. Recommended maximum shelf life before installation verification is 5 years; re-test gap voltage output before installing a probe that has been in storage for more than 3 years.

Q4: Can KNMKS support long-term supply agreements for 3300 XL probe families?
Yes. KNMKS offers long-term supply agreements for the full Bently Nevada 3300 XL probe and Proximitor family, including the 330101, 330105, 330106, and 330180 series. Multi-region stock is maintained to support both emergency same-week dispatch and annual outage kitting programs. Contact [email protected] or +86 18359268345 to discuss volume pricing, consignment stock, and scheduled delivery programs.
