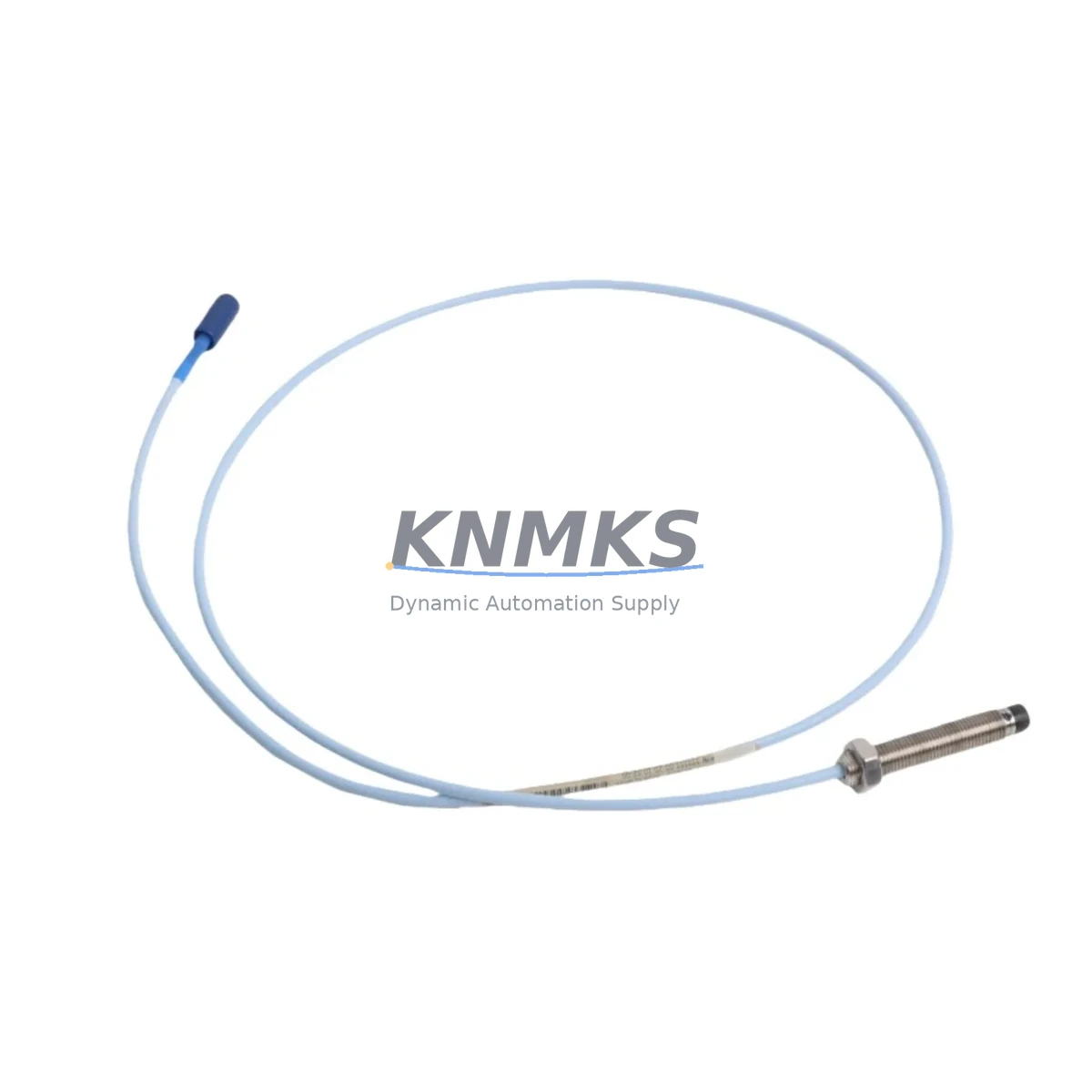

Bently Nevada 330101-00-20-20-02-CN Fail-Safe Proximity Probe

Overview

Bently Nevada 330101-00-20-20-02-CN Fail-Safe Proximity Probe: Industrial Control Reliability

The Bently Nevada 330101-00-20-20-02-CN is an 8mm eddy-current proximity probe engineered for the 3300 XL Series continuous vibration monitoring system. Designed to deliver fail-safe, uninterrupted shaft displacement and vibration measurement in the most demanding industrial environments, this probe is a critical component in safety instrumented systems (SIS), critical machinery protection loops, and high-availability control architectures across petrochemical, power generation, mining, water treatment, metallurgical, port, and continuous manufacturing facilities.

In rotating machinery protection — turbines, compressors, pumps, fans, and gearboxes — signal integrity is non-negotiable. The 330101-00-20-20-02-CN is built to eliminate the root causes of unplanned shutdowns: signal drift under thermal cycling, false trips from electromagnetic interference, and measurement loss during power transients. Its eddy-current sensing principle operates without physical contact, removing mechanical wear as a failure mode and ensuring consistent gap voltage output across the full service life of the probe.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Reliable vibration monitoring begins at the probe tip but depends on a fully coordinated signal chain. The 330101-00-20-20-02-CN is designed to operate within a complete 3300 XL protection architecture. The probe connects via a matched Bently Nevada 330130-045-00-CN extension cable, which maintains signal fidelity over long field runs in high-EMI environments such as motor control centers and switchgear rooms. The signal is conditioned by the Bently Nevada 330180-51-00 8mm Proximitor, which converts gap voltage to a calibrated 4–20 mA or voltage output for the 3300/16 Rack Monitor.

Within the control cabinet, power supply stability is essential. Voltage fluctuations and surge events are among the leading causes of Proximitor drift and false alarm trips. Pairing the monitoring system with a Bently Nevada 3300/20 Power Supply module — or an equivalent DIN-rail 24 VDC redundant supply — provides the regulated, low-ripple power that the 3300 XL signal chain requires. For installations in hazardous areas or high-surge environments, a Phoenix Contact TRABTECH surge protection device on the 24 VDC bus further reduces the risk of transient-induced measurement errors.

In safety instrumented systems, the vibration signal from the 330101-00-20-20-02-CN is typically routed to a Triconex or Rockwell GuardLogix Safety PLC via the rack monitor’s relay or analog output. Ensuring the integrity of this signal path — from probe to safety logic solver — is fundamental to achieving the required SIL level for machinery overspeed and high-vibration shutdown functions. Regular loop checks using a Bently Nevada 3300 Tester or equivalent field calibrator confirm that the entire measurement chain remains within specification between planned maintenance intervals.

Critical Industrial Safety Applications

The 330101-00-20-20-02-CN is deployed across a wide range of critical industrial sectors where rotating machinery failure carries severe safety and financial consequences:

Petrochemical & Refining: Installed on process gas compressors, reactor charge pumps, and steam turbine-driven blowers, the probe provides continuous shaft radial vibration monitoring that feeds directly into the emergency shutdown (ESD) system. In API 670-compliant installations, it supports the high-vibration trip function that protects against catastrophic bearing failure and seal loss.

Power Generation: On steam and gas turbines, the 330101-00-20-20-02-CN monitors shaft eccentricity and differential expansion in addition to radial vibration. Its wide operating temperature range and resistance to steam and oil mist ingress make it suitable for both the hot end and cold end of large turbine trains.

Mining & Mineral Processing: Ball mills, SAG mills, and large slurry pumps operate in environments with extreme dust loading, high ambient vibration, and frequent electrical transients from variable-frequency drives. The probe’s shielded coaxial construction and IP67-equivalent sealing maintain measurement accuracy under these conditions, reducing unplanned downtime in continuous ore processing circuits.

Water & Wastewater Treatment: Large vertical turbine pumps and centrifugal blowers in water treatment plants benefit from non-contact vibration monitoring that eliminates the need for periodic sensor replacement associated with contact-type accelerometers. The 330101-00-20-20-02-CN supports predictive maintenance programs that extend mean time between failures (MTBF) for critical pumping assets.

Metallurgy & Steel: In continuous casting lines and rolling mills, the probe withstands high ambient temperatures, heavy electromagnetic interference from induction furnaces, and mechanical shock from rolling impacts — environments where lesser sensors fail prematurely and cause costly production interruptions.

Port & Marine: Installed on large diesel generator sets, bow thrusters, and cargo pump turbines aboard vessels and at port facilities, the probe provides the vibration data needed to detect early-stage bearing degradation before it escalates to a failure that could strand a vessel or halt port operations.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the 330101-00-20-20-02-CN?
All units are covered by a support terms confirmed by quotation from the date of shipment. If a unit fails under normal operating conditions within the confirmed support period, we provide a replacement or documented resolution support. Our support terms reflects our confidence in the quality of every unit we dispatch.

Q2: How is each unit tested before shipment?
Every 330101-00-20-20-02-CN undergoes functional verification prior to dispatch, including output sensitivity check, insulation resistance test, and visual inspection for cable and connector integrity. Units sourced as surplus new are additionally inspected for storage condition and packaging integrity to ensure they meet the same performance standard as factory-fresh stock.

Q3: Is this probe compatible with existing 3300 XL racks and Proximitors already installed in the field?
Yes. The 330101-00-20-20-02-CN is a direct replacement for the standard Bently Nevada 8mm probe in the 3300 XL system. It is compatible with all 330180-series Proximitors and 3300/16 rack monitors. No recalibration of the rack is required provided the replacement probe is installed at the same gap distance as the original.

Q4: Can long-term supply commitments be arranged for maintenance and turnaround planning?
Yes. We maintain standing inventory of the 330101-00-20-20-02-CN and can support scheduled maintenance programs, annual turnaround requirements, and emergency replacement needs. Contact our team to discuss volume pricing, reserved stock arrangements, and lead-time guarantees for your facility’s planned outage schedule.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345

Product Identification

Brand / Ecosystem

Bently Nevada
Bently Nevada

Model / Series

330101-00-20-20-02-CN
Bently Nevada 3300 XL / 3301 Series

Product Family

Sensors

Availability Status

Available on request after model and quantity confirmation

Inquiry Type

B2B RFQ, replacement inquiry and project spare-part request

Pre-Quote Check

Exact SKU, brand, series, quantity, nameplate photos and destination country are checked before quotation

Specification & Inquiry Focus

Sensor range

Photoelectric, proximity and process sensors

Common needs

Output type, distance and connector

Project support

Machine detection and replacement inquiry

Inquiry Support

• NPN/PNP, analog and digital output checking
• Connector and cable compatibility review
• Fast inquiry support for maintenance teams

What to Send Us

• Brand and exact model number: Bently Nevada 330101-00-20-20-02-CN
• Quantity and required delivery time
• Application, replacement requirement or nameplate photo
• Destination country and shipping preference
