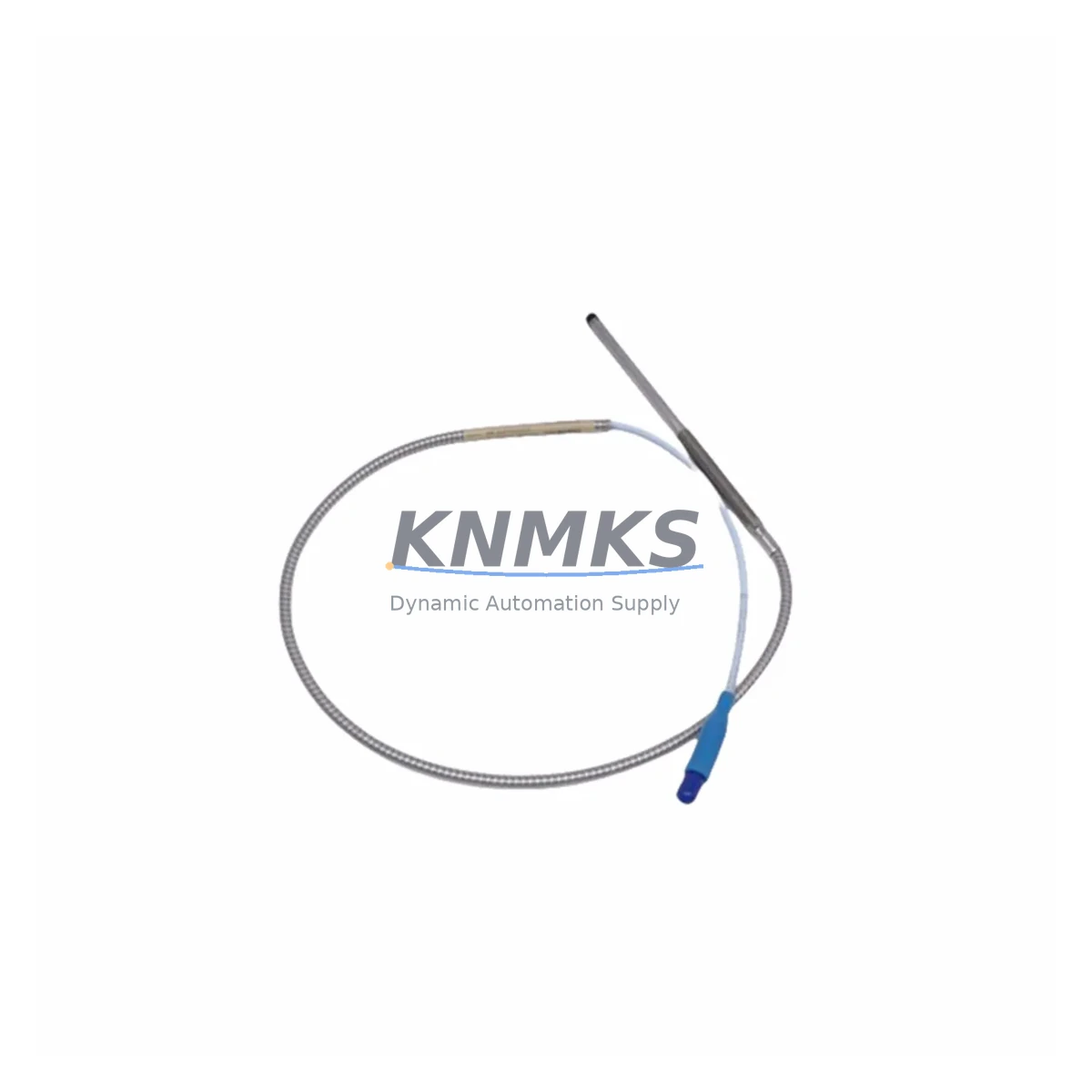

The Bently Nevada 330101-00-20-15-02-05 is an original eddy current proximity probe from the 3300 XL Series, engineered for continuous vibration and position monitoring in rotating machinery applications. Deployed across turbines, compressors, pumps, and critical drive trains in oil & gas, power generation, petrochemical, and heavy manufacturing facilities, this probe is a cornerstone of predictive maintenance programs worldwide.

Maintaining a verified stock of the 330101-00-20-15-02-05 is essential for any facility running Bently Nevada 3300 XL monitoring systems. Unplanned probe failure during operation can trigger immediate machinery shutdown, cascade into extended downtime, and compromise vibration data integrity across the entire monitoring loop. With pre-tested, support terms-backed spares on hand, maintenance teams can execute same-shift replacements and restore full monitoring capability without waiting on extended lead times.

KNMKS supplies the 330101-00-20-15-02-05 from verified multi-region stock, with pre-shipment electrical testing, full documentation, and a support terms confirmed by quotation on every unit. Emergency dispatch is available for unplanned outage scenarios.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling replacement of the 330101-00-20-15-02-05 proximity probe, a thorough inspection of the surrounding monitoring loop is critical to prevent repeat failures and ensure data integrity. Maintenance engineers should treat probe replacement as an opportunity for a full 3300 XL channel audit.

Begin by verifying the condition of the 330101-05-0060-02-05 extension cable that connects the probe to the proximitor. Extension cables are subject to mechanical fatigue, connector corrosion, and insulation degradation — a worn cable can introduce signal noise that mimics probe failure and leads to misdiagnosis. Inspect the cable routing, strain relief points, and connector seating before commissioning the new probe.

Next, confirm the health of the 330180-91-00 proximitor/driver module (or equivalent 3300 XL series driver). The proximitor converts the probe’s oscillator signal into a DC voltage proportional to gap distance; a drifting or failed driver will produce erroneous readings even with a new probe installed. Check driver output voltage at the nominal gap and compare against the system’s baseline calibration records.

Inspect the 3300/16 or 3300/20 monitor module in the rack for alarm setpoint integrity, OK relay status, and any latched fault conditions. Confirm that the monitor’s input channel is correctly configured for the 200 mV/mil scale factor of the 330101 series probe. Mismatched scale factors are a common source of post-replacement calibration errors.

Review the condition of the rack power supply module feeding the 3300 XL system. Voltage ripple or supply instability can corrupt vibration readings and accelerate proximitor wear. A dedicated 24 VDC or ±15 VDC supply with adequate filtering is essential for measurement accuracy in high-vibration environments.

For facilities running dual-channel redundant configurations, also verify the 3300/55 dual-channel monitor voting logic and ensure both channels are re-zeroed after probe replacement. Finally, check the terminal strip and field wiring in the junction box for corrosion, loose terminations, and correct shielding continuity — grounding faults at the junction box are a frequent but overlooked source of signal interference in eddy current monitoring loops.

Stocking a matched set of the 330101-00-20-15-02-05 probe, its extension cable, and a spare proximitor module as a complete replacement kit is the recommended approach for facilities with zero-tolerance downtime requirements.

Site Replacement Workflow

Step 1 — Isolation & Lockout: Follow site LOTO procedures. Isolate the monitor channel and confirm the machinery is in a safe state before accessing the probe mounting location.

Step 2 — Gap Measurement & Documentation: Record the existing probe gap voltage and physical gap distance before removal. This baseline is required for post-installation verification and calibration sign-off.

Step 3 — Probe Removal: Unthread the 330101-00-20-15-02-05 from its mounting bracket using the correct 8 mm spanner. Inspect the probe tip and target surface for wear, scoring, or contamination. Clean the target area before installing the replacement.

Step 4 — New Probe Installation: Thread the replacement probe to the correct gap distance (typically 1.0 mm / 40 mil for standard 3300 XL applications). Verify gap voltage at the proximitor output matches the expected -10 VDC ±0.5 VDC. Lock the probe in position with the jam nut.

Step 5 — System Verification: Restore monitor channel, confirm OK relay status, verify alarm setpoints, and run a brief operational check. Log the replacement in the site maintenance management system (CMMS) with the new probe serial number and gap voltage reading.

Step 6 — Return to Service: Clear any latched alarms, confirm data historian is receiving valid vibration data, and notify the control room that the channel is back in service. File the support terms confirmed by quotation documentation for the replacement unit.

This workflow minimizes total replacement time to under 90 minutes for experienced maintenance teams and ensures full system compatibility is maintained without requiring monitor reconfiguration.

Spare Parts Support FAQ

Q1: Is the 330101-00-20-15-02-05 compatible with all 3300 XL monitor modules?
Yes. The 330101-00-20-15-02-05 is designed for use with the full Bently Nevada 3300 XL series, including the 3300/16, 3300/20, 3300/25, and 3300/55 monitor modules. The 200 mV/mil scale factor is standard across the 3300 XL platform. Always verify the monitor channel’s configured scale factor matches the probe specification before commissioning.

Q2: What pre-shipment testing is performed on each unit?
Every 330101-00-20-15-02-05 supplied by KNMKS undergoes electrical continuity testing, gap voltage verification at nominal gap, and oscillator frequency confirmation prior to dispatch. A test report is available upon request. Units are shipped in anti-static protective packaging to prevent transit damage.

Q3: How should I manage long-term spare parts inventory for the 3300 XL system?
For facilities with multiple 3300 XL monitoring loops, we recommend maintaining a minimum of two 330101-00-20-15-02-05 probes per critical machine train, paired with one spare extension cable and one spare proximitor module per rack. Annual inventory audits should verify probe condition, cable integrity, and proximitor calibration drift. KNMKS offers long-term supply agreements to ensure consistent availability without per-order lead time risk.

Q4: What is covered under the support terms confirmed by quotation?
The support terms confirmed by quotation cover manufacturing defects, electrical failure under normal operating conditions, and out-of-specification performance verified by test data. It does not cover physical damage from improper installation, over-torquing, or exposure to conditions outside the rated operating range. Support requests are processed with return authorization; replacement units are dispatched from stock upon claim approval.
