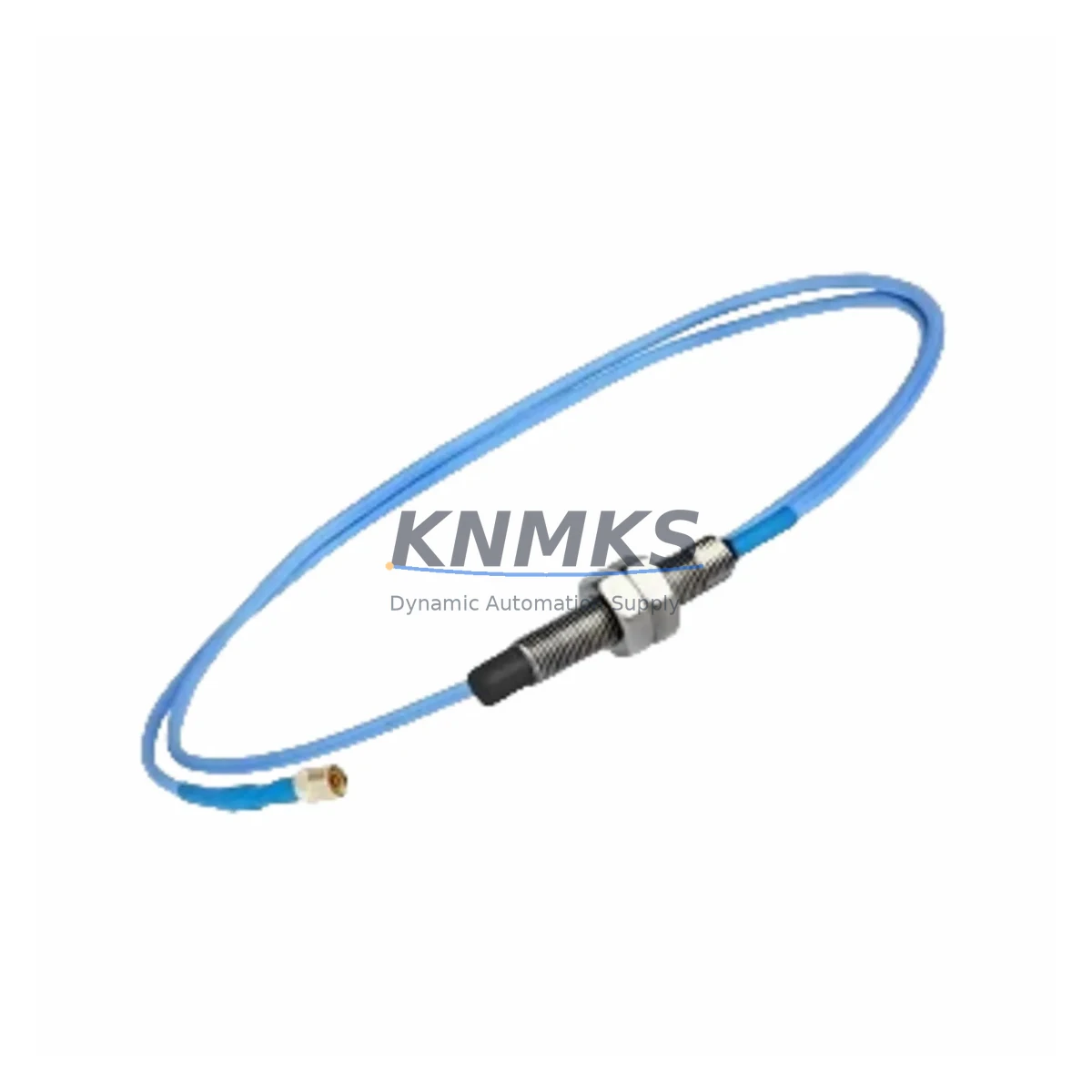

The Bently Nevada 330101-00-20-10-12-05 is an original 8mm proximity probe engineered for continuous vibration monitoring in the 3300 XL Series machinery protection system. Designed for rotating equipment such as turbines, compressors, pumps, and motors, this probe delivers precise non-contact displacement measurement critical to predictive maintenance programs and unplanned downtime prevention. Sourced from verified supply channels, each unit undergoes pre-shipment functional testing and ships with a support terms confirmed by quotation, ensuring maintenance engineers and procurement teams can act with confidence when sourcing emergency or planned replacements.

In high-availability industrial environments — petrochemical, power generation, oil and gas, and heavy manufacturing — the 3300 XL proximity probe is a first-line diagnostic component. When a probe fails or drifts out of calibration, the entire vibration channel is compromised, masking early-warning signatures of bearing wear, shaft misalignment, or rotor imbalance. Maintaining a qualified spare on the shelf is not optional; it is a core element of any credible machinery protection strategy. The 330101-00-20-10-12-05 is the correct replacement for 8mm probe assemblies in standard 3300 XL installations, and its availability from stock enables same-day dispatch to minimize mean time to repair (MTTR).

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330101-00-20-10-12-05 proximity probe in a 3300 XL installation, a disciplined maintenance engineer will not stop at the probe itself. The probe is one node in an interconnected measurement chain, and a thorough site inspection should cover all associated components to prevent repeat failures and ensure channel integrity after restoration.

Begin with the 3300 XL extension cable (typically from the 330130 series). Extension cables are subject to mechanical fatigue, connector corrosion, and insulation degradation — particularly in high-vibration or high-temperature zones. A worn extension cable will introduce signal noise or intermittent faults even with a new probe installed. Inspect the full cable run, connectors, and conduit entry points before closing the work order.

Next, verify the condition of the 3300 XL Proximitor Sensor (330180 series or equivalent). The Proximitor converts the probe’s raw eddy-current signal into a usable voltage output for the monitor. If the Proximitor has been exposed to voltage transients, moisture ingress, or extended operation beyond its rated temperature range, its internal calibration may have drifted. A replacement probe paired with a degraded Proximitor will not restore channel accuracy.

At the monitor rack level, inspect the 3300/16 or 3500 series monitor cards that receive the channel signal. Loose backplane connectors, oxidized card-edge contacts, or firmware mismatches can cause false alerts or missed trips even when field hardware is healthy. Confirm that the monitor’s gap voltage reading falls within the specified linear range (typically -10 VDC ± 1 VDC at the nominal gap) after probe installation.

For installations where the 3300 XL system interfaces with a DCS or safety instrumented system (SIS), verify the 4–20 mA or relay output wiring continuity and confirm that the trip setpoints have not been inadvertently altered during the maintenance window. Check associated terminal blocks and signal isolators in the marshalling cabinet for signs of overheating or loose terminations.

Finally, review the power supply module feeding the Proximitor. The 3300 XL Proximitor requires a stable -24 VDC supply. A power supply operating near its load limit or showing output ripple will degrade probe signal quality. If the power supply is original equipment and has not been replaced within the last five to seven years, include it in the next planned maintenance cycle. Keeping a spare 3300 XL power supply module alongside the probe in your critical spares inventory is a low-cost insurance policy against extended outages.

Site Replacement Workflow

Step 1 — Isolation and permit: Obtain a valid work permit and isolate the measurement channel at the monitor rack. Do not de-energize the entire protection system unless required by site procedure; most 3300 XL installations support single-channel bypass without tripping the machine.

Step 2 — Record baseline readings: Before disconnecting the existing probe, record the gap voltage, vibration amplitude, and any active alarms. This baseline confirms whether the probe was the root cause of the fault or whether the fault lies upstream in the extension cable or Proximitor.

Step 3 — Remove and inspect: Disconnect the probe from the extension cable at the field junction. Inspect the probe tip for physical damage, target surface contamination, or thread damage on the probe body. Inspect the mating connector for corrosion or bent pins.

Step 4 — Install 330101-00-20-10-12-05: Thread the replacement probe into the probe holder to the correct gap setting (typically 1.0 mm / 40 mils for standard steel targets — verify against the original system documentation). Secure the locknut and reconnect the extension cable.

Step 5 — Verify gap voltage: With the machine at rest, confirm the gap voltage at the Proximitor output is within the linear range. Adjust the probe gap if necessary. Document the final gap voltage in the maintenance record.

Step 6 — Return to service: Remove the channel bypass, confirm the monitor is displaying a valid reading, and verify that no spurious alarms are active. Update the equipment history log with the replacement date, part number, and gap voltage.

This workflow is compatible with both direct replacement of legacy 330101 series probes and migration from older 7200 series probe assemblies, provided the Proximitor and extension cable are also updated to 3300 XL-compatible versions. The 330101-00-20-10-12-05 is a drop-in replacement within the 3300 XL ecosystem and does not require monitor reconfiguration when substituting a like-for-like probe.

Spare Parts Support FAQ

Q1: Is the 330101-00-20-10-12-05 compatible with both the 3300 XL and older 3300 series monitors?
The 330101-00-20-10-12-05 is designed and rated for the 3300 XL Series. Compatibility with earlier 3300 (non-XL) monitors depends on the specific monitor card revision and Proximitor version installed. We recommend confirming the monitor model and firmware revision before ordering if your installation predates the 3300 XL platform. Our technical team can assist with compatibility verification prior to shipment.

Q2: What pre-shipment testing is performed on this probe?
Each 330101-00-20-10-12-05 unit is functionally tested before dispatch. Testing confirms electrical continuity, coil impedance within specification, and connector integrity. Units that do not pass testing are not shipped. A test record is available upon request for quality-critical procurement processes.

Q3: How should this probe be stored as a long-term spare?
Store the probe in its original packaging or an anti-static, moisture-resistant enclosure. Maintain storage temperature between -40°C and +85°C with relative humidity below 95% non-condensing. Inspect the probe tip and connector annually for corrosion. Probes stored correctly in a controlled environment retain full serviceability for five or more years. Rotate stock on a first-in, first-out basis if maintaining multiple units.

Q4: What is the support terms coverage and what does it include?
This part carries a support terms confirmed by quotation from the date of shipment. The support terms covers manufacturing defects and functional failure under normal operating conditions. It does not cover damage resulting from incorrect installation, operation outside rated parameters, or physical impact. Support requests are processed promptly — contact our sales team with the order reference and a description of the fault. Replacement or credit is issued after evaluation.
