Bently Nevada 330101-00-20-10-11-00 Migration-Ready Proximity Probe

Overview

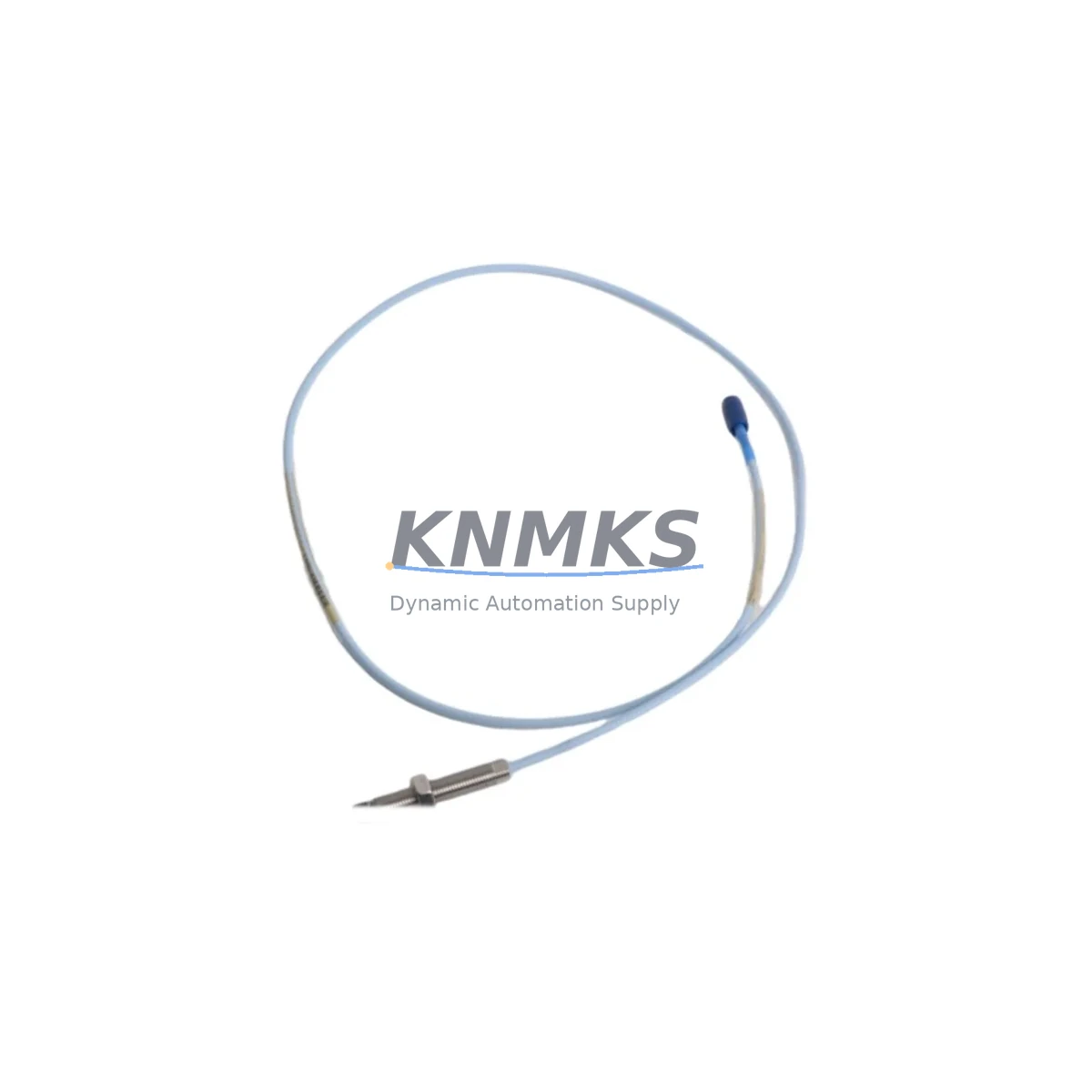

Bently Nevada 330101-00-20-10-11-00 Migration-Ready Proximity Probe: Legacy System Retrofit & Compatibility Upgrade

The Bently Nevada 330101-00-20-10-11-00 is an 8mm eddy-current proximity probe engineered for the 3300 XL Series vibration monitoring platform. As legacy rotating machinery protection systems reach end-of-life or face discontinued spare-part availability, this probe serves as a verified drop-in replacement for aging 3300 Series installations — enabling maintenance teams to extend system life, restore measurement accuracy, and defer full DCS migration without compromising machine protection integrity.

Designed for radial shaft vibration, axial position, and differential expansion measurement, the 330101-00-20-10-11-00 integrates directly with the Bently Nevada 3300 XL monitor rack. Its 5-metre extension cable configuration and standard TQ connector interface ensure backward compatibility with existing field wiring, junction boxes, and conduit runs — eliminating the need for cable rerouting or terminal block rewiring during a like-for-like swap. The probe tip diameter, sensitivity factor (200 mV/mil), and output voltage range are factory-calibrated to match the original specification, allowing the 3300 XL monitor to resume normal gap voltage readings without recalibration of the monitor card itself.

For facilities managing a phased migration from the 3300 XL platform toward the System 1 Evolution or 3701 Series condition monitoring architecture, this probe remains fully compatible with the interim monitoring period. It can operate in parallel with a 3300 XL proximitor/extension cable assembly — such as the 330130-045-00-00 extension cable or the 330180-X0-05 proximitor — while the new rack infrastructure is commissioned in an adjacent cabinet bay. This parallel-run approach is a proven strategy for reducing unplanned downtime during control system modernization projects.

Migration Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful proximity probe retrofit within a legacy rotating machinery protection system requires more than a physical swap. Maintenance engineers must audit the full measurement chain before and after installation to confirm signal integrity across every component in the loop.

Begin with the proximitor. The 330180-X0-05 proximitor (or equivalent 3300 XL-series proximitor) must be verified for output voltage range and OK relay threshold before the new probe is installed. A worn or out-of-tolerance proximitor will produce erroneous gap voltage readings even with a new probe, masking the true shaft position and triggering nuisance trips. If the proximitor is also at end-of-life, replace it concurrently to avoid a second outage window.

Extension cable integrity is equally critical. The 330130-045-00-00 extension cable — or the site-specific length variant — must be inspected for shield continuity, connector pin condition, and jacket integrity. Damaged extension cables introduce noise into the measurement loop that cannot be corrected at the monitor card level. Where cable replacement is required, confirm the total system cable length (probe integral cable + extension cable) remains within the 3300 XL calibrated range for the selected proximitor.

At the monitor rack level, confirm that the 3300/16 or 3300/25 monitor card channel assignment, OK relay wiring, and Keyphasor reference input (if applicable) are documented before any field work begins. For machines where a Keyphasor probe — such as the 330101-00-06-10-02-00 — is installed on the same shaft, verify that the Keyphasor gap voltage and trigger level are unaffected by the proximity probe replacement. Changes to shaft surface condition or probe mounting angle can alter the Keyphasor signal and disrupt phase-referenced vibration analysis in the System 1 software.

Where the retrofit is part of a broader control cabinet upgrade — for example, migrating from a legacy Allen-Bradley SLC 500 or Siemens S5 PLC to a modern ControlLogix or S7-1500 platform — the 3300 XL monitor rack analogue outputs feeding the PLC analogue input cards must be re-verified after the probe swap. Signal scaling, engineering unit conversion, and alarm setpoint configuration in the new PLC program must reflect the probe’s 200 mV/mil sensitivity factor. Failure to update these parameters will result in incorrect vibration readings in the SCADA or DCS historian, even if the physical installation is correct.

For I/O-intensive retrofit projects, consider whether the existing 3300 XL rack has sufficient channel capacity for the upgraded measurement plan. If additional radial or axial measurement points are required, the 3300/55 expansion monitor or a supplementary I/O rack may be needed. Coordinate installation space confirmation — standard 19-inch rack mounting — with the panel builder before ordering additional monitor cards.

Downtime Control During System Migration

Minimising production downtime during a proximity probe replacement or broader 3300 XL system migration requires a structured pre-outage preparation protocol. All replacement components — probe, extension cable, proximitor, and any monitor card spares — should be bench-tested and gap-voltage verified before the planned outage window begins. This eliminates the risk of discovering a defective spare during a live maintenance window.

Where the machine protection system permits, use the monitor card’s bypass or inhibit function to suppress alarms during the probe swap. Document the bypass activation time and ensure the shift supervisor and control room operator are notified before any bypass is applied. Restore the bypass immediately after gap voltage verification is complete and the OK relay has confirmed a healthy signal.

For critical machines where a cold outage is not acceptable, a hot-swap strategy using a parallel measurement chain — running the new probe and proximitor assembly alongside the existing loop before cutover — can reduce the live changeover window to under 15 minutes. This approach requires a spare monitor card channel or a temporary portable vibration analyser to validate the new probe’s output before the old loop is disconnected.

Preserve the original PLC or DCS program logic by exporting and archiving the current program version before any field changes are made. If the probe replacement is accompanied by a monitor card firmware update, confirm that the new firmware version is compatible with the existing System 1 software version and that the updated configuration file is backed up to the site’s document management system. Post-retrofit, conduct a full functional test — including trip relay actuation, OK relay dropout, and Keyphasor signal verification — before returning the machine to service.

Retrofit Support FAQ

Q1: Is the 330101-00-20-10-11-00 a direct replacement for the original Bently Nevada part?
Yes. The 330101-00-20-10-11-00 is a like-for-like replacement for the original OEM part of the same number. It maintains identical probe diameter, cable length, connector type, sensitivity, and linear range. No recalibration of the 3300 XL monitor card is required for a direct swap, provided the proximitor and extension cable are within specification.

Q2: What commissioning checks are required after installation?
After physical installation, measure the gap voltage at the proximitor output with the shaft stationary at the nominal gap distance. Confirm the reading falls within the 3300 XL monitor card’s configured OK voltage window (typically -10 to -18 VDC for an 8mm probe at nominal gap). Verify the OK relay is energised and that the monitor card displays a healthy channel status. For machines with a Keyphasor input, confirm the Keyphasor trigger level and phase reference are unchanged.

Q3: Can this probe be used with a System 1 Evolution or 3701 Series monitor?
The 330101-00-20-10-11-00 probe is calibrated for the 3300 XL proximitor system. It is not directly compatible with the 3701/40 or 3701/44 monitor cards, which use a different proximitor driver circuit. For System 1 Evolution migrations, consult the Bently Nevada migration guide to confirm the correct probe and proximitor combination for the target monitor platform.

Q4: What are the inventory availability and support terms terms?
The 330101-00-20-10-11-00 is held availability confirmed by RFQ and available for immediate shipment. Each unit is subject to pre-shipment functional testing including gap voltage output verification and connector integrity inspection. A support terms confirmed by quotation from the date of shipment covers manufacturing defects and out-of-specification performance. Contact our sales team for lead time confirmation on volume orders or blanket purchase agreements.
