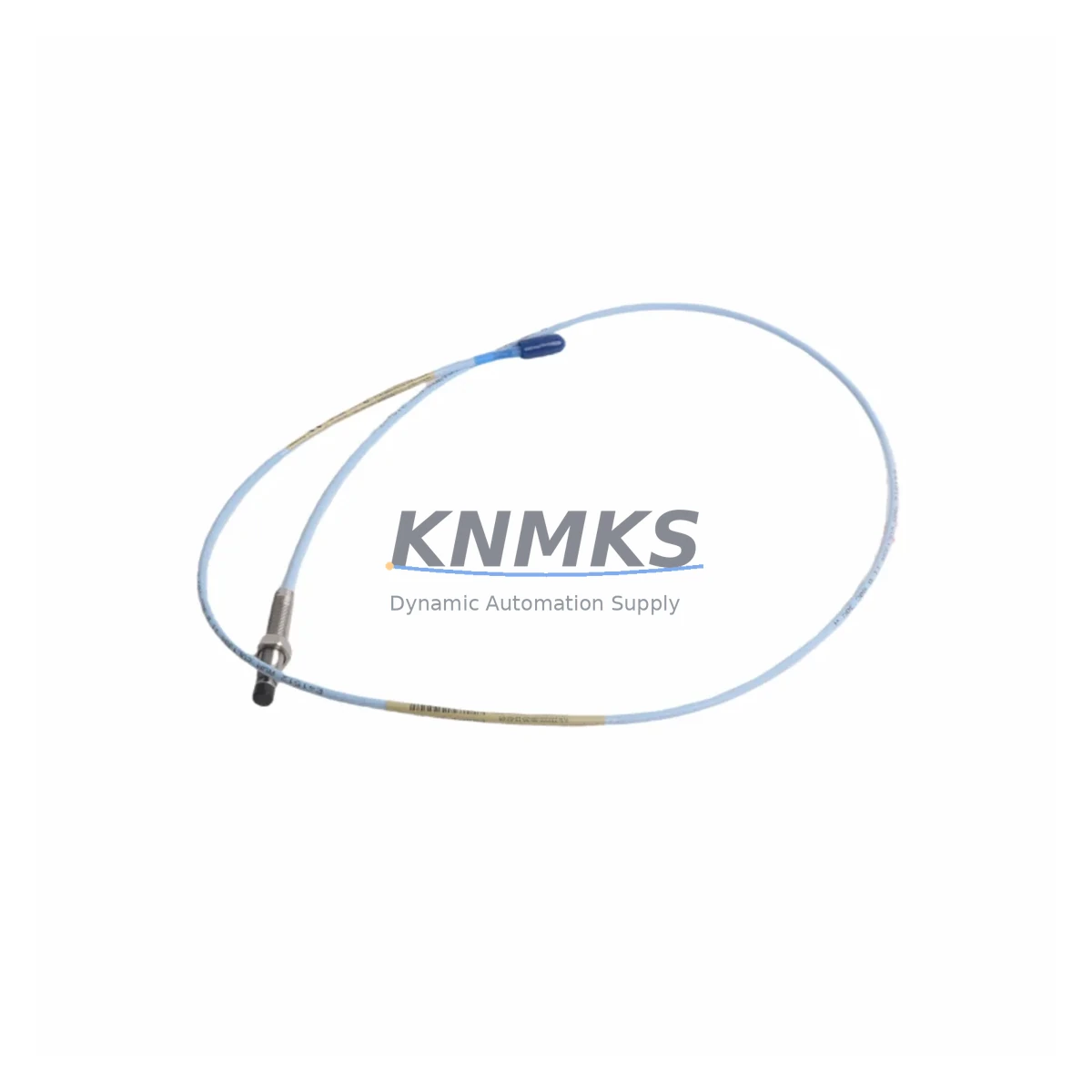

Bently Nevada 330101-00-20-10-02-05 Fail-Safe Proximity Transducer

Overview

Bently Nevada 330101-00-20-10-02-05 Fail-Safe Proximity Transducer: Fault-Protection and Critical Industrial Field Reliability

The Bently Nevada 330101-00-20-10-02-05 is an 8mm proximity transducer from the industry-proven 3300 XL Series, engineered for continuous, fail-safe vibration and position monitoring in the most demanding industrial control environments. Designed to operate within Bently Nevada’s tightly integrated proximity measurement chain — comprising the transducer, extension cable, and proximitor — this unit delivers high-resolution, non-contact displacement sensing with exceptional immunity to electromagnetic interference, mechanical shock, and thermal cycling. In rotating machinery protection systems, where a missed signal or false trip can result in catastrophic equipment failure or unplanned production shutdown, the 330101-00-20-10-02-05 provides the measurement integrity that safety engineers and reliability teams depend on.

Across petrochemical compressor trains, power generation turbines, mining hoists, water treatment pump stations, metallurgical rolling mills, port crane drives, and continuous process manufacturing lines, this transducer is deployed as a primary sensing element in critical interlock and protection loops. Its eddy-current operating principle ensures that shaft vibration, axial position, differential expansion, and eccentricity measurements remain accurate even in the presence of oil mist, process dust, high humidity, and wide ambient temperature swings — conditions that routinely degrade optical or contact-based sensing technologies.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

In a properly engineered machinery protection cabinet, the 330101-00-20-10-02-05 transducer does not operate in isolation. It forms the front-end sensing element of a complete measurement chain that must be carefully matched and protected to maintain system integrity under fault conditions. The Bently Nevada 330130-Series extension cable connects the transducer to the proximitor, and cable routing discipline — including separation from high-voltage power conductors and VFD output cables — is essential to prevent induced noise from corrupting the low-level displacement signal. At the proximitor end, the Bently Nevada 330180-X1-05 Proximitor conditions the signal and provides the –24 VDC bias voltage required for the eddy-current measurement loop; any instability in this supply directly impacts measurement accuracy and trip reliability.

Within the control cabinet, the proximitor rack is typically powered through a dedicated Bently Nevada 3500/15 Power Supply module, which provides regulated, isolated DC power to the entire 3500 Series monitoring rack. Surge protection at the cabinet entry point — using DIN-rail mounted transient voltage suppressors rated for the signal and power conductors — guards against lightning-induced surges and switching transients from adjacent motor starters or contactors. For installations where the 3300 XL measurement chain feeds directly into a safety instrumented system (SIS), the output signal is typically routed to a Bently Nevada 3500/40M Proximitor Monitor or equivalent voting logic module, which enforces the 1oo2 or 2oo3 voting architecture required by IEC 61511 for SIL-rated protection loops.

In high-vibration environments such as reciprocating compressor skids or large induced-draft fan installations, the transducer mounting hardware — including the lock nut, armored conduit fittings, and junction box — must be torqued and secured to prevent micro-movement that would introduce measurement drift. Pairing the 330101-00-20-10-02-05 with a Bently Nevada 330105-Series armored transducer in parallel on the same shaft journal provides redundant sensing for critical protection channels, ensuring that a single transducer failure does not result in a spurious trip or, worse, a missed alarm on a developing fault.

Critical Industrial Safety Applications

Petrochemical and Refinery Compressor Trains: In API 670-compliant machinery protection systems for centrifugal and axial compressors, the 330101-00-20-10-02-05 monitors radial shaft vibration and provides the primary input to the high-high vibration trip relay. Continuous operation in hydrogen-rich, high-temperature process environments demands the transducer’s full operating temperature range and chemical resistance. A trip failure in this application can result in seal damage, process gas release, and fire risk — making the fail-safe measurement integrity of the 3300 XL system non-negotiable.

Power Generation Turbines and Generator Sets: Steam and gas turbines operating at 3,000 or 3,600 RPM require sub-micron displacement resolution to detect early-stage rotor imbalance, bearing wear, and oil whirl instability. The 330101-00-20-10-02-05, integrated with the 3500 Series monitoring rack, provides the continuous, high-bandwidth vibration data that turbine protection systems require to distinguish normal operational vibration from fault-indicative signatures, enabling condition-based maintenance decisions that prevent forced outages.

Mining Hoists and Winding Engines: In underground mine hoist applications, shaft position monitoring using proximity transducers provides the primary input to the hoist control system’s overspeed and overtravel protection circuits. The transducer’s immunity to coal dust, water ingress, and mechanical shock — inherent in the eddy-current sensing principle — makes it suitable for the harsh environmental conditions of shaft headframes and winding engine rooms.

Water Treatment and Pump Stations: Large vertical turbine pumps and horizontal split-case pumps in municipal water infrastructure are increasingly monitored with proximity-based vibration systems to detect impeller wear, cavitation onset, and bearing degradation before catastrophic failure. The 330101-00-20-10-02-05 provides the continuous monitoring capability required for unattended pump station operation, where maintenance response times may be measured in hours rather than minutes.

Metallurgical Rolling Mills and Continuous Casters: In steel and aluminum production, rolling mill main drive motors and gearboxes operate under extreme radial and axial loading. Proximity transducers monitoring journal bearing oil film thickness and shaft eccentricity provide early warning of bearing distress, allowing planned roll changes rather than emergency stops that disrupt the continuous casting sequence and result in significant yield loss.

Safety and Quality FAQ

Q1: What support terms coverage is provided for the 330101-00-20-10-02-05?
All units supplied carry a support terms confirmed by quotation covering manufacturing defects and functional performance. Support requests are supported with replacement dispatch and technical documentation. Units are supplied with pre-shipment functional and calibration test records.

Q2: How is each unit tested before shipment?
Every 330101-00-20-10-02-05 transducer undergoes full functional verification prior to dispatch, including sensitivity calibration against a reference target, cable continuity and insulation resistance testing, and output linearity verification across the specified measurement range. Test records are available upon request for quality assurance and incoming inspection purposes.

Q3: Is this transducer compatible with existing 3300 XL proximitors and extension cables?
Yes. The 330101-00-20-10-02-05 is fully compatible with the Bently Nevada 3300 XL measurement chain, including 330130-Series extension cables and 330180-Series proximitors. It is also backward-compatible with legacy 3300 Series installations where the proximitor has been upgraded to XL specification. Confirm target material and gap setting with your system documentation before installation.

Q4: Can long-term supply continuity be assured for maintenance and spare parts planning?
Yes. Multi-unit stock is maintained for the 330101-00-20-10-02-05 to support both emergency replacement and planned maintenance programs. For facilities managing large rotating machinery fleets, standing supply agreements and reserved stock arrangements are available. Contact the sales team to discuss annual volume requirements and lead time commitments for your maintenance planning cycle.
