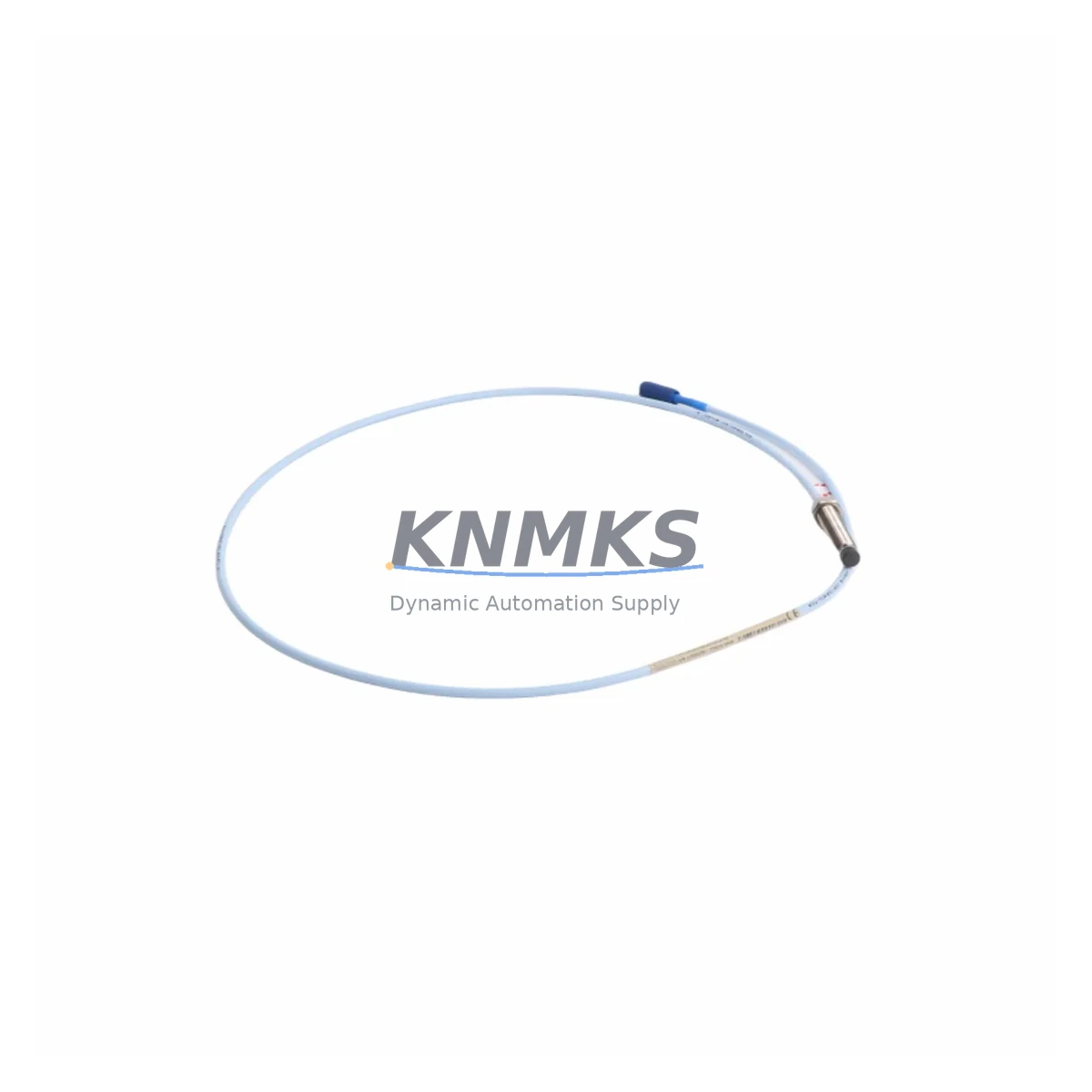

Bently Nevada 330101-00-20-10-02-00 Fail-Safe Proximity Transducer

Overview

Bently Nevada 330101-00-20-10-02-00 Fail-Safe Proximity Transducer: Critical Fault Protection for Industrial Rotating Equipment

The Bently Nevada 330101-00-20-10-02-00 is an 8mm eddy-current proximity transducer from the industry-proven 3300 XL Series, engineered for continuous, fail-safe vibration and position monitoring of rotating machinery in the most demanding industrial environments. Designed to meet the rigorous demands of critical machinery protection systems, this transducer delivers stable, drift-free output signals even under conditions of high electromagnetic interference, mechanical vibration, thermal cycling, and contaminated atmospheres — conditions that routinely compromise lesser sensing components and trigger unplanned shutdowns.

In continuous production facilities — petrochemical plants, power generation stations, mining operations, water treatment infrastructure, metallurgical processing lines, port crane systems, and marine propulsion platforms — control interruptions caused by sensor failure are not merely inconvenient. They represent safety hazards, regulatory compliance failures, and significant financial losses. The 330101-00-20-10-02-00 is purpose-built to eliminate these risks at the sensing layer, providing the reliable shaft displacement and vibration data that safety interlock systems, turbine protection panels, and condition monitoring platforms depend upon to make accurate, timely protective decisions.

Paired with the Bently Nevada 3300 XL Extension Cable and a compatible 3300 XL Proximitor® Sensor (such as the 330180 series), this transducer forms a complete, calibrated measurement chain. The system’s eddy-current operating principle ensures non-contact measurement, eliminating mechanical wear at the sensing interface and guaranteeing long-term signal integrity without recalibration drift. When integrated into a Bently Nevada 3500 Series Machinery Protection System rack, the transducer’s output feeds directly into voted safety logic, enabling automatic trip actions before catastrophic bearing failure or rotor contact can occur.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Reliable machinery protection begins well before the control cabinet — it starts at the transducer tip. The 330101-00-20-10-02-00 anchors the sensing layer of a multi-component protection architecture. Within the control cabinet, its signal is received and conditioned by the Bently Nevada 3500/42M Proximitor® / Seismic Monitor, which applies configurable alert and danger setpoints, performs signal validation, and drives relay outputs to the safety interlock system. Surge transients from nearby high-power switching equipment — variable frequency drives, motor starters, and transformer banks — are a persistent threat to signal integrity in heavy industrial cabinets. The 3300 XL system’s shielded coaxial cabling and differential signal architecture provide inherent rejection of common-mode noise, protecting measurement accuracy without requiring additional signal conditioning hardware.

For installations where cabinet thermal management is a concern — particularly in enclosed outdoor switchgear rooms or tropical-climate process plants — the transducer’s wide operating temperature range ensures continued accurate measurement even as ambient temperatures inside the enclosure rise. Complementary thermal protection for the electronics within the same cabinet is typically provided by Bently Nevada 3500 Series rack cooling accessories and proper airflow design. In high-vibration environments such as compressor trains or reciprocating pump skids, the transducer’s rigid mounting thread and integral cable strain relief prevent connector loosening and intermittent signal loss — a common failure mode with inferior sensing components that can generate spurious trip signals and cause unnecessary production interruptions.

Power supply stability is equally critical. The –24 VDC supply feeding the Proximitor® sensor should be sourced from a dedicated, regulated industrial power supply with sufficient hold-up time to ride through momentary grid disturbances. Pairing the 3300 XL measurement chain with a Bently Nevada 3500/15 Power Supply module within the same rack ensures that voltage fluctuations on the plant bus do not propagate into the measurement system and generate false alarms or missed trips. For communication-intensive installations where the 3500 rack interfaces with a DCS or safety PLC via Modbus TCP or OPC-DA/UA, maintaining clean, isolated communication grounds prevents ground loop currents from corrupting the analog measurement signals that the proximity transducer produces.

Critical Industrial Safety Applications

The 330101-00-20-10-02-00 proximity transducer is deployed across a broad spectrum of critical industrial safety applications where rotating equipment reliability is non-negotiable.

In petrochemical and refinery operations, it monitors shaft radial vibration on centrifugal compressors, boiler feed pumps, and reactor agitators — equipment whose unplanned failure can trigger process upsets, flare events, or hazardous material releases. The transducer’s API 670-compliant measurement chain provides the data backbone for safety instrumented functions (SIFs) that automatically isolate rotating equipment before mechanical damage propagates to catastrophic failure.

In power generation facilities — gas turbines, steam turbines, and large hydro generators — the 3300 XL proximity transducer provides the shaft position and vibration data required for turbine supervisory control. Differential expansion monitoring using axially-mounted 330101-series transducers protects against thermal rub events during startup and load transients, preventing rotor-stator contact that would cause immediate, costly damage.

In mining and mineral processing environments, where dust ingress, high ambient vibration, and aggressive chemical atmospheres challenge sensor longevity, the 330101-00-20-10-02-00’s robust construction and sealed cable assembly maintain measurement integrity on ball mills, SAG mills, slurry pumps, and conveyor drive gearboxes. Continuous vibration trending enables condition-based maintenance scheduling, replacing reactive breakdown maintenance with planned interventions that minimize production loss.

In water and wastewater treatment infrastructure, the transducer supports reliable monitoring of high-speed centrifugal pumps and blower trains operating in humid, corrosive atmospheres. In metallurgical and steel plant applications, it withstands the intense electromagnetic interference generated by arc furnaces and induction heating systems. In port and marine installations, it provides vibration monitoring for propulsion shaft lines and cargo pump turbines, where saltwater corrosion and vessel motion add additional environmental stress to the sensing system.

Safety and Quality FAQ

Q1: What does the support terms confirmed by quotation cover for the 330101-00-20-10-02-00?
The support terms confirmed by quotation cover all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If the transducer fails to meet its specified output linearity, sensitivity, or temperature performance within the confirmed support period, we provide replacement or repair at no additional cost. Support requests are processed promptly to minimize your site downtime.

Q2: What pre-shipment testing is performed before dispatch?
Every 330101-00-20-10-02-00 unit undergoes full functional verification prior to shipment. This includes output signal linearity checks across the specified gap range, cable continuity and insulation resistance testing, and visual inspection for connector integrity and cable jacket condition. Test records are available upon request for quality documentation purposes.

Q3: Is this transducer compatible with existing 3300 XL Proximitor® sensors and 3500 Series racks already installed at our site?
Yes. The 330101-00-20-10-02-00 is a standard 3300 XL Series 8mm transducer and is fully compatible with all 3300 XL Proximitor® sensors and 3500 Series Machinery Protection System rack monitors. It is a direct replacement for worn or failed units in existing installations, requiring no reconfiguration of the Proximitor® or rack monitor setpoints, provided the gap and sensitivity settings remain unchanged.

Q4: Can you support long-term spare parts supply for multi-site maintenance programs?
Yes. We maintain stock of the 330101-00-20-10-02-00 and related 3300 XL Series components to support planned maintenance schedules, emergency replacements, and multi-site spare parts programs. Long-term supply agreements covering 12–36 months of forecasted consumption are available, ensuring your critical rotating equipment protection systems are never compromised by spare parts shortages. Contact our team to discuss volume pricing and consignment stock arrangements.
