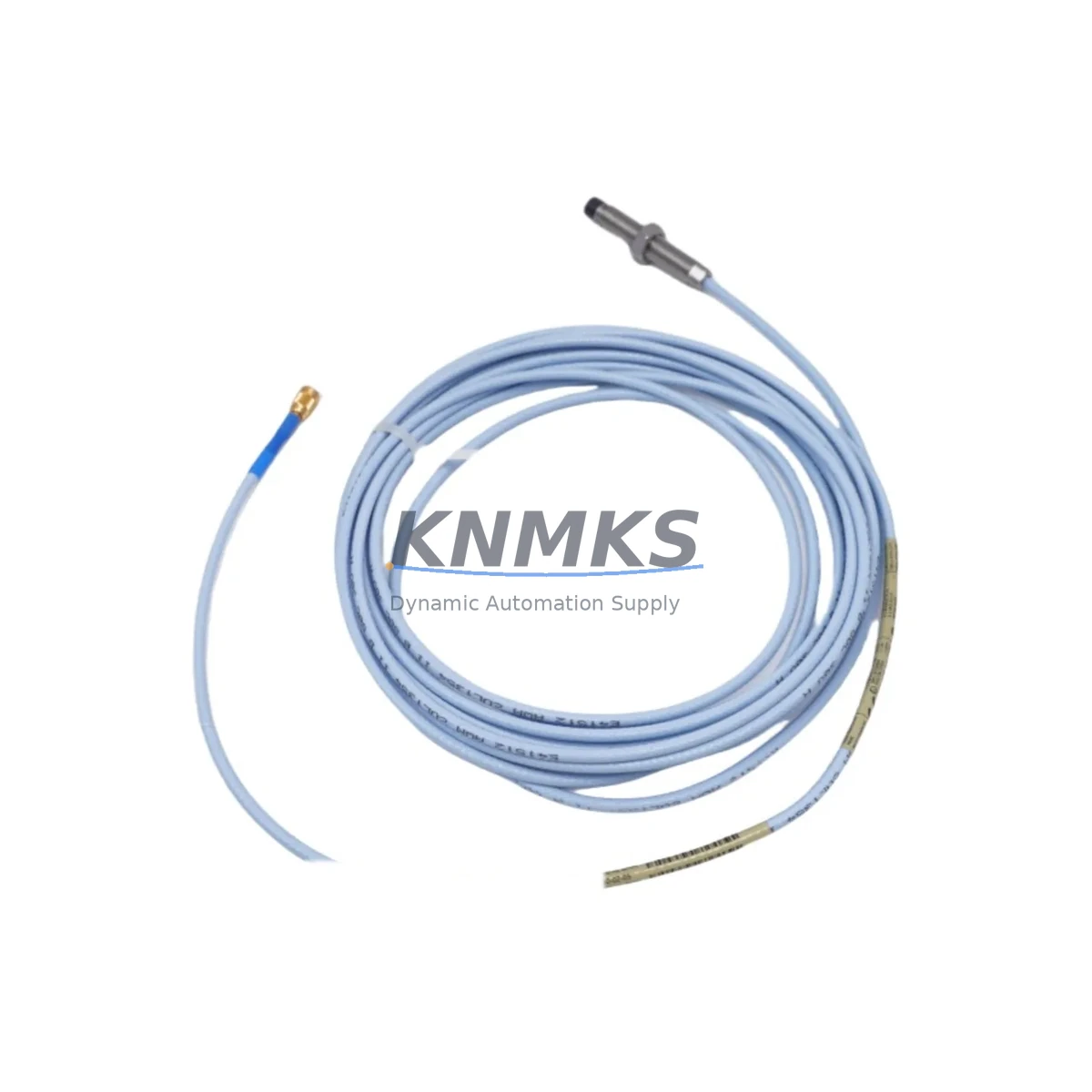

Bently Nevada 330101-00-20-05-02-05 Fail-Safe Proximity Probe

Overview

Bently Nevada 330101-00-20-05-02-05 Fail-Safe Proximity Probe: Industrial Control Reliability and Fault Protection

The Bently Nevada 330101-00-20-05-02-05 is an 8mm eddy-current proximity probe engineered for continuous, fail-safe vibration and position monitoring in the most demanding industrial environments. As a core component of the Bently Nevada 3300 XL Series monitoring system, this probe delivers high-resolution, non-contact measurement of shaft radial vibration, axial position, and differential expansion — critical parameters for protecting rotating machinery in petrochemical plants, power generation facilities, mining operations, and continuous process manufacturing sites.

In high-stakes control environments where unplanned downtime carries severe operational and safety consequences, the 330101-00-20-05-02-05 provides the signal integrity and environmental resilience required for reliable machinery protection. Its eddy-current sensing principle operates without physical contact, eliminating mechanical wear and ensuring consistent output even under sustained high-speed shaft rotation. The probe’s shielded coaxial cable construction and precision-wound sensing coil resist electromagnetic interference (EMI) and radio-frequency interference (RFI) — a critical advantage in control cabinets and field installations where variable-frequency drives, high-current bus bars, and switching power supplies generate significant electrical noise.

Paired with the Bently Nevada 3300 XL Proximitor Sensor (such as the 330180-X1-05 or 330130-040-00-00 extension cable assemblies), this probe forms a complete eddy-current measurement chain. The Proximitor converts the probe’s raw inductance signal into a calibrated DC voltage output, which feeds directly into the 3500 Series Machinery Protection System rack — including modules such as the 3500/42M Proximitor/Seismic Monitor or the 3500/22M Transient Data Interface — enabling real-time alarm and trip logic for overspeed, high vibration, and thrust position deviation. This tightly integrated signal chain minimizes signal drift, reduces false trips, and ensures that safety interlock systems receive accurate, stable inputs at all times.

The 330101-00-20-05-02-05 is rated for operation across a wide temperature range, making it suitable for both ambient-temperature control rooms and high-temperature process environments such as gas turbine enclosures, steam turbine pedestals, and compressor trains. Its stainless-steel housing and threaded tip design allow secure mechanical mounting in proximity probe holders, maintaining consistent gap distance and preventing vibration-induced probe migration — a common source of measurement error and nuisance trips in heavy industrial installations.

In control cabinet protection strategies, this probe is typically deployed alongside the Bently Nevada 3300 XL Proximitor Sensor, the 3500 rack power supply module (3500/15 Power Supply), and the 3500/20 Rack Interface Module, which together form a redundant, fault-tolerant monitoring architecture. When integrated with a DCS or safety instrumented system (SIS) via the 3500 rack’s relay outputs or 4–20 mA analog outputs, the probe’s measurements can trigger automated protective actions — including turbine trip, pump shutdown, or compressor unload — before mechanical damage propagates to catastrophic failure.

Fail-Safe Reliability Table

Control Cabinet Protection Strategy

Effective machinery protection in critical industrial installations requires more than a single sensor — it demands a coordinated, layered architecture across the entire signal chain and control cabinet. The 330101-00-20-05-02-05 proximity probe anchors this architecture at the field measurement level, but its reliability is multiplied when deployed alongside complementary Bently Nevada and third-party protection components.

Within the 3500 Series rack, the 3500/15 Power Supply module provides regulated, redundant DC power to all monitoring cards, ensuring that power fluctuations, voltage sags, or upstream supply interruptions do not compromise measurement continuity. The 3500/20 Rack Interface Module manages communication between the rack and the plant DCS or SIS, supporting Modbus, Ethernet/IP, and hardwired relay outputs for direct trip integration. For applications requiring seismic or velocity measurement alongside proximity data, the 3500/42M Proximitor/Seismic Monitor card accepts inputs from both the 330101-series proximity probes and velocity transducers, enabling multi-parameter protection from a single rack slot.

In high-EMI environments — such as those adjacent to large motor control centers, variable-frequency drives, or high-voltage switchgear — the shielded extension cable assemblies (330130-040-00-00 or equivalent) maintain signal integrity between the probe and the Proximitor, preventing ground loops and capacitive coupling that could introduce measurement noise or false alarms. For installations in hazardous areas classified as Zone 1 or Zone 2 (ATEX/IECEx), Zener barrier or galvanic isolator modules are installed in the cabinet to provide intrinsic safety protection, ensuring that the probe circuit cannot ignite flammable atmospheres even under fault conditions.

Cabinet thermal management is equally critical: in high-ambient-temperature enclosures, the probe’s wide operating temperature range (–35°C to +121°C) ensures continued measurement accuracy without signal drift, while cabinet-mounted temperature monitoring modules provide early warning of thermal overload conditions that could degrade other electronic components in the same enclosure.

Critical Industrial Safety Applications

The Bently Nevada 330101-00-20-05-02-05 is deployed across a broad spectrum of critical industrial applications where continuous, fail-safe vibration monitoring is a regulatory and operational requirement.

In petrochemical and refinery operations, this probe monitors the radial vibration of centrifugal compressors, process pumps, and steam turbine-driven equipment. Continuous monitoring enables early detection of rotor imbalance, bearing wear, and seal degradation — allowing maintenance teams to schedule corrective action during planned shutdowns rather than responding to catastrophic failures that can result in process fires, toxic releases, or extended production outages.

In power generation facilities — including gas turbines, steam turbines, and large synchronous generators — the probe provides the axial position and differential expansion measurements required by OEM protection logic and regulatory standards such as API 670. Accurate thrust position monitoring prevents rotor-stator contact, which can destroy a turbine in seconds and result in months of lost generation capacity.

In mining and mineral processing environments, where equipment operates under heavy load, high vibration, and exposure to dust and moisture, the probe’s IP67-rated housing and stainless-steel construction ensure long-term measurement reliability without frequent recalibration or replacement. Ball mill drives, crusher motors, and conveyor head pulleys are typical monitoring points.

In water and wastewater treatment plants, the probe monitors large vertical pump motors and blower trains that operate continuously with minimal maintenance access. Early vibration trend detection allows operators to plan bearing replacements during low-demand periods, avoiding unplanned outages that can disrupt municipal water supply.

In metallurgical and steel production facilities, the probe is used on rolling mill drives, continuous caster pinch rolls, and blast furnace blower trains — all of which operate in high-temperature, high-vibration environments where conventional contact sensors would fail prematurely.

Safety and Quality FAQ

Q1: What support terms is provided for the 330101-00-20-05-02-05?
All units are supplied with a support terms confirmed by quotation covering manufacturing defects and functional performance. Support terms support includes replacement or repair at no additional cost within the coverage period.

Q2: What pre-shipment testing is performed?
Every 330101-00-20-05-02-05 unit undergoes full functional verification prior to dispatch, including eddy-current output calibration check, cable continuity and insulation resistance testing, and connector integrity inspection. A test report is available upon request.

Q3: Is this probe compatible with existing 3300 XL Proximitor Sensors and 3500 Series racks?
Yes. The 330101-00-20-05-02-05 is fully compatible with the Bently Nevada 3300 XL Proximitor Sensor family and integrates directly with the 3500 Series Machinery Protection System rack. It is also backward-compatible with legacy 3300 Series installations where the Proximitor and extension cable specifications are matched.

Q4: Can long-term supply continuity be guaranteed for critical spare parts programs?
Yes. We maintain multi-region stock of the 330101-00-20-05-02-05 and related 3300 XL Series components to support emergency replacement, planned maintenance programs, and long-term spare parts agreements. Contact our team to discuss consignment stock or scheduled supply arrangements for your facility.

© 2026 KNMKS. All rights reserved.
Original Source: https://knmks.com
Contact: [email protected] | +86 18359268345
