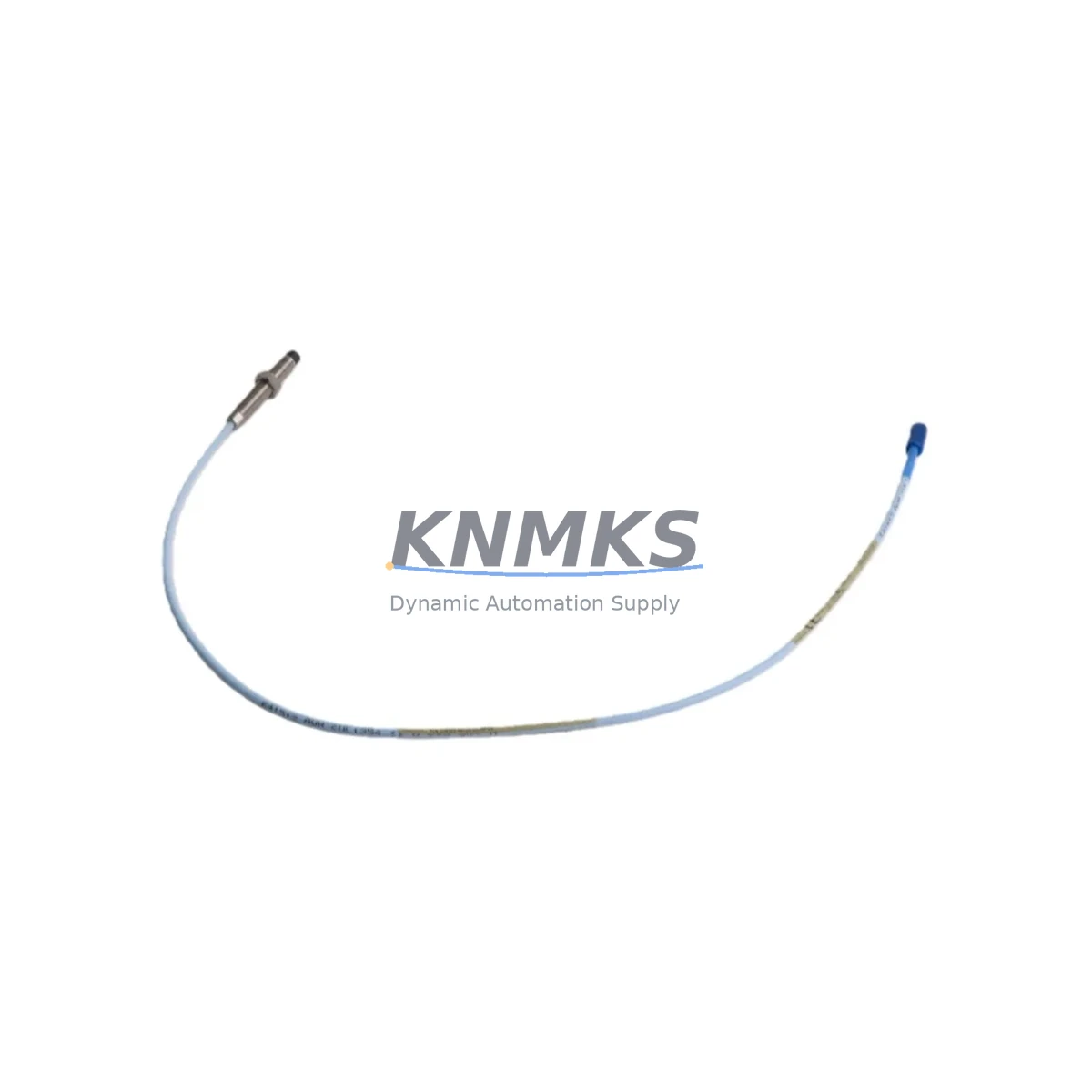

Bently Nevada 330101-00-20-05-02-02 Maintenance-Proven Spare Part for Factory Uptime

The Bently Nevada 330101-00-20-05-02-02 is an original proximity transducer engineered for continuous vibration monitoring in rotating machinery applications. Designed as a core component of the Bently Nevada 3300 XL Series monitoring system, this transducer delivers reliable eddy-current sensing for shaft displacement, radial vibration, and axial position measurement in turbines, compressors, pumps, and motors across energy, petrochemical, and heavy manufacturing environments.

For maintenance engineers managing critical rotating assets, the 330101-00-20-05-02-02 represents a field-proven replacement that restores system integrity without requiring recalibration of the entire monitoring loop. Its 5 mm sensing range and 500 mm armored cable make it a direct fit for standard 3300 XL probe installations, minimizing downtime during scheduled or emergency replacement. Procurement engineers can source this part with confidence: each unit ships with full traceability documentation, pre-shipment electrical verification, and a support terms confirmed by quotation covering manufacturing defects under normal operating conditions.

Maintaining a buffer stock of this transducer is a recognized best practice in facilities operating multiple 3300 XL monitoring channels. A single unplanned vibration monitor failure can trigger a protective shutdown on a critical asset, resulting in production losses that far exceed the cost of a spare transducer. Stocking one or two units per monitored machine train is a low-cost insurance strategy widely adopted in refinery, power generation, and LNG compression facilities.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330101-00-20-05-02-02 proximity transducer during a planned outage or emergency intervention, a thorough inspection of the surrounding monitoring loop is essential to prevent repeat failures and ensure measurement accuracy is fully restored.

Begin with the extension cable — the 3300 XL system uses a matched cable-driver-transducer set, and a degraded or kinked extension cable (such as the Bently Nevada 330130-045-00-00 or equivalent 4.5 m extension) will corrupt the output signal even with a new probe installed. Inspect the cable jacket for abrasion, heat damage, or connector corrosion at both the probe and driver ends.

Next, verify the proximitor / driver module (e.g., Bently Nevada 3300 XL 8 mm Proximitor, part series 330180) mounted in the monitoring rack. A failed or drifting driver will produce incorrect gap voltage readings and may cause nuisance trips or missed alarms. Swap the driver if gap voltage at the nominal installation distance deviates more than ±0.5 VDC from the system calibration record.

Check the 3300 XL monitor card in the rack — vibration monitor modules such as the Bently Nevada 3300/16 or 3300/20 series process the transducer signal and generate alarm and trip outputs. Inspect the card for blown indicator LEDs, loose edge connectors, or firmware faults logged in the system event history.

Inspect terminal blocks and field wiring in the junction box between the machine and the monitoring rack. Loose terminations, moisture ingress, or ground loops at the shield termination point are common causes of elevated noise floors that mimic real vibration events. Tighten all terminals and verify shield grounding is single-point at the rack end.

If the facility uses a signal isolator or barrier in the transducer loop (common in Zone 1 or Zone 2 hazardous area installations), verify the isolator’s output range and linearity. A degraded Zener barrier or galvanic isolator can clip the transducer’s dynamic range and prevent accurate peak-to-peak vibration measurement.

Finally, confirm the power supply rail feeding the proximitor — typically -24 VDC. Voltage sag or ripple on this rail, often caused by a failing DIN-rail power supply shared with other field instruments, will directly affect transducer sensitivity and system alarm thresholds. Measure the supply under load and replace if output deviation exceeds ±2%.

Site Replacement Workflow

Step 1 — Isolation and Permit: Obtain a work permit and confirm the monitored machine is in a safe state. Do not bypass the vibration monitor trip without authorization from the control room.

Step 2 — Gap Voltage Baseline: Before removing the old transducer, record the existing gap voltage from the proximitor front panel or DCS display. This value is your reference for setting the new probe installation depth.

Step 3 — Probe Removal: Unscrew the 330101-00-20-05-02-02 from the probe holder using the correct spanner. Inspect the probe tip for impact damage or target material buildup. Clean the probe holder threads.

Step 4 — New Probe Installation: Thread the replacement 330101-00-20-05-02-02 into the holder. Adjust the axial position until the gap voltage matches the baseline value (typically -10 VDC at 1.0 mm gap for 8 mm probes — confirm against your system calibration sheet). Lock the probe with the jam nut.

Step 5 — Signal Verification: With the machine at rest, confirm gap voltage is within the linear range. Reconnect the extension cable and verify the monitor card shows a healthy status with no fault indicators.

Step 6 — Return to Service: Remove the monitor bypass (if applied), confirm alarm and trip setpoints are active, and document the replacement in the maintenance management system with the new probe serial number and installation gap voltage.

This workflow supports direct replacement of legacy 330101 series probes without requiring system reconfiguration, preserving compatibility with existing 3300 XL monitor cards, extension cables, and DCS integration.

Spare Parts Support FAQ

Q1: Is the 330101-00-20-05-02-02 compatible with all 3300 XL monitor cards?
Yes. The 330101-00-20-05-02-02 is designed for the Bently Nevada 3300 XL 8 mm transducer system and is compatible with the full range of 3300 XL monitor cards when used with the correct matched extension cable and proximitor driver. Always verify the system calibration record to confirm the probe-cable-driver combination matches the original specification.

Q2: What pre-shipment testing is performed before dispatch?
Each unit undergoes electrical continuity testing, insulation resistance measurement, and sensitivity verification against the Bently Nevada factory specification before shipment. A test report is available upon request. Units are packed in anti-static, shock-resistant packaging to prevent transit damage.

Q3: What is the recommended inventory strategy for critical rotating machinery?
For facilities with multiple monitored machine trains, we recommend maintaining a minimum of one spare 330101-00-20-05-02-02 per two monitored shafts, plus one spare extension cable and one spare proximitor driver per monitoring rack. This buffer supports same-shift replacement during unplanned failures without waiting for emergency procurement, which typically carries premium freight costs and extended lead times.

Q4: Can long-term supply agreements be arranged for this part?
Yes. KNMKS supports blanket purchase orders and long-term supply commitments for the 330101-00-20-05-02-02 and related 3300 XL series components. Frame agreements include reserved stock allocation, fixed pricing for the contract period, and priority dispatch. Contact [email protected] or +86 18359268345 to discuss your facility’s annual consumption and lead time requirements.
